NSN 5320-01-289-2444 MS20605R3W2, 01-289-2444, 012892444

Product Details | BLIND RIVET

5320-01-289-2444 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: MS20605R3W2, 5320-01-289-2444, 01-289-2444, 5320012892444, 012892444

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	18 NOV 1988	01-289-2444	00864 ( RIVET, BLIND )

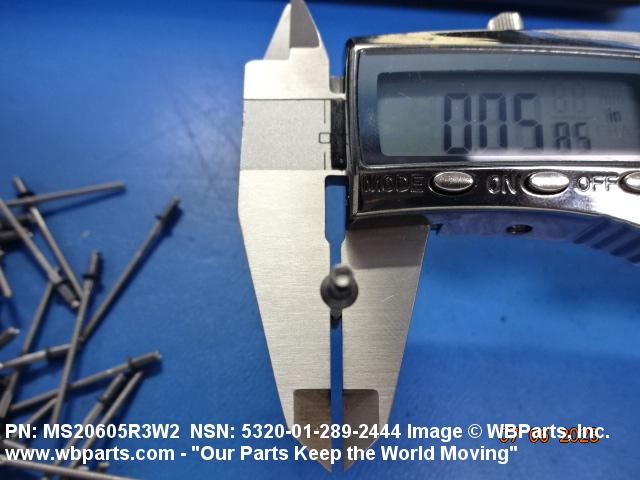

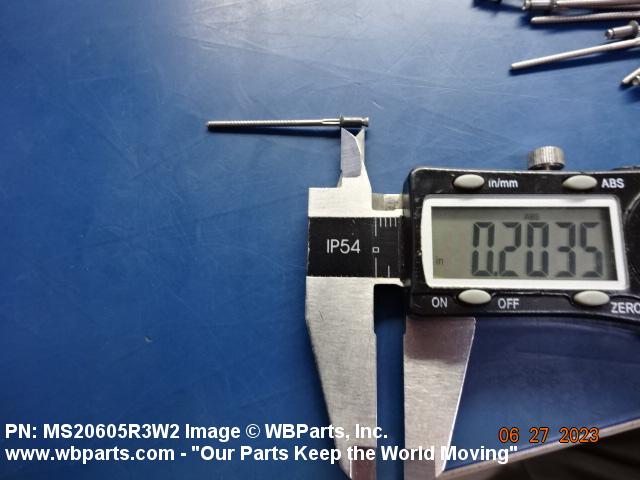

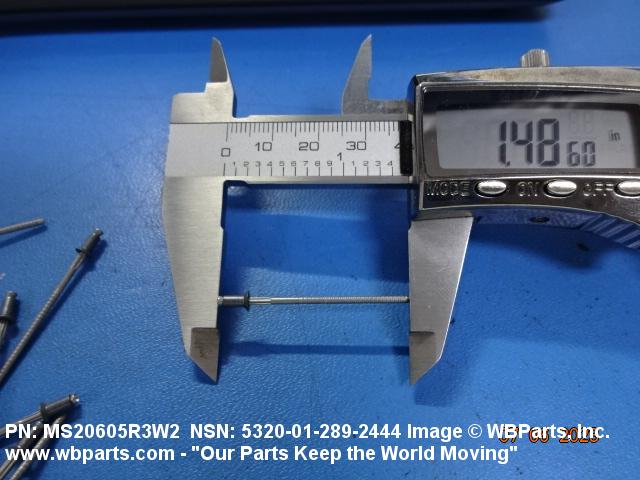

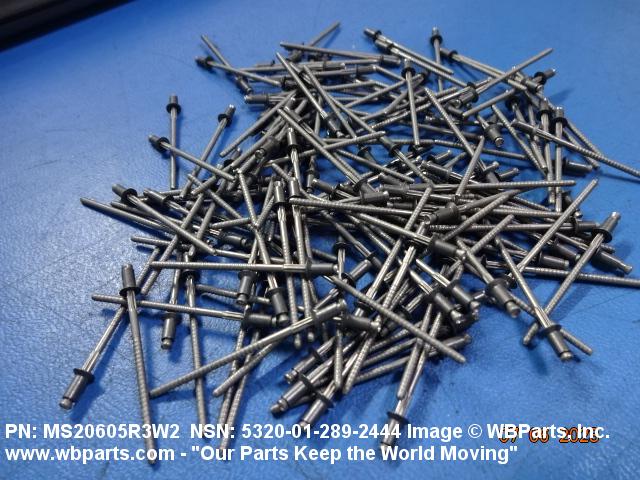

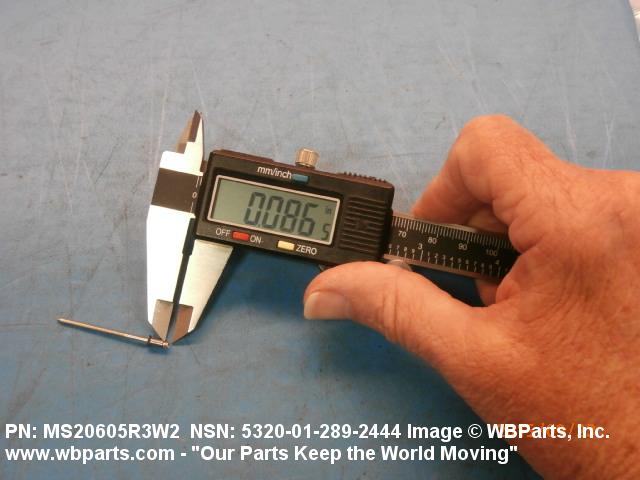

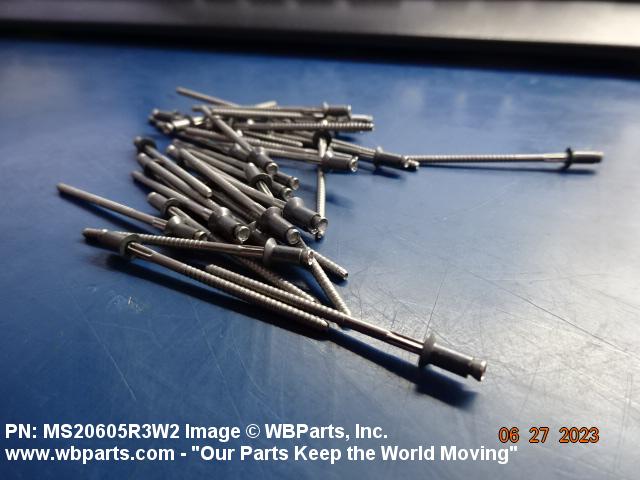

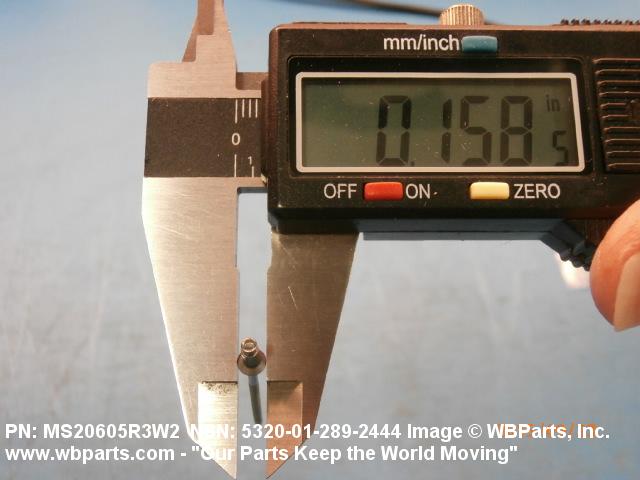

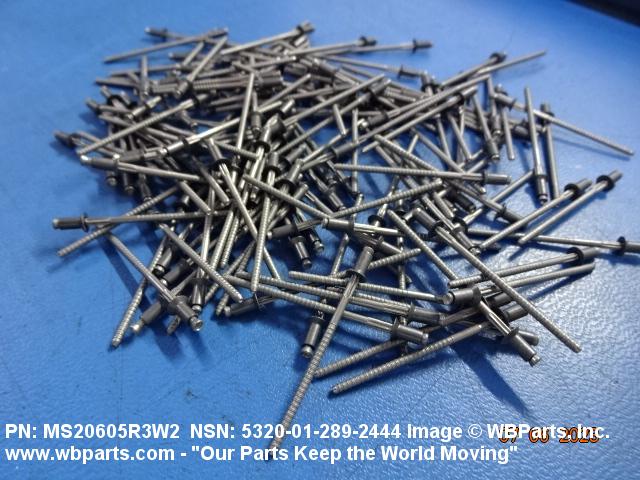

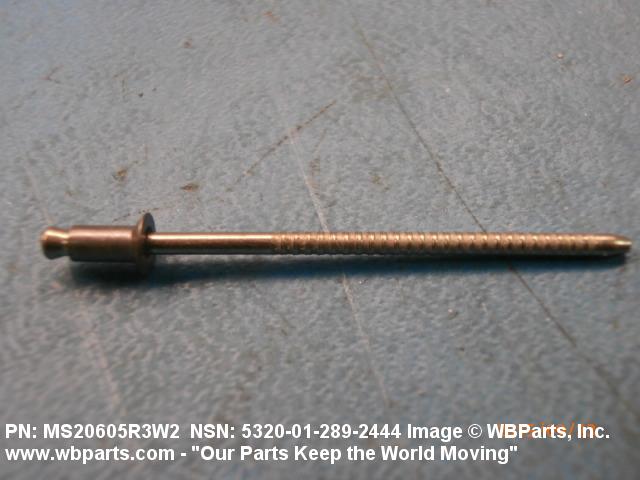

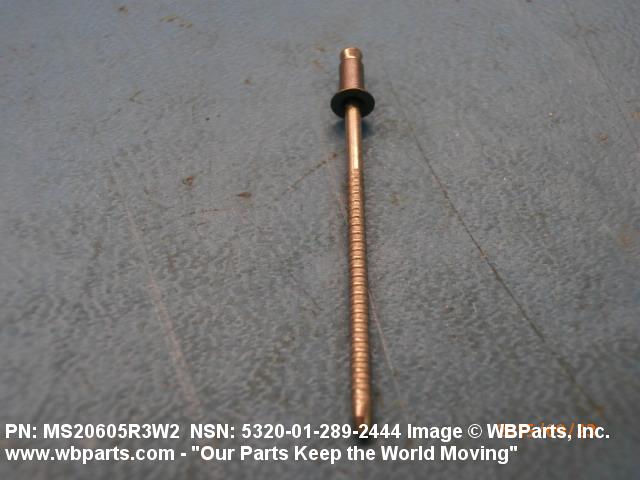

Drawings & Photos | NSN 5320-01-289-2444

Part Number	Request Date	QTY	Origin
5320-01-289-2444	2024-10-278	1000	us
MS20605R3W2	2024-07-204	500	Taiwan
MS20605R3W2	2024-07-192	160	Japan
MS20605R3W2	2024-01-17	1000	India
MS20605R3W2	2023-11-325	4000	United States
MS20605R3W2	2023-10-276	150	Taiwan
MS20605R3W2	2023-08-222	1000	India
5320-01-289-2444	2023-06-172	16740	DIBBS
MS20605R3W2	2023-05-146	5000	United States
MS20605R3W2	2023-05-146	7500	United States
MS20605R3W2	2023-04-108	5000	United States
MS20605R3W2	2022-09-269	500	UK
MS20605R3W2	2022-09-248	560	India
5320-01-289-2444	2022-04-103	1	United States
5320-01-289-2444	2021-12-355	5810	US
5320-01-289-2444	2020-10-296	1000	Taiwan
5320-01-289-2444	2020-10-296	1300	Taiwan
5320-01-289-2444	2020-06-154	92	United States
MS20605R3W2	2019-12-336	1	TW
MS20605R3W2	2019-07-182	80	TW
MS20605R3W2	2019-05-127	100	United States
MS20605R3W2	2019-05-127	200	United States
MS20605R3W2	2019-05-127	500	United States
MS20605R3W2	2019-05-127	1000	United States
5320-01-289-2444	2018-03-64	500	Taiwan
5320-01-289-2444	2017-12-353	500	Taiwan
MS20605R3W2	2017-05-131	250	US
MS20605R3W2	2015-09-261	160	United States
MS20605R3W2	2015-09-260	1	United States
MS20605R3W2	2015-09-260	100	United States
MS20605R3W2	2015-09-260	160	United States
MS20605R3W2	2015-09-260	500	United States
MS20605R3W2	2014-04-115	12	US
MS20605R3W2	2014-04-115	28	US
MS20605R3W2	2014-04-115	56	US
MS20605R3W2	2014-04-115	112	US
MS20605R3W2	2014-04-115	220	US
5320-01-289-2444	2014-02-56	250	US
MS20605R3W2	2013-11-323	360	Israel
MS20605R3W2	2012-10-305	1476	Taiwan
MS20605R3W2	2012-05-131	100	Taiwan
5320-01-289-2444	2011-11-311	1300	IN
5320-01-289-2444	2011-10-301	120	US
5320-01-289-2444	2011-10-301	300	US
5320-01-289-2444	2011-10-301	600	US
MS20605R3W2	2010-09-260	150	United States
MS20605R3W2	2009-05-126	400	US
MS20605R3W2	2009-03-84	500	United States
5320-01-289-2444	2008-10-296	12	United States
MS20605R3W2	2006-08-214	100	United States

Cross Reference | NSN 5320-01-289-2444

Part Number	Cage Code	Manufacturer
MS20605R3W2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-289-2444

Compare

Related Products | NSN 5320-01-289-2444

5320-01-289-2445, 5320-01-289-2446, 5320-01-289-3221, 5320-01-289-3222, 5320-01-289-3223

Technical Data | NSN 5320-01-289-2444

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 SLEEVE STEEL COMP 305 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE ASTM A493 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C9 FLUSH COUNTERSUNK

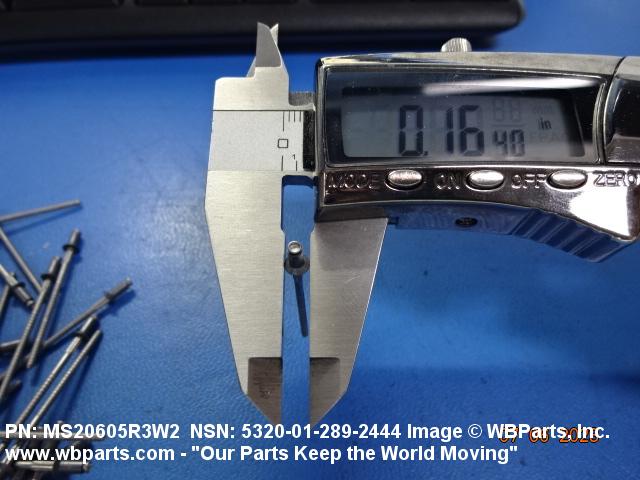

HEAD MAJOR DIAMETER	0.183 INCHES MAXIMUM
COUNTERSINK ANGLE	98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM
SHANK STYLE	D29 SELF-PLUGGING HIGH CLINCH SHANK

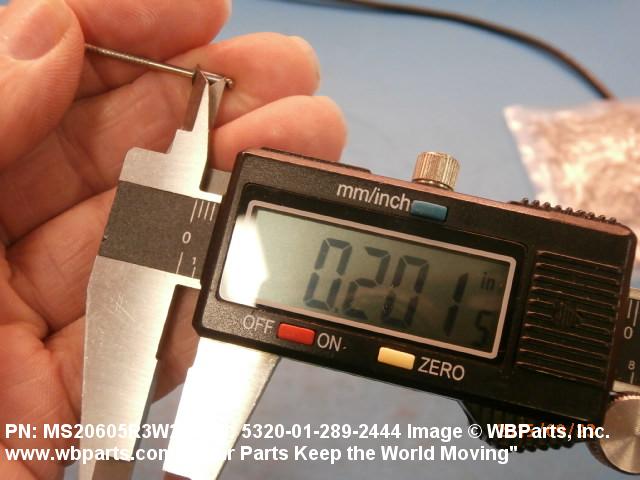

FASTENER LENGTH	0.203 INCHES MAXIMUM

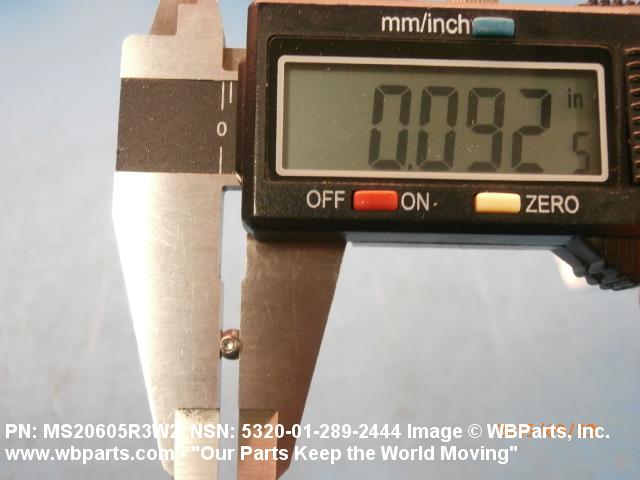

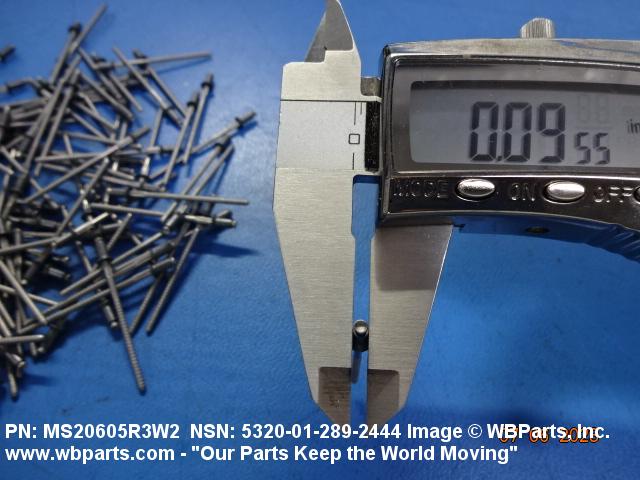

SHANK DIAMETER	0.092 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
GRIP LENGTH	0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
LUBRICATION	DRY FILM
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20605R3W2

Restrictions/Controls & Freight Information | NSN 5320-01-289-2444

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-289-2444

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
