NSN 5320-01-288-4552 NAS1724HC422E, NAS1724HC4-22E, 01-288-4552

Product Details | PIN-RIVET

5320-01-288-4552 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: NAS1724HC422E, NAS1724HC4-22E, 5320-01-288-4552, 01-288-4552, 5320012884552, 012884552

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 NOV 1988	01-288-4552	67165 ( PIN-RIVET )

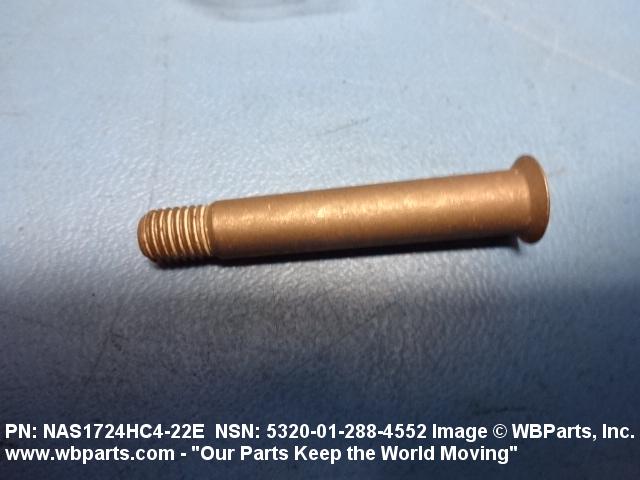

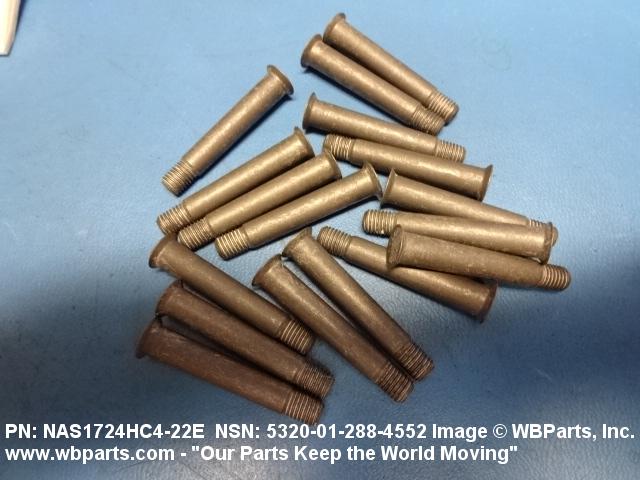

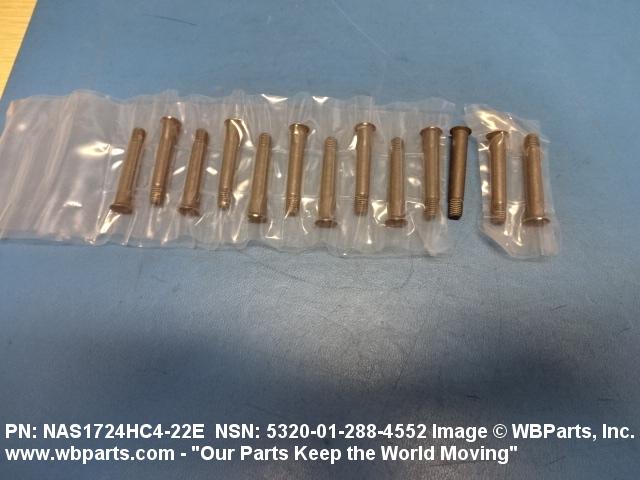

Drawings & Photos | NSN 5320-01-288-4552

Part Number	Request Date	QTY	Origin
NAS1724HC4-22E	2019-06-157	126	DIBBS
NAS1724HC4-22E	2019-05-149	126	DIBBS
NAS1724HC4-22E	2019-03-87	71	DIBBS
NAS1724HC4-22E	2019-03-86	33	DIBBS
NAS1724HC4-22E	2019-03-78	33	DIBBS
5320-01-288-4552	2018-09-248	45	United States
5320-01-288-4552	2018-08-231	27	DIBBS
5320-01-288-4552	2018-08-231	45	DIBBS
5320-01-288-4552	2018-08-230	27	DIBBS
5320-01-288-4552	2018-08-230	45	DIBBS
5320-01-288-4552	2018-04-112	135	DIBBS
5320-01-288-4552	2018-02-52	9	DIBBS
5320-01-288-4552	2017-07-209	30	United States
5320-01-288-4552	2017-06-171	30	DIBBS
5320-01-288-4552	2016-04-108	15	DIBBS
5320-01-288-4552	2016-04-94	15	DIBBS
5320-01-288-4552	2014-09-266	10	DIBBS
5320-01-288-4552	2013-01-31	6	DIBBS
5320-01-288-4552	2010-05-129	2	DIBBS

Cross Reference | NSN 5320-01-288-4552

Part Number	Cage Code	Manufacturer
NAS1724HC4-22E	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
NAS1724HC4-22E	27624	SPS TECHNOLOGIES, LLC DBA PB FASTENERS
NAS1724HC4-22E	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
NAS1724HC4-22E	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1724HC4-22E	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-288-4552

Compare

Related Products | NSN 5320-01-288-4552

5320-01-288-4553, 5320-01-288-4654, 5320-01-288-4655, 5320-01-288-4656, 5320-01-288-4657

Technical Data | NSN 5320-01-288-4552

Characteristic	Specifications
MATERIAL	STEEL COMP H11 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-8837,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	260000 POUNDS PER SQUARE INCH
HEAD STYLE	A9 FLUSH COUNTERSUNK

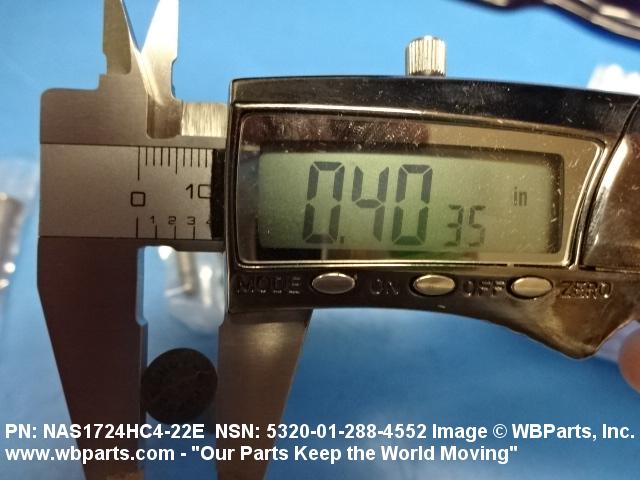

HEAD MAJOR DIAMETER	0.439 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
SHANK STYLE	B33 PIN-RIVET, TAPERED, THREADED

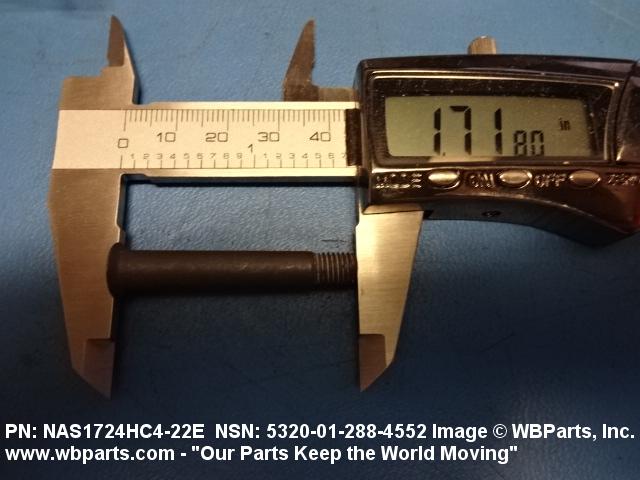

FASTENER LENGTH	1.697 INCHES MINIMUM AND 1.722 INCHES MAXIMUM

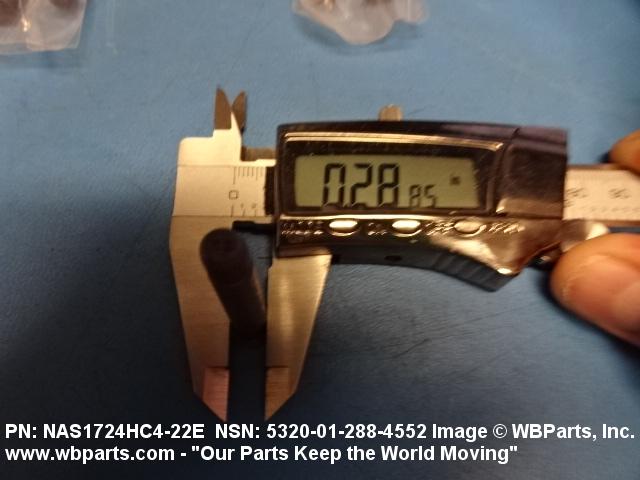

SHANK DIAMETER	0.2884 INCHES NOMINAL
TIP DIAMETER	0.2629 INCHES NOMINAL

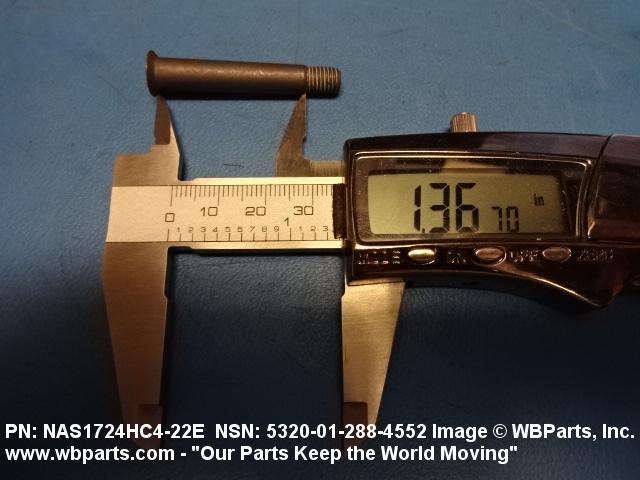

GRIP LENGTH	1.365 INCHES MINIMUM AND 1.380 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	28
THREAD DIRECTION	RIGHT-HAND
LUBRICATION	DRY FILM AND CETYL ALCOHOL
SPECIFICATION/STANDARD DATA	80205-NAS1724 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5320-01-288-4552

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-288-4552

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
