NSN 5320-01-287-7134 AF3223504, AF3223-5-04 , NAS9301E504
Product Details | BLIND RIVET
5320-01-287-7134 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: AF3223504, AF3223-5-04 , NAS9301E504, NAS9301E-5-04, CR322354, CR3223-5-4, 10338838 , 5265897004, 5265897-004, 939.19.86.114, 9391986114, 5320-01-287-7134, 01-287-7134, 5320012877134, 012877134
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 OCT 1988 | 01-287-7134 | 00864 ( RIVET, BLIND ) |

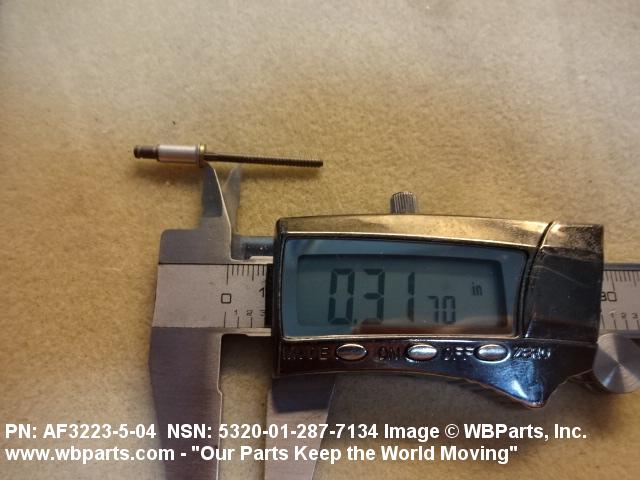

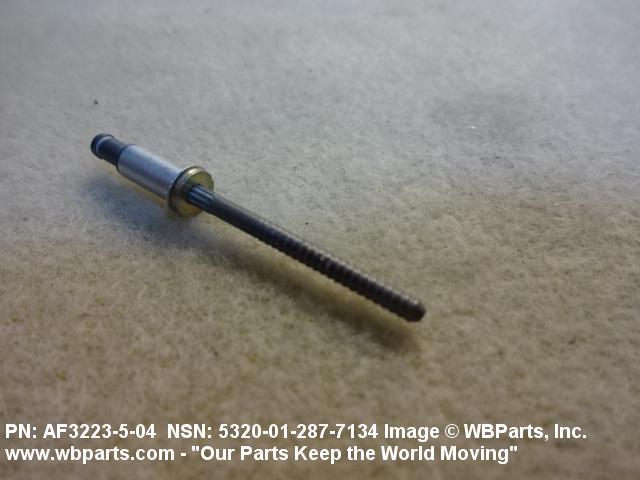

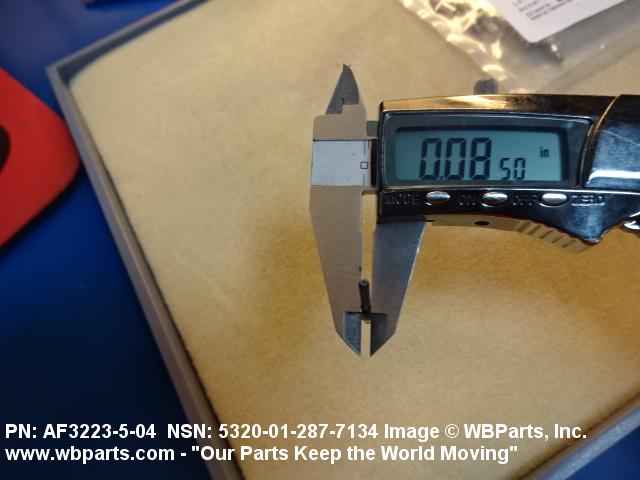

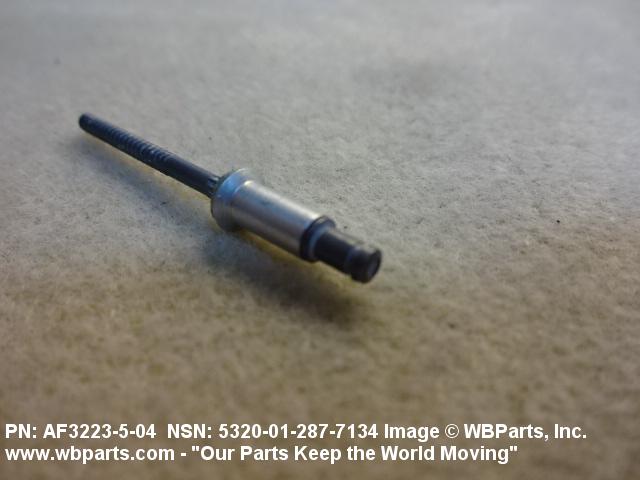

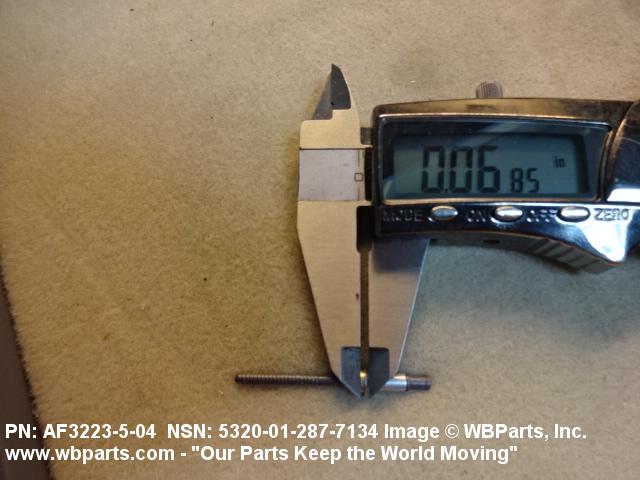

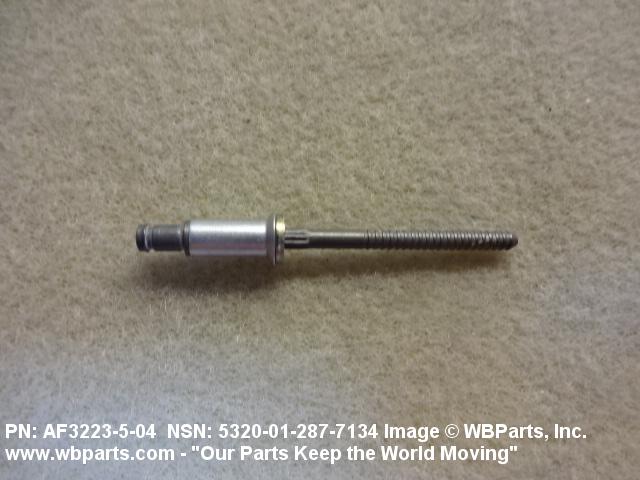

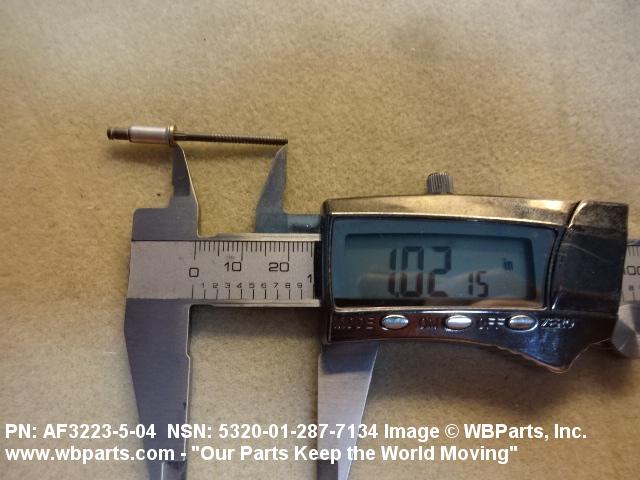

Drawings & Photos | NSN 5320-01-287-7134
Demand History | NSN 5320-01-287-7134
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR322354 | 2019-03-60 | 500 | US |
| 5320-01-287-7134 | 2011-02-46 | 100 | MX |
| CR322354 | 2008-12-337 | 4000 | Canada |
| NAS9301E504 | 2006-11-307 | 20 | United States |
Cross Reference | NSN 5320-01-287-7134
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5265897-004 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 939.19.86.114 | S4080 | PILATUS AIRCRAFT LTD |
| AF3223-5-04 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR3223-5-4 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3223-5-4 | R1120 | SATAIR A/S |
| NAS9301E-5-04 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
