NSN 5320-01-287-0389 NAS1241AD33, NAS1241AD3-3, 01-287-0389

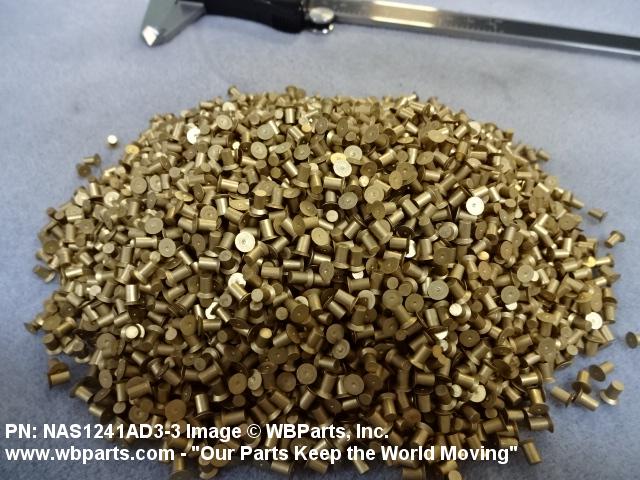

5320-01-287-0389 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: NAS1241AD33, NAS1241AD3-3, 5320-01-287-0389, 01-287-0389, 5320012870389, 012870389

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 OCT 1988	01-287-0389	00861 ( RIVET, SOLID )

Part Number	Request Date	QTY	Origin
5320-01-287-0389	2019-03-03	1	DIBBS
5320-01-287-0389	2018-06-12	100	Austria
NAS1241AD3-3	2014-06-06	50	United States
NAS1241AD33	2007-10-15	50	US

Part Number	Cage Code	Manufacturer
NAS1241AD3-3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5320-01-287-0389

Compare

5320-01-287-0390, 5320-01-287-0391, 5320-01-287-0392, 5320-01-287-0927, 5320-01-287-0928

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CHROMATE OR ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL
HEAT TREATMENT	T-4 SOLUTION HEAT TREATED OVERALL
SHEAR STRENGTH	26000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	C9 FLUSH COUNTERSUNK

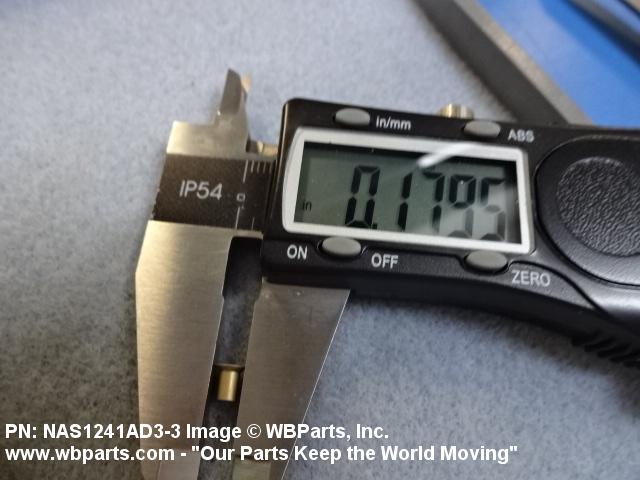

HEAD MAJOR DIAMETER	0.175 INCHES MINIMUM AND 0.183 INCHES MAXIMUM
COUNTERSINK ANGLE	99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM
SHANK STYLE	D10 STRAIGHT WITH RADIUS CHAMFERED TIP

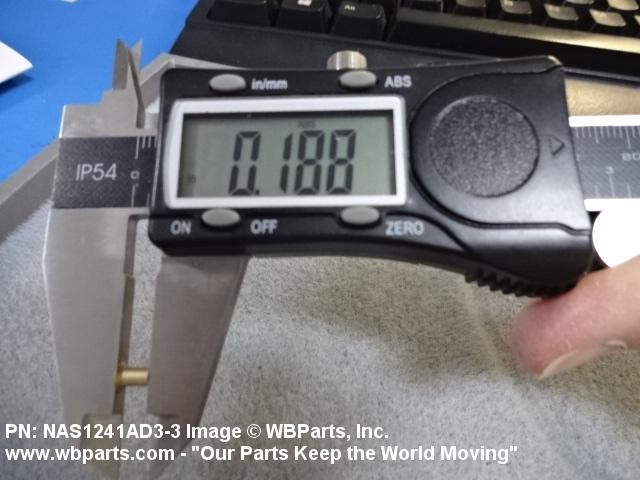

FASTENER LENGTH	0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM

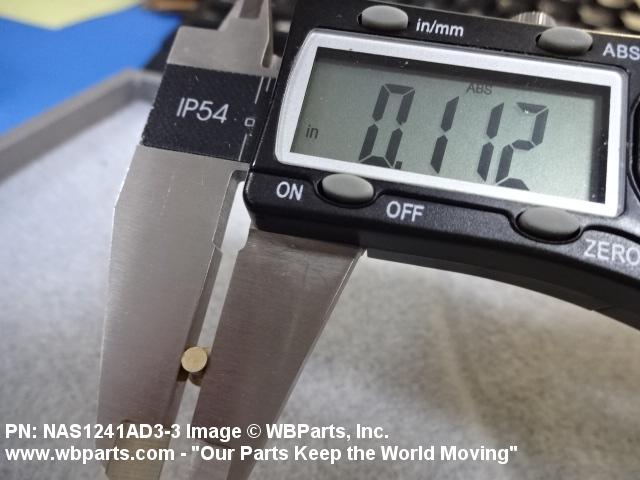

SHANK DIAMETER	0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1241 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
