NSN 5320-01-285-7747 MS14218AD54, MS14218AD5-4, 10125539
Product Details | SOLID RIVET

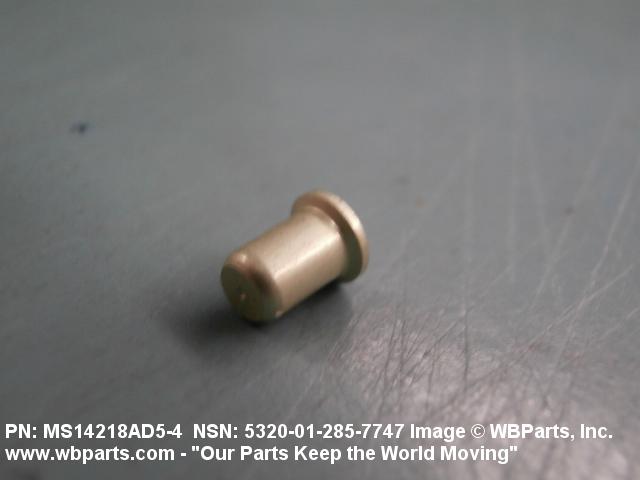

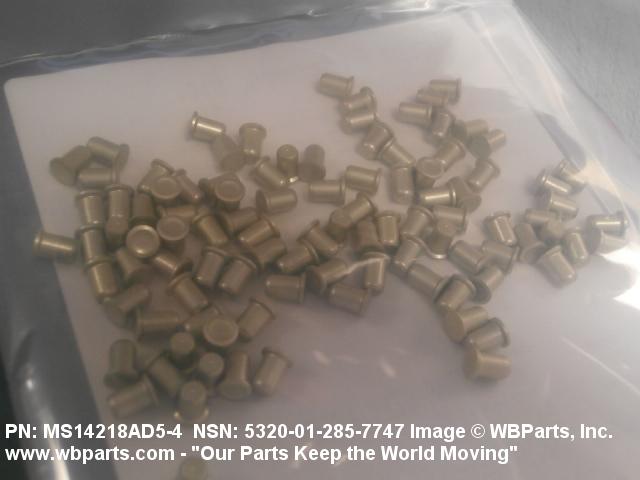

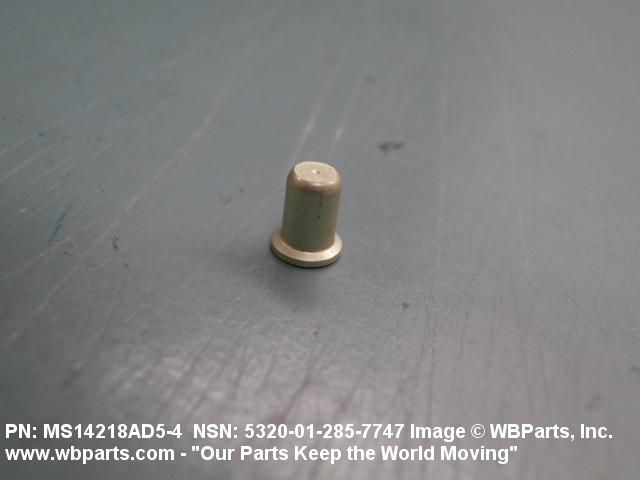

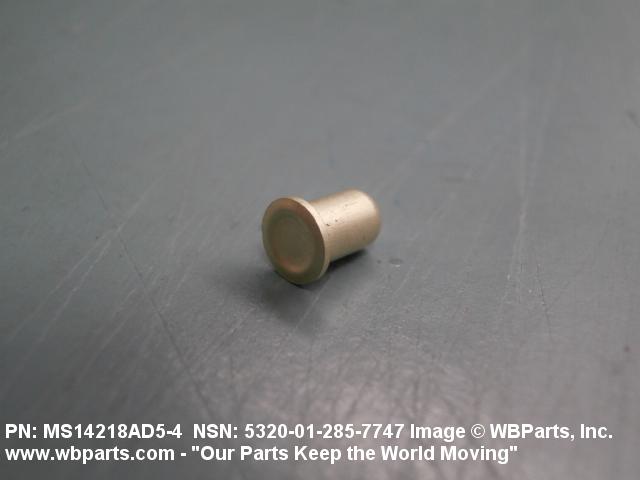

5320-01-285-7747 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS14218AD54, MS14218AD5-4, 10125539 , 5320-01-285-7747, 01-285-7747, 5320012857747, 012857747
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 SEP 1988 | 01-285-7747 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-285-7747
Demand History | NSN 5320-01-285-7747
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-285-7747 | 2016-01-10 | 2000 | DIBBS |
| MS14218AD54 | 2014-06-02 | 50 | United States |
| 5320-01-285-7747 | 2012-10-22 | 2605 | DIBBS |
| 5320-01-285-7747 | 2010-12-29 | 2880 | DIBBS |
| MS14218AD54 | 2008-08-27 | 60 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-285-7747
Related Products | NSN 5320-01-285-7747
Technical Data | NSN 5320-01-285-7747
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 38000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 18000 POUNDS PER SQUARE INCH |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C7 COUNTERSUNK WITH REVERSE CHAMFER |
| HEAD HEIGHT | 0.035 INCHES NOMINAL |

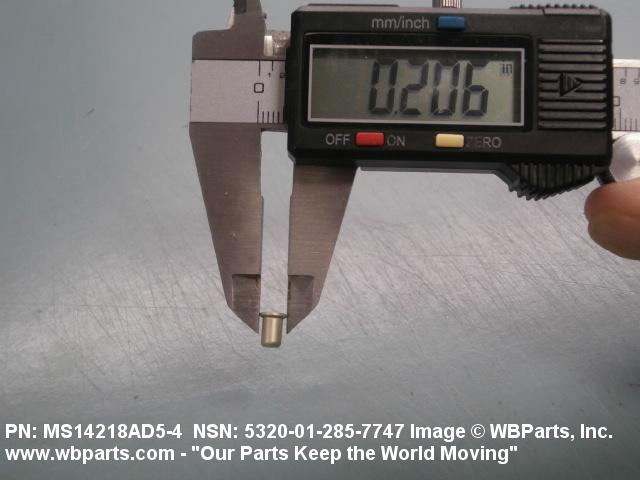

| HEAD MAJOR DIAMETER | 0.210 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 118.5 DEGREES MINIMUM AND 121.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

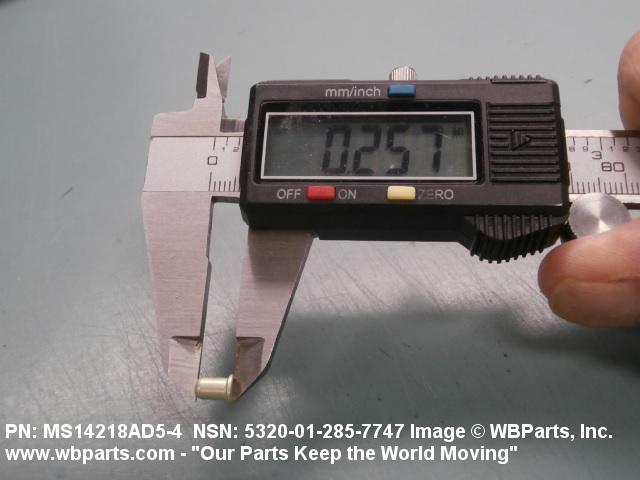

| FASTENER LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

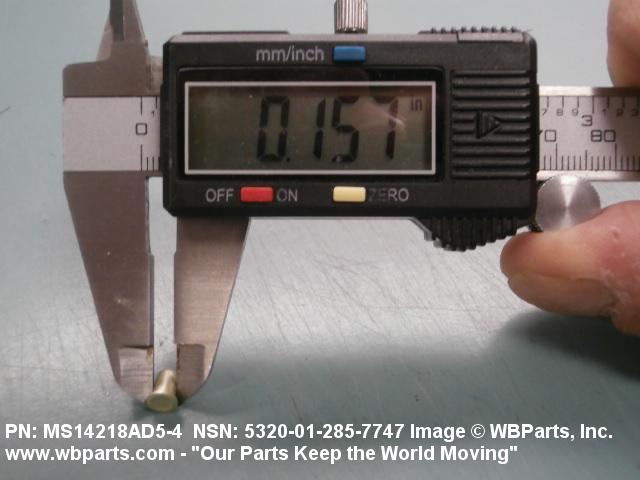

| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14218AD5-4 |
Restrictions/Controls & Freight Information | NSN 5320-01-285-7747
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
