NSN 5320-01-285-5992 BN360TF4283, BN360TF-428-3, VALA2B5F24283
Product Details | BLIND RIVET
5320-01-285-5992 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: BN360TF4283, BN360TF-428-3, VALA2B5F24283, VALA2B5F2-428-3 , 1143803915, 11438039-15, 5320-01-285-5992, 01-285-5992, 5320012855992, 012855992
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1988 | 01-285-5992 | 00864 ( RIVET, BLIND ) |

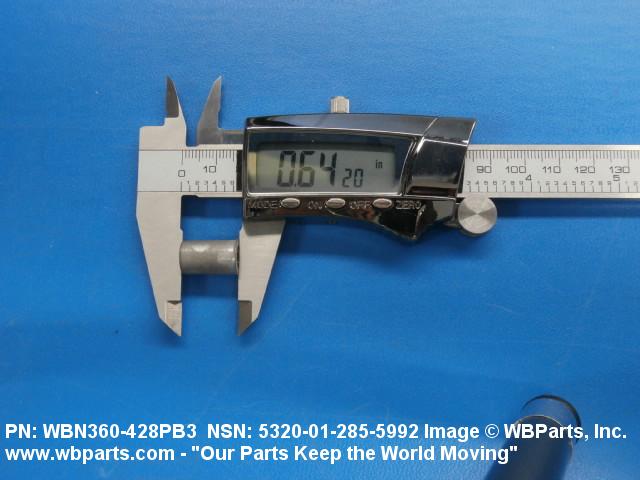

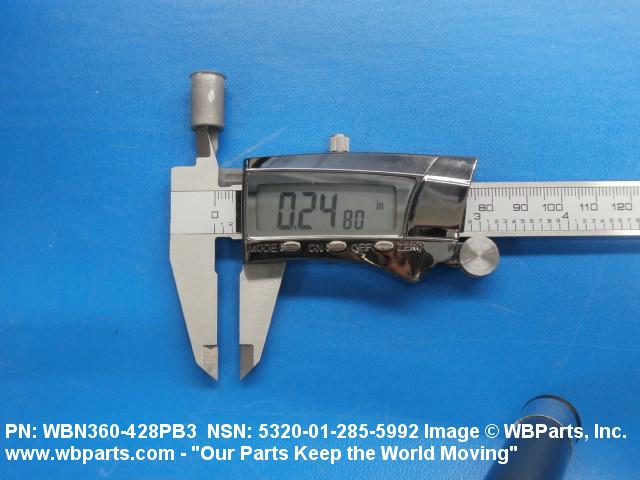

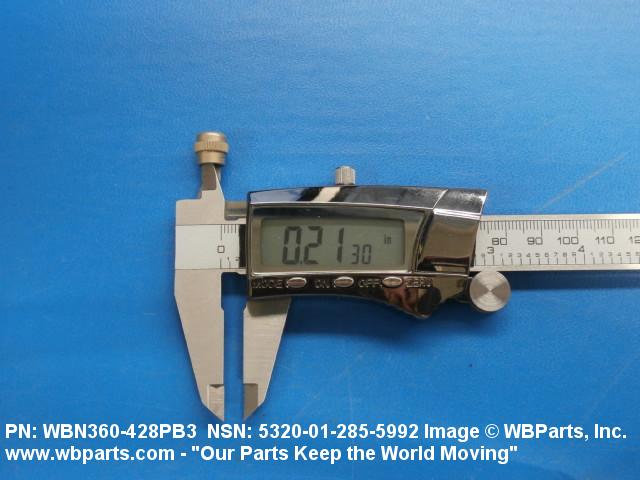

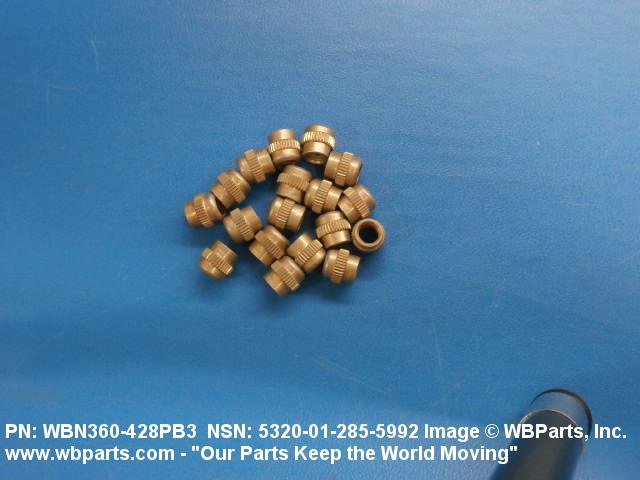

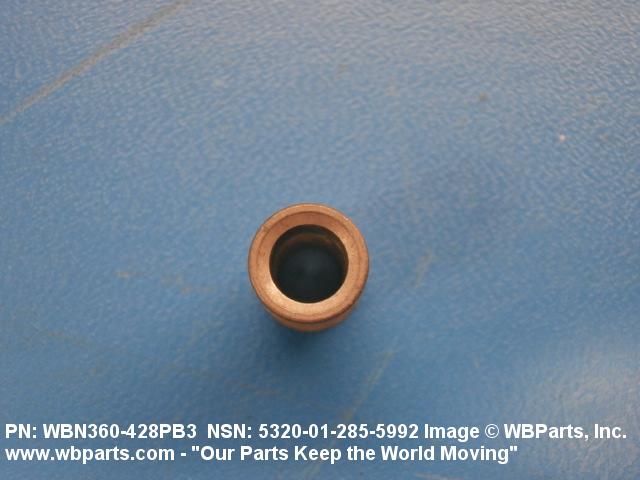

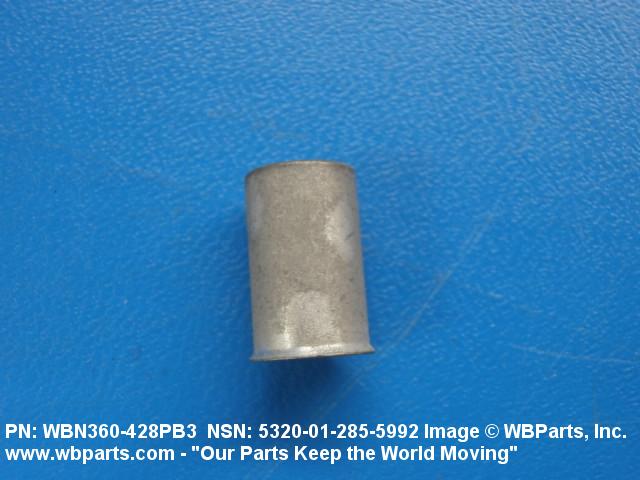

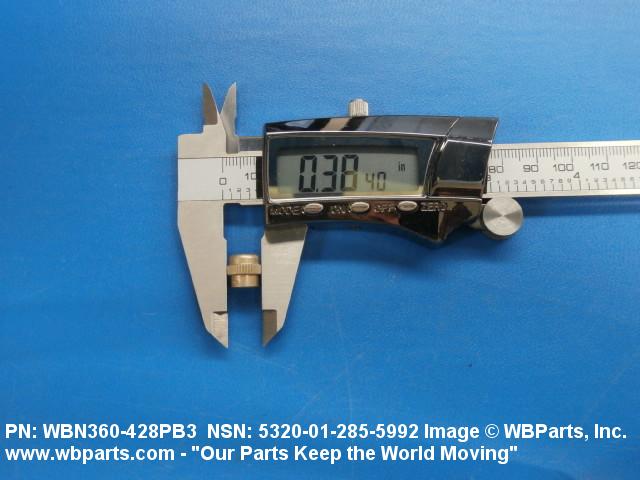

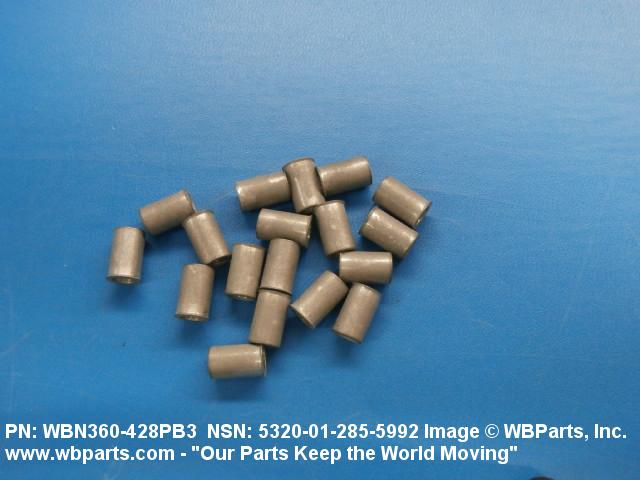

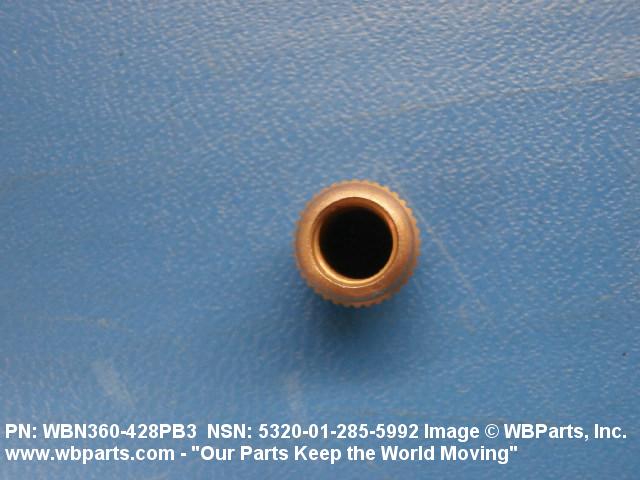

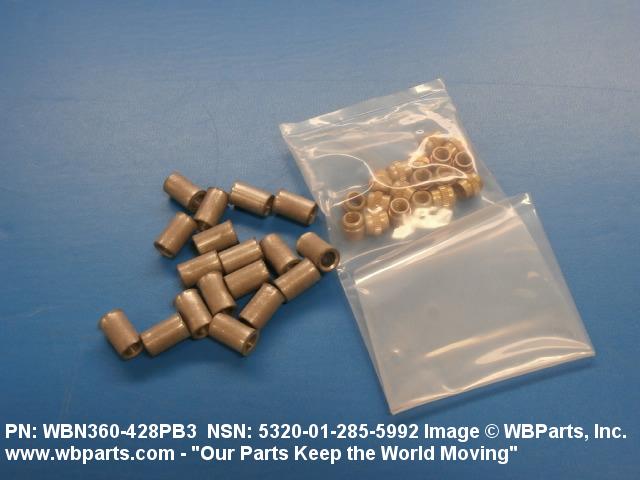

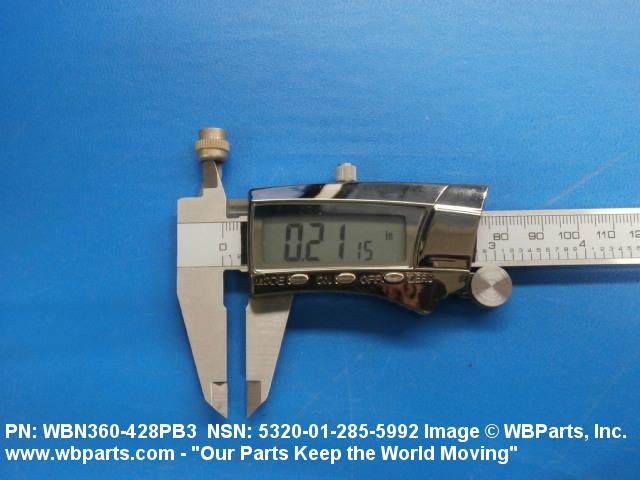

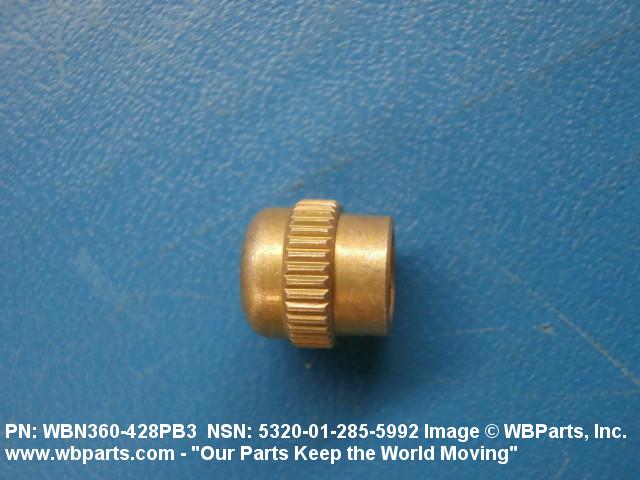

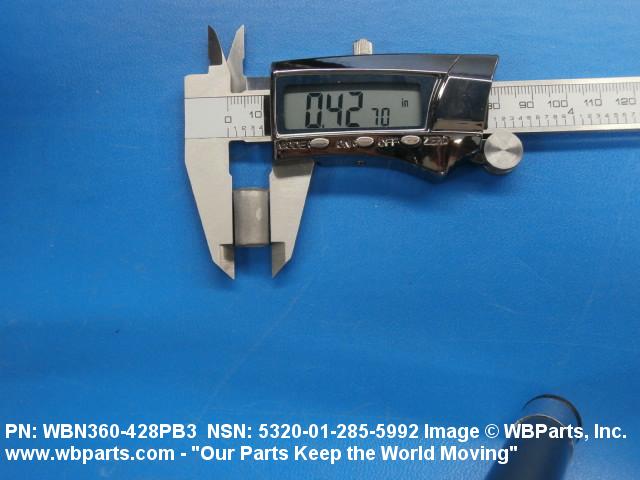

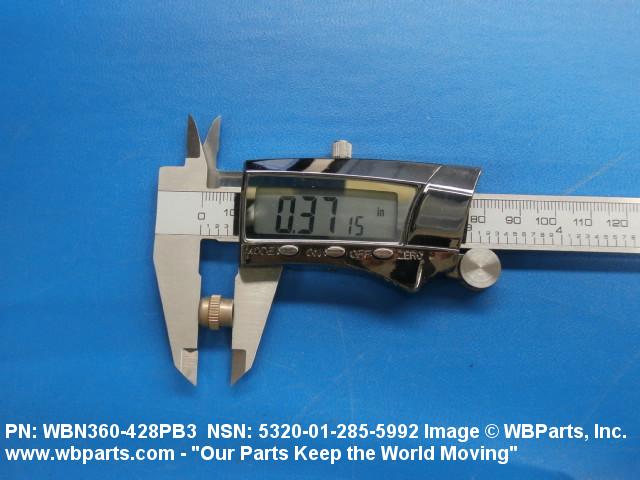

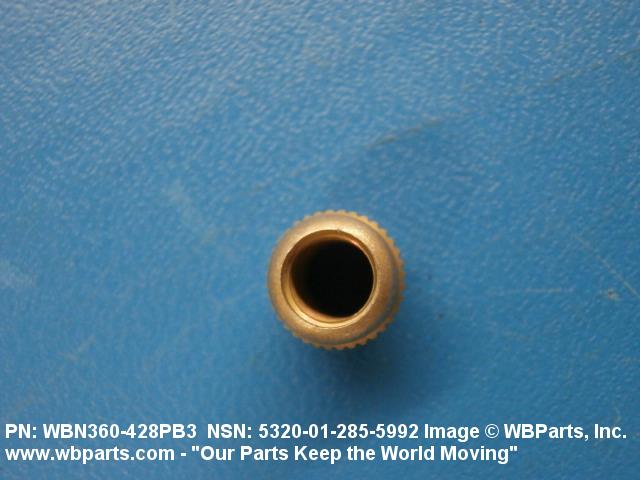

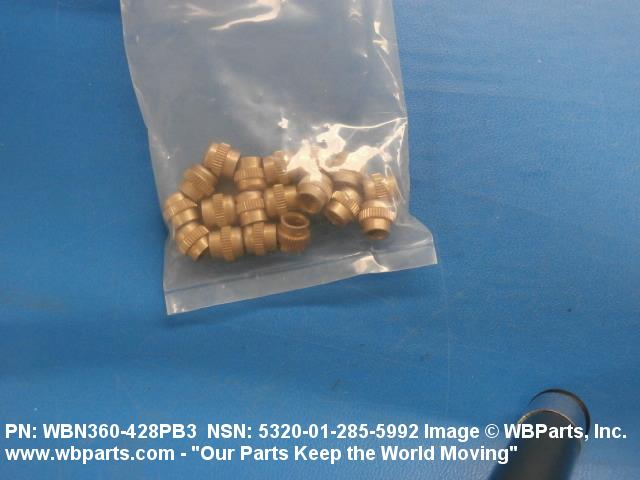

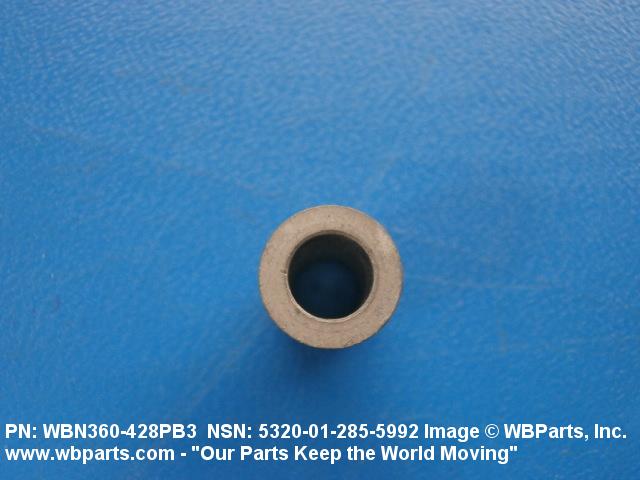

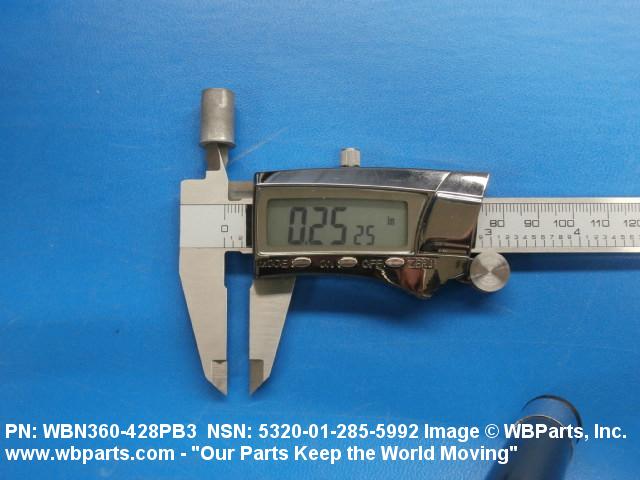

Drawings & Photos | NSN 5320-01-285-5992
Demand History | NSN 5320-01-285-5992
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BN360TF-428-3 | 2022-12-340 | 237 | DIBBS |
| VALA2B5F2-428-3 | 2022-12-340 | 237 | DIBBS |
| BN360TF-428-3 | 2019-10-289 | 492 | DIBBS |
| VALA2B5F2-428-3 | 2019-10-289 | 492 | DIBBS |
| BN360TF-428-3 | 2019-06-168 | 69 | DIBBS |
| VALA2B5F2-428-3 | 2019-06-168 | 69 | DIBBS |
| BN360TF-428-3 | 2019-04-92 | 177 | DIBBS |
| VALA2B5F2-428-3 | 2019-04-92 | 177 | DIBBS |
| BN360TF-428-3 | 2019-03-74 | 177 | DIBBS |
| VALA2B5F2-428-3 | 2019-03-74 | 177 | DIBBS |
| BN360TF-428-3 | 2019-01-10 | 279 | DIBBS |
| VALA2B5F2-428-3 | 2019-01-10 | 279 | DIBBS |
| BN360TF-428-3 | 2019-01-03 | 177 | DIBBS |
| VALA2B5F2-428-3 | 2019-01-03 | 177 | DIBBS |
| 5320-01-285-5992 | 2018-11-325 | 279 | DIBBS |
| 5320-01-285-5992 | 2018-11-325 | 456 | DIBBS |
| 5320-01-285-5992 | 2018-10-296 | 279 | DIBBS |
| 5320-01-285-5992 | 2018-10-284 | 177 | DIBBS |
| 5320-01-285-5992 | 2018-07-199 | 279 | DIBBS |
| 5320-01-285-5992 | 2018-06-176 | 177 | DIBBS |
| 5320-01-285-5992 | 2018-03-87 | 177 | DIBBS |
| 5320-01-285-5992 | 2017-12-341 | 172 | DIBBS |
| 1143803915 | 2016-01-21 | 20 | United States |
| 5320-01-285-5992 | 2016-01-21 | 22 | United States |
| 1143803915 | 2015-05-126 | 18 | United States |
| 5320-01-285-5992 | 2015-05-126 | 18 | United States |
| 5320-01-285-5992 | 2011-11-311 | 400 | DIBBS |
| 5320-01-285-5992 | 2011-09-264 | 88 | DIBBS |
| 5320-01-285-5992 | 2011-06-181 | 102 | DIBBS |
| 1143803915 | 2011-05-125 | 1200 | United States |
| 1143803915 | 2010-12-336 | 200 | us |
| 5320-01-285-5992 | 2010-07-211 | 125 | DIBBS |
| 5320-01-285-5992 | 2010-06-172 | 5 | DIBBS |
| 5320-01-285-5992 | 2010-06-172 | 25 | DIBBS |
| 5320-01-285-5992 | 2010-06-172 | 33 | DIBBS |
| 5320-01-285-5992 | 2010-06-172 | 42 | DIBBS |
| 5320-01-285-5992 | 2010-03-83 | 25 | DIBBS |
| 5320-01-285-5992 | 2010-03-67 | 5 | DIBBS |
| 5320-01-285-5992 | 2009-09-266 | 30 | United States |
| 5320-01-285-5992 | 2009-07-196 | 70 | DIBBS |
| 5320-01-285-5992 | 2008-08-225 | 70 | DIBBS |
| 5320-01-285-5992 | 2008-05-123 | 200 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-285-5992
Related Products | NSN 5320-01-285-5992
Technical Data | NSN 5320-01-285-5992
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP XM-7 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE OR ASTM A-493 ASSN STD 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TY 1 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.445 INCHES MINIMUM AND 0.450 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM |
| SHANK STYLE | D44 BLIND RIVET, NUT AND BOLT |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.387 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| GRIP LENGTH | 0.125 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| EXPANSION DEVICE | EXPANDER |
| LUBRICATION | SOLID FILM |
| SPECIAL FEATURES | FURNISHED W/O BOLT |
Restrictions/Controls & Freight Information | NSN 5320-01-285-5992
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-285-5992
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
