NSN 5320-01-284-4784 MS14218AD46, MS14218AD4-6, BACR15FV4AD6
Product Details | SOLID RIVET

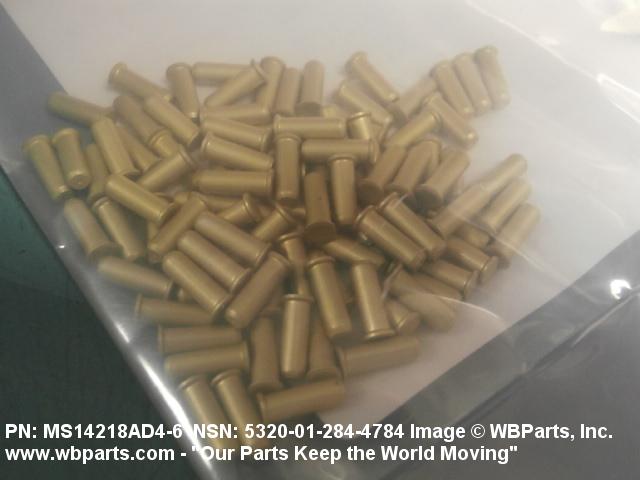

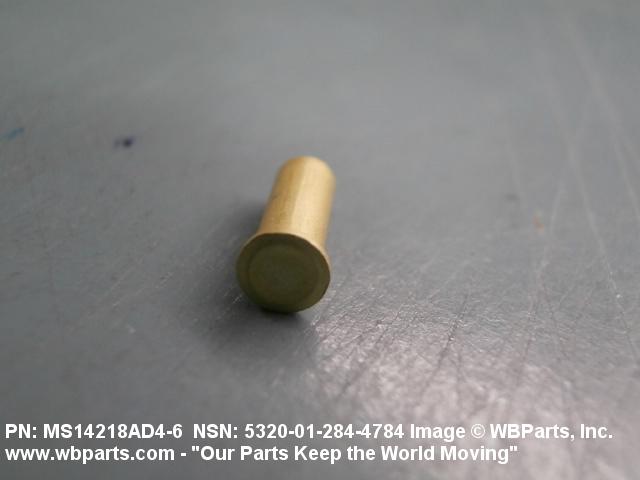

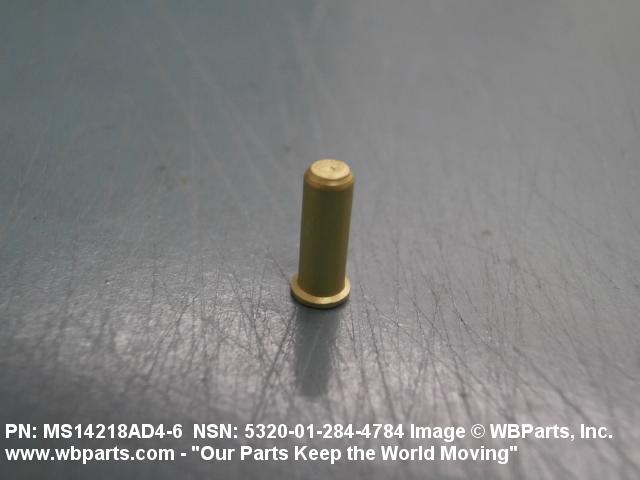

5320-01-284-4784 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS14218AD46, MS14218AD4-6, BACR15FV4AD6, BRFZ4AD6, BRFZ-4AD6, VRFZ4AD6, VRFZ-4AD6, 5320-01-284-4784, 01-284-4784, 5320012844784, 012844784
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 AUG 1988 | 01-284-4784 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-284-4784
Demand History | NSN 5320-01-284-4784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-284-4784 | 2019-04-108 | 6294 | DIBBS |
| 5320-01-284-4784 | 2018-11-309 | 15023 | DIBBS |
| 5320-01-284-4784 | 2015-12-337 | 12500 | DIBBS |
| MS14218AD46 | 2014-06-153 | 75 | United States |
Cross Reference | NSN 5320-01-284-4784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACR15FV4AD6 | 81205 | THE BOEING COMPANY DBA BOEING |
| BRFZ-4AD6 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| BRFZ-4AD6 | 55580 | BRILES RIVET CORP |
| MS14218AD4-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS14218AD4-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| VRFZ-4AD6 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VRFZ-4AD6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-284-4784
Related Products | NSN 5320-01-284-4784
Technical Data | NSN 5320-01-284-4784
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ALUMINUM ALLOY OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541,CL 1A MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 38000 POUNDS PER SQUARE INCH |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C7 COUNTERSUNK WITH REVERSE CHAMFER |
| HEAD HEIGHT | 0.033 INCHES NOMINAL |

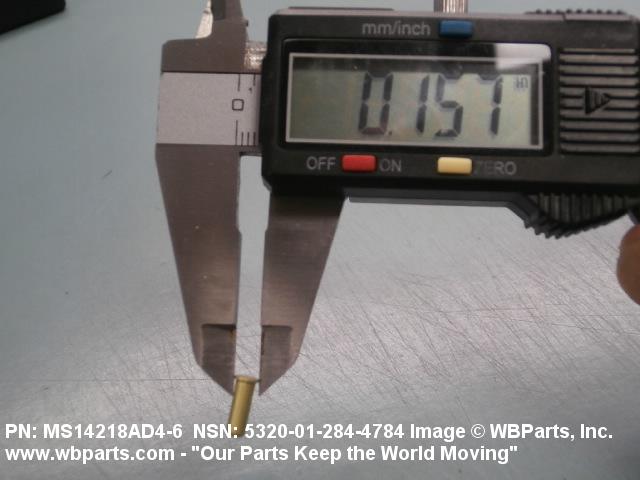

| HEAD MAJOR DIAMETER | 0.162 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 118.5 DEGREES MINIMUM AND 121.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

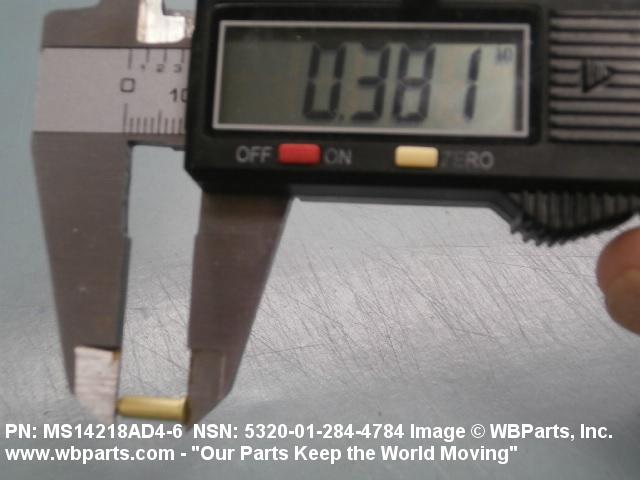

| FASTENER LENGTH | 0.375 INCHES NOMINAL |

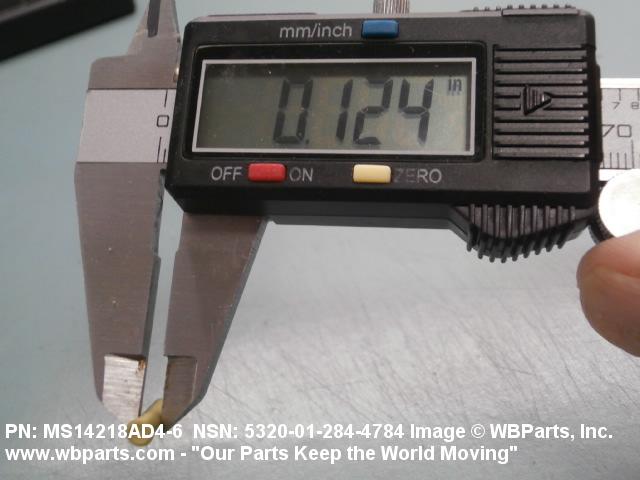

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
