NSN 5320-01-283-6478 BN3881032TF4, BN388-1032TF4 , 10274114-3
Product Details | BLIND RIVET
5320-01-283-6478 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: BN3881032TF4, BN388-1032TF4 , 10274114-3, 5320-01-283-6478, 01-283-6478, 5320012836478, 102741143, 012836478
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 1988 | 01-283-6478 | 00864 ( RIVET, BLIND ) |

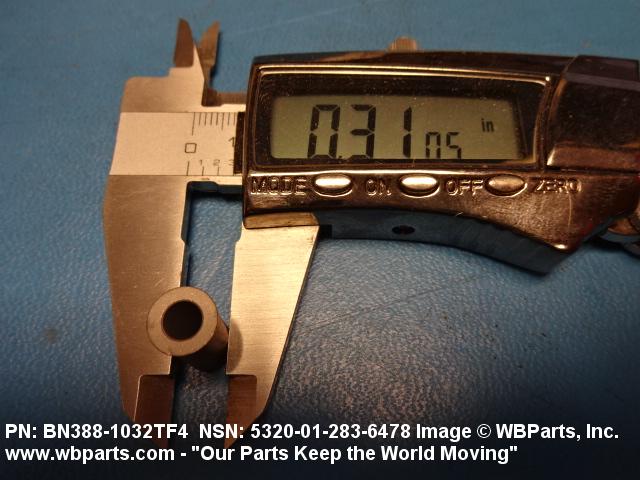

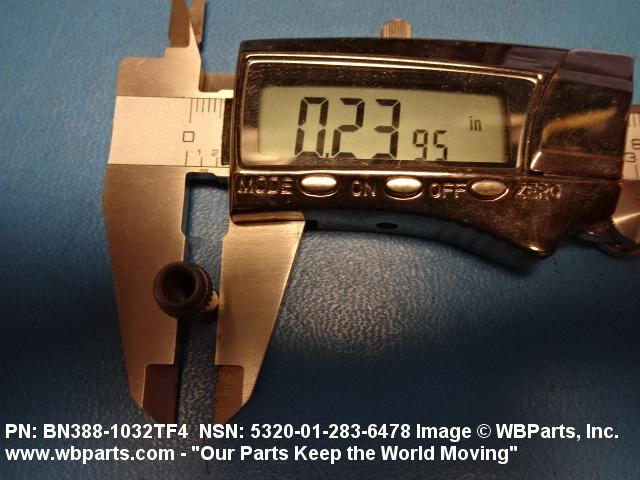

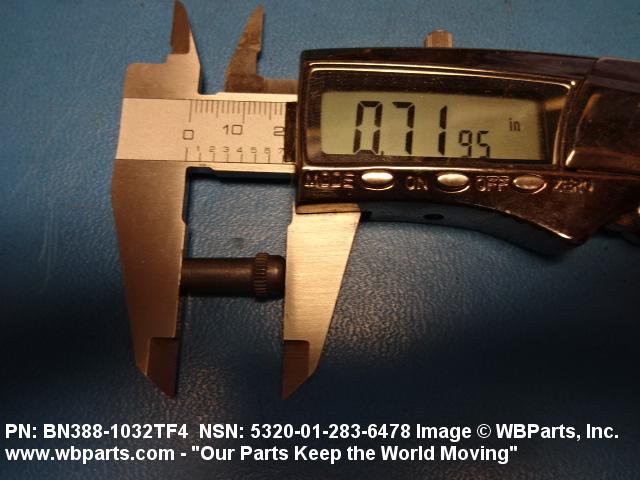

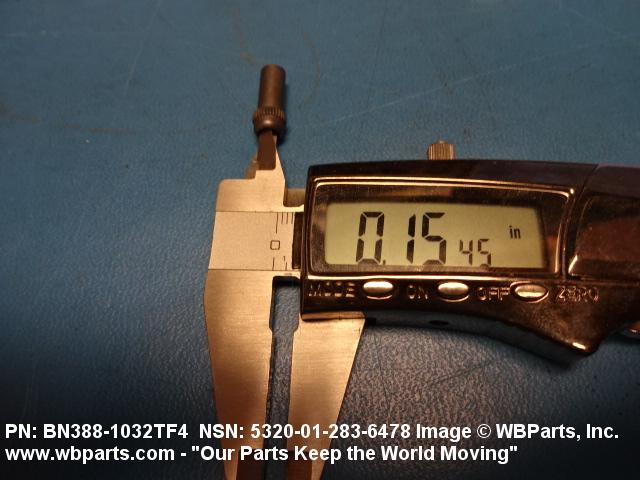

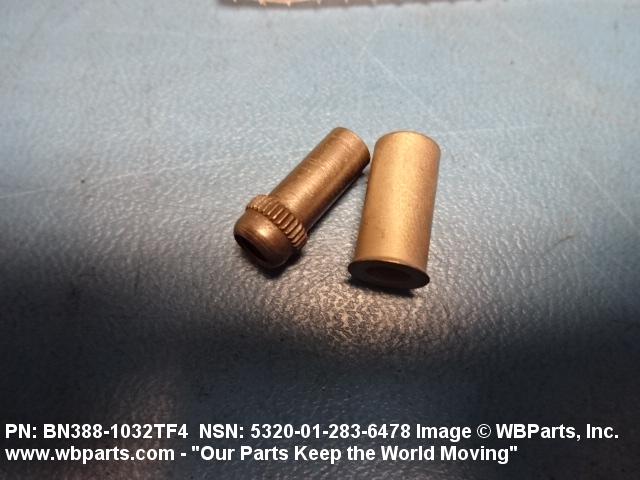

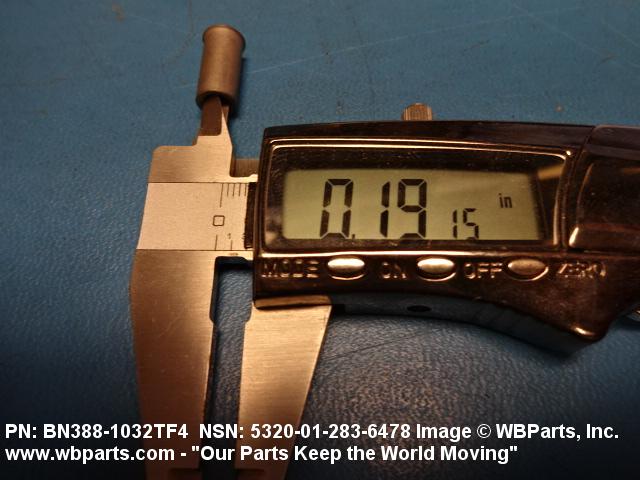

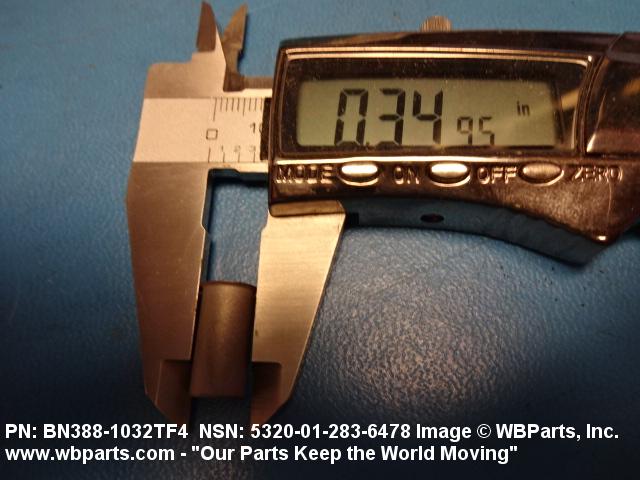

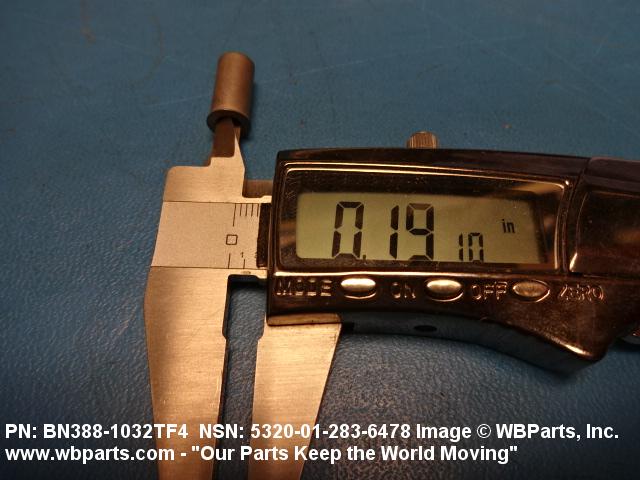

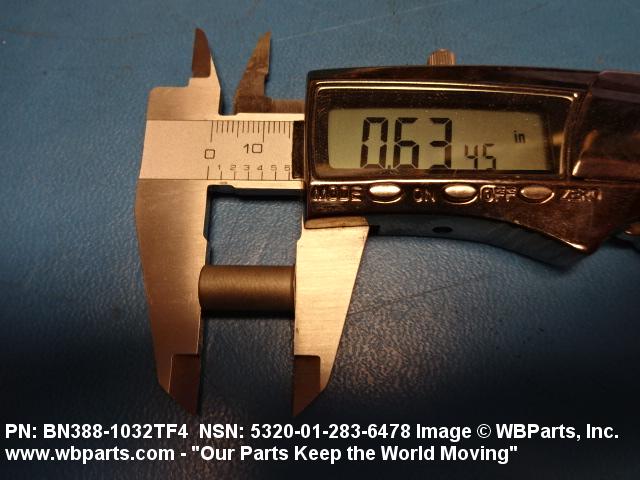

Drawings & Photos | NSN 5320-01-283-6478
