NSN 5320-01-244-1127 NAS1398D510, NAS1398D5-10, CR2163510
Product Details | BLIND RIVET
5320-01-244-1127 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1398D510, NAS1398D5-10, CR2163510, CR2163-5-10, 5320-01-244-1127, 01-244-1127, 5320012441127, 012441127
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 NOV 1986 | 01-244-1127 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-244-1127
Demand History | NSN 5320-01-244-1127
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1398D510 | 2013-06-155 | 600 | US |
| 5320-01-244-1127 | 2010-09-259 | 136 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-244-1127
Related Products | NSN 5320-01-244-1127
Technical Data | NSN 5320-01-244-1127
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2017 SLEEVE ALUMINUM ALLOY 7075 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 T4 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | ANODIZE SLEEVE ANODIZE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE STEM |
| SHEAR STRENGTH | 1090 SINGLE POUNDS PER SQUARE INCH |

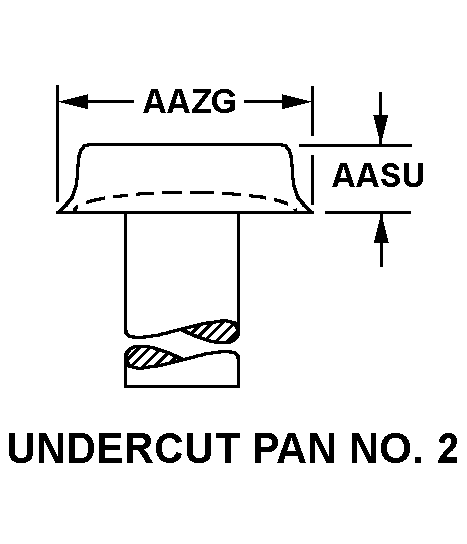

| HEAD STYLE | C31 UNDERCUT PAN NO. 2 |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.763 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| GRIP LENGTH | 0.563 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1398 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
