NSN 5320-01-223-7730 01-223-7730, 012237730
Product Details | BLIND RIVET
5320-01-223-7730 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: 5320-01-223-7730, 01-223-7730, 5320012237730, 012237730
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-223-7730 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-223-7730
Cross Reference | NSN 5320-01-223-7730
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF3213-5-01 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AF3213-5-1 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR3213-5-01 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3213-5-1 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3213-5-1 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR3213-5-1 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR3213-5-1 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| HC3213-5-01 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3213-5-01 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| M7885/2-5-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-7885/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9301BNS-5-01 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-223-7730
Technical Data | NSN 5320-01-223-7730
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 COLLAR ALUMINUM ALLOY 5056 SLEEVE |

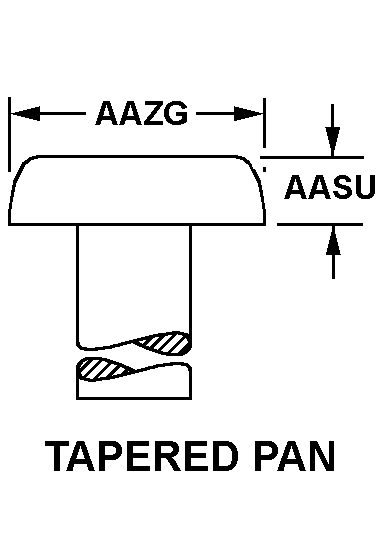

| HEAD STYLE | C38 TAPERED PAN |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.157 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| SHANK DIAMETER | 0.156 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| GRIP LENGTH | 0.062 INCHES NOMINAL |
| EXPANSION DEVICE | EXPANDER |
| SPECIFICATION/STANDARD DATA | 81349-M7885/2-5-1 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M7885/2-5-1 |
Restrictions/Controls & Freight Information | NSN 5320-01-223-7730
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
