NSN 5320-01-200-4973 MS903540806, MS90354-0806, MS90354U0806

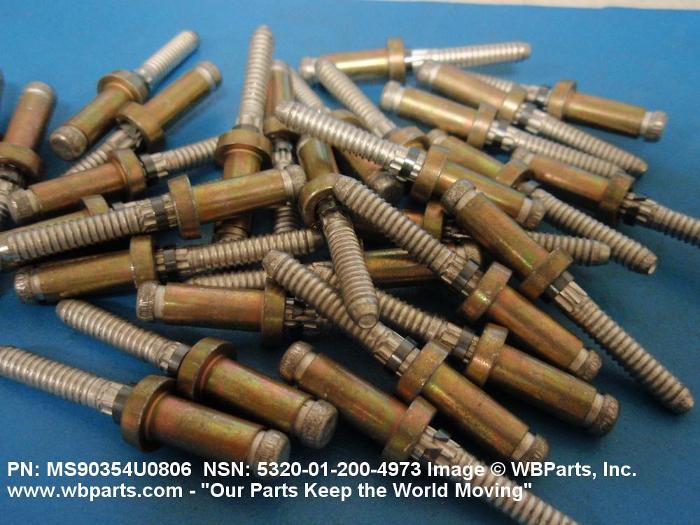

Product Details | BLIND RIVET
5320-01-200-4973 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS903540806, MS90354-0806, MS90354U0806, UBPT0806, UBPT08-06, UBPT86, UBPT8-6, 5320-01-200-4973, 01-200-4973, 5320012004973, 012004973
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 FEB 1985 | 01-200-4973 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-200-4973
Demand History | NSN 5320-01-200-4973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS90354U0806 | 2011-03-90 | 30 | United States |
| 5320-01-200-4973 | 2009-05-124 | 10403 | DIBBS |
| 5320-01-200-4973 | 2009-04-107 | 10403 | DIBBS |
Cross Reference | NSN 5320-01-200-4973
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-200-4973
Related Products | NSN 5320-01-200-4973
Technical Data | NSN 5320-01-200-4973
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1020 OR STEEL COMP 1144 OR STEEL COMP 4037 OR STEEL COMP 4130 OR IRON ALLOY 660 OR STEEL COMP 316 MECHANICAL LOCK STEEL COMP 4027 OR STEEL COMP 4130 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD 1ST MATERIAL RESPONSE OR 66 FED STD 2ND MATERIAL RESPONSE OR 66 FED STD 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE OR 66 FED STD 5TH MATERIAL RESPONSE OR AMS5737 ASSN STD 6TH MATERIAL RESPONSE OR AMS5690 ASSN STD 7TH MATERIAL RESPONSE MECHANICAL LOCK QQ-W-405 FED SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE SLEEVE MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-W-405 FED SPEC SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM OR PASSIVATE MECHANICAL LOCK CADMIUM SLEEVE CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-35 FED SPEC 2ND TREATMENT RESPONSE MECHANICAL LOCK QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HARDNESS RATING | 48.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM STEM |
| MINIMUM TENSILE STRENGTH | 3650 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 5900 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C21 STRAIGHT PAN |
| HEAD HEIGHT | 0.130 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.400 INCHES MINIMUM AND 0.432 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 1.000 INCHES MINIMUM |
| SHANK DIAMETER | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| GRIP LENGTH | 0.344 INCHES MINIMUM AND 0.407 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 96906-MS90354 GOVERNMENT STANDARD |
