NSN 5320-01-194-5021 ST3M535A429, ST3M535A4-29, TL988429
Product Details | SOLID RIVET
5320-01-194-5021 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: ST3M535A429, ST3M535A4-29, TL988429, TL988-4-29, 5320-01-194-5021, 01-194-5021, 5320011945021, 011945021
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 NOV 1984 | 01-194-5021 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-194-5021
Cross Reference | NSN 5320-01-194-5021
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M535A4-29 | 76301 | BOEING COMPANY, THE DBA BOEING |
| TL988-4-29 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| TL988-4-29 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| TL988-4-29 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| TL988-4-29 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TL988-4-29 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TL988-4-29 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-194-5021
Related Products | NSN 5320-01-194-5021
Technical Data | NSN 5320-01-194-5021
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 108000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.465 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

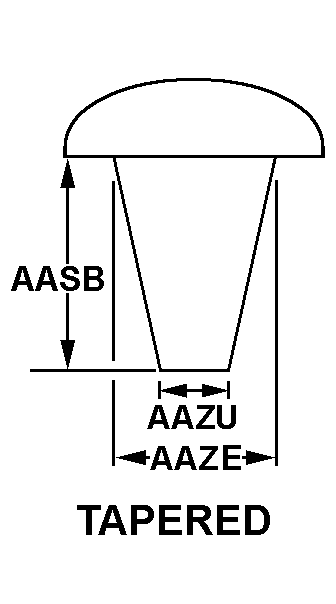

| SHANK STYLE | D12 TAPERED |
