NSN 5320-01-191-0542 BL170513, BL170-5-13, BL60813
Product Details | BLIND RIVET
5320-01-191-0542 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: BL170513, BL170-5-13, BL60813, BL6-08-13 , ST3M7820813, ST3M782-08-13, STM7820813, STM782-08-13, PLT170513, PLT170-5-13, 5320-01-191-0542, 01-191-0542, 5320011910542, 011910542
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 1984 | 01-191-0542 | 00864 ( RIVET, BLIND ) |

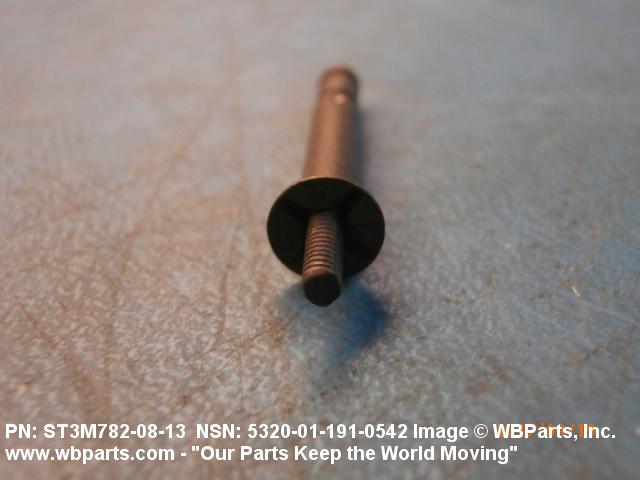

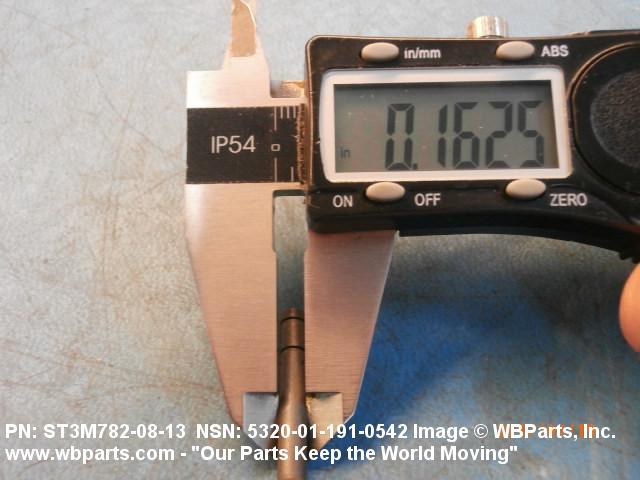

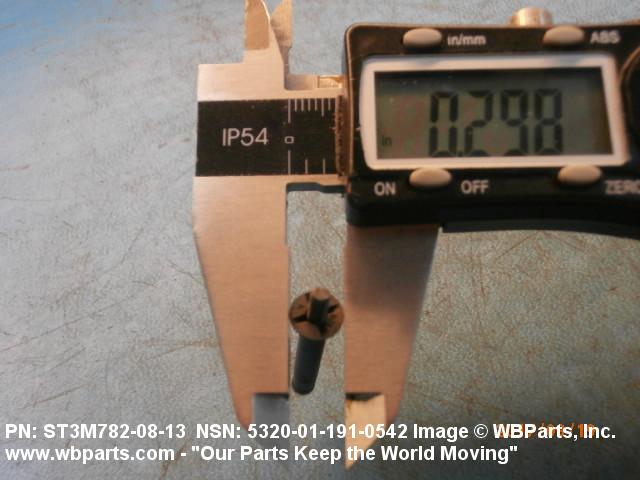

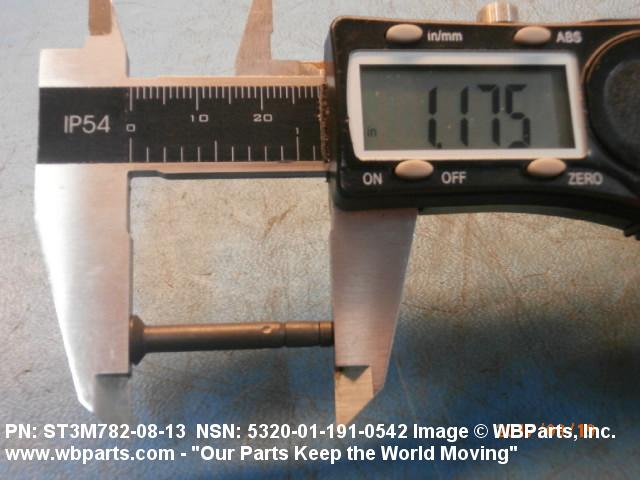

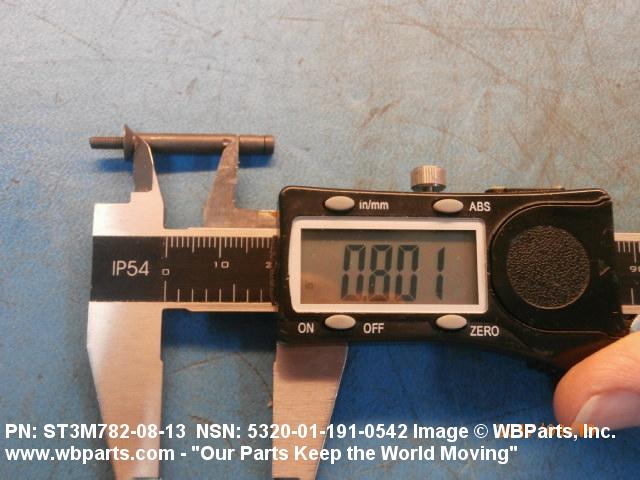

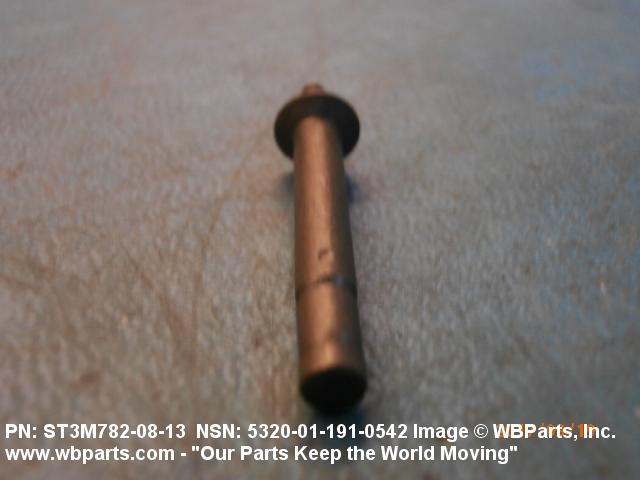

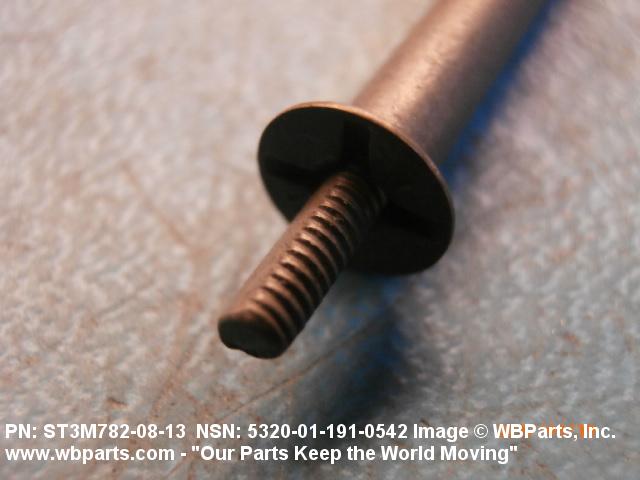

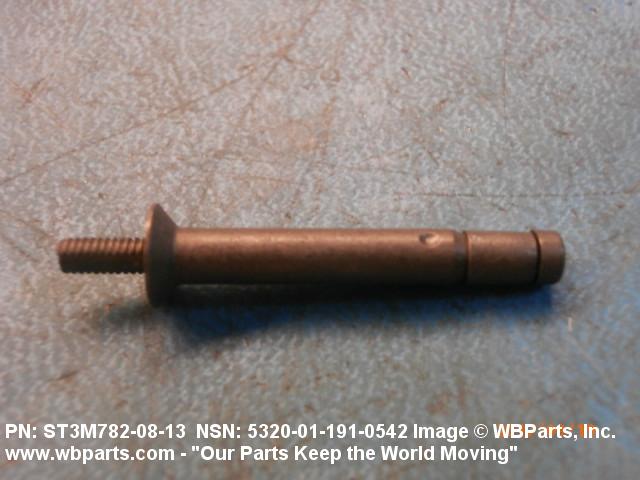

Drawings & Photos | NSN 5320-01-191-0542
Demand History | NSN 5320-01-191-0542
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BL170-5-13 | 2019-01-06 | 11 | DIBBS |
| BL6-08-13 | 2019-01-06 | 11 | DIBBS |
| PLT170-5-13 | 2019-01-06 | 11 | DIBBS |
| ST3M782-08-13 | 2019-01-06 | 11 | DIBBS |
| 5320-01-191-0542 | 2018-10-302 | 17 | DIBBS |
| 5320-01-191-0542 | 2018-10-294 | 17 | DIBBS |
| ST3M7820813 | 2017-09-248 | 10 | Australia |
| 5320-01-191-0542 | 2017-01-09 | 8 | DIBBS |
Cross Reference | NSN 5320-01-191-0542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BL170-5-13 | 73197 | HI-SHEAR CORPORATION |
| BL170-5-13 | L4528 | LISI AEROSPACE CANADA CORP |
| BL6-08-13 | 73197 | HI-SHEAR CORPORATION |
| BL6-08-13 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| BL6-08-13 | L4528 | LISI AEROSPACE CANADA CORP |
| BL6-08-13 | S0561 | TORNOS WORKS LTD |
| PLT170-5-13 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT170-5-13 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| ST3M782-08-13 | 73197 | HI-SHEAR CORPORATION |
| ST3M782-08-13 | 76301 | BOEING COMPANY, THE DBA BOEING |
| STM782-08-13 | 76301 | BOEING COMPANY, THE DBA BOEING |
| STM782-08-13 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-191-0542
Related Products | NSN 5320-01-191-0542
Technical Data | NSN 5320-01-191-0542
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 BOLT TITANIUM ALLOY UNS R56400 NUT STEEL COMP 304 OR IRON ALLOY 660 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE BOLT AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.332 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1645 INCHES MAXIMUM |
| GRIP LENGTH | 0.782 INCHES MINIMUM AND 0.844 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| LUBRICATION | DRY FILM OR GREASE FILM OR CARBO WAX OR CETYL ALCOHOL |
Restrictions/Controls & Freight Information | NSN 5320-01-191-0542
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-191-0542
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
