NSN 5320-01-189-7540 CSR924610R, CSR924-6-10R, 01-189-7540
Product Details | SOLID RIVET
5320-01-189-7540 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: CSR924610R, CSR924-6-10R, 5320-01-189-7540, 01-189-7540, 5320011897540, 011897540
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 SEP 1984 | 01-189-7540 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-189-7540
Cross Reference | NSN 5320-01-189-7540
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CSR924-6-10R | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-189-7540
Related Products | NSN 5320-01-189-7540
Technical Data | NSN 5320-01-189-7540
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C13 UNDERSIZED OVAL COUNTERSUNK |
| HEAD HEIGHT | 0.003 INCHES MINIMUM AND 0.007 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.3016 INCHES MAXIMUM |
| HEAD MINOR DIAMETER | 0.267 INCHES MINIMUM AND 0.277 INCHES MAXIMUM |
| COUNTERSINK HEIGHT | 0.046 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

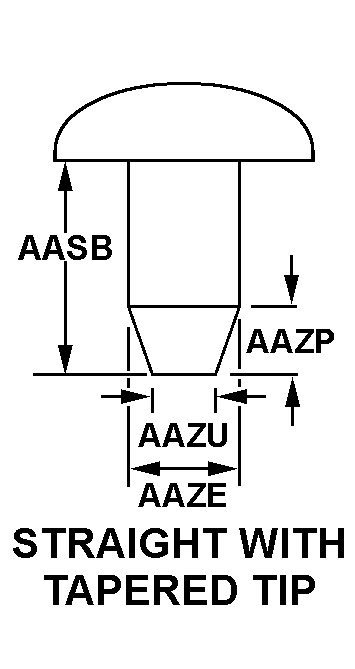

| SHANK STYLE | D11 STRAIGHT WITH TAPERED TIP |
| FASTENER LENGTH | 0.806 INCHES MINIMUM AND 0.826 INCHES MAXIMUM |
| SHANK DIAMETER | 0.1890 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| CHAMFER LENGTH | 0.198 INCHES MINIMUM AND 0.233 INCHES MAXIMUM |
| GRIP LENGTH | 0.594 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| TIP DIAMETER | ANY ACCEPTABLE |
| LUBRICATION | CETYL ALCOHOL |
| SPECIAL FEATURES | TAIL MATERIAL TITANIUM-COLUMBIUM ALLOY PER AMS 4982,HEAT TREATMENT-ANNEALED |
Restrictions/Controls & Freight Information | NSN 5320-01-189-7540
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
