NSN 5320-01-177-1683 OSMLS100B0503, OSMLS100-B05-03, OSMLS100B53
Product Details | BLIND RIVET
5320-01-177-1683 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: OSMLS100B0503, OSMLS100-B05-03, OSMLS100B53, OSMLS100B5-3, 5320-01-177-1683, 01-177-1683, 5320011771683, 011771683
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 APR 1984 | 01-177-1683 | 00864 ( RIVET, BLIND ) |

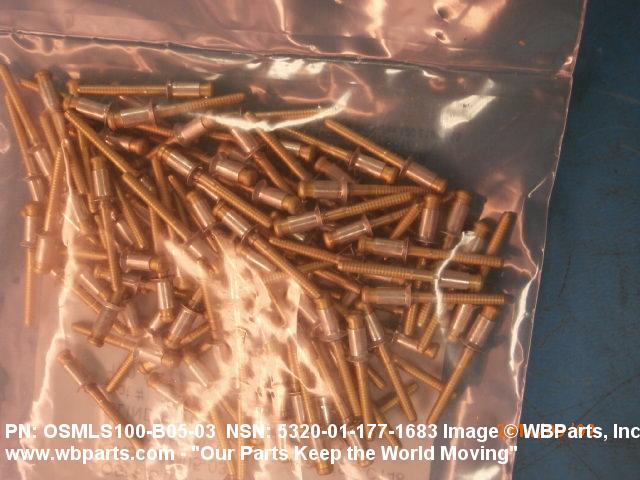

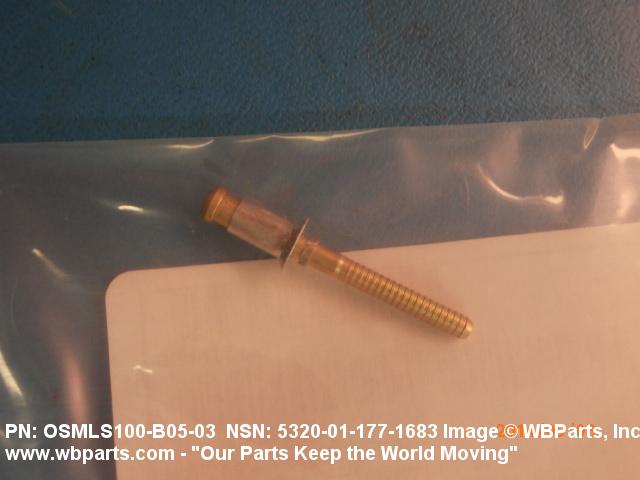

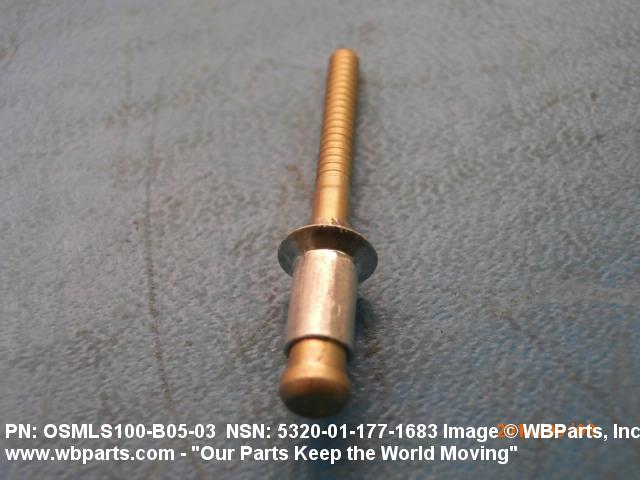

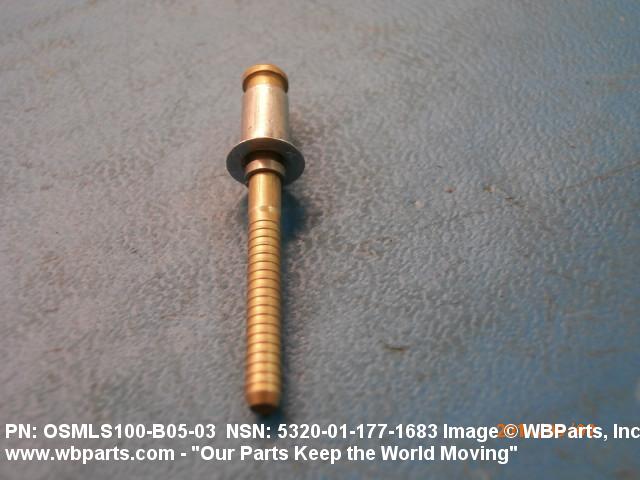

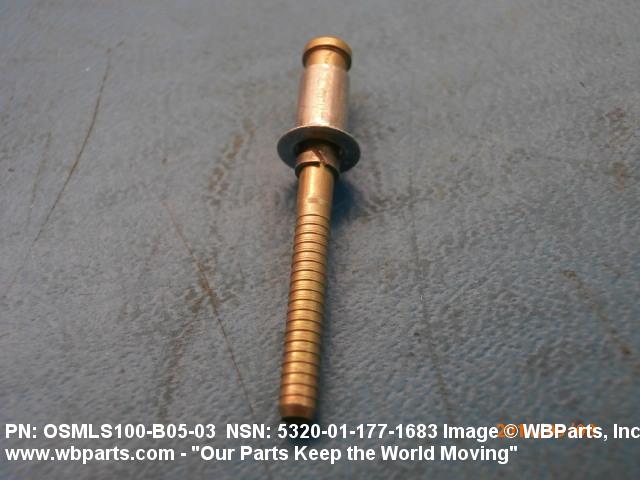

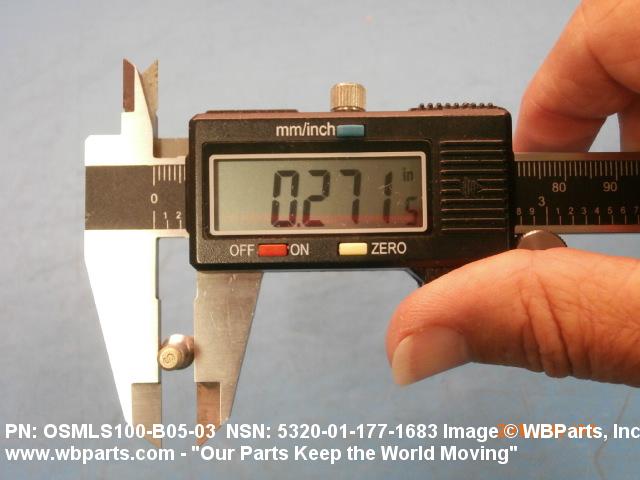

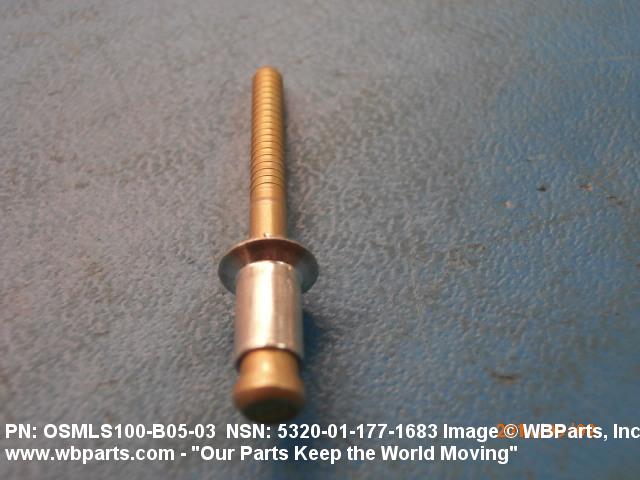

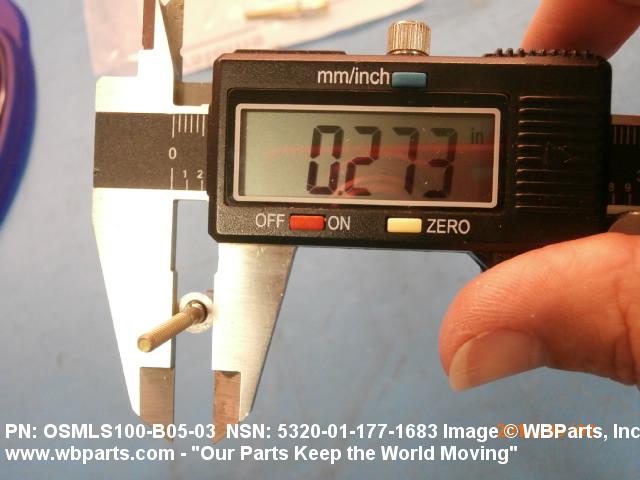

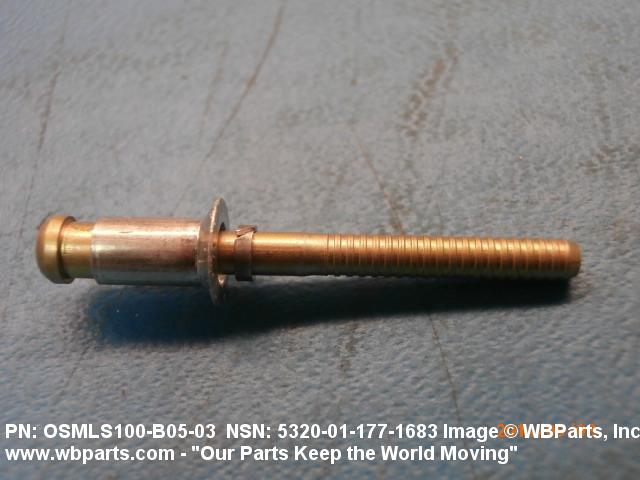

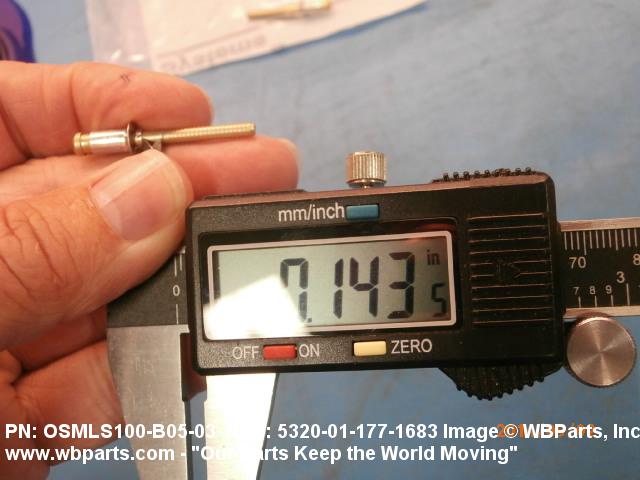

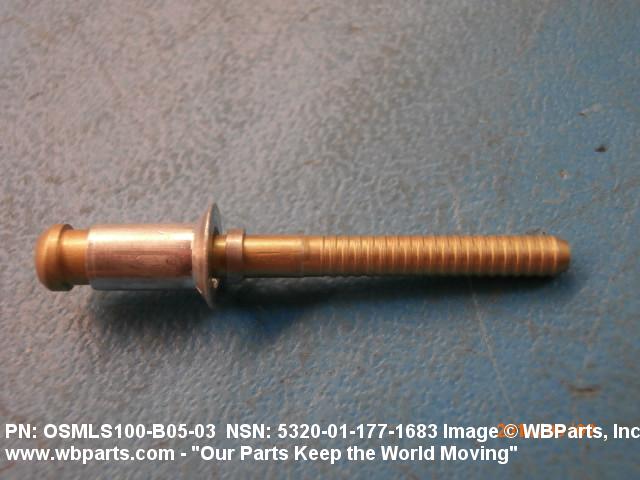

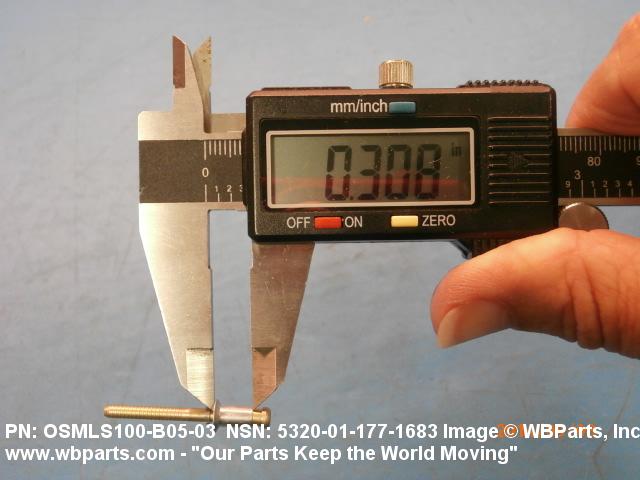

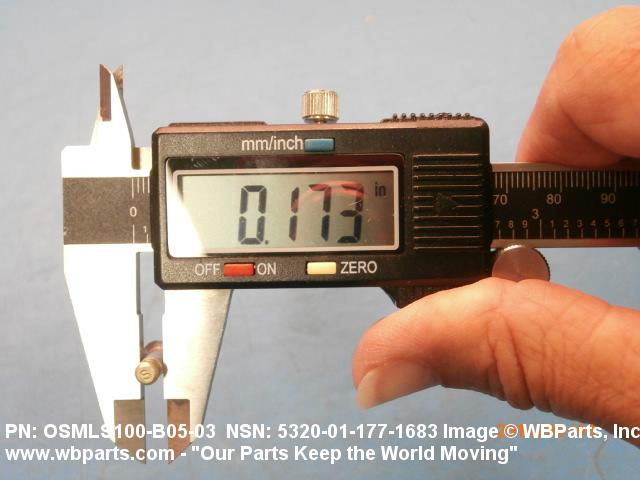

Drawings & Photos | NSN 5320-01-177-1683
Demand History | NSN 5320-01-177-1683
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| OSMLS100B0503 | 2014-08-232 | 100 | Germany |
| 5320-01-177-1683 | 2012-11-327 | 600 | DE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-177-1683
Technical Data | NSN 5320-01-177-1683
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE EXPANDER |
| MINIMUM TENSILE STRENGTH | 490 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 855 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

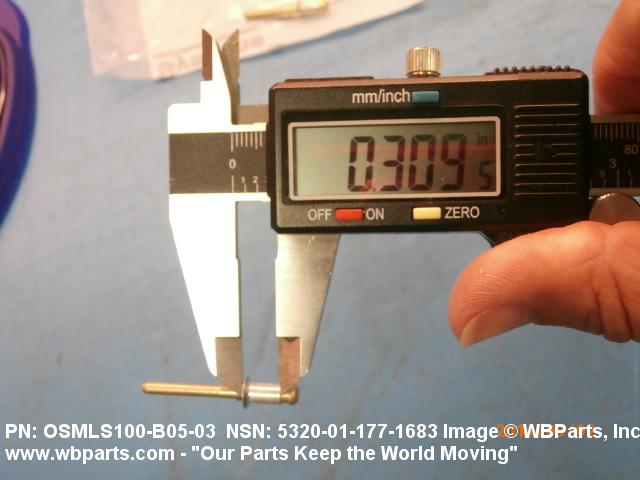

| HEAD MAJOR DIAMETER | 0.282 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D18 SELF-PLUGGING |
| FASTENER LENGTH | 0.326 INCHES NOMINAL |

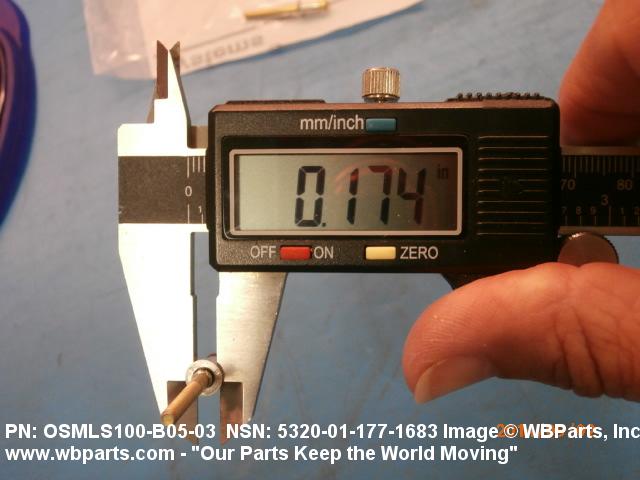

| SHANK DIAMETER | 0.173 INCHES NOMINAL |

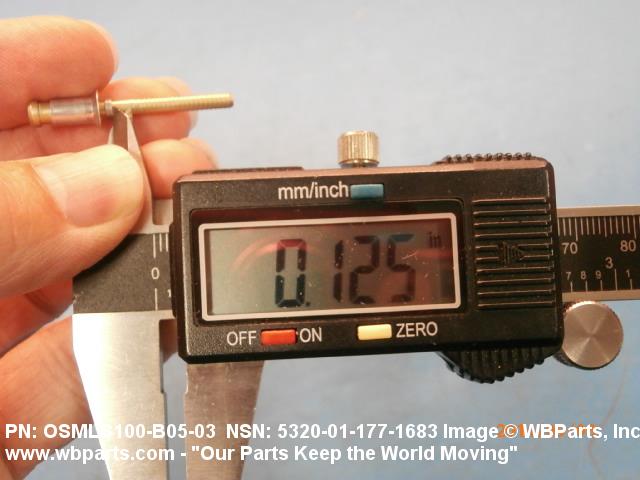

| GRIP LENGTH | 0.125 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | OVERSIZE DIA,FOR REPAIR/REPLACEMENT OF NAS1921B05-03 |
| TEST DATA DOCUMENT | 29666-OSMLS100 SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5320-01-177-1683
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
