NSN 5320-01-176-8417 HL49105, HL49-10-5 , HL49107

Product Details | PIN-RIVET

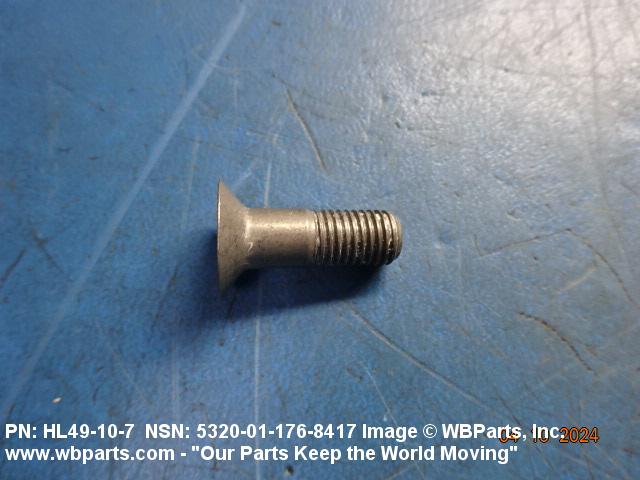

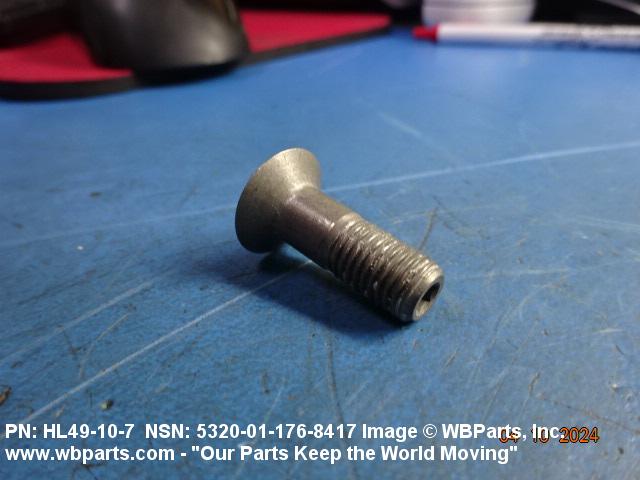

5320-01-176-8417 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: HL49105, HL49-10-5 , HL49107, HL49-10-7 , 9966M34, 9966M34P02, 9966M34P04, 5320-01-176-8417, 01-176-8417, 5320011768417, 011768417

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	17 APR 1984	01-176-8417	67165 ( PIN-RIVET )

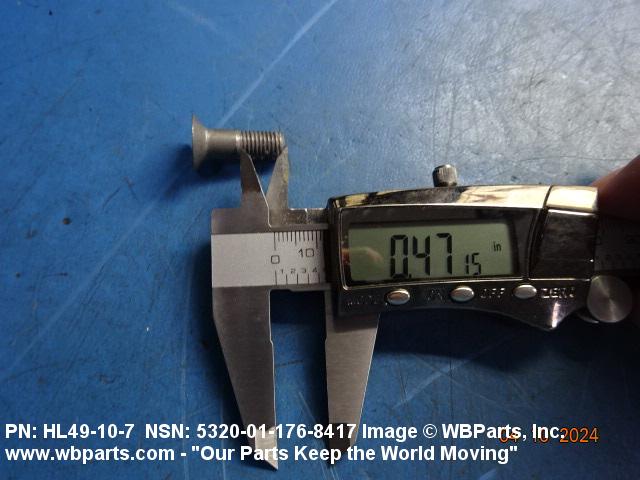

Drawings & Photos | NSN 5320-01-176-8417

Part Number	Request Date	QTY	Origin
HL49107	2024-04-92	60	United States
9966M34P02	2019-01-30	32	DIBBS
9966M34P04	2019-01-30	32	DIBBS
HL49-10-7	2019-01-30	32	DIBBS
5320-01-176-8417	2018-09-266	132	DIBBS
5320-01-176-8417	2018-05-128	60	DIBBS
5320-01-176-8417	2018-04-105	31	DIBBS
5320-01-176-8417	2018-04-98	53	DIBBS
5320-01-176-8417	2018-03-78	21	DIBBS
5320-01-176-8417	2012-02-40	150	DIBBS
5320-01-176-8417	2012-01-20	100	DIBBS
5320-01-176-8417	2011-12-362	96	DIBBS
5320-01-176-8417	2011-11-327	50	DIBBS
5320-01-176-8417	2011-09-269	1	DIBBS
5320-01-176-8417	2011-09-269	15	DIBBS
5320-01-176-8417	2011-09-245	27	DIBBS
5320-01-176-8417	2011-07-208	15	DIBBS
5320-01-176-8417	2011-06-174	15	DIBBS
5320-01-176-8417	2010-12-338	101	DIBBS
5320-01-176-8417	2010-10-300	101	DIBBS

Cross Reference | NSN 5320-01-176-8417

Part Number	Cage Code	Manufacturer
9966M34	07482	GENERAL ELECTRIC COMPANY DBA GE
9966M34P02	07482	GENERAL ELECTRIC COMPANY DBA GE
9966M34P04	07482	GENERAL ELECTRIC COMPANY DBA GE
HL49-10-5	5M902	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL49-10-5	73197	HI-SHEAR CORPORATION
HL49-10-5	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL49-10-7	73197	HI-SHEAR CORPORATION
HL49-10-7	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL49-10-7	L4528	LISI AEROSPACE CANADA CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-176-8417

Compare

Related Products | NSN 5320-01-176-8417

5320-01-176-9396, 5320-01-177-0919, 5320-01-177-0920, 5320-01-177-0921, 5320-01-177-0922

Technical Data | NSN 5320-01-176-8417

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5737 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5731 FED SPEC 2ND MATERIAL RESPONSE OVERALL

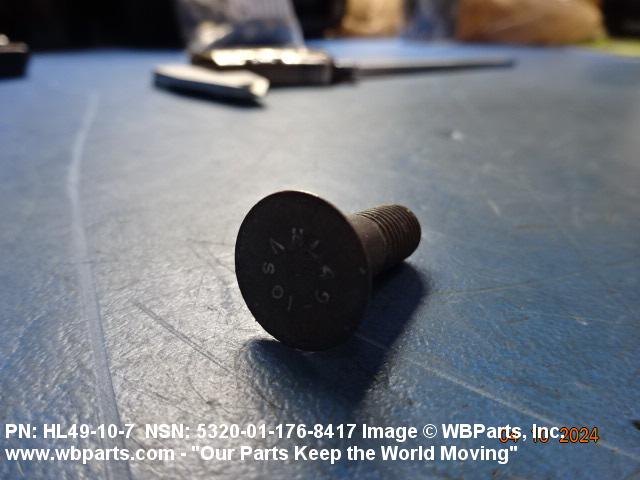

HEAD STYLE	A9 FLUSH COUNTERSUNK

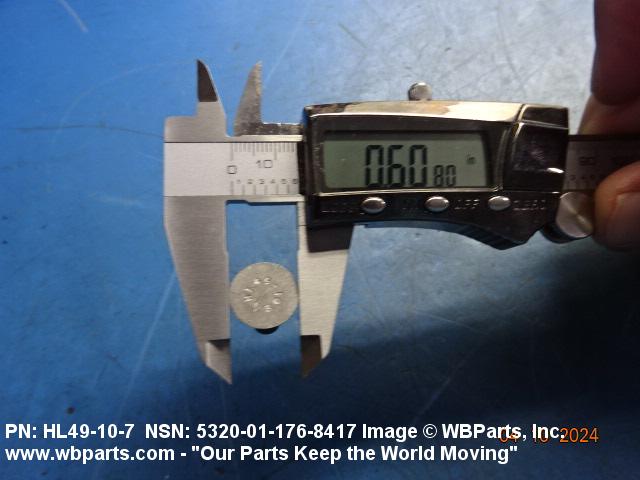

HEAD MAJOR DIAMETER	0.6287 INCHES MINIMUM AND 0.6335 INCHES MAXIMUM
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

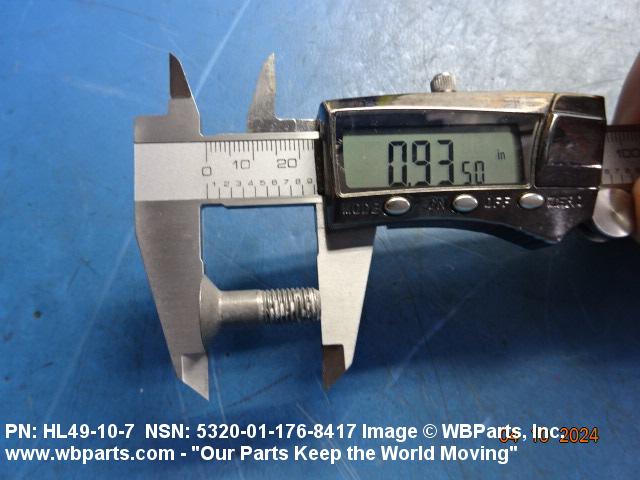

FASTENER LENGTH	1.050 INCHES MINIMUM AND 1.070 INCHES MAXIMUM

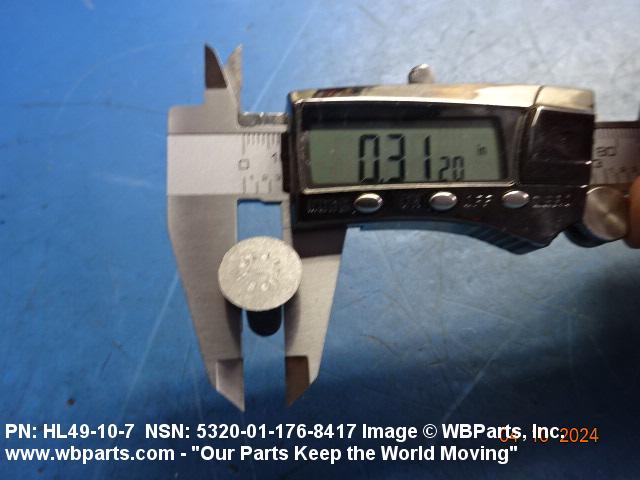

SHANK DIAMETER	0.3115 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM
GRIP LENGTH	0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM

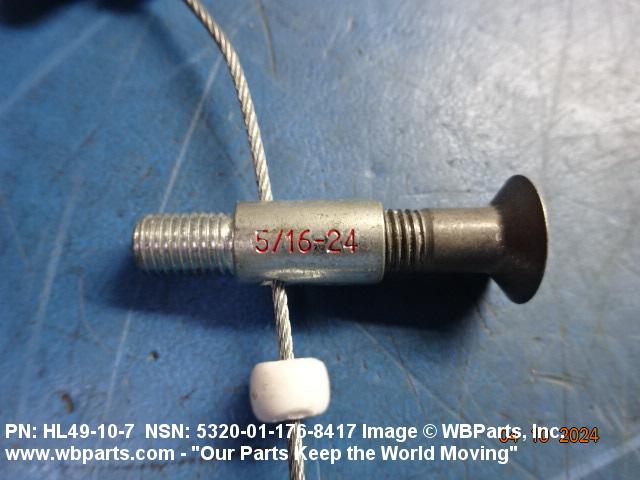

THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.3125 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
SPECIAL FEATURES	USED ON TURBO FAN ENGINE F101-102LONG RANGE COMBAT ACFT B1-B
MANUFACTURERS CODE	07482
MFR SOURCE CONTROLLING REFERENCE	9966M34

Restrictions/Controls & Freight Information | NSN 5320-01-176-8417

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating	U	50
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-176-8417

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	JF	SX:F-101 ENGINE
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
