NSN 5320-01-171-6598 MS3100F2024P, MS3100F20-24P , MS3100R2024P
Product Details | SOLID RIVET

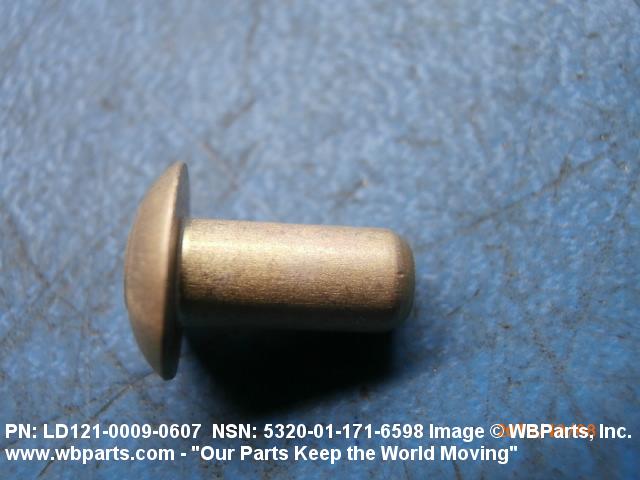

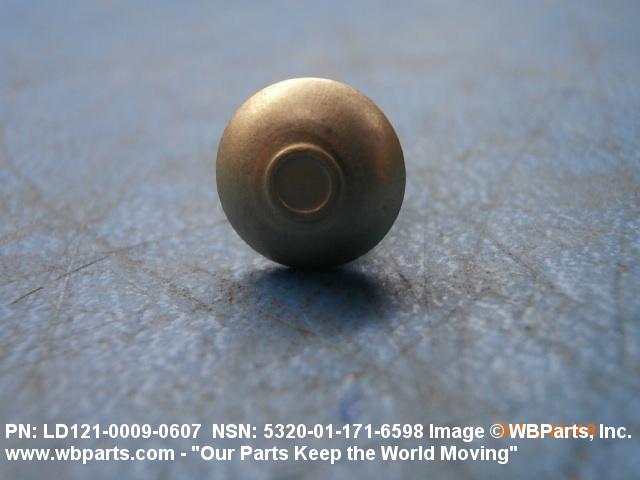

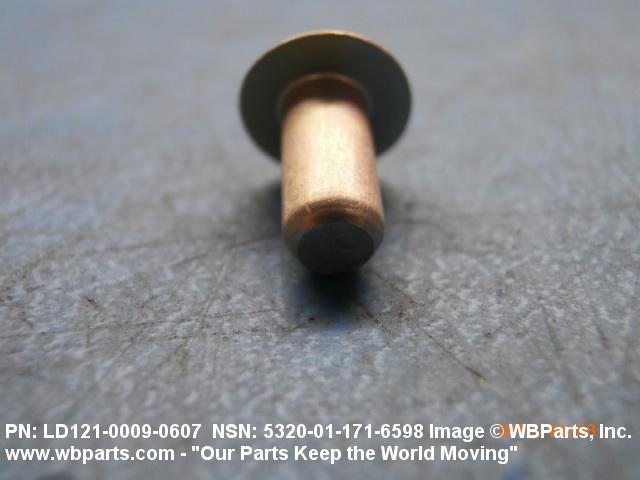

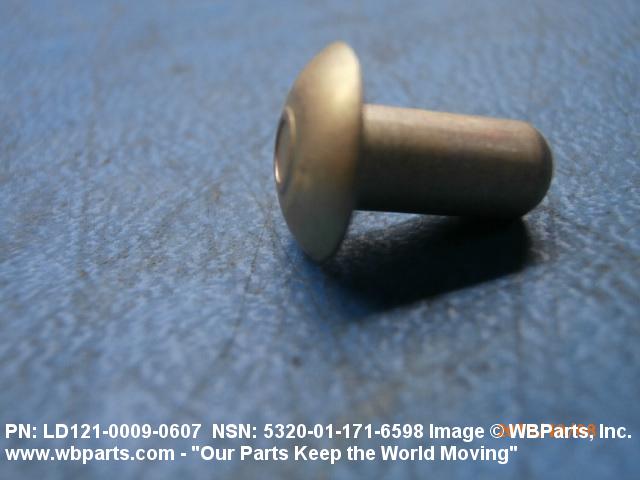

5320-01-171-6598 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS3100F2024P, MS3100F20-24P , MS3100R2024P, MS3100R20-24P , MS3450W2024P, MS3450W20-24P , LD12100090607, LD121-0009-0607, MILC5015, MIL-C-5015 , 5320-01-171-6598, 01-171-6598, 5320011716598, 011716598
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 1984 | 01-171-6598 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-171-6598
Demand History | NSN 5320-01-171-6598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LD12100090607 | 2019-09-267 | 500 | United States |
| 5320-01-171-6598 | 2019-09-247 | 500 | United States |
| 5320-01-171-6598 | 2018-01-07 | 728 | DIBBS |
| 5320-01-171-6598 | 2017-09-272 | 29 | DIBBS |
| 5320-01-171-6598 | 2017-09-263 | 29 | DIBBS |
| 5320-01-171-6598 | 2017-07-199 | 488 | DIBBS |
| 5320-01-171-6598 | 2013-06-178 | 27 | DIBBS |
| 5320-01-171-6598 | 2012-01-03 | 8 | DIBBS |
| 5320-01-171-6598 | 2011-11-307 | 5 | DIBBS |
| 5320-01-171-6598 | 2010-03-80 | 2 | DIBBS |
| 5320-01-171-6598 | 2010-03-73 | 6 | DIBBS |
Cross Reference | NSN 5320-01-171-6598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LD121-0009-0607 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-171-6598
Related Products | NSN 5320-01-171-6598
Technical Data | NSN 5320-01-171-6598
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430,COMP 7050-T73 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CL 1A MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 41000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |

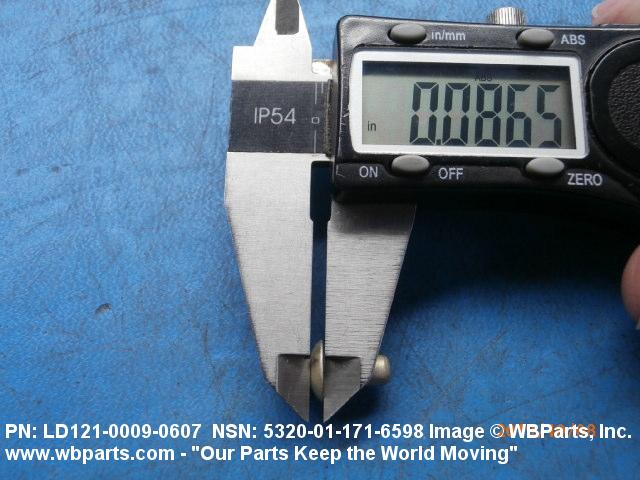

| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

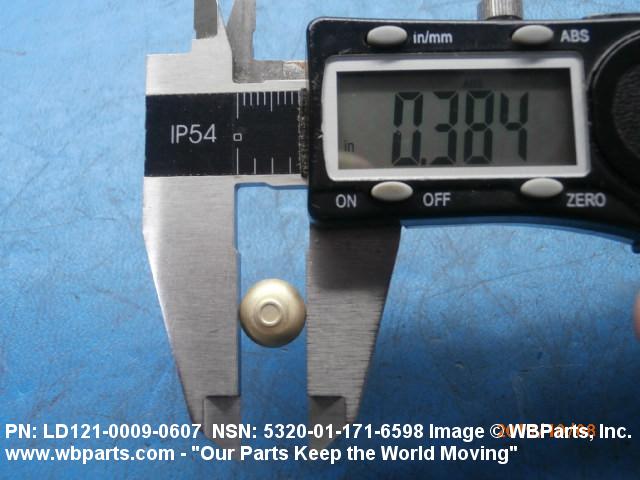

| HEAD MAJOR DIAMETER | 0.356 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

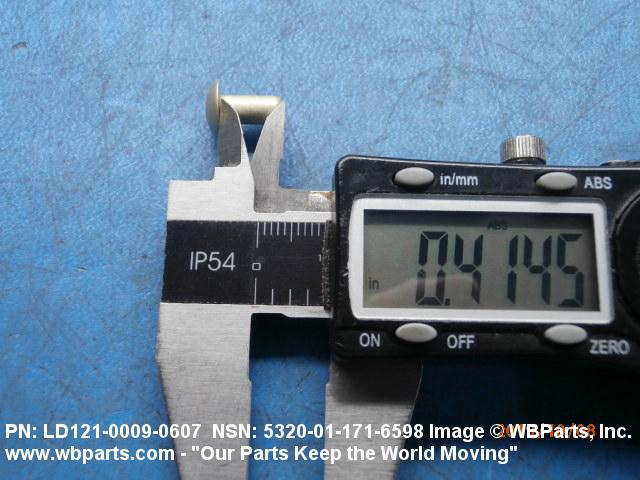

| FASTENER LENGTH | 0.437 INCHES NOMINAL |

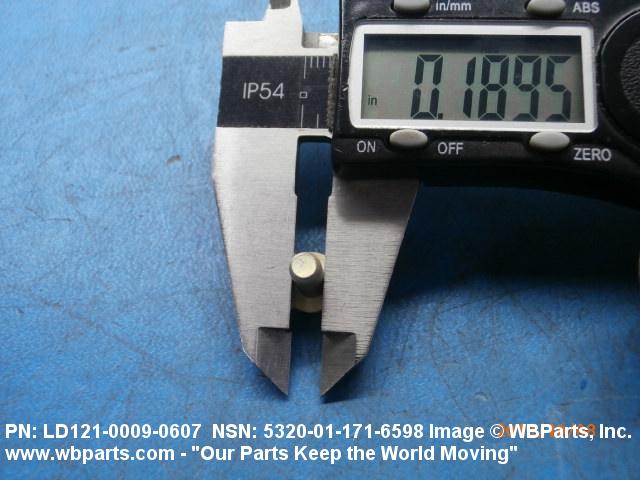

| SHANK DIAMETER | 0.186 INCHES MINIMUM AND 0.191 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-171-6598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
