NSN 5320-01-169-8286 AICL760V340, AIC-L-760V3-40, HLT313DL640
Product Details | PIN-RIVET

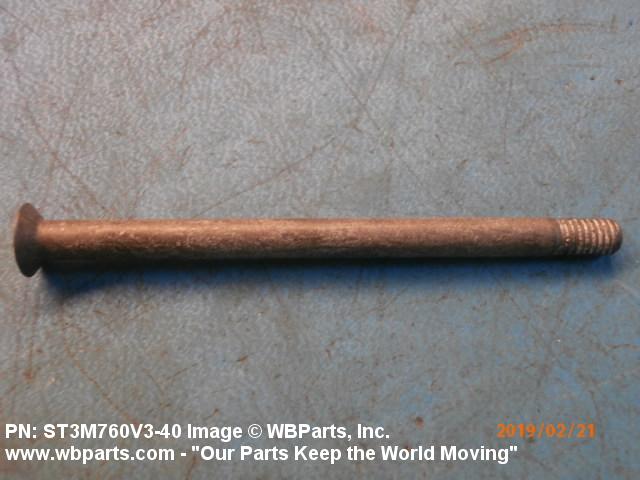

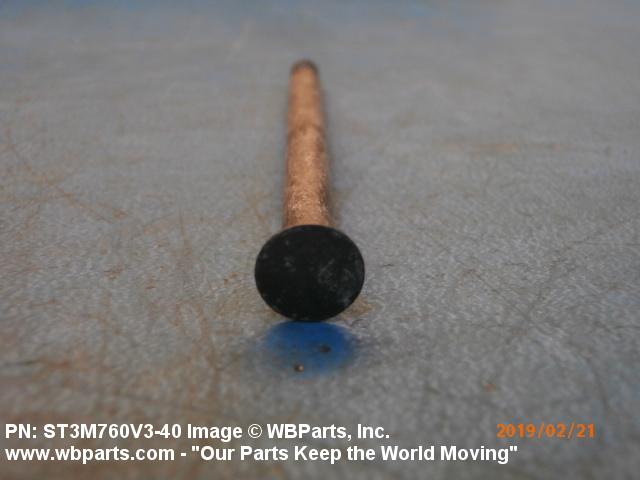

5320-01-169-8286 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: AICL760V340, AIC-L-760V3-40, HLT313DL640, HLT313DL-6-40, HLT313TB340, HLT313TB-3-40, HLT313TB640, HLT313TB-6-40, ST3M760V340, ST3M760V3-40, 10112032 , 5320-01-169-8286, 01-169-8286, 5320011698286, 011698286
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JAN 1984 | 01-169-8286 | 67165 ( PIN-RIVET ) |

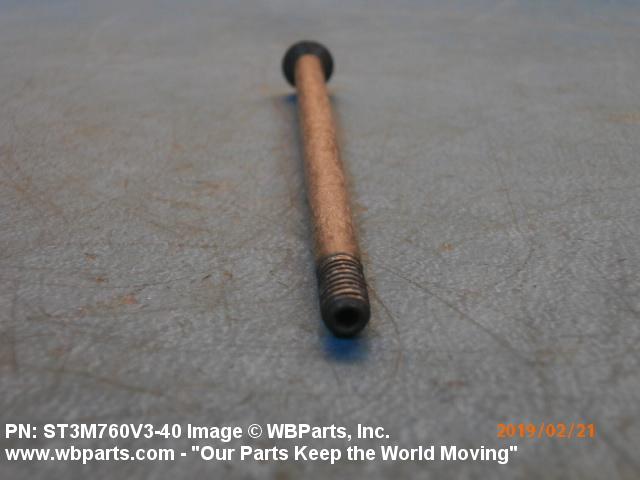

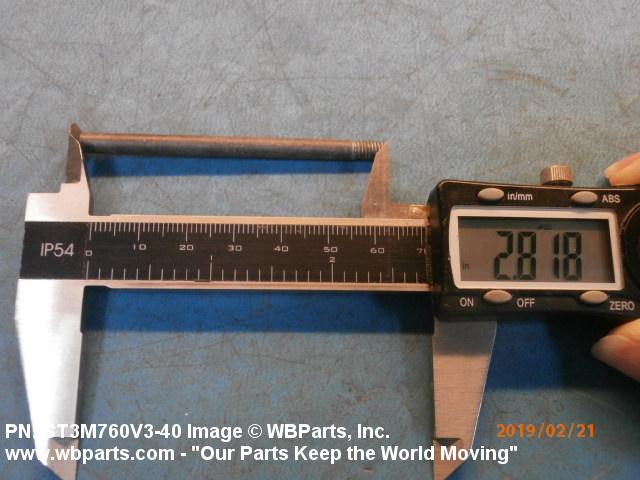

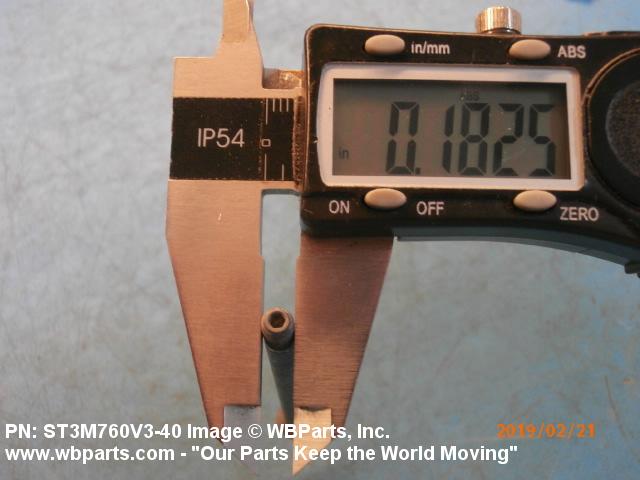

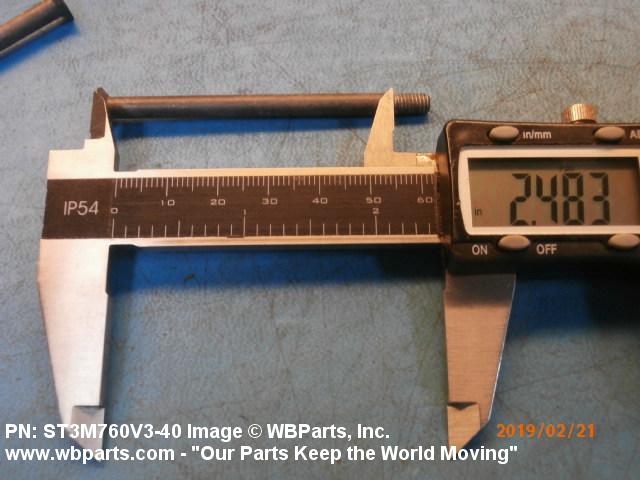

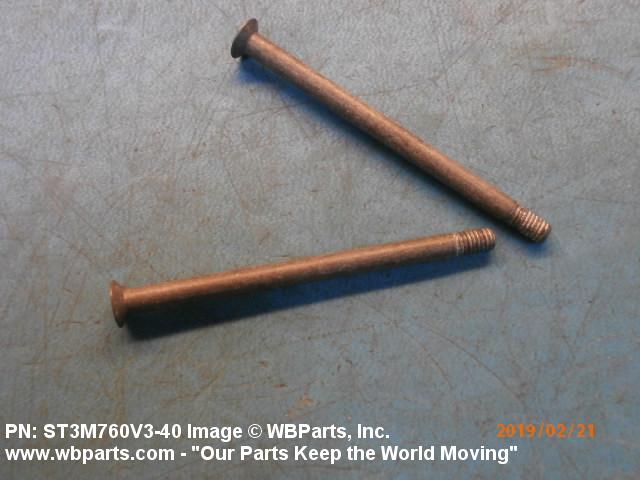

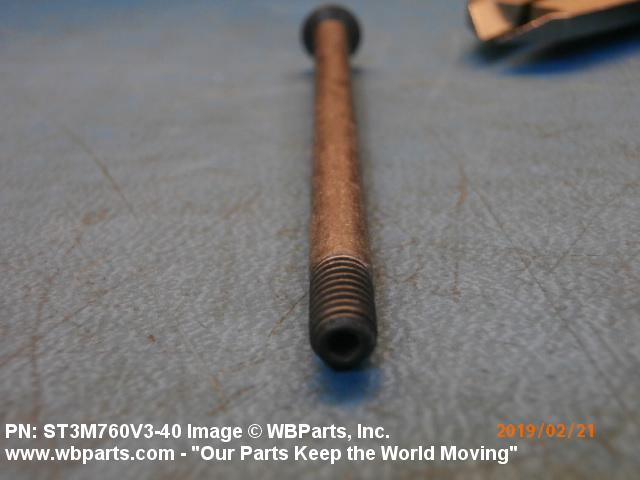

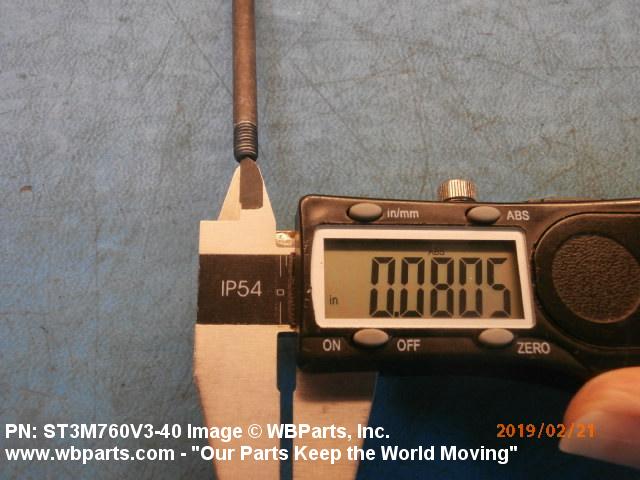

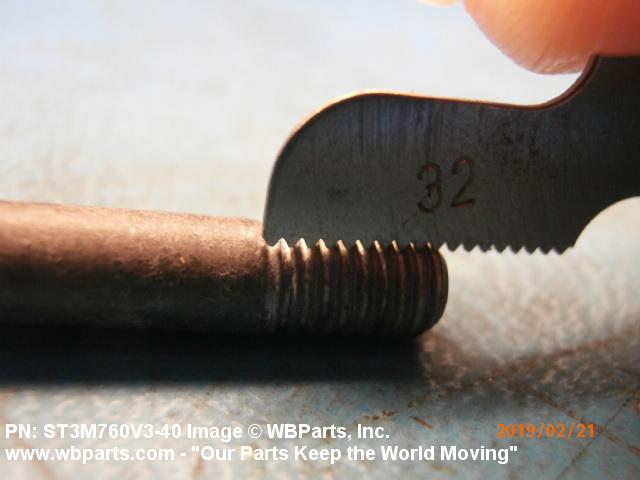

Drawings & Photos | NSN 5320-01-169-8286
Demand History | NSN 5320-01-169-8286
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HLT313DL-6-40 | 2021-08-231 | 268 | DIBBS |
| HLT313TB-3-40 | 2021-08-231 | 268 | DIBBS |
| HLT313TB-6-40 | 2021-08-231 | 268 | DIBBS |
| HLT313DL-6-40 | 2021-06-172 | 170 | DIBBS |
| HLT313TB-3-40 | 2021-06-172 | 170 | DIBBS |
| HLT313TB-6-40 | 2021-06-172 | 170 | DIBBS |
| HLT313DL-6-40 | 2021-03-81 | 134 | DIBBS |
| HLT313TB-3-40 | 2021-03-81 | 134 | DIBBS |
| HLT313TB-6-40 | 2021-03-81 | 134 | DIBBS |
| HLT313DL-6-40 | 2020-09-272 | 32 | DIBBS |
| HLT313TB-3-40 | 2020-09-272 | 32 | DIBBS |
| HLT313TB-6-40 | 2020-09-272 | 32 | DIBBS |
| HLT313DL-6-40 | 2020-09-261 | 32 | DIBBS |
| HLT313TB-3-40 | 2020-09-261 | 32 | DIBBS |
| HLT313TB-6-40 | 2020-09-261 | 32 | DIBBS |
| ST3M760V340 | 2019-09-253 | 178 | Australia |
| HLT313DL-6-40 | 2019-04-107 | 27 | DIBBS |
| HLT313TB-3-40 | 2019-04-107 | 27 | DIBBS |
| HLT313TB-6-40 | 2019-04-107 | 27 | DIBBS |
| ST3M760V340 | 2019-02-36 | 2 | Australia |
| 5320-01-169-8286 | 2018-09-269 | 26 | DIBBS |
| 5320-01-169-8286 | 2017-09-260 | 56 | DIBBS |
| 5320-01-169-8286 | 2017-01-08 | 64 | DIBBS |
| 5320-01-169-8286 | 2016-05-143 | 50 | DIBBS |
Cross Reference | NSN 5320-01-169-8286
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AIC-L-760V3-40 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT313DL-6-40 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT313DL-6-40 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT313DL-6-40 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT313DL-6-40 | 60516 | WEST COAST AEROSPACE INC |
| HLT313DL-6-40 | 73197 | HI-SHEAR CORPORATION |
| HLT313DL-6-40 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT313DL-6-40 | 97928 | HUCK INTL INC |
| HLT313DL-6-40 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| HLT313TB-3-40 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT313TB-6-40 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HLT313TB-6-40 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT313TB-6-40 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HLT313TB-6-40 | 60516 | WEST COAST AEROSPACE INC |
| HLT313TB-6-40 | 73197 | HI-SHEAR CORPORATION |
| HLT313TB-6-40 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HLT313TB-6-40 | 97928 | HUCK INTL INC |
| HLT313TB-6-40 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| ST3M760V3-40 | 0CZ92 | PRUITT ENERGY SOURCES INC |
| ST3M760V3-40 | 0PTK6 | SPS TECHNOLOGIES INC |
| ST3M760V3-40 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-169-8286
Related Products | NSN 5320-01-169-8286
Technical Data | NSN 5320-01-169-8286
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |

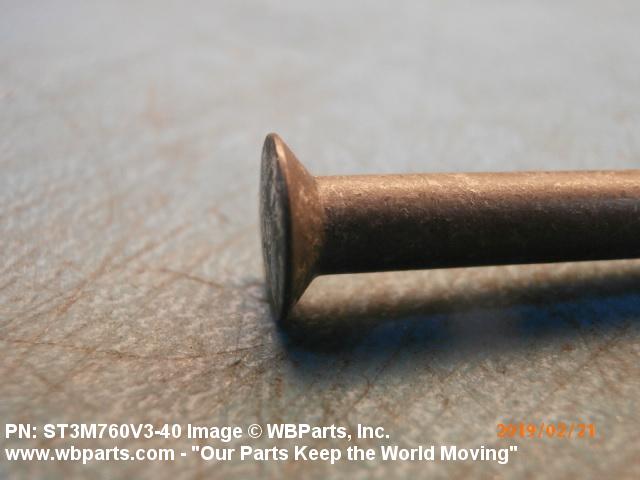

| HEAD STYLE | A12 OVAL COUNTERSUNK |

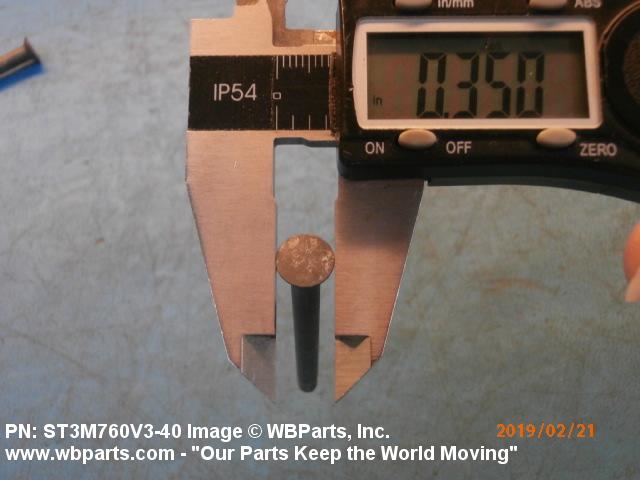

| HEAD MAJOR DIAMETER | 0.3813 INCHES MAXIMUM |
