NSN 5320-01-168-3096 MS14218AD45, MS14218AD4-5, ST3M748AD45
Product Details | SOLID RIVET

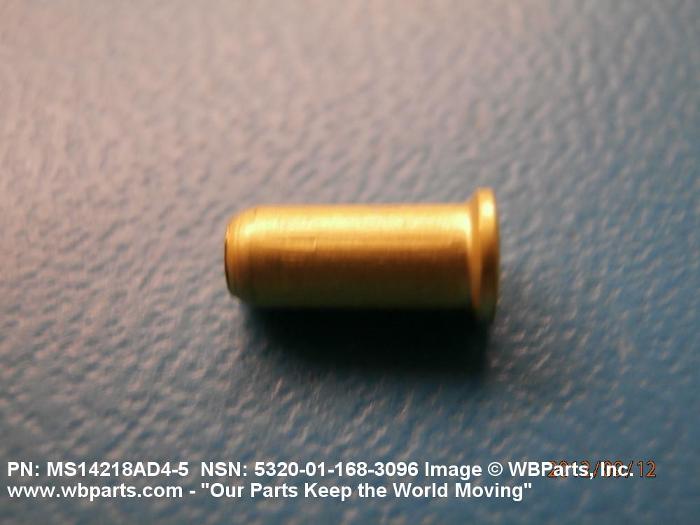

5320-01-168-3096 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS14218AD45, MS14218AD4-5, ST3M748AD45, ST3M748AD4-5, BRFS4AD5, BRFZ4AD5, 5320-01-168-3096, 01-168-3096, 5320011683096, 011683096
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 DEC 1983 | 01-168-3096 | 00861 ( RIVET, SOLID ) |

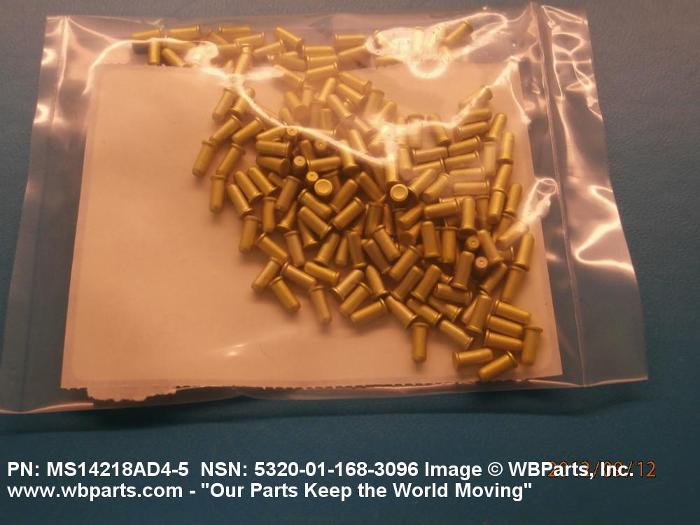

Drawings & Photos | NSN 5320-01-168-3096
Demand History | NSN 5320-01-168-3096
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-168-3096 | 2024-04-116 | 50 | us |
| 5320-01-168-3096 | 2018-11-309 | 15055 | DIBBS |
| 5320-01-168-3096 | 2015-05-148 | 12500 | DIBBS |
| 5320-01-168-3096 | 2012-09-262 | 2847 | DIBBS |
| MS14218AD45 | 2012-08-236 | 1000 | PT |
| 5320-01-168-3096 | 2012-08-234 | 1000 | PT |
| MS14218AD45 | 2012-06-172 | 200 | United States |
| BRFZ4AD5 | 2008-01-26 | 100 | Colombia |
Cross Reference | NSN 5320-01-168-3096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BRFS4AD5 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| BRFS4AD5 | 55580 | BRILES RIVET CORP |
| BRFS4AD5 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BRFZ4AD5 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| MS14218AD4-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| ST3M748AD4-5 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-168-3096
Related Products | NSN 5320-01-168-3096
Technical Data | NSN 5320-01-168-3096
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-5674 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED OVERALL |

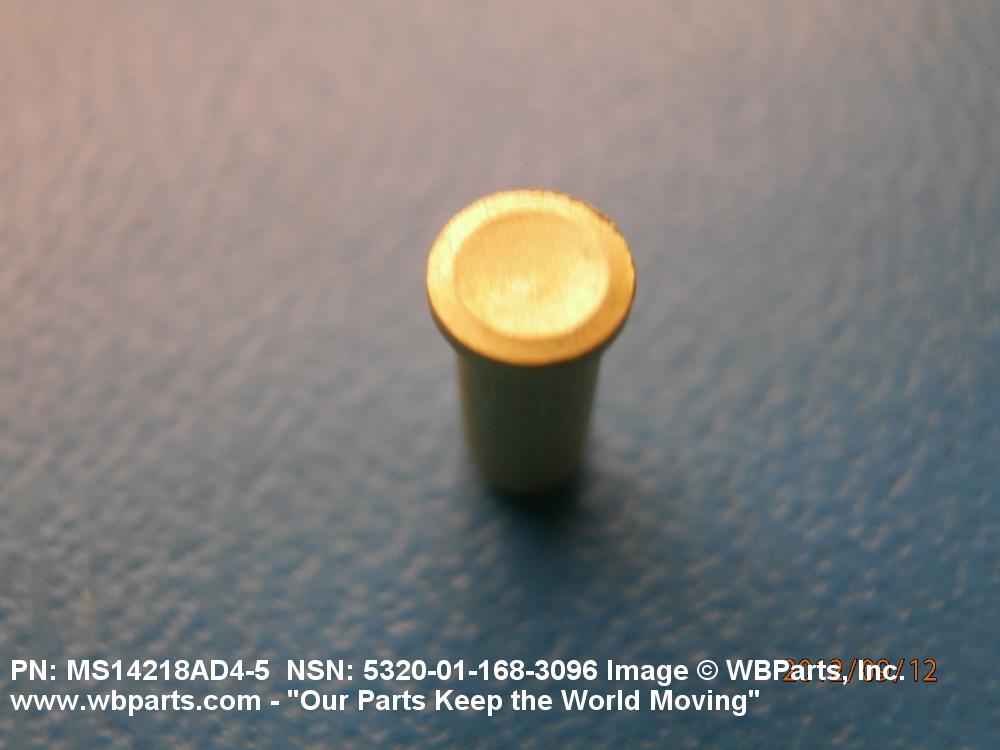

| HEAD STYLE | C7 COUNTERSUNK WITH REVERSE CHAMFER |
| HEAD HEIGHT | 0.032 INCHES NOMINAL |

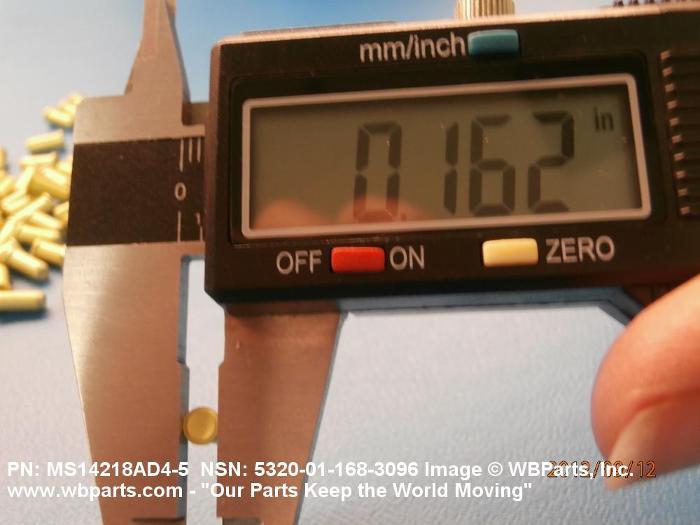

| HEAD MAJOR DIAMETER | 0.162 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 119.5 DEGREES MINIMUM AND 120.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

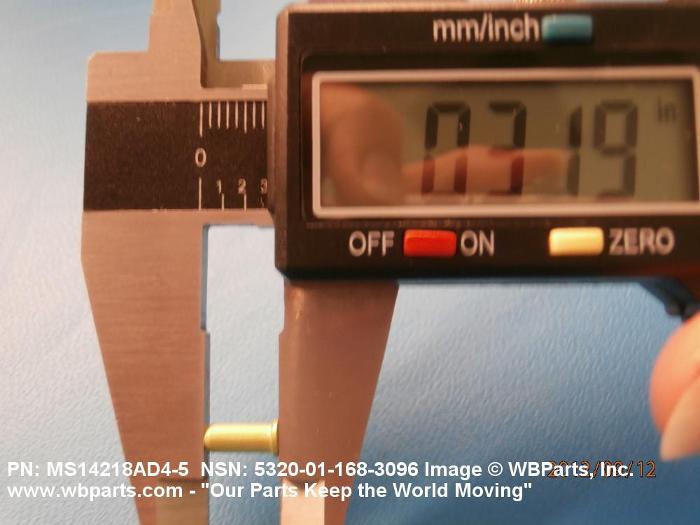

| FASTENER LENGTH | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

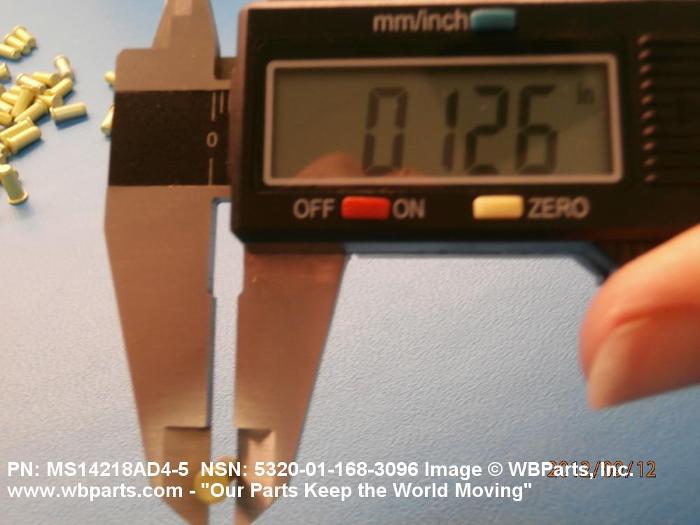

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
