NSN 5320-01-161-9299 HL4143, HL41-4-3, ST226303

Product Details | PIN-RIVET

5320-01-161-9299 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: HL4143, HL41-4-3, ST226303, ST2263-03, ST25D6043, ST25D60-4-3, 5320-01-161-9299, 01-161-9299, 5320011619299, 011619299

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 SEP 1983	01-161-9299	67165 ( PIN-RIVET )

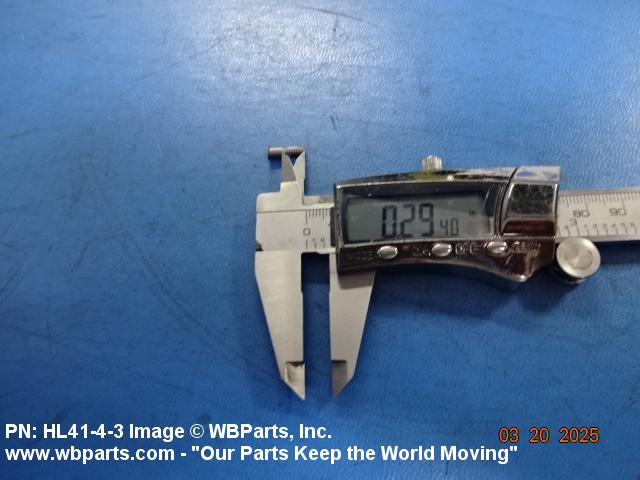

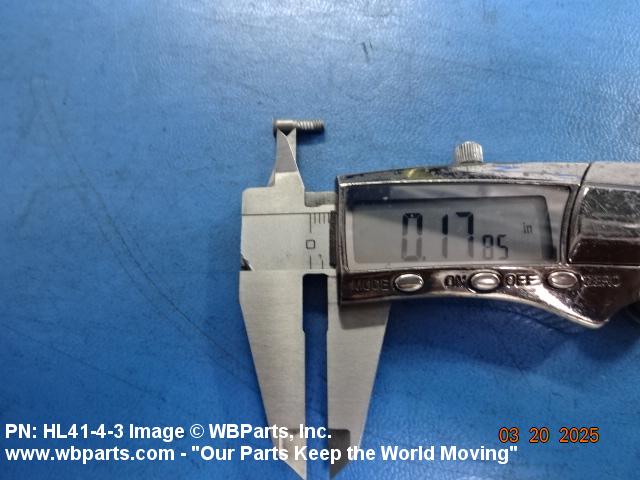

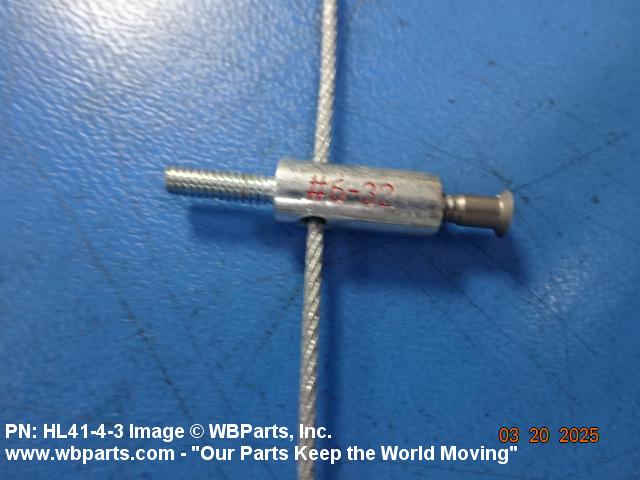

Drawings & Photos | NSN 5320-01-161-9299

Part Number	Request Date	QTY	Origin
5320-01-161-9299	2015-06-162	100	United States
5320-01-161-9299	2011-04-100	2737	DIBBS
5320-01-161-9299	2009-12-364	3294	DIBBS
5320-01-161-9299	2009-12-352	3294	DIBBS
5320-01-161-9299	2009-05-141	3294	DIBBS
5320-01-161-9299	2009-04-98	1771	DIBBS
5320-01-161-9299	2009-02-34	158	DIBBS
5320-01-161-9299	2008-03-64	791	DIBBS
5320-01-161-9299	2008-02-37	1008	DIBBS

Cross Reference | NSN 5320-01-161-9299

Part Number	Cage Code	Manufacturer
HL41-4-3	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL41-4-3	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL41-4-3	73197	HI-SHEAR CORPORATION
HL41-4-3	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL41-4-3	L4528	LISI AEROSPACE CANADA CORP
ST2263-03	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
ST25D60-4-3	04236	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-161-9299

Compare

Related Products | NSN 5320-01-161-9299

5320-01-162-0053, 5320-01-162-0419, 5320-01-162-2550, 5320-01-162-2551, 5320-01-162-2552

Technical Data | NSN 5320-01-161-9299

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5737 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5731 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	A9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED
FASTENER LENGTH	0.468 INCHES MINIMUM AND 0.488 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.064 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
SHANK DIAMETER	0.137 INCHES MINIMUM AND 0.138 INCHES MAXIMUM
GRIP LENGTH	0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
MANUFACTURERS CODE	77445
MFR SOURCE CONTROLLING REFERENCE	ST2263-03

Restrictions/Controls & Freight Information | NSN 5320-01-161-9299

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-161-9299

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	NZ	SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
