NSN 5320-01-156-5156 MS20470AD635, MS20470AD6-3-5, 01-156-5156
Product Details | SOLID RIVET
5320-01-156-5156 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20470AD635, MS20470AD6-3-5, 5320-01-156-5156, 01-156-5156, 5320011565156, 011565156
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUN 1983 | 01-156-5156 | 00861 ( RIVET, SOLID ) |

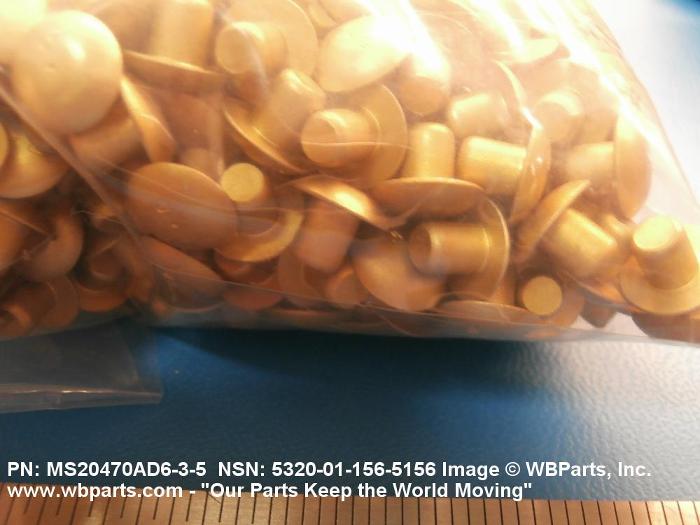

Drawings & Photos | NSN 5320-01-156-5156
Demand History | NSN 5320-01-156-5156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-156-5156 | 2012-07-185 | 100 | United States |
| 5320-01-156-5156 | 2012-07-185 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-156-5156
Related Products | NSN 5320-01-156-5156
Technical Data | NSN 5320-01-156-5156
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.356 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |
| FASTENER LENGTH | 0.209 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| SHANK DIAMETER | 0.186 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-156-5156
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
