NSN 5320-01-154-3894 HL62PB89, HL62PB8-9, 01-154-3894
Product Details | PIN-RIVET
5320-01-154-3894 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL62PB89, HL62PB8-9, 5320-01-154-3894, 01-154-3894, 5320011543894, 011543894
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAY 1983 | 01-154-3894 | 67165 ( PIN-RIVET ) |

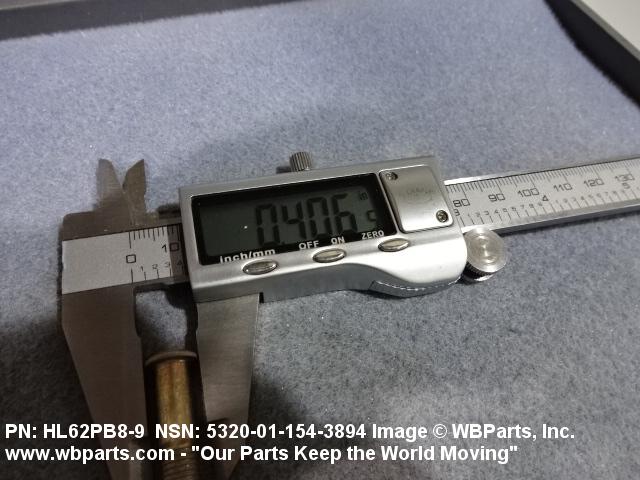

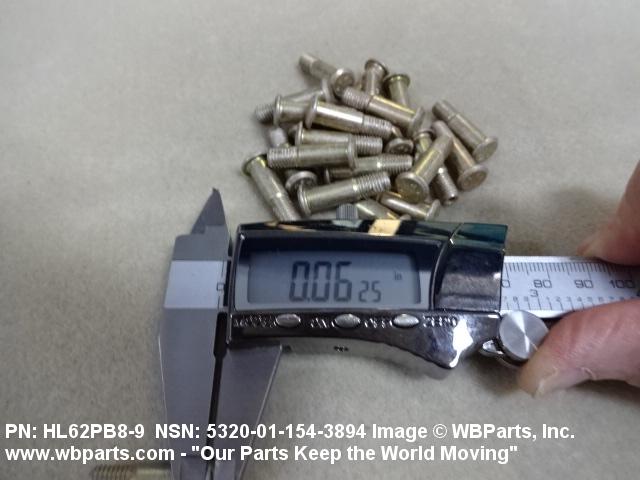

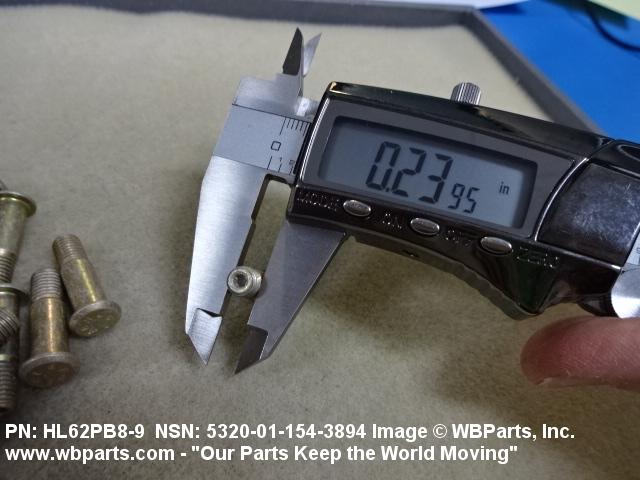

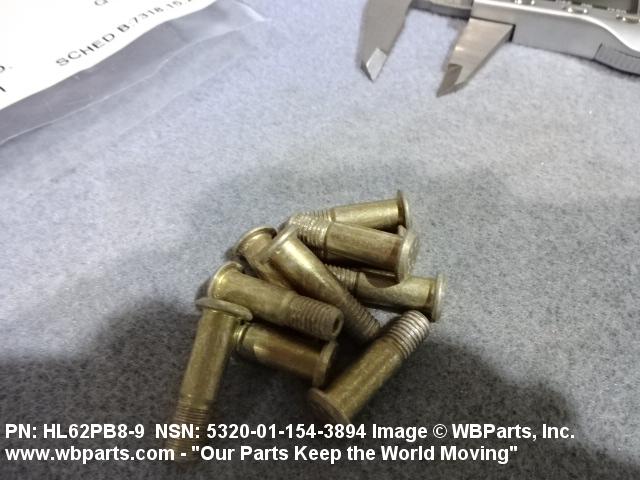

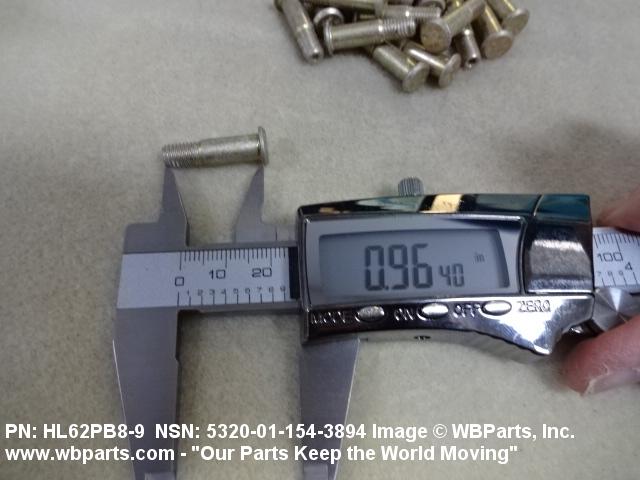

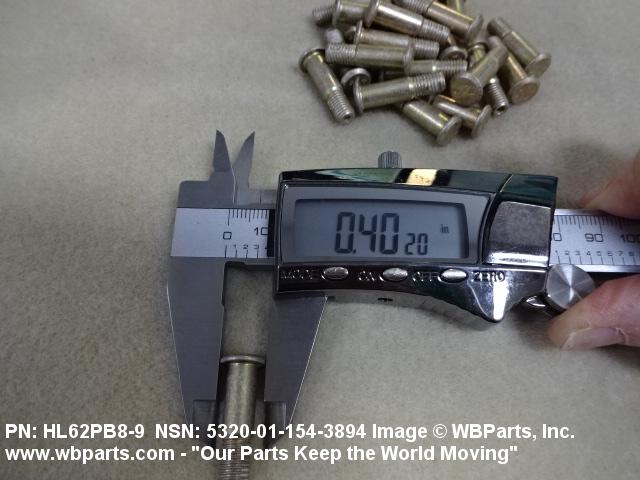

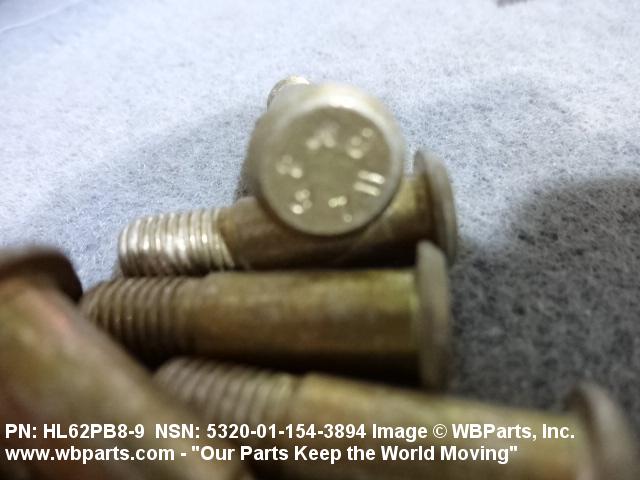

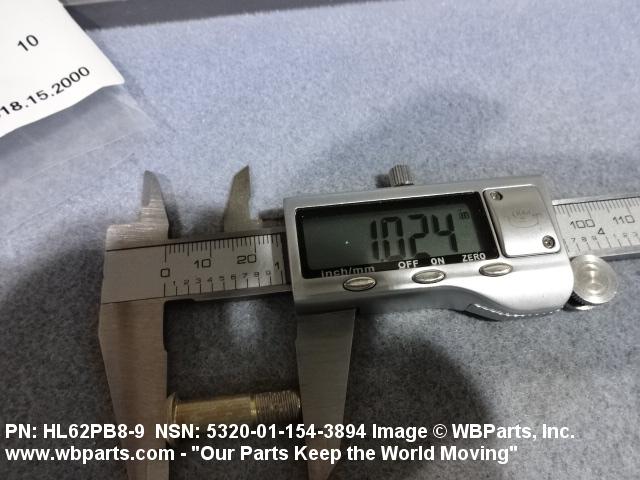

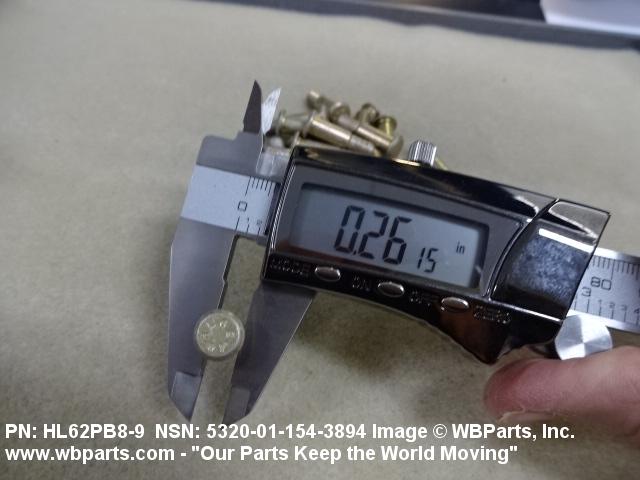

Drawings & Photos | NSN 5320-01-154-3894
Demand History | NSN 5320-01-154-3894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL62PB89 | 2018-08-242 | 25 | US |
| 5320-01-154-3894 | 2016-11-307 | 4967 | DIBBS |
| 5320-01-154-3894 | 2015-10-286 | 7429 | DIBBS |
| HL62PB8-9 | 2014-06-157 | 50 | United States |
| 5320-01-154-3894 | 2009-05-151 | 8110 | DIBBS |
| HL62PB89 | 2008-07-206 | 300 | Turkey |
Cross Reference | NSN 5320-01-154-3894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL62PB8-9 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL62PB8-9 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL62PB8-9 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL62PB8-9 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL62PB8-9 | 60516 | WEST COAST AEROSPACE INC |
| HL62PB8-9 | 73197 | HI-SHEAR CORPORATION |
| HL62PB8-9 | L4528 | LISI AEROSPACE CANADA CORP |
