NSN 5320-01-152-8694 MS21140S0603, SB100EU0603, SB100-EU06-03
Product Details | BLIND RIVET
5320-01-152-8694 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS21140S0603, SB100EU0603, SB100-EU06-03, SB100EU63, SB100-EU6-3, 5320-01-152-8694, 01-152-8694, 5320011528694, 011528694
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 1983 | 01-152-8694 | 00864 ( RIVET, BLIND ) |

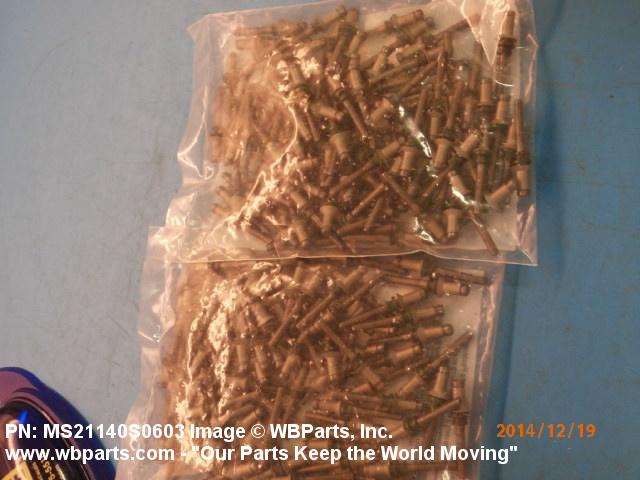

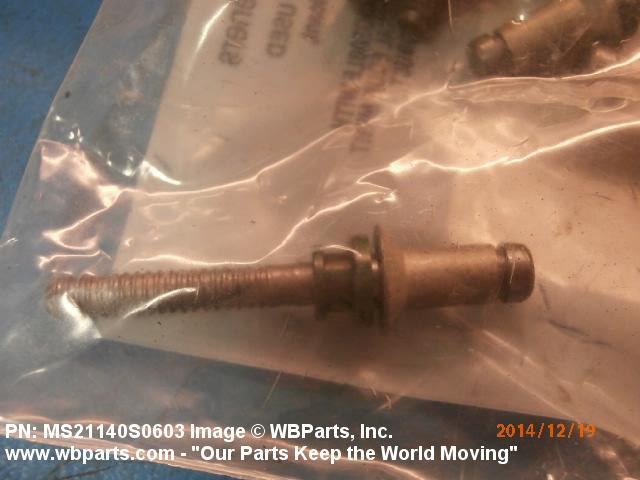

Drawings & Photos | NSN 5320-01-152-8694
Demand History | NSN 5320-01-152-8694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-152-8694 | 2024-10-289 | 3600 | Denmark |
| MS21140S0603 | 2022-07-193 | 600 | US |
| SB100EU0603 | 2022-07-193 | 600 | US |
| SB100EU0603 | 2014-12-349 | 200 | United States |
| 5320-01-152-8694 | 2011-11-313 | 500 | IN |
Cross Reference | NSN 5320-01-152-8694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21140S0603 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21140S0603 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SB100-EU06-03 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| SB100-EU06-03 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| SB100-EU06-03 | 29666 | HUCK MFG CO |
| SB100-EU6-3 | 29666 | HUCK MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-152-8694
Related Products | NSN 5320-01-152-8694
Technical Data | NSN 5320-01-152-8694
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.386 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.511 INCHES NOMINAL |
| SHANK DIAMETER | 0.198 INCHES NOMINAL |
| GRIP LENGTH | 0.156 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-152-8694
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZS | Denmark ZT ZU |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-152-8694
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
