NSN 5320-01-151-1061 M7885/2-4-02, M7885/2-4-2, M78852402

Product Details | BLIND RIVET

5320-01-151-1061 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/2-4-02, M7885/2-4-2, M78852402, M7885-2-4-02, M7885242, MBBN3012L3202, NAS9301BNS402, NAS9301BNS-4-02, AF3213402, AF3213-4-02, AF321342, AF3213-4-2, CR21342, CR-213-4-2, CR3213, CR3213402, CR3213-4-02, CR321342, CR3213-4-2, HC321342, HC3213-4-2, MIL-R-7885/2, MILR78852, 10111865 , 7198162, 719816-2, 8000981-13, 5320-01-151-1061, 01-151-1061, 5320011511061, 011511061, 800098113

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 APR 1983	01-151-1061	00864 ( RIVET, BLIND )

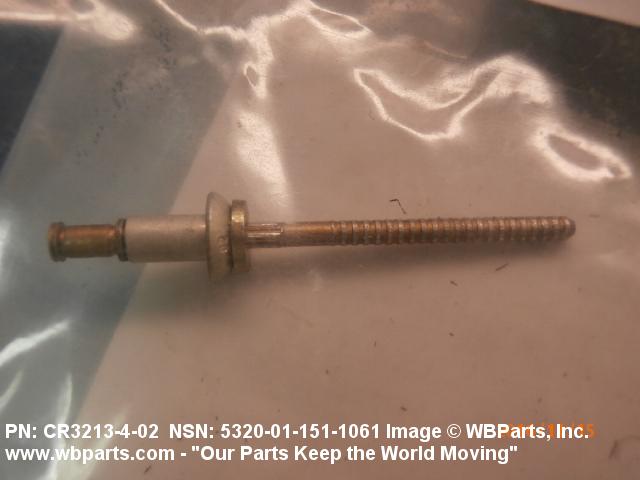

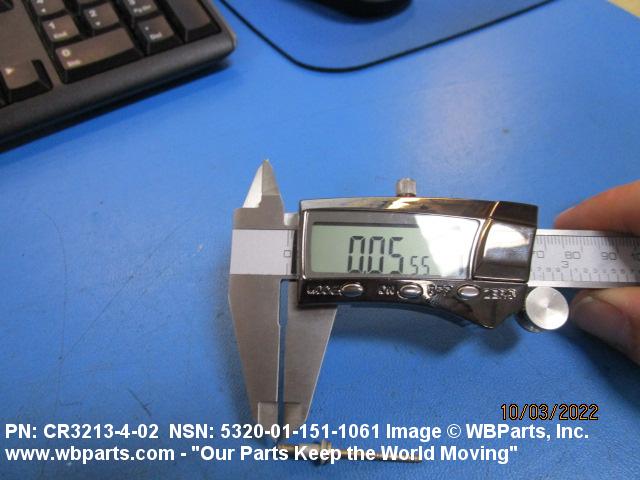

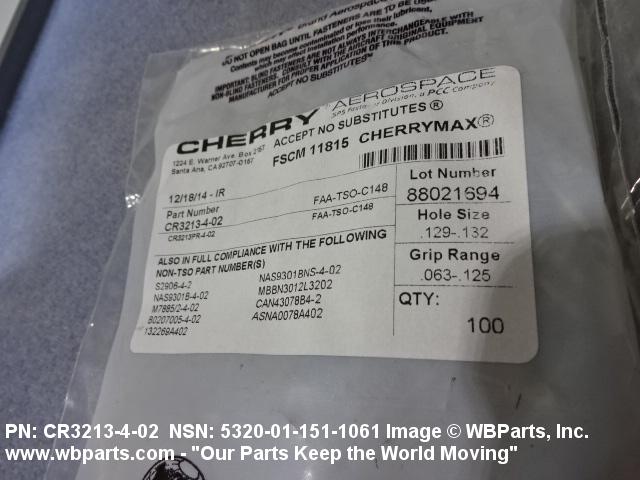

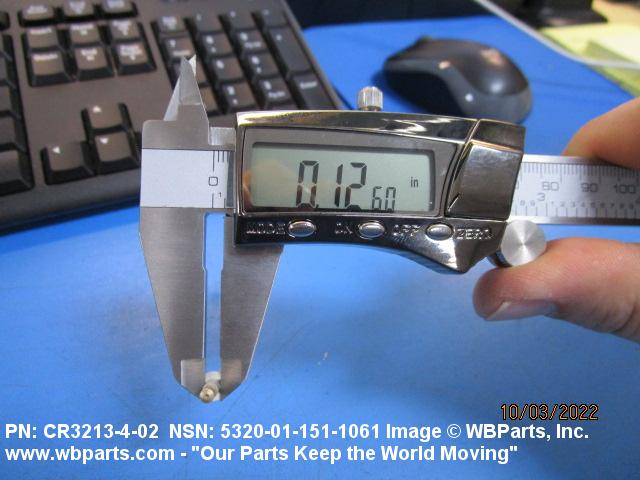

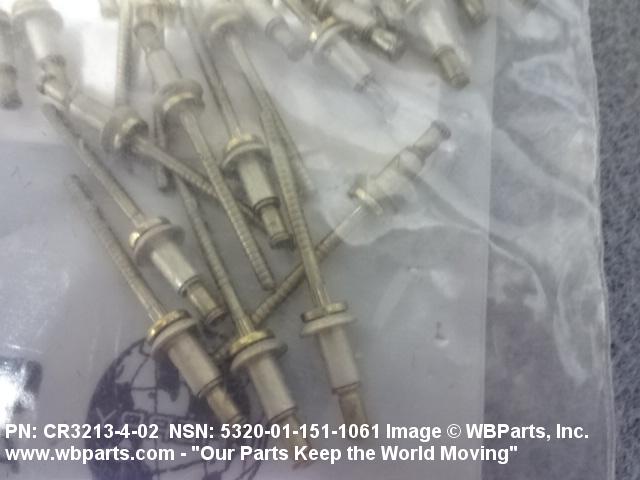

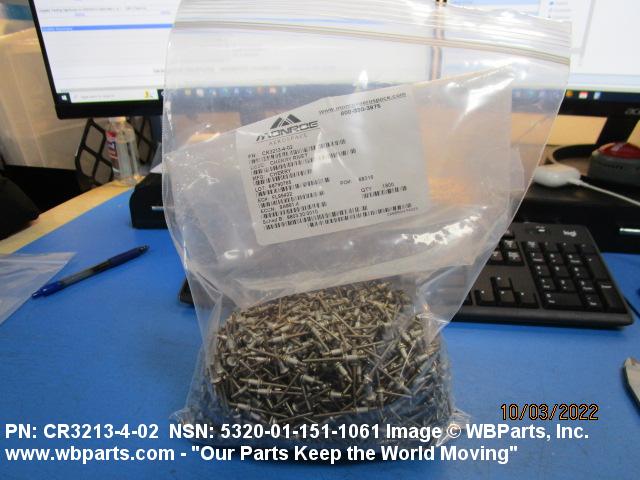

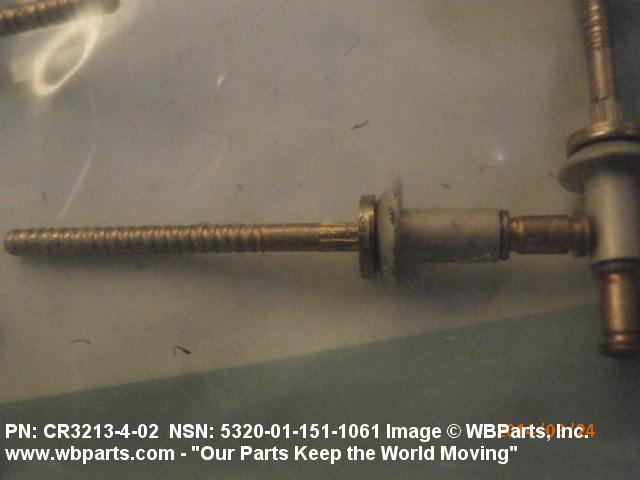

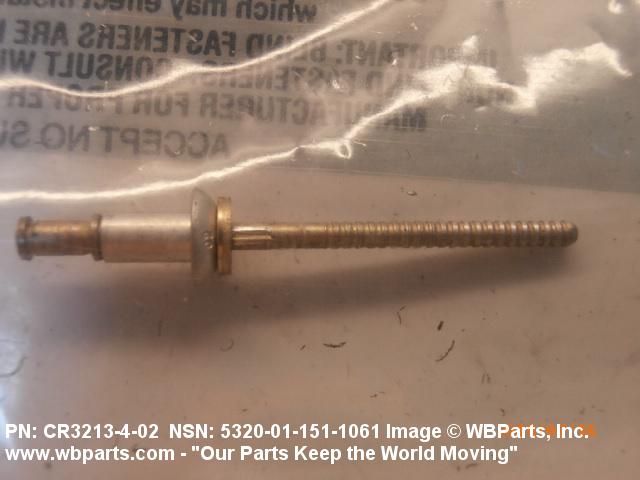

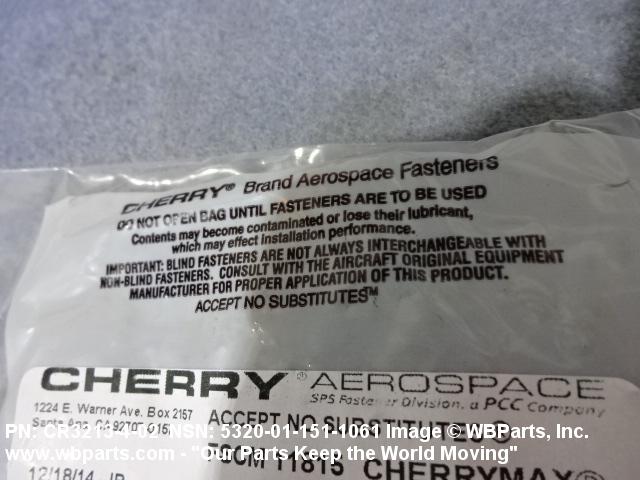

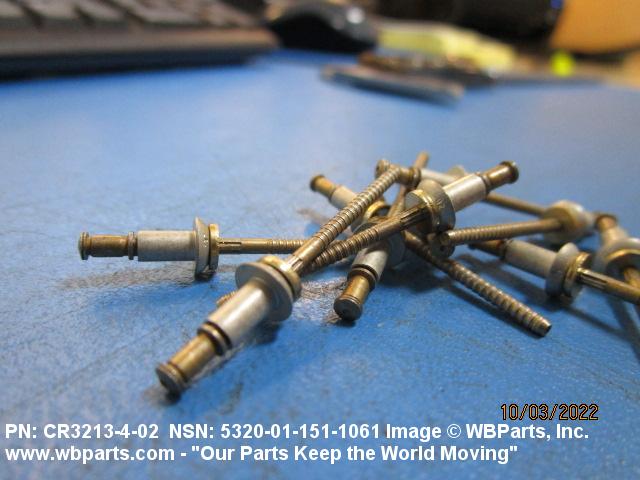

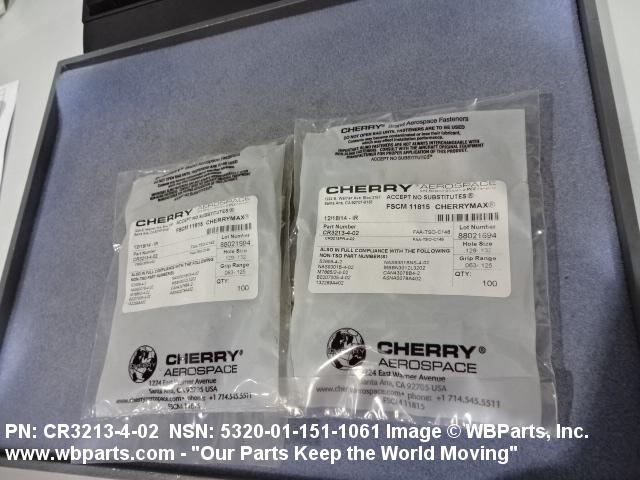

Drawings & Photos | NSN 5320-01-151-1061

Part Number	Request Date	QTY	Origin
5320-01-151-1061	2024-12-340	5000	US
M78852402	2024-11-311	3000	Germany
CR3213402	2024-10-298	3000	Germany
CR3213402	2024-09-263	100	US
NAS9301BNS402	2024-09-254	650	United States
CR3213402	2024-09-250	100	United States
CR3213402	2024-09-248	33	us
5320-01-151-1061	2024-09-247	200	United States
5320-01-151-1061	2024-08-234	1200	United States
NAS9301BNS402	2024-08-225	180	United States
CR3213402	2024-04-100	1000	us
CR321342	2024-04-96	200	BR
5320-01-151-1061	2024-02-47	250	Canada
5320-01-151-1061	2024-01-22	121927	United States
5320-01-151-1061	2023-11-306	5000	UK
CR321342	2023-08-222	500	us
CR3213402	2023-02-53	600	us
5320-01-151-1061	2023-01-19	6	US
CR321342	2022-10-278	200	Malaysia
CR3213402	2022-06-178	50	US
CR321342	2022-03-82	200	United States
CR3213	2022-03-73	500	CA
CR3213402	2021-11-333	640	IN
CR321342	2021-08-230	60	US
5320-01-151-1061	2020-11-328	13000	Singapore
5320-01-151-1061	2020-11-324	13000	Singapore
5320-01-151-1061	2020-09-252	100	SA
CR3213-4-02	2020-06-175	3	Italy
CR321342	2020-04-97	500	Malaysia
5320-01-151-1061	2020-02-40	8300	Singapore
CR3213402	2019-09-263	50	United States
CR321342	2019-06-168	300	CL
5320-01-151-1061	2019-06-164	60	Taiwan
5320-01-151-1061	2019-04-97	105750	DIBBS
NAS9301BNS-4-02	2019-02-42	150	Lebanon
NAS9301BNS-4-02	2019-02-42	150	Lebanon
CR321342	2018-10-292	2000	US
5320-01-151-1061	2018-10-276	73900	DIBBS
5320-01-151-1061	2018-09-268	73900	DIBBS
5320-01-151-1061	2018-07-204	1	United States
5320-01-151-1061	2018-07-184	1	United States
CR321342	2018-02-57	50	United States
CR321342	2018-01-09	100	KE
NAS9301BNS402	2018-01-03	50	United States
CR3213402	2017-05-122	7	United States
M78852402	2017-02-37	1000	United States
CR321342	2017-02-33	400	Kenya
CR3213402	2016-11-316	100	United States
CR321342	2016-04-116	100	US
CR3213-4-2	2016-04-96	3200	Romania
CR321342	2015-10-302	1000	Malaysia
5320-01-151-1061	2015-10-295	1000	Malaysia
CR321342	2015-07-207	300	United States
NAS9301BNS-4-02	2015-07-201	3000
5320-01-151-1061	2015-07-196	20	United States
CR3213402	2015-07-182	1000	IL
CR321342	2015-06-168	64	Malaysia
CR3213402	2015-06-160	2000	Australia
5320-01-151-1061	2015-01-27	10	South Africa
5320-01-151-1061	2014-12-350	1000	MANUAL
CR3213402	2014-07-196	6	AR
5320-01-151-1061	2014-06-167	86	US
NAS9301BNS402	2014-02-42	8300	US
CR3213402	2014-02-36	50	Malaysia
5320-01-151-1061	2013-11-305	900	United States
AF3213-4-02	2013-08-238	5000	US
CR3213402	2013-08-213	35	US
CR3213-4-02	2013-05-134	50	CZ
5320-01-151-1061	2013-04-109	111122	DIBBS
M78852402	2013-02-53	48	US
5320-01-151-1061	2012-12-362	212474	DIBBS
CR3213402	2012-12-338	1800	CO
5320-01-151-1061	2012-10-303	128547	DIBBS
5320-01-151-1061	2012-10-277	74799	DIBBS
5320-01-151-1061	2012-07-205	50	United States
CR321342	2012-07-183	1000	US
5320-01-151-1061	2012-07-183	1000	US
5320-01-151-1061	2012-06-171	20	MANUAL
5320-01-151-1061	2012-06-171	400	MANUAL
5320-01-151-1061	2012-06-171	500	MANUAL
CR3213-4-02	2012-06-171	20	Malaysia
CR3213-4-2	2012-06-171	500	Malaysia
CR3213-4-2	2012-06-171	400	Malaysia
CR321342	2012-05-122	200	ID
CR321342	2011-12-343	20	United States
CR321342	2011-12-343	100	United States
5320-01-151-1061	2011-08-214	79733	DIBBS
5320-01-151-1061	2011-05-122	109898	DIBBS
5320-01-151-1061	2011-04-110	14	US
5320-01-151-1061	2011-04-110	103756	DIBBS
CR3213-4-2	2011-03-83	100	Taiwan
5320-01-151-1061	2011-03-75	48	US
CR321342	2011-02-34	400	US
5320-01-151-1061	2010-11-315	100	US
5320-01-151-1061	2010-07-210	20	US
5320-01-151-1061	2010-07-201	1	TR
AF321342	2009-11-320	1000	China
CR321342	2009-11-320	0	China
CR321342	2009-05-138	1711	China
CR3213402	2009-04-93	400	Hong Kong
CR321342	2008-02-43	225	US
CR3213402	2007-12-347	100	BE
MBBN3012L3202	2007-05-143	500	US
MBBN3012L3202	2006-07-206	4400	DE
CR321342	2006-05-149	100	KE
CR321342	2006-04-118	200	KE
CR321342	2006-04-96	1	US

Cross Reference | NSN 5320-01-151-1061

Part Number	Cage Code	Manufacturer
719816-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
8000981-13	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
AF3213-4-02	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3213-4-2	53551	ALLFAST FASTENING SYSTEMS, LLC
CR-213-4-2	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3213	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3213-4-02	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-4-2	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-4-2	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CR3213-4-2	FB011	AERO STOCK
HC3213-4-2	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885-2-4-02	33823	ADAMS INDUSTRIES INC A SUB OF BANNER INDUSTRIES INC
M7885/2-4-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M7885/2-4-2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MBBN3012L3202	C0418	AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG
MIL-R-7885/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9301BNS-4-02	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
NAS9301BNS-4-02	53551	ALLFAST FASTENING SYSTEMS, LLC
NAS9301BNS-4-02	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-151-1061

Compare

Related Products | NSN 5320-01-151-1061

5320-01-151-1062, 5320-01-151-1063, 5320-01-151-1064, 5320-01-151-1066, 5320-01-151-1067

Technical Data | NSN 5320-01-151-1061

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	CHROMATE SLEEVE CADMIUM AND CHROMATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STEM
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	0.194 INCHES MINIMUM AND 0.224 INCHES MAXIMUM
SHANK DIAMETER	0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM
GRIP LENGTH	0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIAL FEATURES	"NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.

Restrictions/Controls & Freight Information | NSN 5320-01-151-1061

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-151-1061

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
