NSN 5320-01-150-2740 MBBN3013M3204, A0077C404, CR3522404

Product Details | BLIND RIVET

5320-01-150-2740 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: MBBN3013M3204, A0077C404, CR3522404, CR3522-4-04, CR352244, CR3522-4-4, 5320-01-150-2740, 01-150-2740, 5320011502740, 011502740

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01-APR-83	01-150-2740	00864 ( RIVET, BLIND )

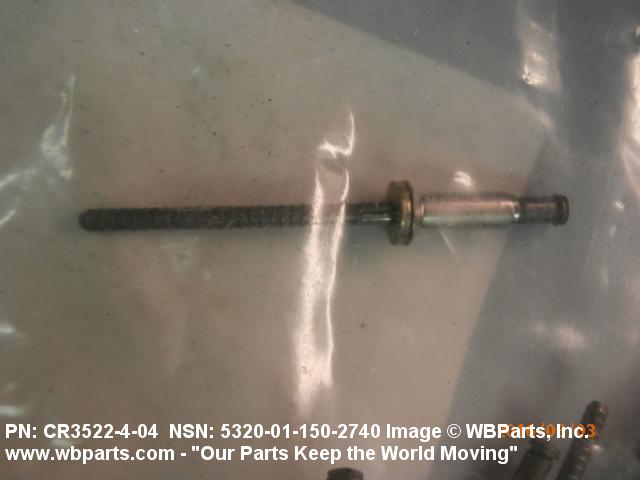

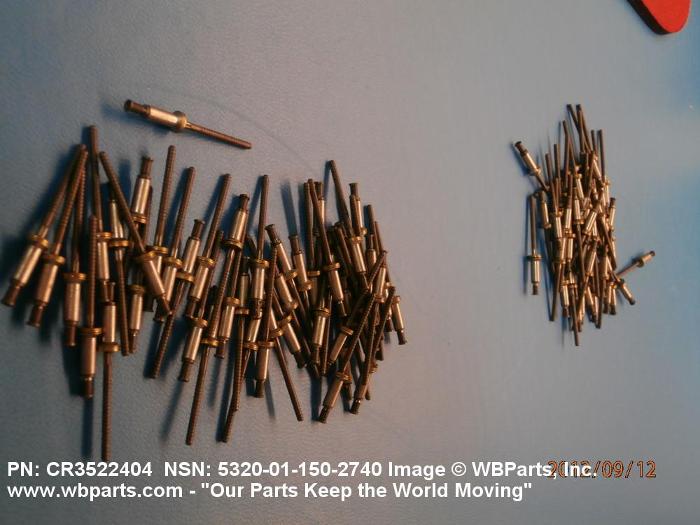

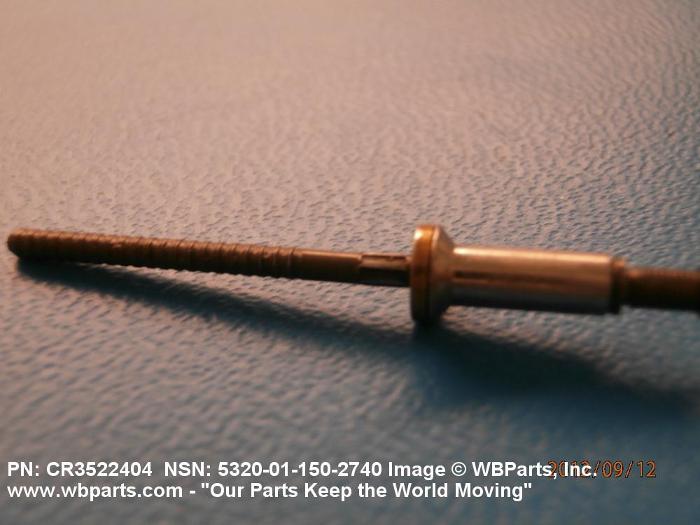

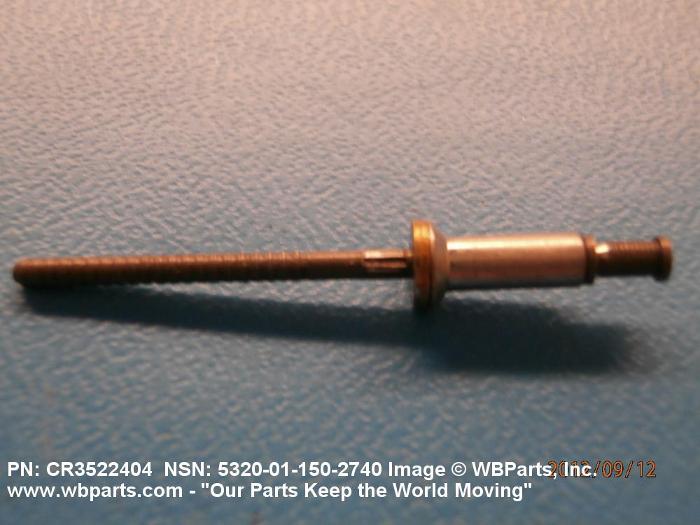

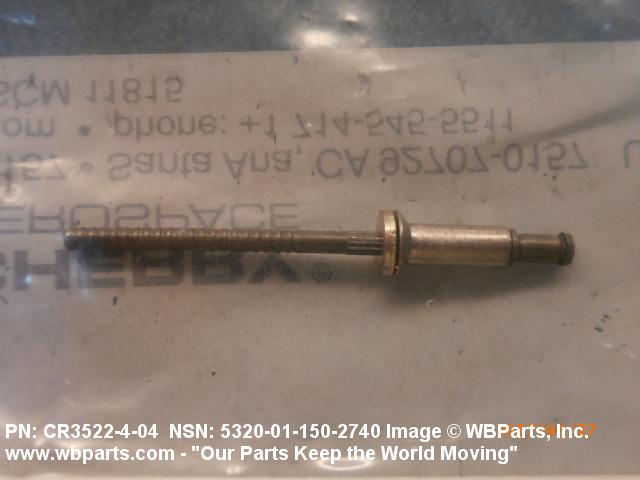

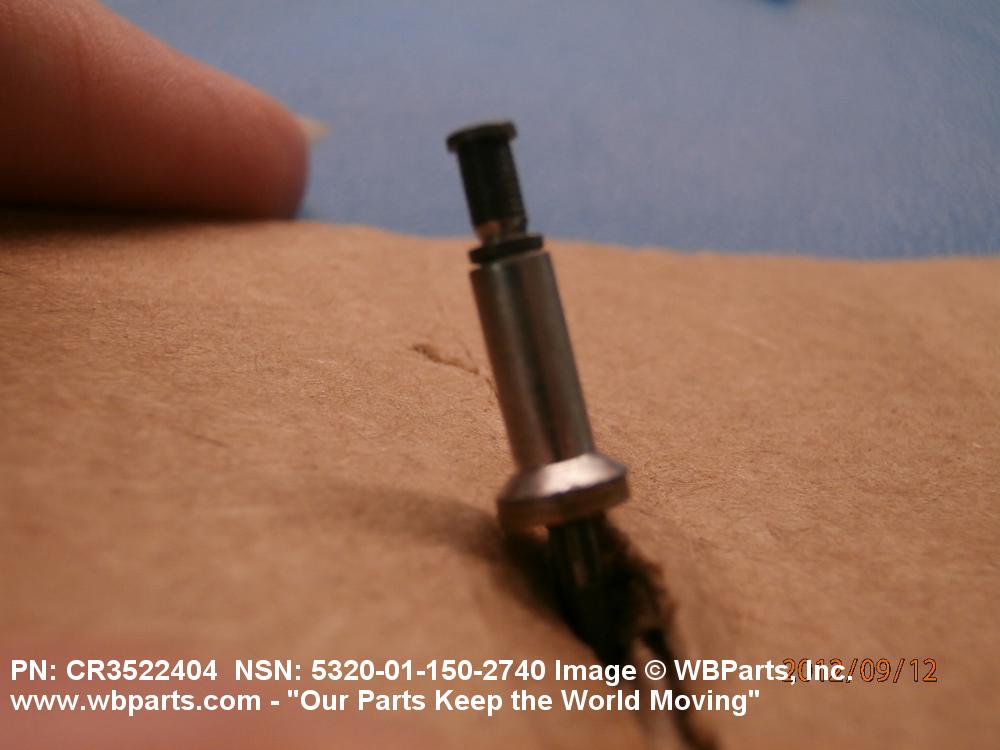

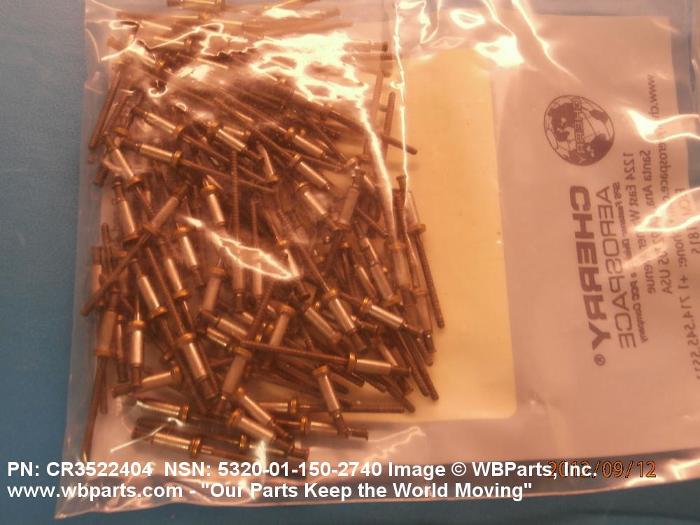

Drawings & Photos | NSN 5320-01-150-2740

Part Number	Request Date	QTY	Origin
CR3522404	2020-04-120	100	China
CR3522404	2016-07-207	200	us
CR352244	2015-07-211	200	Egypt
CR352244	2015-06-166	12	US
CR3522-4-4	2015-03-71	4000	TH
CR352244	2013-07-200	100	US
CR3522404	2013-03-63	40	UM
CR352244	2012-10-283	250	United States
CR3522404	2012-09-255	100	United States
5320-01-150-2740	2011-05-122	2162	DIBBS
5320-01-150-2740	2010-10-276	20	DIBBS
5320-01-150-2740	2010-09-269	200	DIBBS
5320-01-150-2740	2010-09-253	50	DIBBS
5320-01-150-2740	2010-08-236	1	DIBBS
5320-01-150-2740	2010-08-226	1	DIBBS
5320-01-150-2740	2010-08-222	200	DIBBS
5320-01-150-2740	2010-08-222	362	DIBBS
5320-01-150-2740	2010-08-219	1	DIBBS
5320-01-150-2740	2010-07-204	44	DIBBS
5320-01-150-2740	2010-06-181	100	DIBBS
5320-01-150-2740	2010-06-175	100	DIBBS
5320-01-150-2740	2010-06-163	1	DIBBS
5320-01-150-2740	2010-06-163	300	DIBBS
5320-01-150-2740	2010-05-150	50	DIBBS
5320-01-150-2740	2010-05-142	50	DIBBS
5320-01-150-2740	2010-05-136	50	DIBBS
5320-01-150-2740	2010-05-136	100	DIBBS
5320-01-150-2740	2010-05-128	40	DIBBS
5320-01-150-2740	2010-05-128	50	DIBBS
5320-01-150-2740	2010-04-119	100	DIBBS
5320-01-150-2740	2010-04-119	1	DIBBS
5320-01-150-2740	2010-04-119	50	DIBBS
5320-01-150-2740	2010-04-114	10	DIBBS
5320-01-150-2740	2010-04-114	20	DIBBS
CR3522404	2009-08-217	1300	US
5320-01-150-2740	2009-02-41	2694	DIBBS
CR3522404	2009-02-35	120	Singapore
CR3522404	2009-02-34	100	Singapore
5320-01-150-2740	2009-01-12	703	DIBBS
5320-01-150-2740	2008-12-343	727	DIBBS
5320-01-150-2740	2008-11-307	300	DIBBS
5320-01-150-2740	2008-10-293	1	DIBBS
5320-01-150-2740	2008-10-293	100	DIBBS
5320-01-150-2740	2008-08-222	100	DIBBS
5320-01-150-2740	2008-07-196	100	DIBBS
5320-01-150-2740	2007-12-345	20	us

Cross Reference | NSN 5320-01-150-2740

Part Number	Cage Code	Manufacturer
3522-4-04	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
A0077C404	F5442	AIRBUS GROUP
AF3522-4-04	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3522-4-4	53551	ALLFAST FASTENING SYSTEMS, LLC
CR3522-4-04	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3522-4-04	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CR3522-4-4	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3522-4-4	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CR3522-4-4	FB011	AERO STOCK
CR3522-4-4	R1120	SATAIR A/S
HR3522-4-04	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/5-4-04	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MBBN3013M3204	C0418	AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG
MIL-R-7885/5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9308M-4-04	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-150-2740

Compare

Related Products | NSN 5320-01-150-2740

5320-01-150-2741, 5320-01-150-2742, 5320-01-150-2743, 5320-01-150-2744, 5320-01-150-2745

Technical Data | NSN 5320-01-150-2740

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING LOCKING RING NICKEL ALLOY SLEEVE STEEL CORROSION RESISTING STEM
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5731 ASSN STD 1ST MATERIAL RESPONSE LOCKING RING QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE SLEEVE AMS5657 ASSN STD 3RD MATERIAL RESPONSE STEM
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.225 INCHES NOMINAL
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	D29 SELF-PLUGGING HIGH CLINCH SHANK
FASTENER LENGTH	0.570 INCHES NOMINAL
SHANK DIAMETER	0.126 INCHES NOMINAL
GRIP LENGTH	0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
LUBRICATION	DRY FILM
MANUFACTURERS CODE	11815
DESIGN CONTROL REFERENCE	CR3522-4-4

Restrictions/Controls & Freight Information | NSN 5320-01-150-2740

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information
