NSN 5320-01-136-3562 M7885/3-4-04, M78853404, MBBN3013L3204

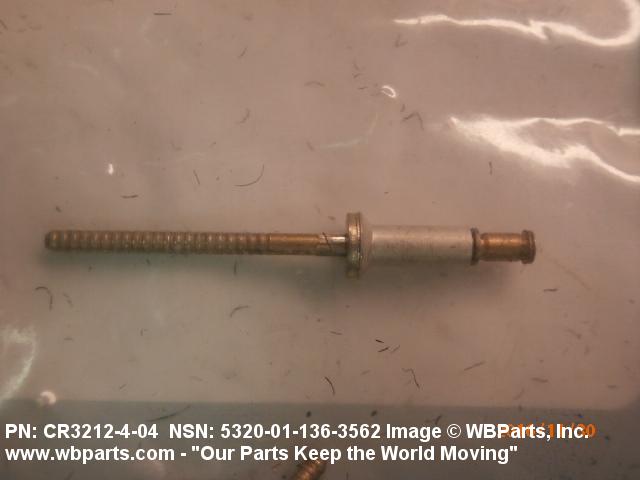

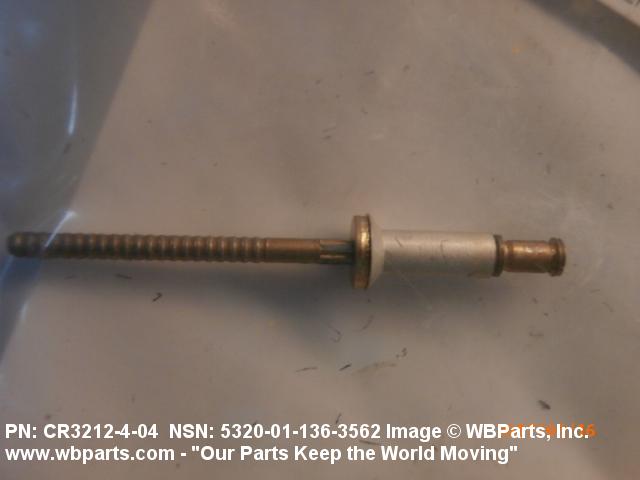

Product Details | BLIND RIVET

5320-01-136-3562 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/3-4-04, M78853404, MBBN3013L3204, A0077A404, AF3212404, AF3212-4-04 , AF321244, AF3212-4-4, ASNA0077A404, NAS9302BNS404, NAS9302BNS-4-04, CR3212404, CR3212-4-04, CR321244, CR3212-4-4, HC321244, HC3212-4-4, MIL-R-7885/3, MILR78853, 932.19.60.440, 9321960440, 5320-01-136-3562, 01-136-3562, 5320011363562, 011363562

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 AUG 1982	01-136-3562	00864 ( RIVET, BLIND )

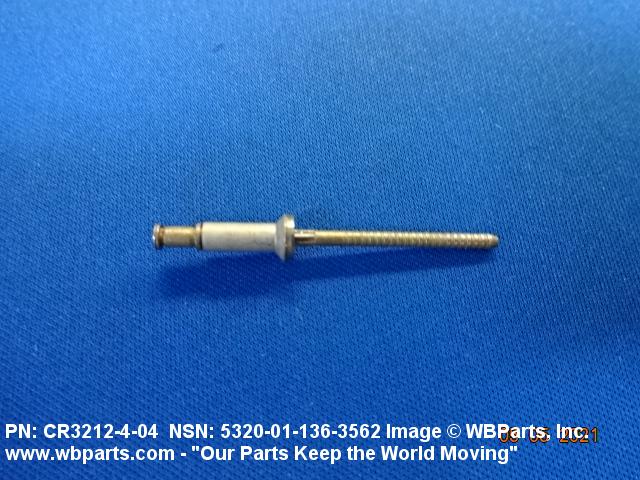

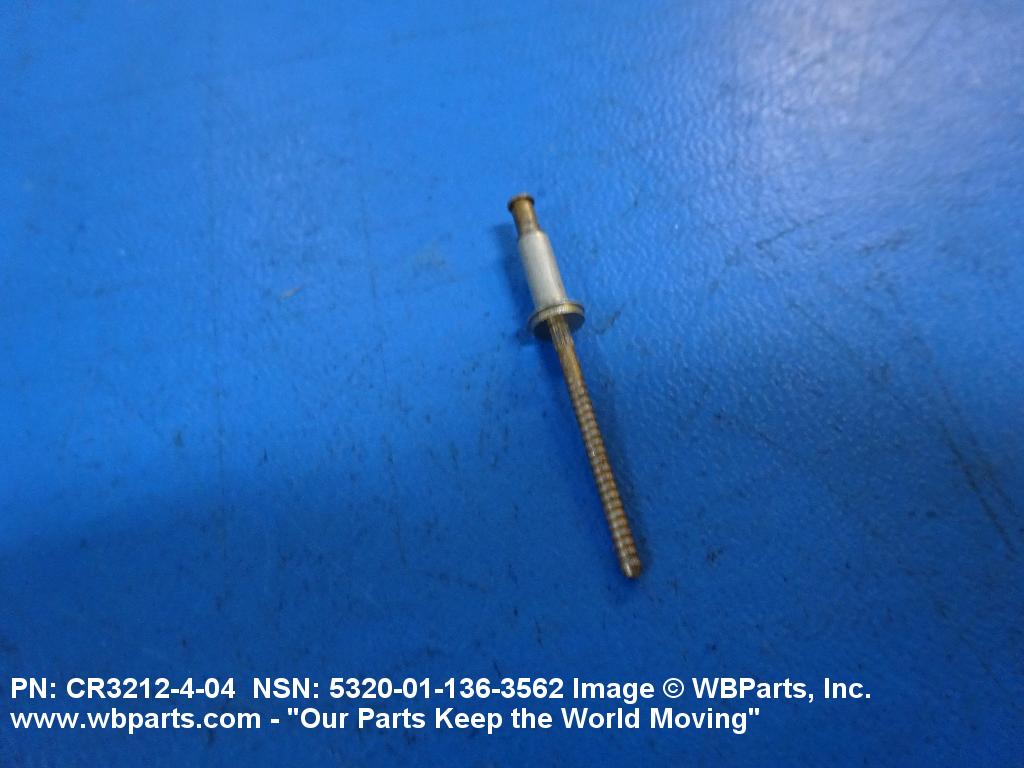

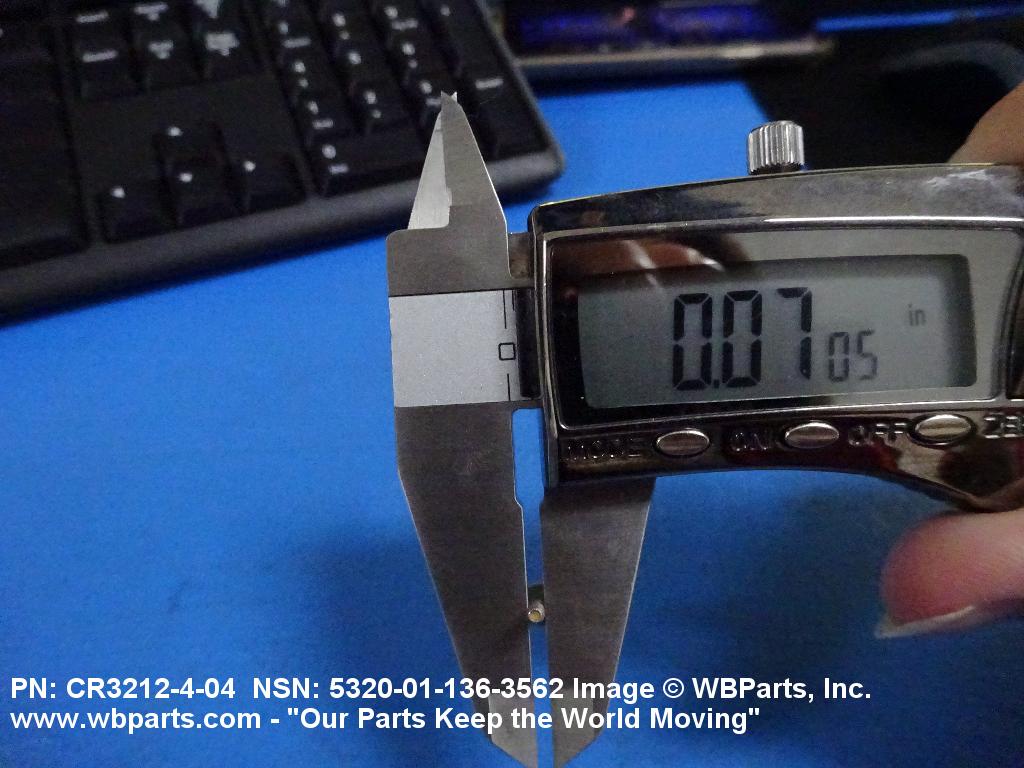

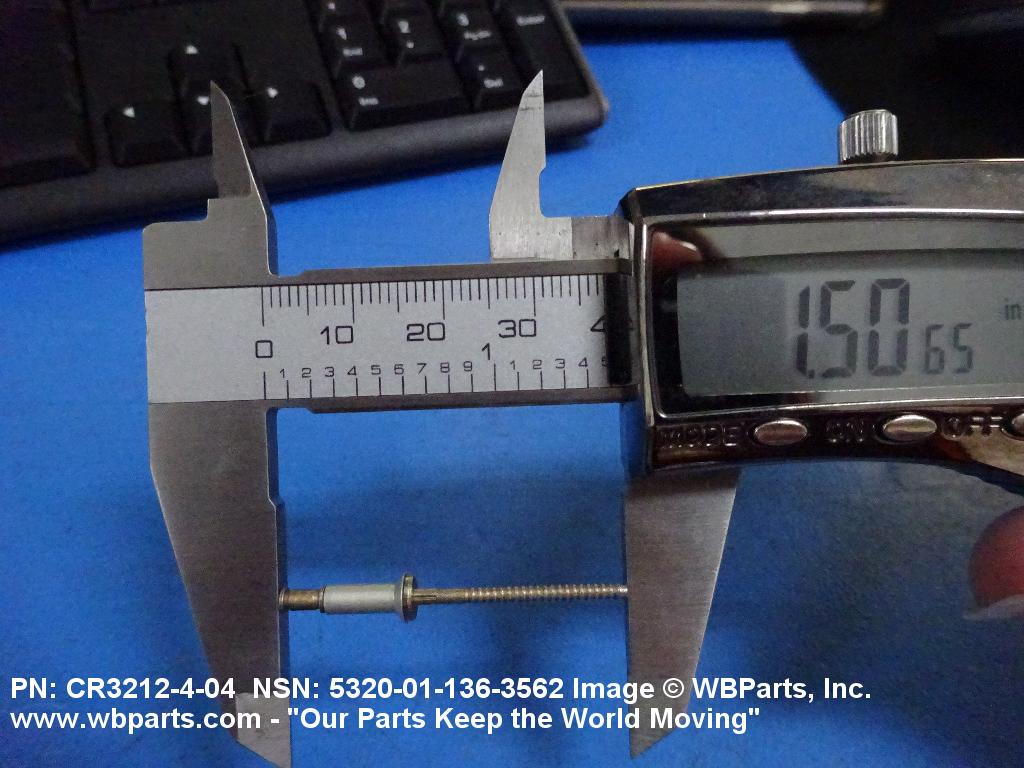

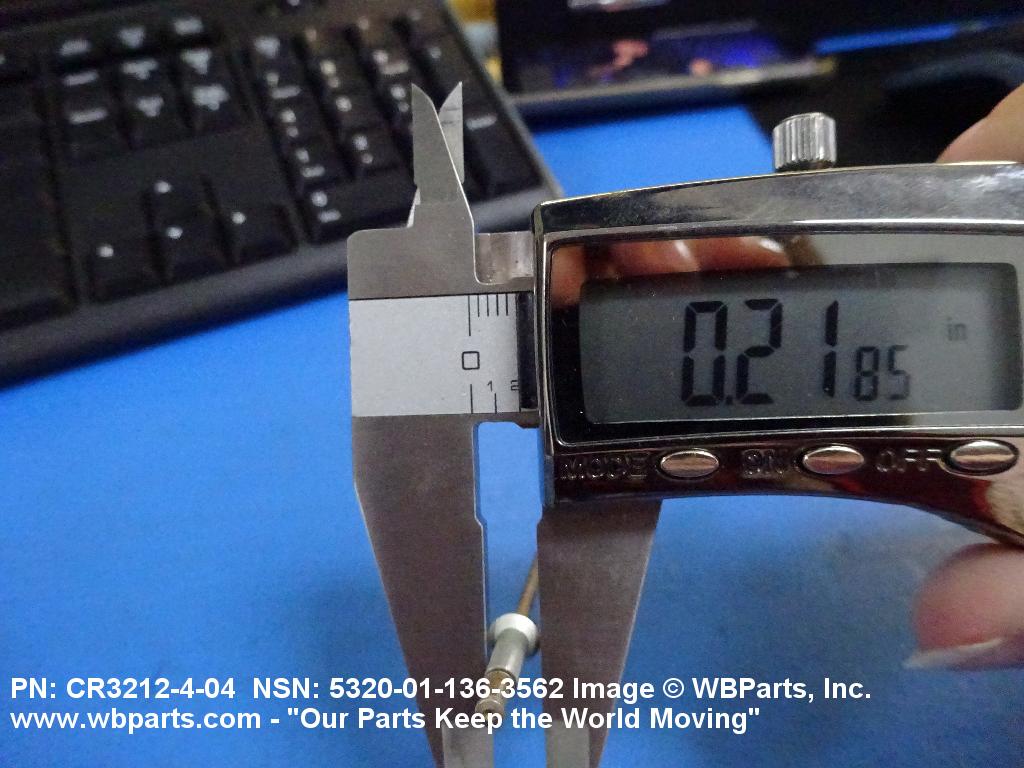

Drawings & Photos | NSN 5320-01-136-3562

Part Number	Request Date	QTY	Origin
NAS9302BNS404	2025-02-57	100	MA
CR3212404	2024-08-214	1000	United States
CR3212404	2024-04-107	1800	US
CR3212404	2024-03-73	500	IQ
CR3212404	2024-01-05	500	Czech Republic
CR3212404	2023-08-228	150	US
CR3212404	2022-12-335	100	United States
M78853404	2022-10-283	2000	United States
M78853404	2022-10-283	2000	Saudi Arabia
CR3212404	2022-07-199	6200	US
CR3212404	2021-11-322	2500	India
CR3212404	2021-02-32	300	Poland
CR321244	2020-04-97	500	Malaysia
CR321244	2019-06-168	300	CL
CR321244	2018-02-57	100	United States
NAS9302BNS404	2018-01-12	300	United States
5320-01-136-3562	2017-05-137	100	Malaysia
CR3212404	2017-05-122	1	United States
CR321244	2017-05-122	3	United States
CR3212404	2017-03-69	1000	us
CR321244	2016-08-228	200	PH
NAS9302BNS404	2016-05-141	29	US
CR3212-4-4	2016-04-96	2000	Romania
NAS9302BNS-4-04	2015-07-201	1300
CR3212404	2013-12-350	2000	Israel
AF3212-4-04	2013-08-238	5000	US
CR321244	2012-05-122	200	ID
5320-01-136-3562	2012-03-90	100	US
CR321244	2011-02-34	200	US
5320-01-136-3562	2011-01-28	1	US
ASNA0077A404	2010-01-27	1000	US
5320-01-136-3562	2009-11-327	1000	US
5320-01-136-3562	2009-02-42	500	Singapore
NAS9302BNS404	2007-03-71	484	US
CR321244	2006-04-98	600	United States

Cross Reference | NSN 5320-01-136-3562

Part Number	Cage Code	Manufacturer
932.19.60.440	S4080	PILATUS AIRCRAFT LTD
A0077A404	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
A0077A404	F5442	AIRBUS GROUP
AF3212-4-04	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3212-4-4	53551	ALLFAST FASTENING SYSTEMS, LLC
ASNA0077A404	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
ASNA0077A404	F5442	AIRBUS GROUP
CR3212-4-04	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3212-4-4	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3212-4-4	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3212-4-4	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3212-4-4	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CR3212-4-4	FB011	AERO STOCK
HC3212-4-4	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/3-4-04	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MBBN3013L3204	C0418	AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG
MIL-R-7885/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9302BNS-4-04	2N935	B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES
