NSN 5320-01-134-8771 M7885/4-5-03, M78854503, MBBN3012M4003
Product Details | BLIND RIVET
5320-01-134-8771 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M7885/4-5-03, M78854503, MBBN3012M4003, A0078E503, AF3523503, AF3523-5-03, AF352353, AF3523-5-3, ASNA0078E503, ASN-A0078E503, ASNAA0078E503, ASNA-A0078E503, NAS9307M503, NAS9307M-5-03, CR3523503, CR3523-5-03, CR352353, CR3523-5-3, MIL-R-7885/4, MILR78854, 5320-01-134-8771, 01-134-8771, 5320011348771, 011348771
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1982 | 01-134-8771 | 00864 ( RIVET, BLIND ) |

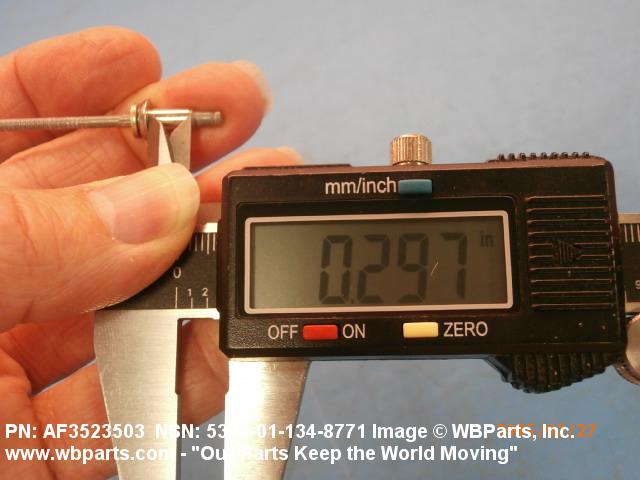

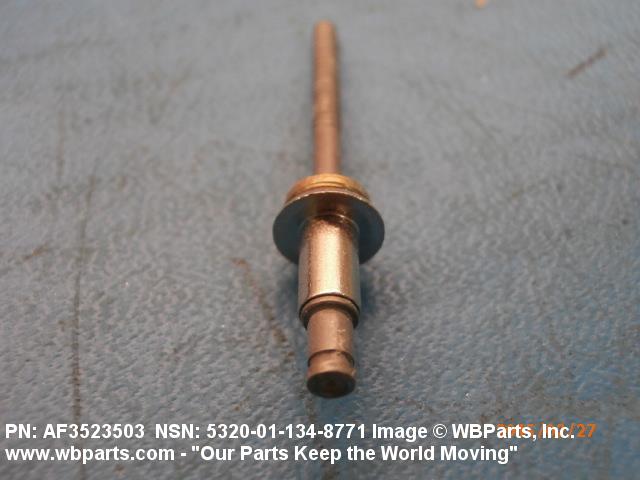

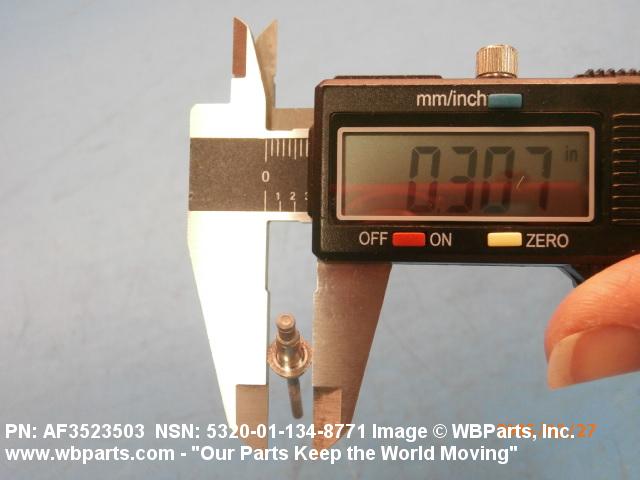

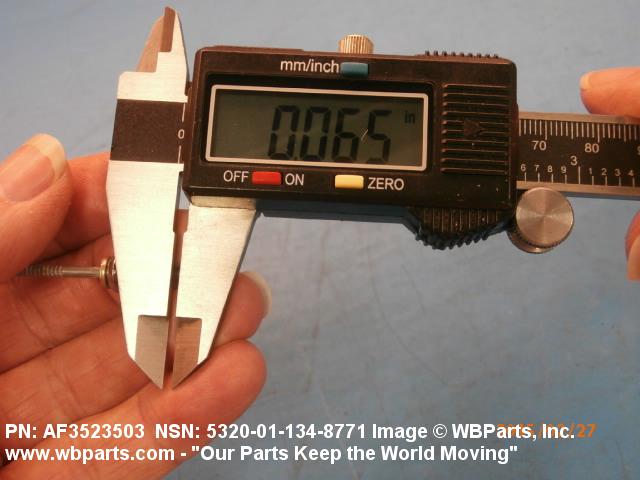

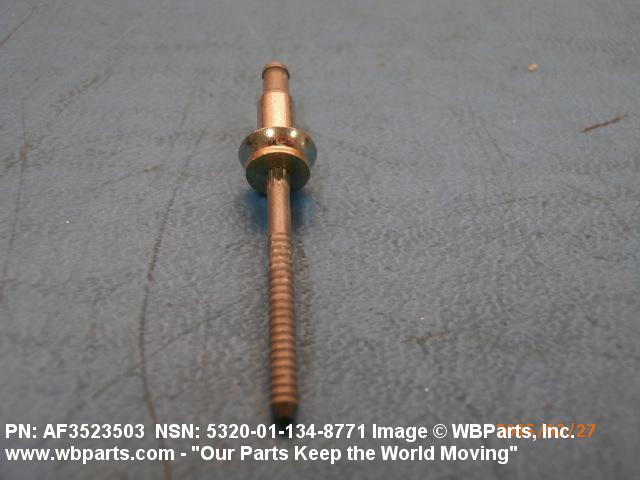

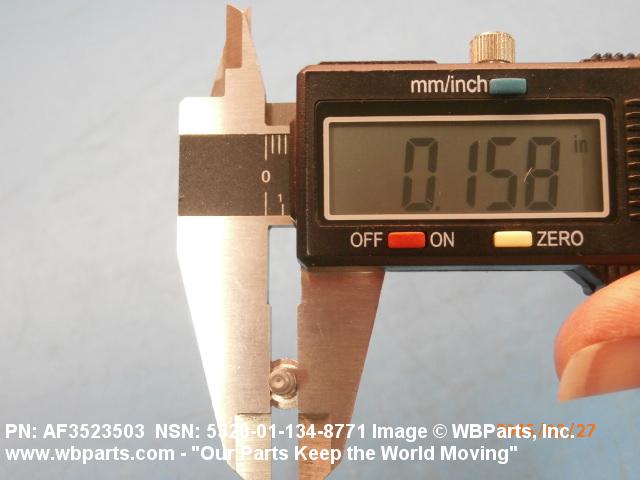

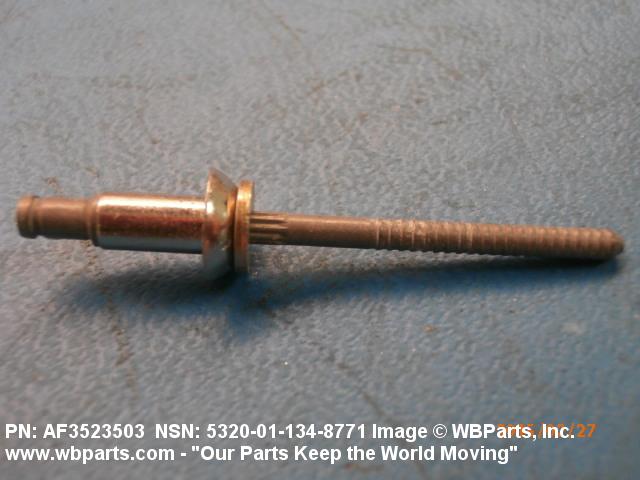

Drawings & Photos | NSN 5320-01-134-8771
Demand History | NSN 5320-01-134-8771
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR3523503 | 2024-09-269 | 200 | China |
| 5320-01-134-8771 | 2024-08-214 | 80 | us |
| ASNA0078E503 | 2022-12-354 | 100 | China |
| ASNA0078E503 | 2022-11-333 | 600 | US |
| ASNA0078E503 | 2021-10-286 | 1000 | United States |
| 5320-01-134-8771 | 2018-02-52 | 1 | DIBBS-RFPs |
| CR352353 | 2016-04-95 | 200 | Egypt |
| M78854503 | 2015-01-20 | 30 | Ecuador |
| 5320-01-134-8771 | 2014-06-167 | 770 | US |
| CR352353 | 2013-11-318 | 200 | United States |
| CR352353 | 2013-09-260 | 100 | US |
| 5320-01-134-8771 | 2013-09-246 | 1 | DIBBS-RFPs |
| CR352353 | 2013-07-200 | 100 | US |
| CR352353 | 2012-11-307 | 500 | US |
| 5320-01-134-8771 | 2012-05-138 | 500 | us |
| CR3523503 | 2009-12-355 | 8 | US |
| 5320-01-134-8771 | 2009-09-245 | 3 | US |
Cross Reference | NSN 5320-01-134-8771
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF3523-5-03 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AF3523-5-3 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR3523-5-03 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3523-5-3 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3523-5-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| M7885/4-5-03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MBBN3012M4003 | C0418 | AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG |
| MIL-R-7885/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9307M-5-03 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| NAS9307M-5-03 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-134-8771
Related Products | NSN 5320-01-134-8771
Technical Data | NSN 5320-01-134-8771
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OR NICKEL ALLOY R-405 SLEEVE STEEL COMP 632 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC ALL MATERIAL RESPONSES SLEEVE AMS 5657 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.283 INCHES MINIMUM AND 0.303 INCHES MAXIMUM |
| SHANK DIAMETER | 0.156 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| GRIP LENGTH | 0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-134-8771
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
