NSN 5320-01-129-0683 NAS1097U53, NAS1097U5-3, SCR3053
Product Details | SOLID RIVET
5320-01-129-0683 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: NAS1097U53, NAS1097U5-3, SCR3053, SC-R30-5-3, ST3M67553, ST3M675-5-3, CSR904B53, CSR904B-5-3, 5320-01-129-0683, 01-129-0683, 5320011290683, 011290683
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1982 | 01-129-0683 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-01-129-0683
Cross Reference | NSN 5320-01-129-0683
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CSR904B-5-3 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| NAS1097U5-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SC-R30-5-3 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M675-5-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-129-0683
Related Products | NSN 5320-01-129-0683
Technical Data | NSN 5320-01-129-0683
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R58450 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4982 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAT TREATMENT | ANNEALED OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.2251 INCHES MINIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

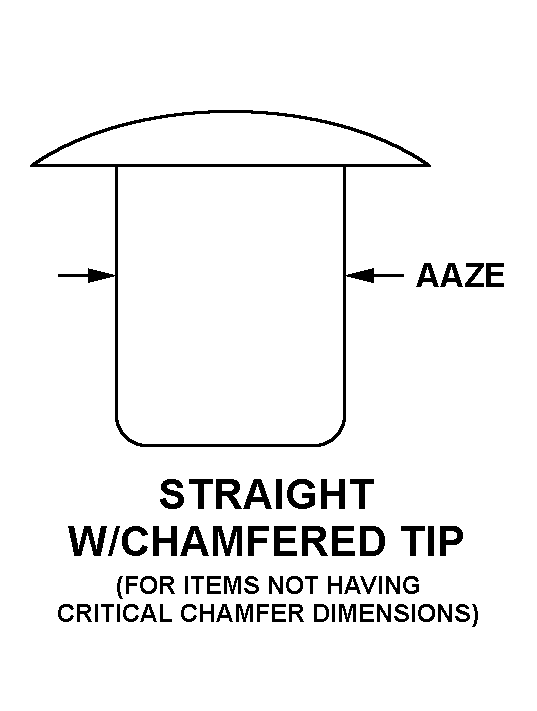

| SHANK STYLE | D37 STRAIGHT W/CHAMFERED TIP |
| FASTENER LENGTH | 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1097 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
