NSN 5320-01-108-5453 SS505366, SS5053-6-6, 01-108-5453
Product Details | BLIND RIVET

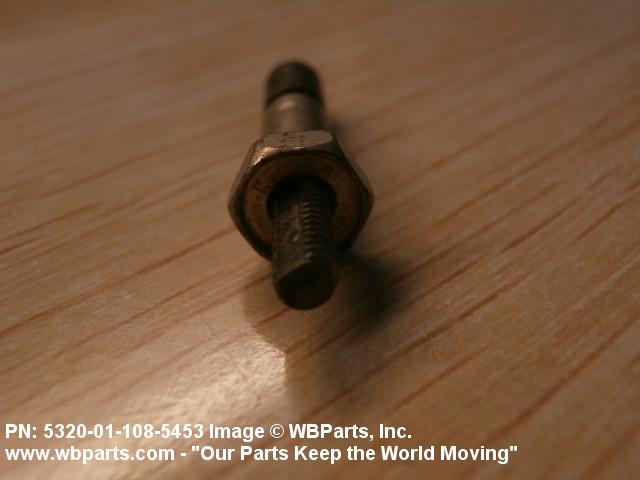

5320-01-108-5453 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: SS505366, SS5053-6-6, 5320-01-108-5453, 01-108-5453, 5320011085453, 011085453
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 MAR 1981 | 01-108-5453 | 00864 ( RIVET, BLIND ) |

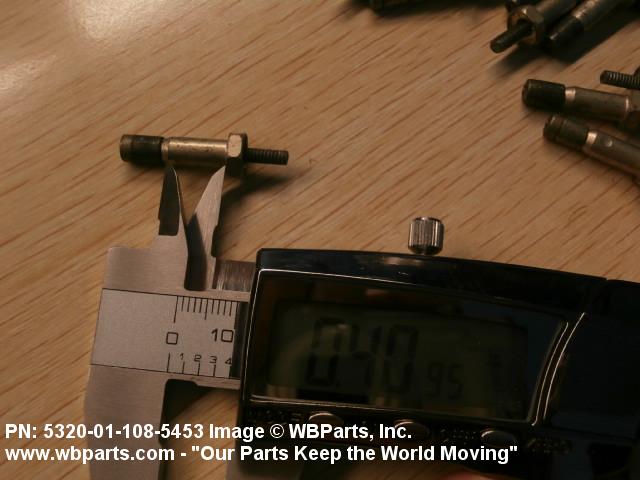

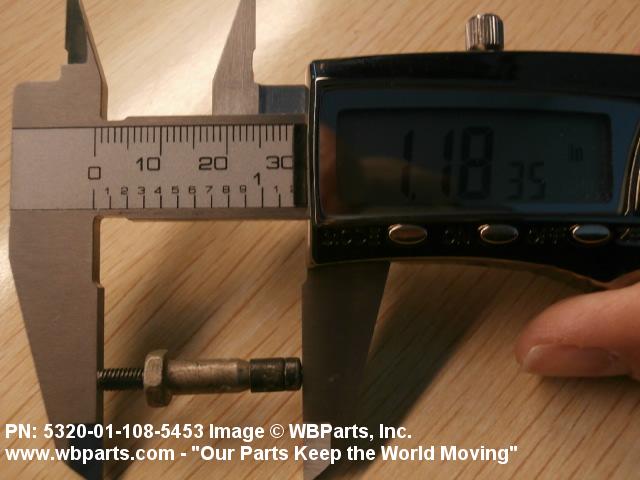

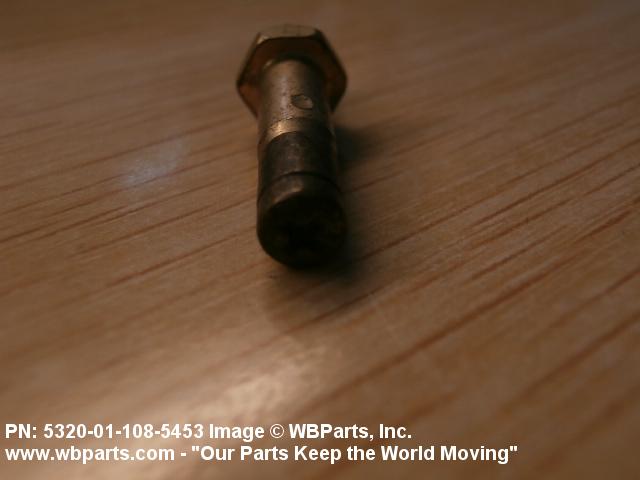

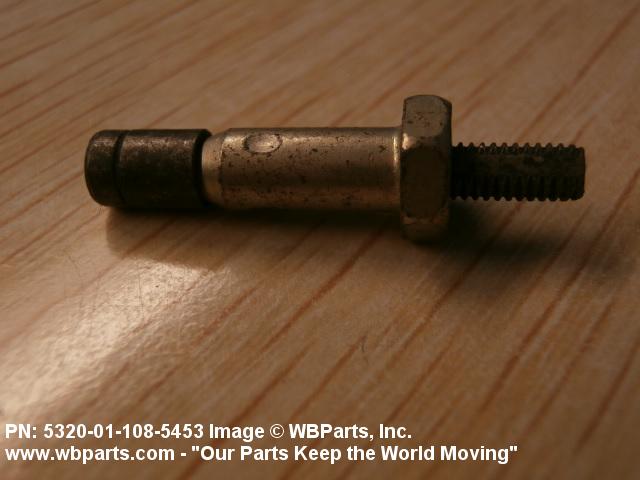

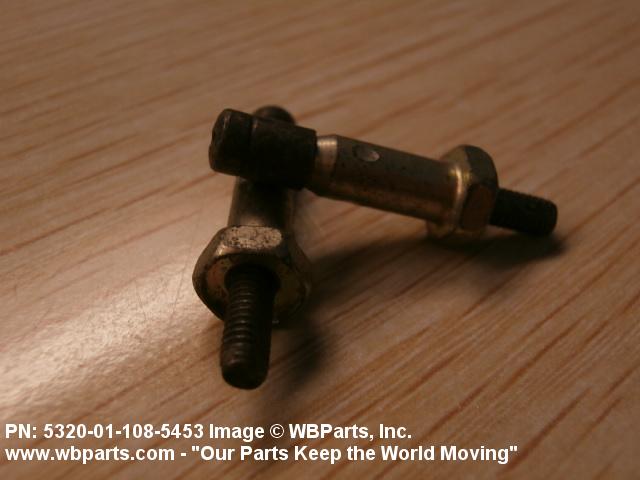

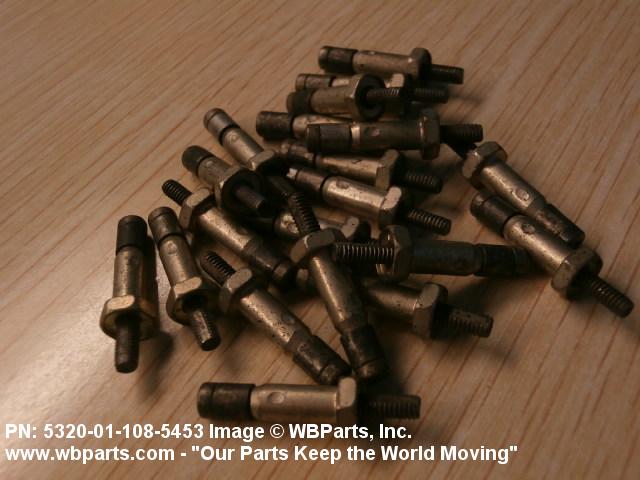

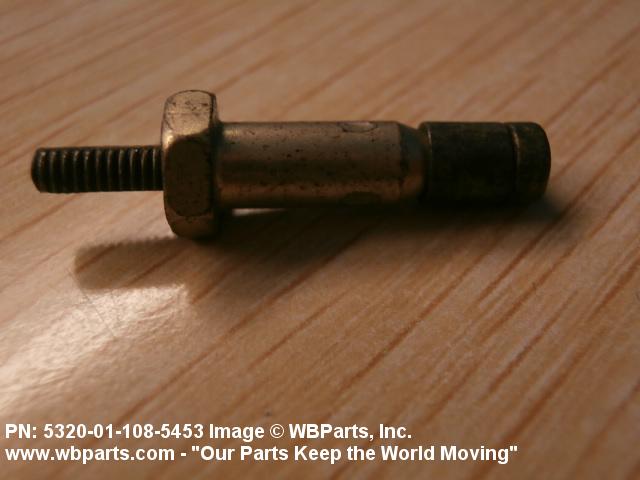

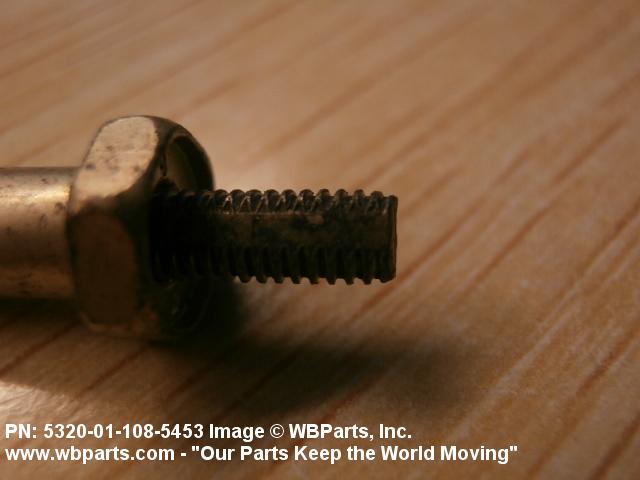

Drawings & Photos | NSN 5320-01-108-5453
Demand History | NSN 5320-01-108-5453
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS505366 | 2017-03-73 | 20 | Canada |
Cross Reference | NSN 5320-01-108-5453
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS5053-6-6 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-108-5453
Related Products | NSN 5320-01-108-5453
Technical Data | NSN 5320-01-108-5453
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8740 NUT STEEL COMP 303 OR STEEL COMP 304 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE NUT QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR AMS5639 ASSN STD 2ND MATERIAL RESPONSE OR AMS5641 ASSN STD 3RD MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM NUT PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 2 FED SPEC 1ST TREATMENT RESPONSE NUT MIL-S-5002 MIL SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TYPE I,CLASS 3 FED SPEC 2ND TREATMENT RESPONSE SLEEVE |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM NUT |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 5240 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C17 HEXAGON |
| HEAD HEIGHT | 0.103 INCHES MINIMUM AND 0.123 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | 0.677 INCHES MINIMUM AND 0.697 INCHES MAXIMUM |

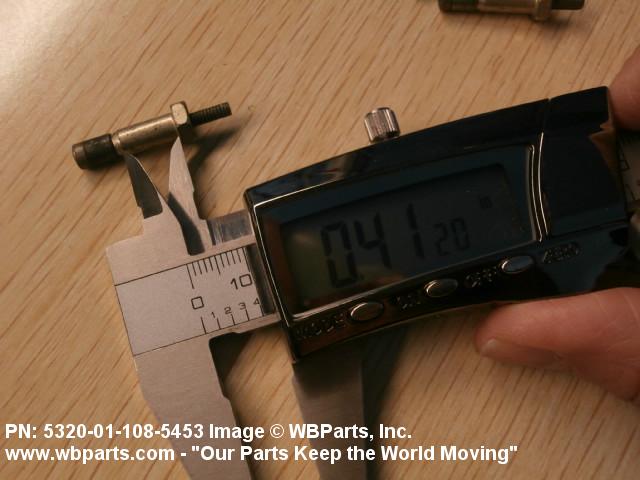

| GRIP LENGTH | 0.345 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | SS5053-6-6 |
