NSN 5320-01-106-6995 MS211410815, MS21141-0815, MS21141J0815
Product Details | BLIND RIVET
5320-01-106-6995 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS211410815, MS21141-0815, MS21141J0815, MS21141J-0815, 5320-01-106-6995, 01-106-6995, 5320011066995, 011066995
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JAN 1981 | 01-106-6995 | 00864 ( RIVET, BLIND ) |

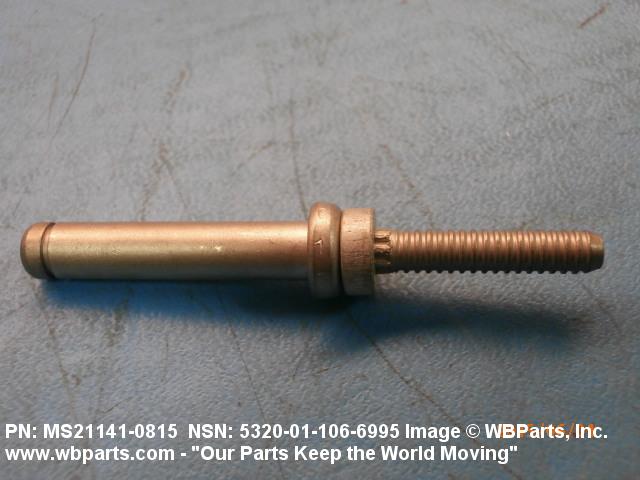

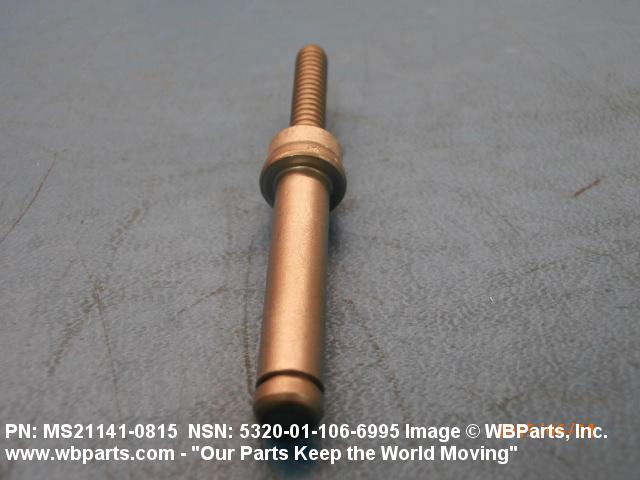

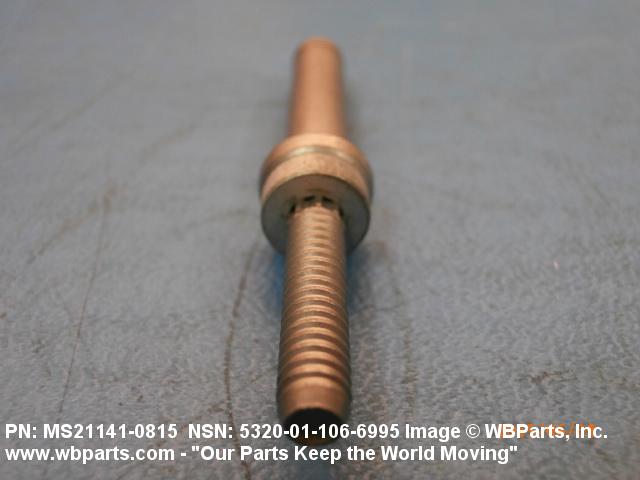

Drawings & Photos | NSN 5320-01-106-6995
Demand History | NSN 5320-01-106-6995
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-106-6995 | 2024-01-19 | 0 | US |
| MS211410815 | 2016-11-321 | 2 | United States |
| 5320-01-106-6995 | 2016-11-321 | 2 | United States |
| MS211410815 | 2016-03-90 | 50 | US |
| MS211410815 | 2015-05-141 | 30 | United States |
| MS211410815 | 2015-05-134 | 30 | United States |
| MS211410815 | 2013-07-183 | 20 | United States |
| MS211410815 | 2012-06-160 | 480 | United States |
| MS211410815 | 2012-03-89 | 100 | United States |
| MS211410815 | 2011-12-336 | 600 | United States |
| MS211410815 | 2011-12-335 | 600 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-106-6995
Technical Data | NSN 5320-01-106-6995
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SHEAR STRENGTH | 5005 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C21 STRAIGHT PAN |

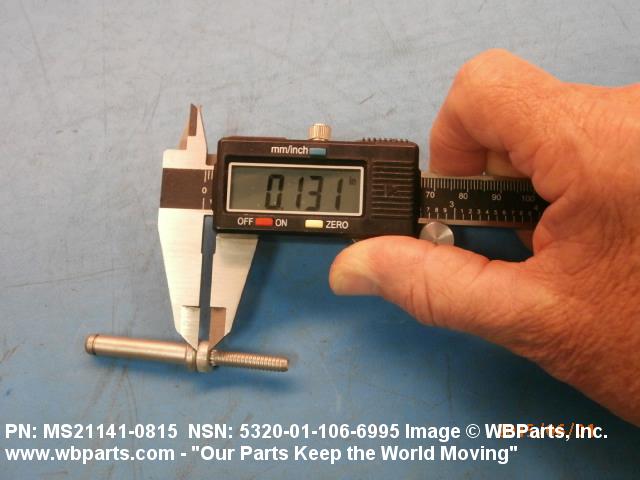

| HEAD HEIGHT | 0.130 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |

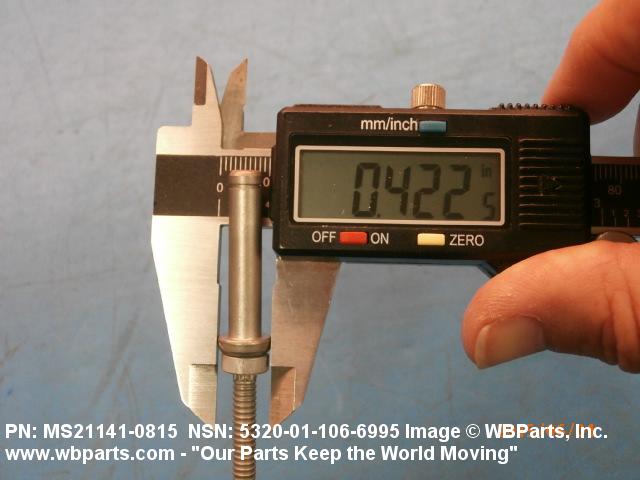

| HEAD MAJOR DIAMETER | 0.400 INCHES MINIMUM AND 0.432 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | ANY ACCEPTABLE |

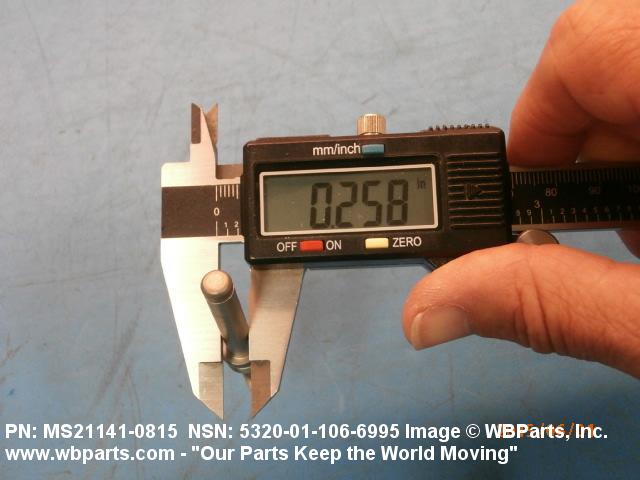

| SHANK DIAMETER | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

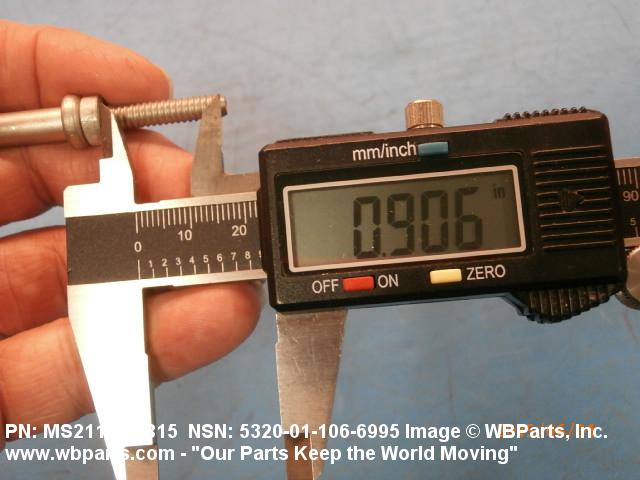

| GRIP LENGTH | 0.906 INCHES MINIMUM AND 0.907 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
| SPECIFICATION/STANDARD DATA | 96906-MS21141-0815 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21141J-0815 |
Restrictions/Controls & Freight Information | NSN 5320-01-106-6995
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-106-6995
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
