NSN 5320-01-086-1148 M7885/3-6-06, M78853606, AF3212606
Product Details | BLIND RIVET
5320-01-086-1148 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M7885/3-6-06, M78853606, AF3212606, AF3212-6-06, NAS9302BNS606, NAS9302BNS-6-06, CR21266, CR-212-6-6, CR3212606, CR3212-6-06, CR321266, CR3212-6-6, HC3212606, HC3212-6-06, HC321266, HC3212-6-6, MIL-R-7885/3, MILR78853, 5320-01-086-1148, 01-086-1148, 5320010861148, 010861148
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 NOV 1979 | 01-086-1148 | 00864 ( RIVET, BLIND ) |

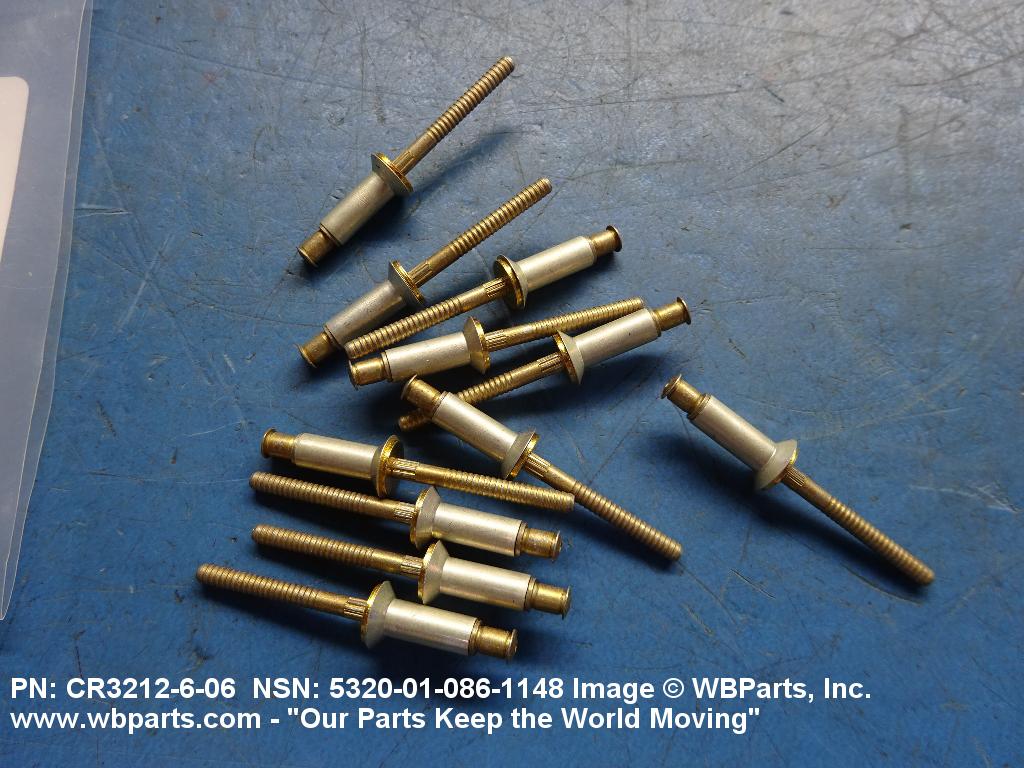

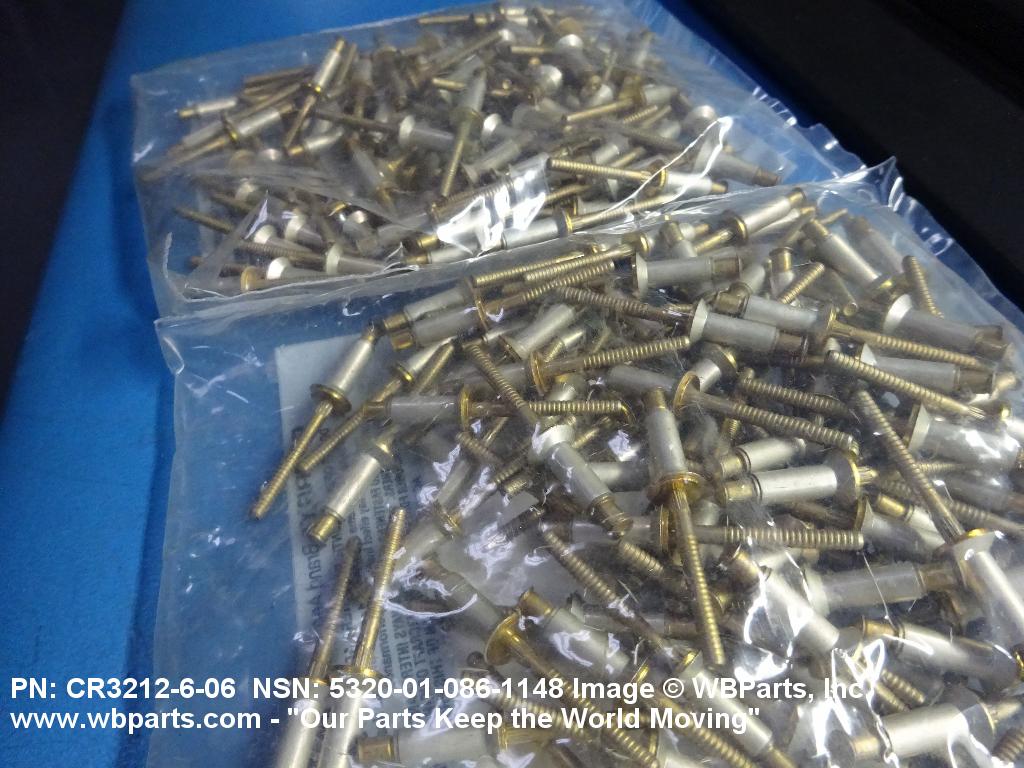

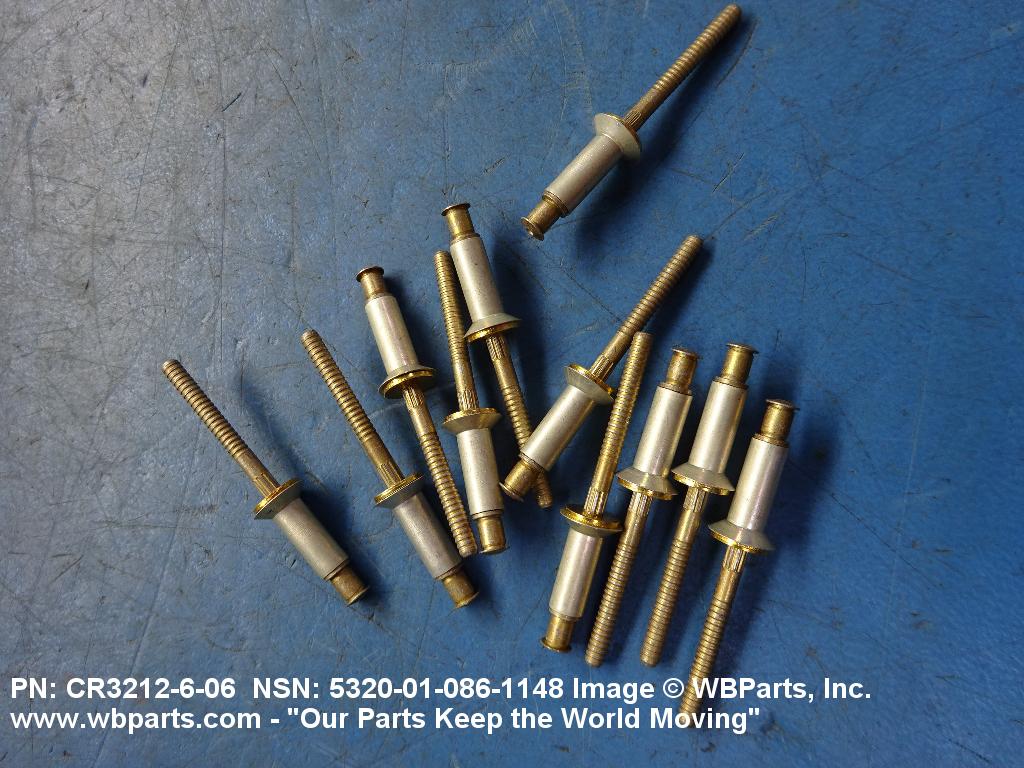

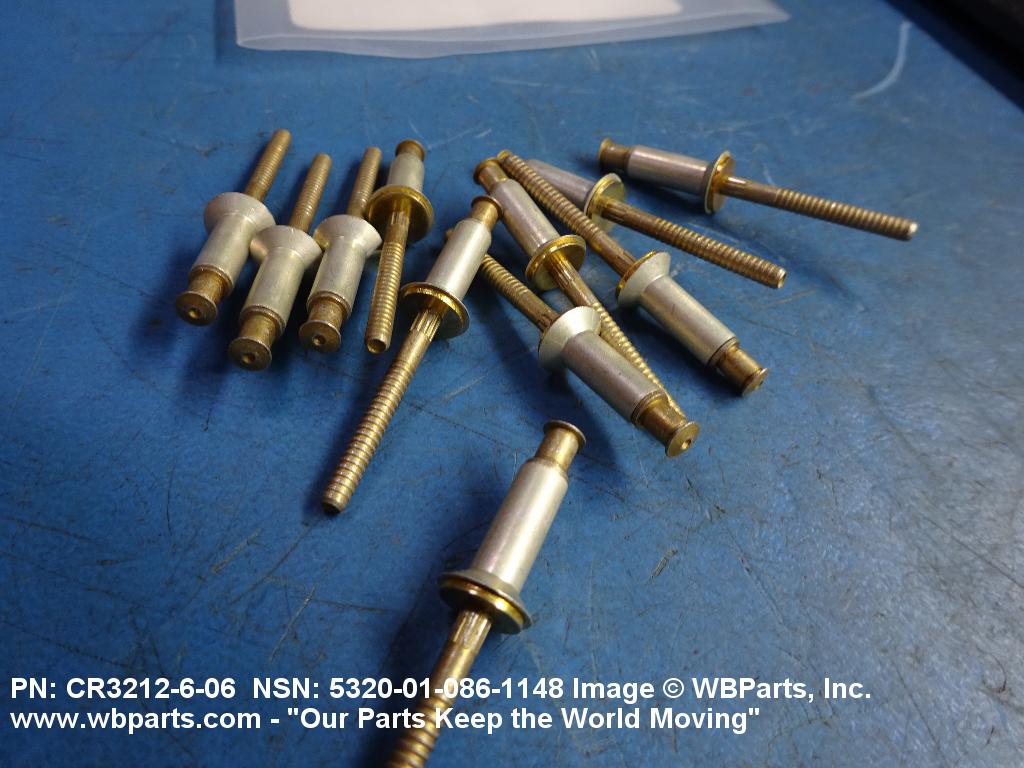

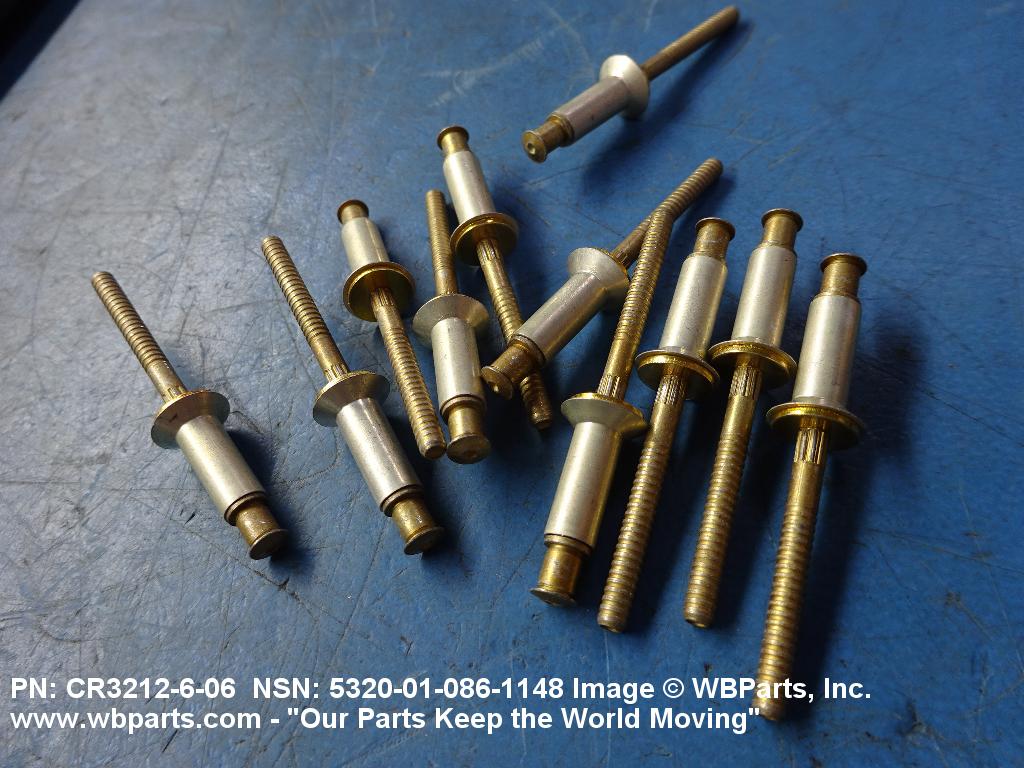

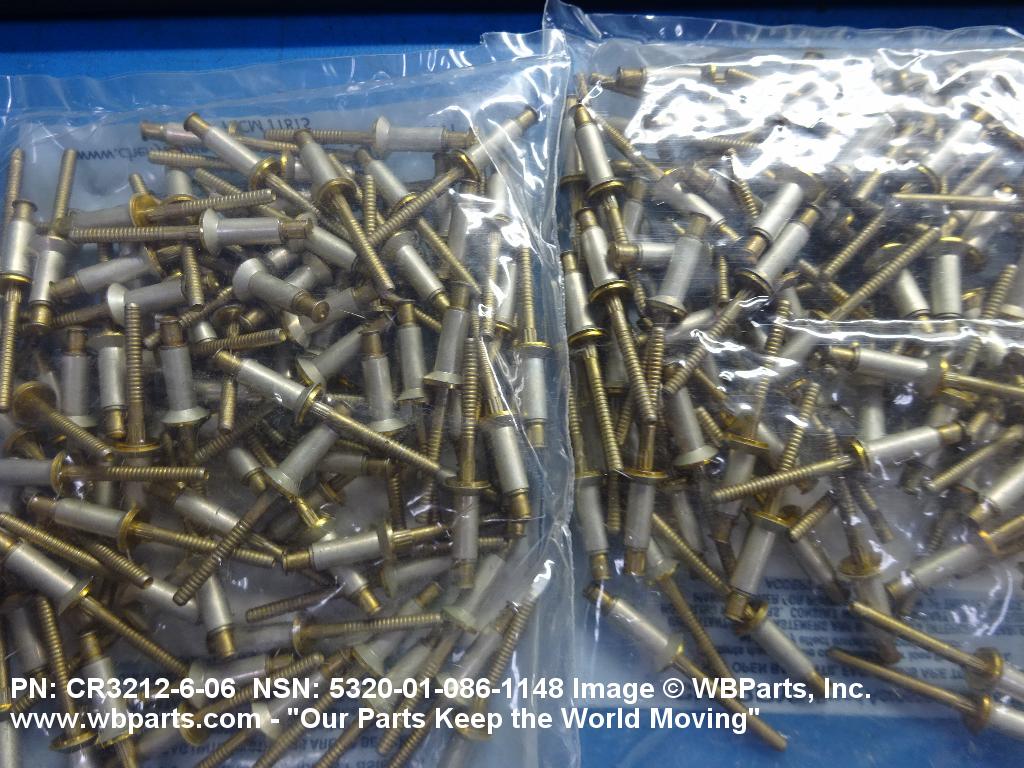

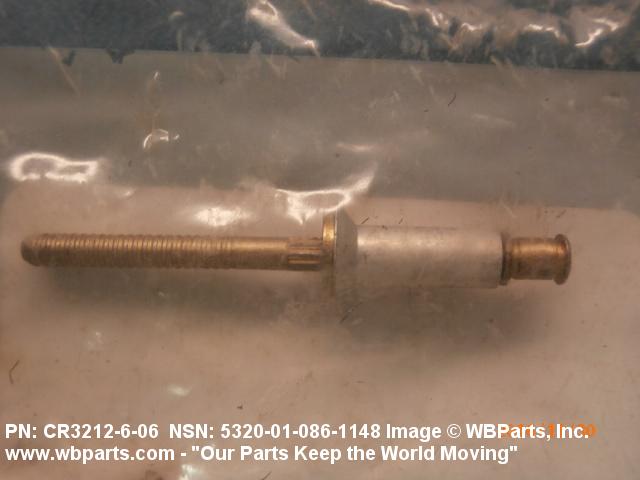

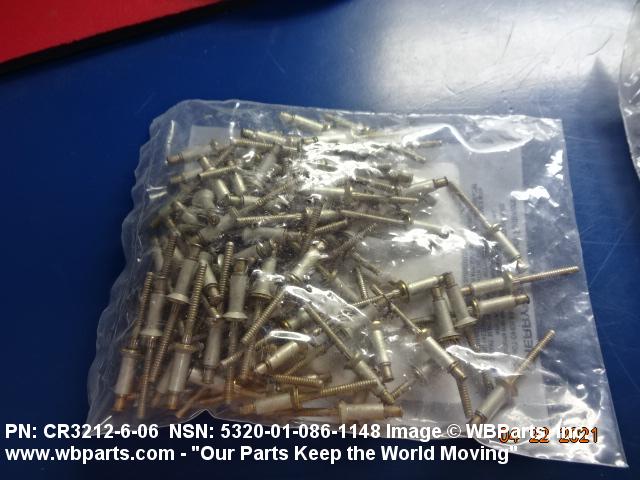

Drawings & Photos | NSN 5320-01-086-1148
Demand History | NSN 5320-01-086-1148
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-086-1148 | 2023-12-342 | 200 | United States |
| CR3212606 | 2022-10-297 | 200 | United States |
| CR321266 | 2022-10-283 | 100 | Malaysia |
| CR321266 | 2022-10-278 | 400 | us |
| CR3212606 | 2022-07-206 | 100 | United States |
| CR3212606 | 2021-04-111 | 200 | United States |
| CR3212606 | 2017-07-209 | 100 | United States |
| CR3212606 | 2017-07-208 | 100 | United States |
| CR321266 | 2012-05-122 | 200 | ID |
| CR321266 | 2011-02-34 | 200 | US |
Cross Reference | NSN 5320-01-086-1148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF3212-6-06 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR-212-6-6 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3212-6-06 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3212-6-6 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3212-6-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR3212-6-6 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR3212-6-6 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| HC3212-6-06 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3212-6-06 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3212-6-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| M7885/3-6-06 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-7885/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9302BNS-6-06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-086-1148
Technical Data | NSN 5320-01-086-1148
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CHROMATE SLEEVE CADMIUM AND CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

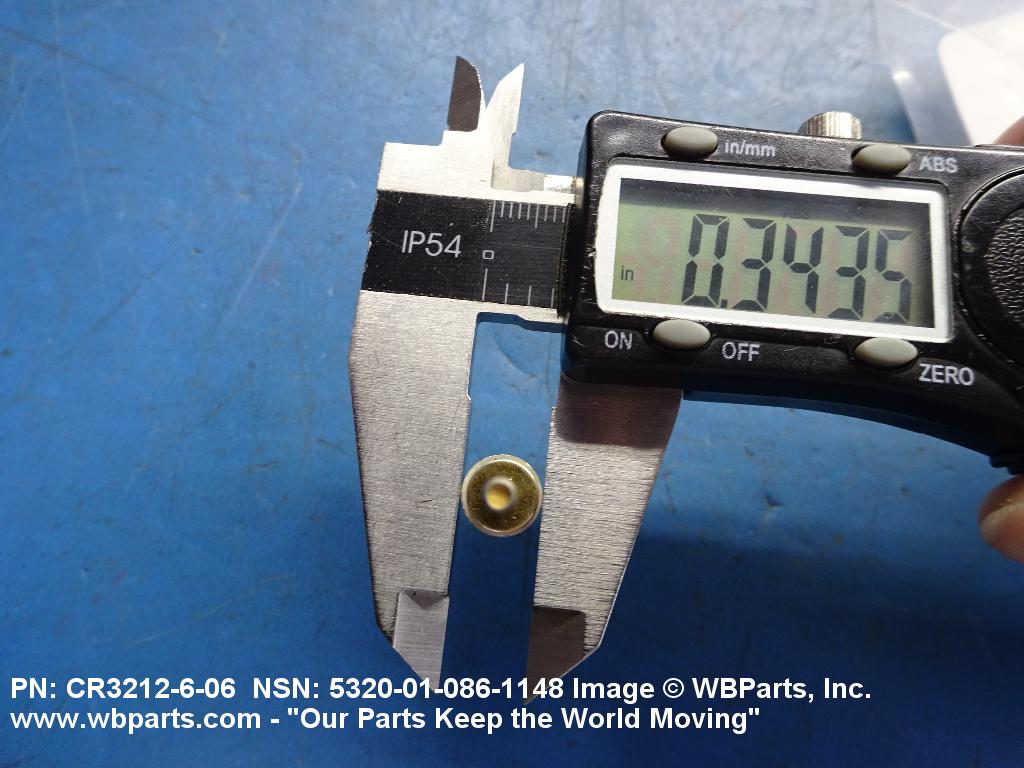

| HEAD MAJOR DIAMETER | 0.357 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |

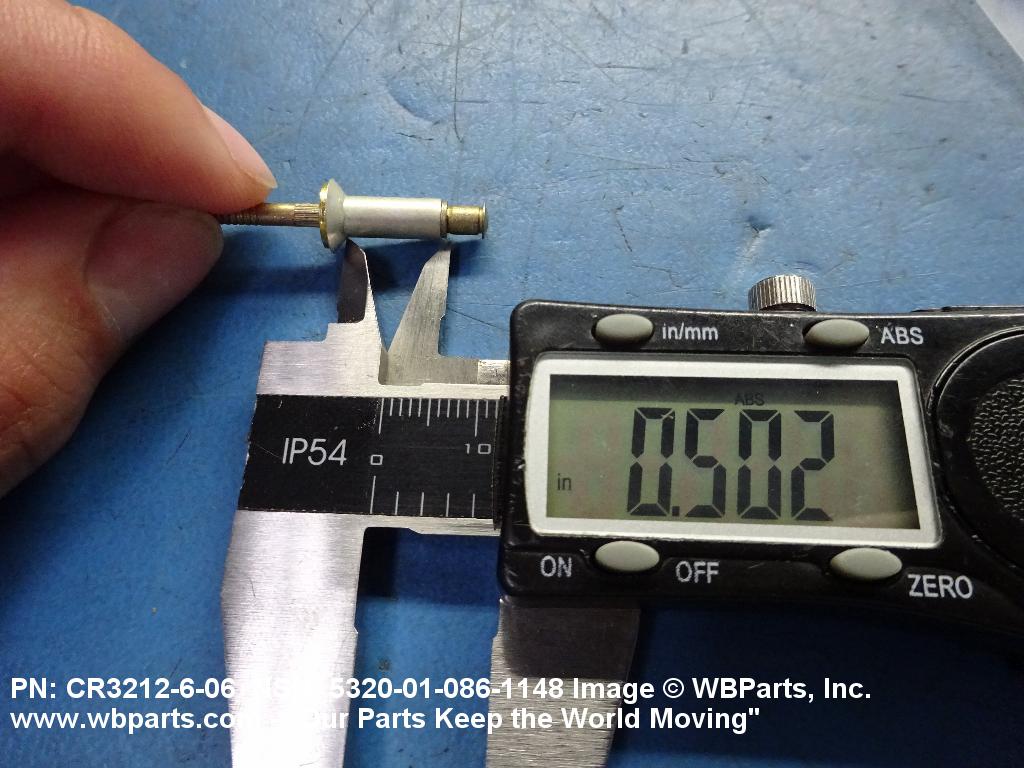

| FASTENER LENGTH | 0.502 INCHES MINIMUM AND 0.522 INCHES MAXIMUM |

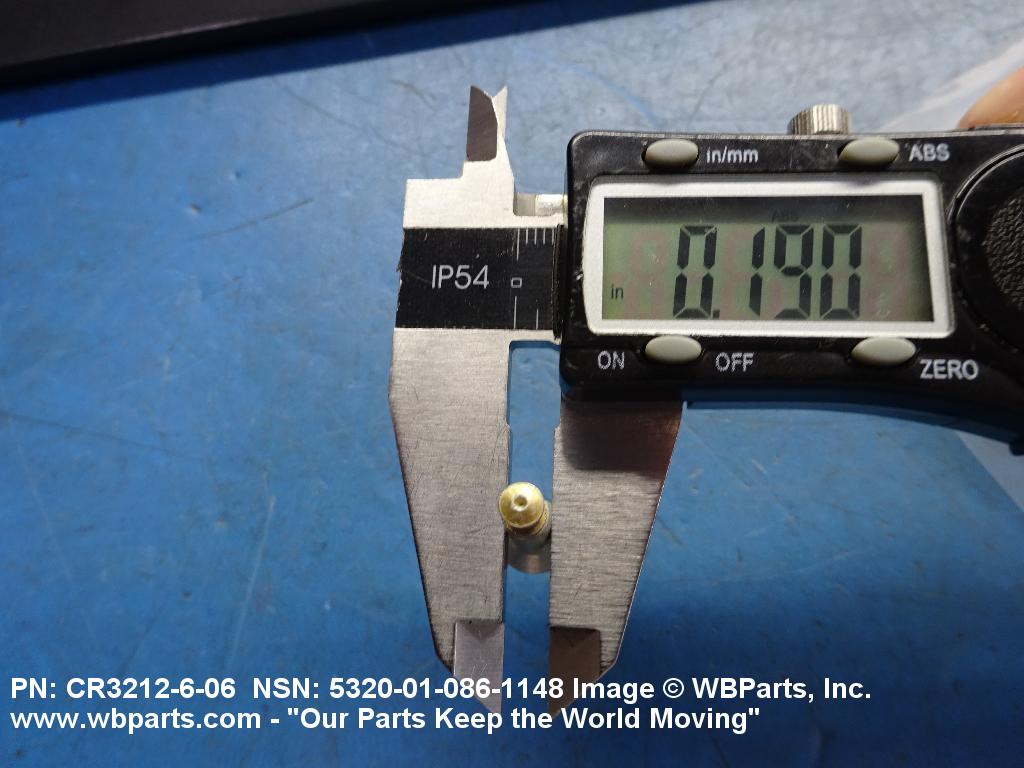

| SHANK DIAMETER | 0.188 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| GRIP LENGTH | 0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | "NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY. |
Restrictions/Controls & Freight Information | NSN 5320-01-086-1148
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
