NSN 5320-01-057-9379 NAS1921M0608PW, NAS1921M06-08PW, 01-057-9379
Product Details | BLIND RIVET
5320-01-057-9379 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1921M0608PW, NAS1921M06-08PW, 5320-01-057-9379, 01-057-9379, 5320010579379, 010579379
Hardware and Abrasives | Rivets
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 21 MAR 1978 | 01-057-9379 | 00864 ( RIVET, BLIND ) |
Cross Reference | NSN 5320-01-057-9379
Part Number | Cage Code | Manufacturer |
---|---|---|
NAS1921M06-08PW | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-057-9379
Related Products | NSN 5320-01-057-9379
Technical Data | NSN 5320-01-057-9379
Characteristic | Specifications |
---|---|
MATERIAL | IRON ALLOY 660 OR NICKEL ALLOY 400 OR NICKEL ALLOY R-405 LOCKING RING NICKEL ALLOY 400 OR NICKEL ALLOY R-405 SLEEVE IRON ALLOY 660 STEM |
MATERIAL DOCUMENT AND CLASSIFICATION | ADSM 5737 ASSN STD 1ST MATERIAL RESPONSE OR QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE OR QQ-N-281 FED SPEC 3RD MATERIAL RESPONSE LOCKING RING QQ-N-281 FED SPEC ALL MATERIAL RESPONSES SLEEVE AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE STEM |
SURFACE TREATMENT | PASSIVATE LOCKING RING |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FOR A286 CRES ONLY FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING QQ-P-416,TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE OR NAS 4006 ASSN STD 2ND TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
MINIMUM TENSILE STRENGTH | 95000 POUNDS PER SQUARE INCH |
SHEAR STRENGTH | 2260 SINGLE POUNDS PER SQUARE INCH |
HEAD STYLE | C9 FLUSH COUNTERSUNK |
HEAD MAJOR DIAMETER | 0.357 INCHES MAXIMUM |
COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |

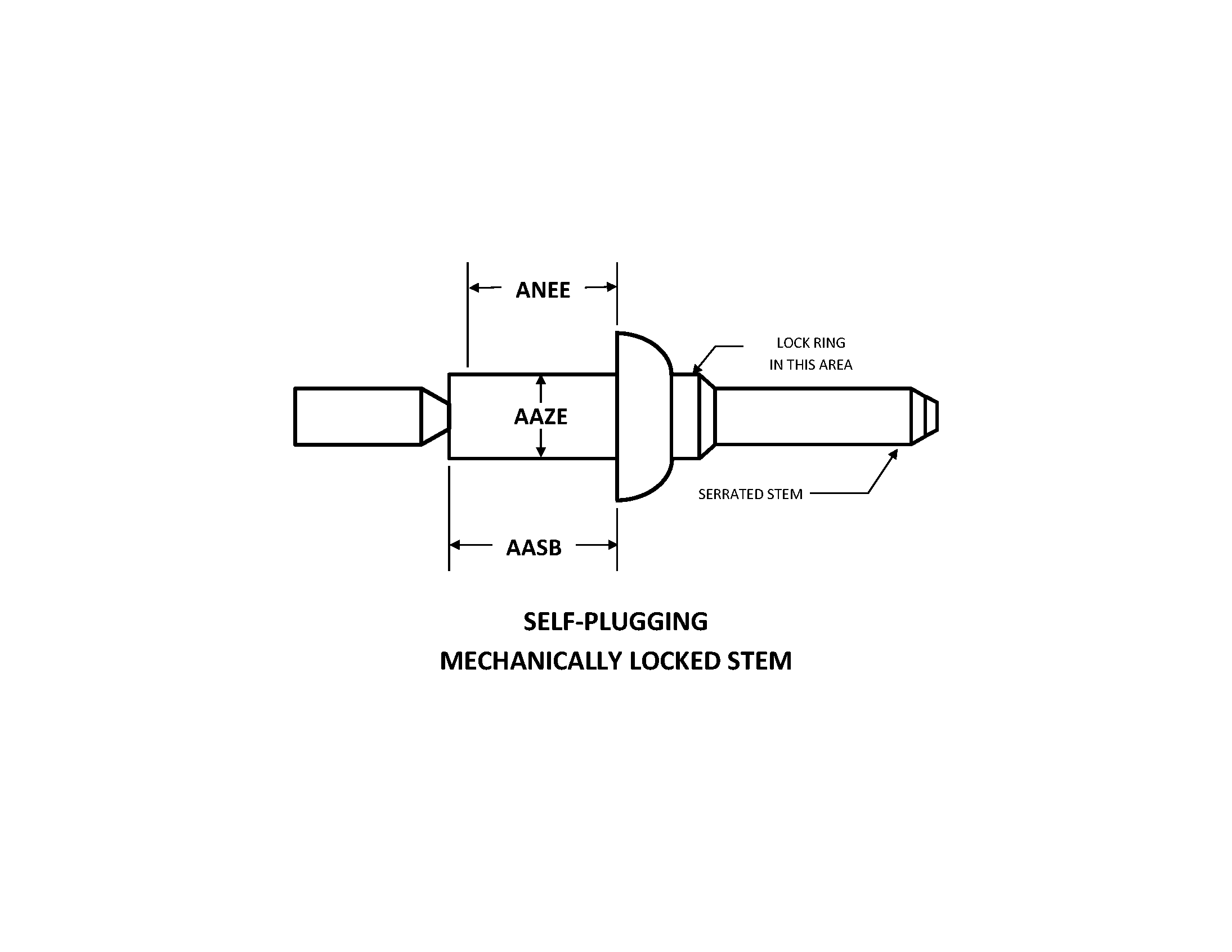

SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
FASTENER LENGTH | ANY ACCEPTABLE |
SHANK DIAMETER | 0.186 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
GRIP LENGTH | 0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
EXPANSION DEVICE | SERRATED STEM-TYPE W |
LUBRICATION | DRY FILM |
SPECIAL FEATURES | RIVET MAY BE SLOSH CLEANED WITH MIL-C-38736 CLEANER BEFORE INSTALLATION |
SPECIFICATION/STANDARD DATA | 80205-NAS1921 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
