NSN 5320-01-033-8180 M7885/6-6-06, M78856606, AF3243606

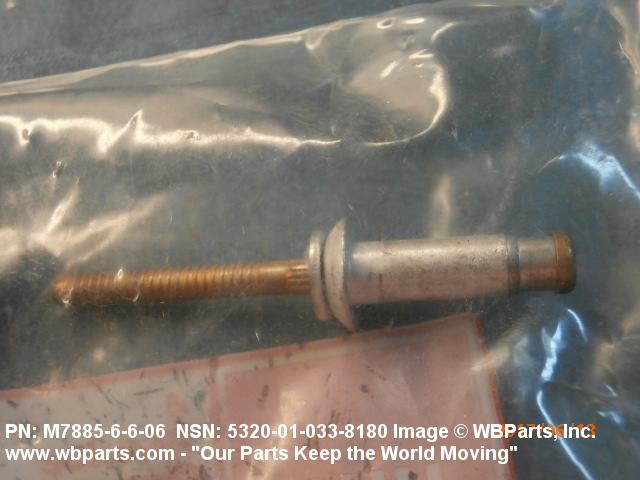

Product Details | BLIND RIVET
5320-01-033-8180 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M7885/6-6-06, M78856606, AF3243606, AF3243-6-06, AF324366, AF3243-6-6, NAS9304BNS606, NAS9304BNS-6-06, BACR15FR6B6, CR324366, CR3243-6-6, HC3243606, HC3243-6-06, HC324366, HC3243-6-6, HR3243606, HR3243-6-06, MIL-R-7885/6, MILR78856, OHCPB0606, OHCP-B06-06, 5320-01-033-8180, 01-033-8180, 5320010338180, 010338180
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1977 | 01-033-8180 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-033-8180
Demand History | NSN 5320-01-033-8180
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M78856606 | 2022-08-216 | 34 | CO |
| 5320-01-033-8180 | 2017-06-153 | 50 | United States |
| CR324366 | 2011-02-34 | 200 | US |
| 5320-01-033-8180 | 2009-09-268 | 16 | DIBBS |
| 5320-01-033-8180 | 2009-09-254 | 57 | DIBBS |
| 5320-01-033-8180 | 2009-08-237 | 31 | DIBBS |
| 5320-01-033-8180 | 2009-08-216 | 49 | DIBBS |
| 5320-01-033-8180 | 2009-07-210 | 118 | DIBBS |
| 5320-01-033-8180 | 2009-06-180 | 47 | DIBBS |
| 5320-01-033-8180 | 2009-06-162 | 53 | DIBBS |
| 5320-01-033-8180 | 2009-04-111 | 32 | DIBBS |
| 5320-01-033-8180 | 2009-04-96 | 51 | DIBBS |
| 5320-01-033-8180 | 2009-03-61 | 54 | DIBBS |
| 5320-01-033-8180 | 2008-11-316 | 67 | DIBBS |
| 5320-01-033-8180 | 2008-10-282 | 62 | DIBBS |
| 5320-01-033-8180 | 2008-09-268 | 62 | DIBBS |
| 5320-01-033-8180 | 2008-09-262 | 55 | DIBBS |
| 5320-01-033-8180 | 2008-08-231 | 27 | DIBBS |
| 5320-01-033-8180 | 2008-08-220 | 72 | DIBBS |
| 5320-01-033-8180 | 2008-07-204 | 27 | DIBBS |
Cross Reference | NSN 5320-01-033-8180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AF3243-6-06 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AF3243-6-6 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| BACR15FR6B6 | 81205 | THE BOEING COMPANY DBA BOEING |
| CR3243-6-6 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3243-6-6 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| CR3243-6-6 | R1120 | SATAIR A/S |
| HC3243-6-06 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3243-6-06 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3243-6-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HR3243-6-06 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| M7885/6-6-06 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-7885/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9304BNS-6-06 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| NAS9304BNS-6-06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| OHCP-B06-06 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| OHCP-B06-06 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-033-8180
Related Products | NSN 5320-01-033-8180
Technical Data | NSN 5320-01-033-8180
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 BODY STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CHROMATE BODY CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.356 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.505 INCHES MINIMUM AND 0.525 INCHES MAXIMUM |
| SHANK DIAMETER | 0.202 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| GRIP LENGTH | 0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | "NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY. |
| III END ITEM IDENTIFICATION | HELICOPTER, SUPER JOLLY H-53; HELICOPTER, IROQUOIS HH/UH-1; AIRCRAFT, THUNDERBOLT II, A-10; AIRCRAFT, EAGLE F-15; AIRCRAFT, F-111; AIRCRAFT, GALAXY C-5; AIRCRAFT, PHANTOM F-4; AIRCRAFT, HERCULES C-130; AIRCRAFT, AC-130H, MC-130H, EC-130E, HC-130); AIRCRAFT, DELTA DART F-106 |
