NSN 5320-01-026-0854 CR10VAP1016, CR10VAP-10-16, HL10VAP1016
Product Details | PIN-RIVET
5320-01-026-0854 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: CR10VAP1016, CR10VAP-10-16, HL10VAP1016, HL10VAP-10-16, 5320-01-026-0854, 01-026-0854, 5320010260854, 010260854
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 AUG 1976 | 01-026-0854 | 67165 ( PIN-RIVET ) |

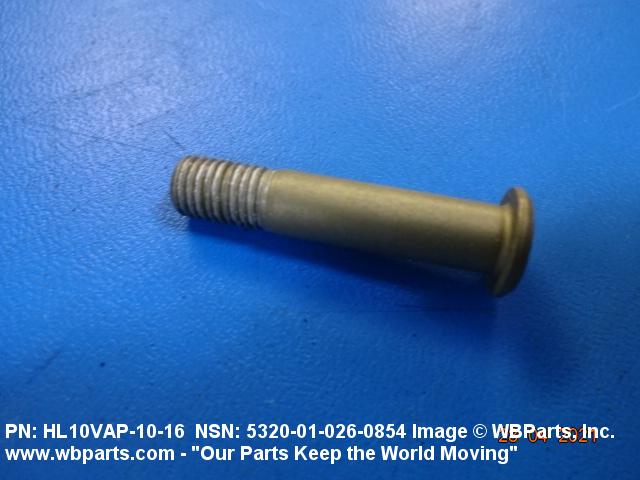

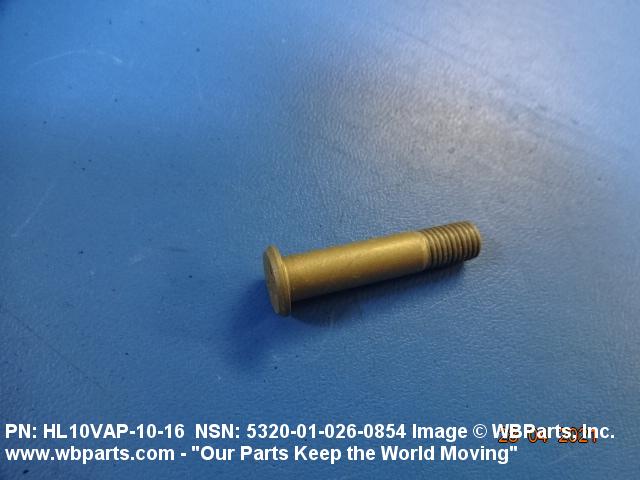

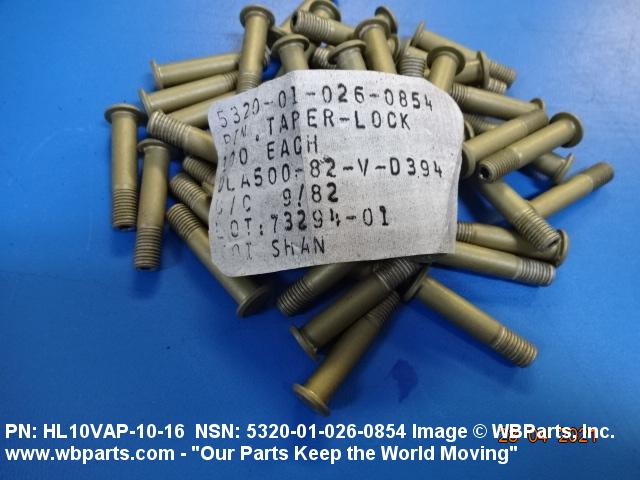

Drawings & Photos | NSN 5320-01-026-0854
Demand History | NSN 5320-01-026-0854
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-026-0854 | 2021-04-112 | 50 | United States |
Cross Reference | NSN 5320-01-026-0854
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR10VAP-10-16 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| HL10VAP-10-16 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL10VAP-10-16 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL10VAP-10-16 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| HL10VAP-10-16 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL10VAP-10-16 | 60516 | WEST COAST AEROSPACE INC |
| HL10VAP-10-16 | 73197 | HI-SHEAR CORPORATION |
| HL10VAP-10-16 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL10VAP-10-16 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL10VAP-10-16 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-026-0854
Related Products | NSN 5320-01-026-0854
Technical Data | NSN 5320-01-026-0854

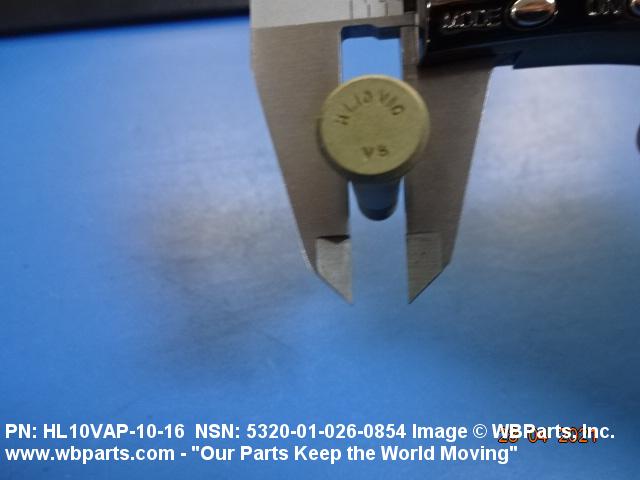

| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ALUMINUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 294,FSCM 73197 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |

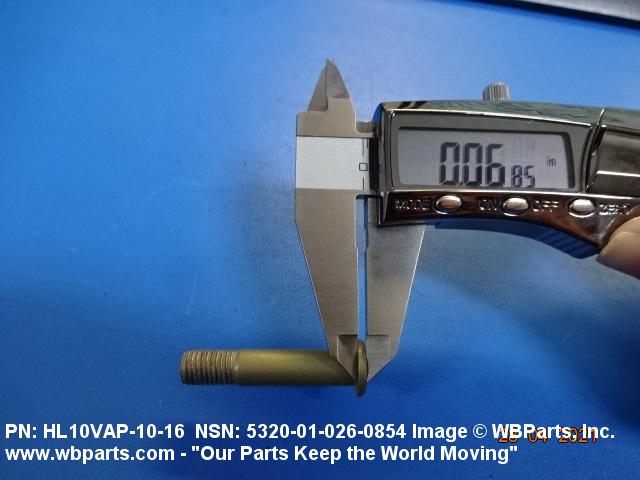

| HEAD HEIGHT | 0.068 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |

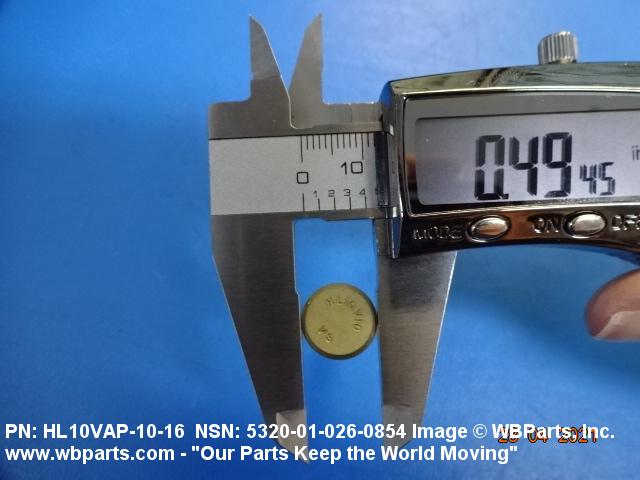

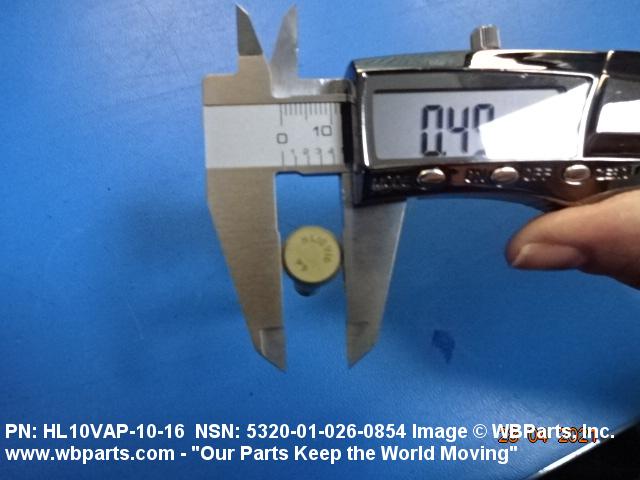

| HEAD MAJOR DIAMETER | 0.475 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |

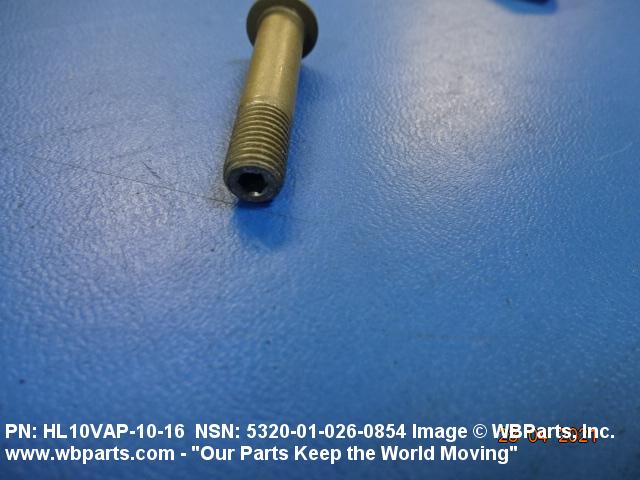

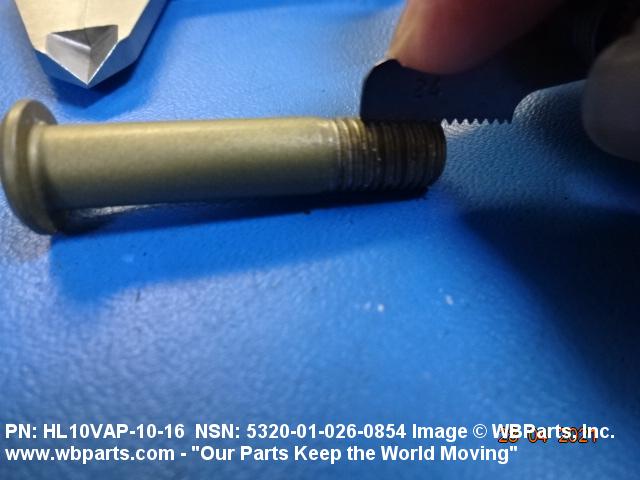

| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

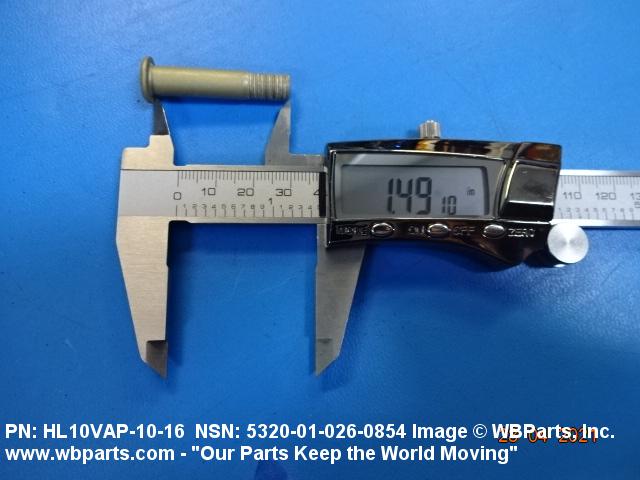

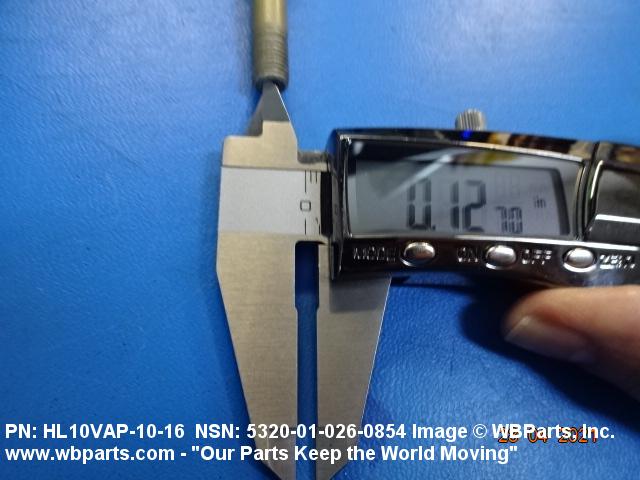

| FASTENER LENGTH | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.1270 INCHES MINIMUM AND 0.1295 INCHES MAXIMUM |

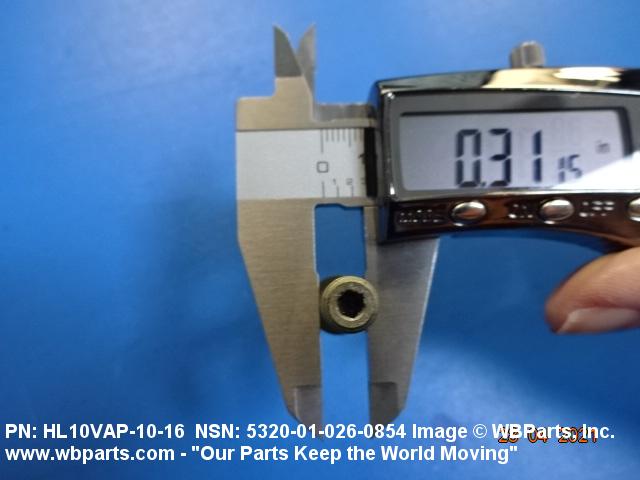

| SHANK DIAMETER | 0.311 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
