NSN 5320-01-025-4448 NAS2605V12, 01-025-4448, 010254448
Product Details | PIN-RIVET
5320-01-025-4448 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS2605V12, 5320-01-025-4448, 01-025-4448, 5320010254448, 010254448
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 AUG 1976 | 01-025-4448 | 67165 ( PIN-RIVET ) |

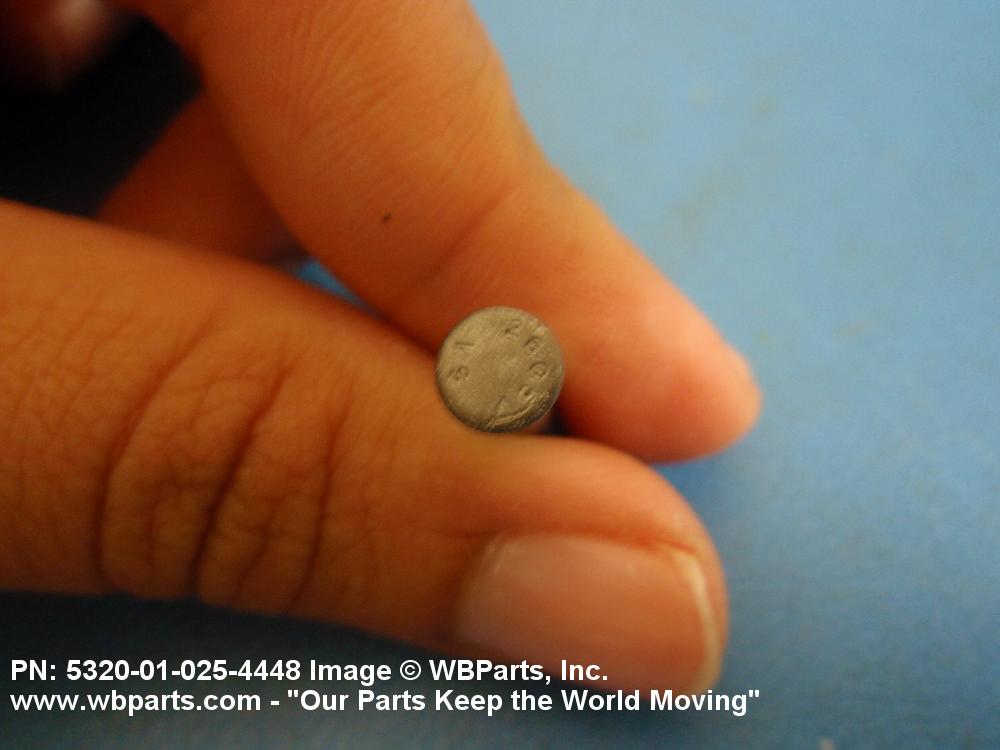

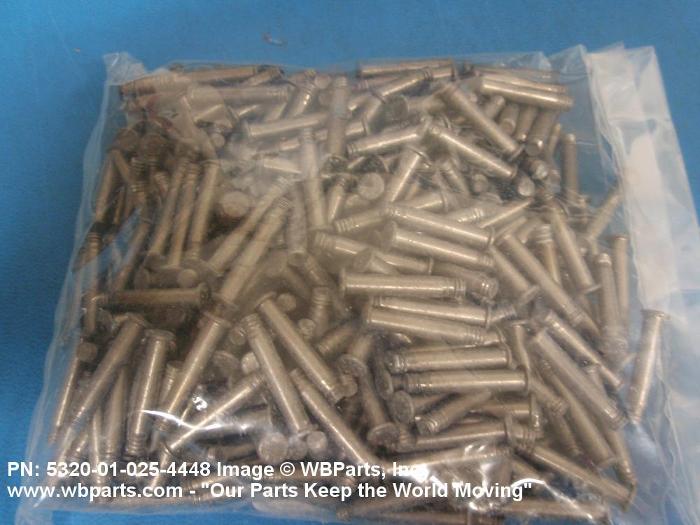

Drawings & Photos | NSN 5320-01-025-4448
Demand History | NSN 5320-01-025-4448
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-025-4448 | 2012-12-361 | 33 | DIBBS |
| 5320-01-025-4448 | 2009-04-120 | 604 | DIBBS |
| 5320-01-025-4448 | 2009-04-105 | 604 | DIBBS |
| 5320-01-025-4448 | 2008-07-201 | 372 | DIBBS |
| 5320-01-025-4448 | 2008-06-175 | 372 | DIBBS |
| 5320-01-025-4448 | 2008-06-170 | 372 | DIBBS |
Cross Reference | NSN 5320-01-025-4448
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS2605V12 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-025-4448
Technical Data | NSN 5320-01-025-4448
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R54520 OR TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | NAS 621 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | A21 STRAIGHT PAN |
| HEAD HEIGHT | 0.036 INCHES MINIMUM AND 0.048 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.235 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| SHANK STYLE | B26 STUMP |
| FASTENER LENGTH | 0.988 INCHES MAXIMUM |
| SHANK DIAMETER | 0.1630 INCHES MINIMUM AND 0.1635 INCHES MAXIMUM |
| GRIP LENGTH | 0.689 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS2605 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-01-025-4448
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-025-4448
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
