NSN 5320-01-024-3403 NAS1097KE57, NAS1097KE5-7, ST3M46057M

Product Details | SOLID RIVET

5320-01-024-3403 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: NAS1097KE57, NAS1097KE5-7, ST3M46057M, ST3M460-5-7M, LD12100080507, LD121-0008-0507, 5320-01-024-3403, 01-024-3403, 5320010243403, 010243403

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 JUL 1976	01-024-3403	00861 ( RIVET, SOLID )

Drawings & Photos | NSN 5320-01-024-3403

Part Number	Request Date	QTY	Origin
5320-01-024-3403	2024-09-267	3246	United States
5320-01-024-3403	2024-09-267	7000	United States
ST3M46057M	2024-09-262	100	United States
5320-01-024-3403	2024-09-262	100	United States
LD12100080507	2024-02-54	5800	United States
5320-01-024-3403	2024-01-04	100	Saudi Arabia
5320-01-024-3403	2022-07-188	100	France
LD12100080507	2020-02-41	376	United States
5320-01-024-3403	2015-05-131	535	DIBBS
5320-01-024-3403	2015-04-120	535	DIBBS
5320-01-024-3403	2014-12-355	460	DIBBS
5320-01-024-3403	2013-04-105	100	CN
5320-01-024-3403	2010-05-124	12	DIBBS
5320-01-024-3403	2010-04-100	16	DIBBS
NAS1097KE57	2009-11-322	120	United States
5320-01-024-3403	2008-04-119	5813	US
5320-01-024-3403	2008-04-113	5813	DIBBS
5320-01-024-3403	2008-02-38	5813	DIBBS
5320-01-024-3403	2008-01-23	832	DIBBS

Cross Reference | NSN 5320-01-024-3403

Part Number	Cage Code	Manufacturer
LD121-0008-0507	43999	BOEING COMPANY, THE DBA BOEING
NAS1097KE5-7	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
ST3M460-5-7M	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-024-3403

Compare

Related Products | NSN 5320-01-024-3403

5320-01-024-3404, 5320-01-024-3405, 5320-01-024-3406, 5320-01-024-3407, 5320-01-024-3408

Technical Data | NSN 5320-01-024-3403

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 7050 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAT TREATMENT	T-73 SOLUTION HEAT TREATED OVERALL
SHEAR STRENGTH	715 SINGLE POUNDS PER SQUARE INCH

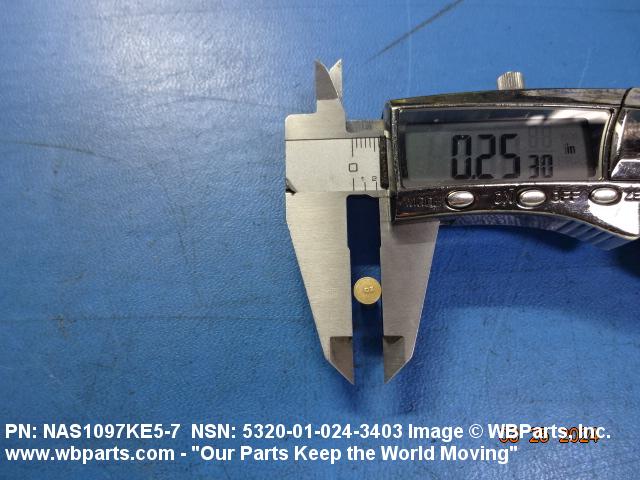

HEAD STYLE	C13 UNDERSIZED OVAL COUNTERSUNK
HEAD HEIGHT	0.003 INCHES MINIMUM AND 0.005 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.225 INCHES MINIMUM AND 0.247 INCHES MAXIMUM
HEAD MINOR DIAMETER	0.185 INCHES MINIMUM AND 0.195 INCHES MAXIMUM
COUNTERSINK HEIGHT	0.037 INCHES NOMINAL
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	D9 STRAIGHT

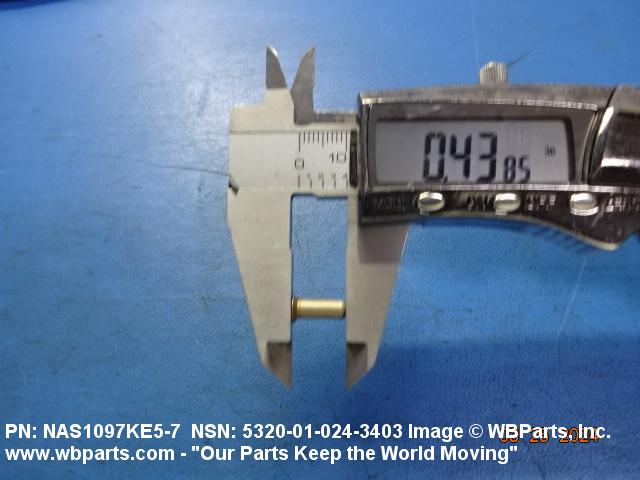

FASTENER LENGTH	0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM

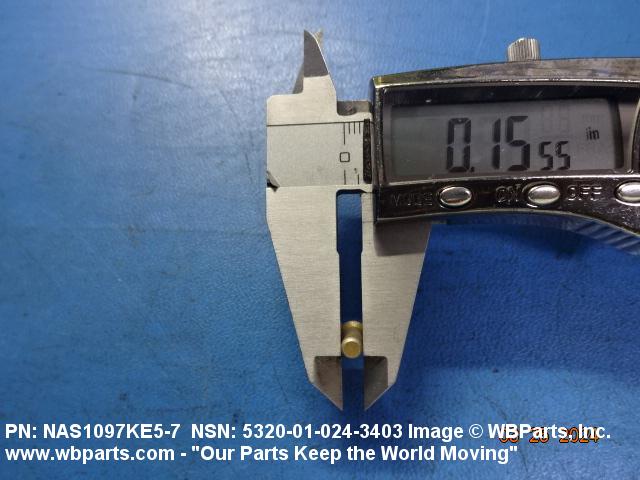

SHANK DIAMETER	0.155 INCHES MINIMUM AND 0.158 INCHES MAXIMUM
