NSN 5320-01-015-8814 M24243/5-B504, M242435B504, AACQ54
Product Details | BLIND RIVET
5320-01-015-8814 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/5-B504, M242435B504, AACQ54, AACQ-54, MIL-R-24243/5, MILR242435, 5320-01-015-8814, 01-015-8814, 5320010158814, 010158814
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JAN 1976 | 01-015-8814 | 00864 ( RIVET, BLIND ) |

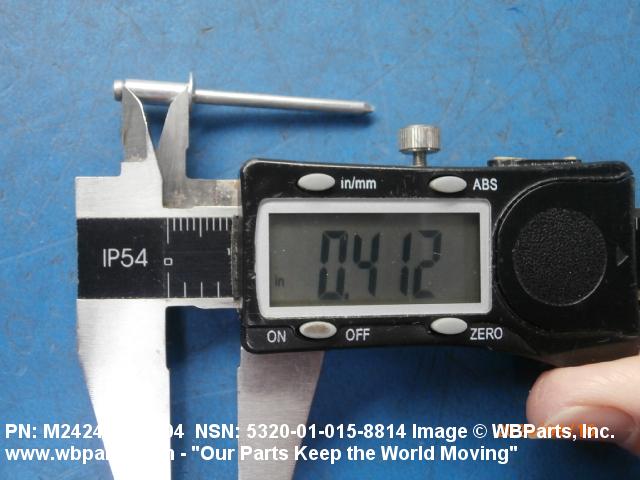

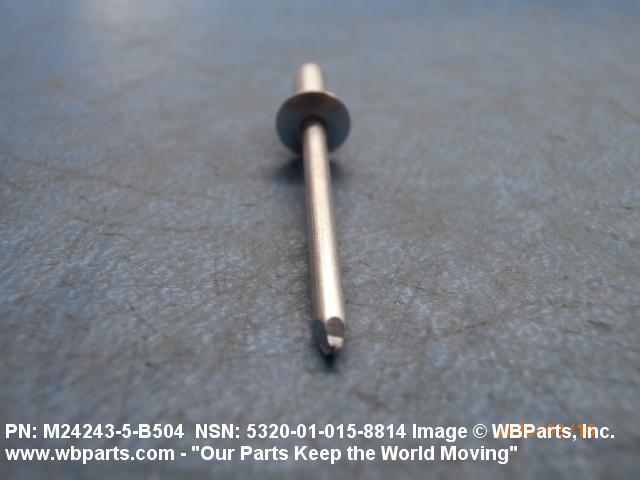

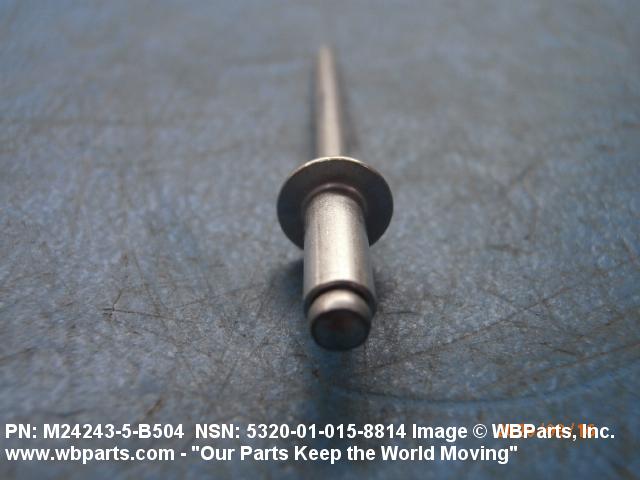

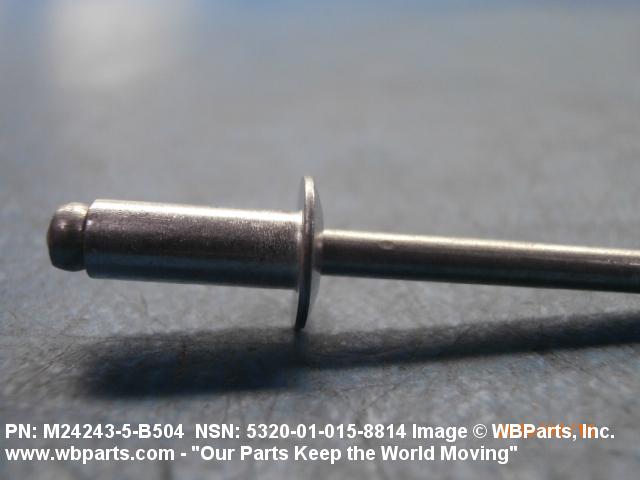

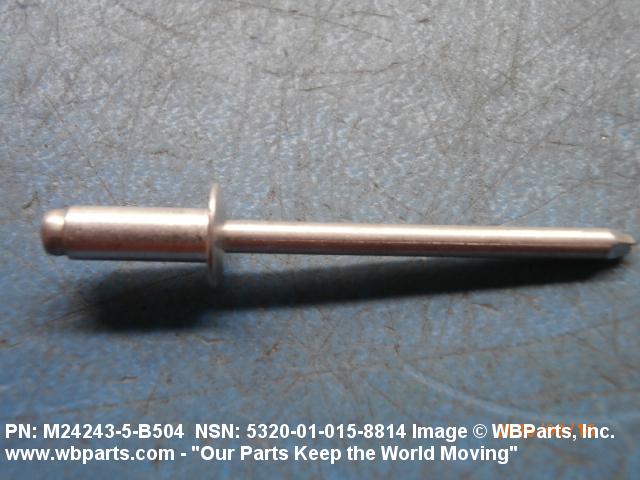

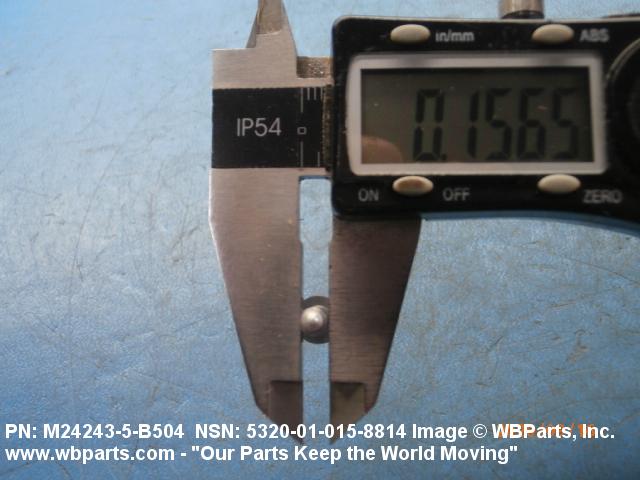

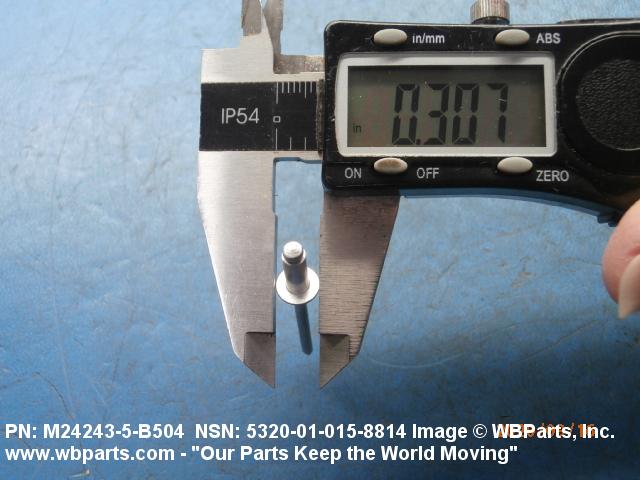

Drawings & Photos | NSN 5320-01-015-8814
Demand History | NSN 5320-01-015-8814
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-015-8814 | 2020-08-220 | 500 | United States |
| AACQ54 | 2020-08-220 | 1 | United States |
| 5320-01-015-8814 | 2017-03-89 | 300 | us |
| M242435B504 | 2017-03-60 | 500 | United States |
| 5320-01-015-8814 | 2017-01-18 | 50 | United States |
| 5320-01-015-8814 | 2012-07-199 | 6891 | DIBBS |
| 5320-01-015-8814 | 2012-05-131 | 6891 | DIBBS |
Cross Reference | NSN 5320-01-015-8814
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AACQ-54 | 05693 | CHERRY TEXTRON INC CHERRY COMMERCIAL FASTENERS PRODUCTS |
| AACQ-54 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| M24243/5-B504 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-24243/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-015-8814
Related Products | NSN 5320-01-015-8814
Technical Data | NSN 5320-01-015-8814
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 BODY ALUMINUM ALLOY 7178 MANDREL |
| SHEAR STRENGTH | 225 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.263 INCHES NOMINAL |
| COUNTERSINK ANGLE | 120.0 DEGREES NOMINAL |
| SHANK STYLE | D18 SELF-PLUGGING |
| FASTENER LENGTH | 0.425 INCHES MAXIMUM |
| SHANK DIAMETER | 0.154 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| GRIP LENGTH | 0.126 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EXPANSION DEVICE | PLAIN STEM-TYPE T |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-24243/5 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24243/5-B504 |
Restrictions/Controls & Freight Information | NSN 5320-01-015-8814
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-015-8814
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
