NSN 5320-00-993-7361 NAS1398D42, NAS1398D4-2, CR216342
Product Details | BLIND RIVET
5320-00-993-7361 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1398D42, NAS1398D4-2, CR216342, CR2163-4-2, 5320-00-993-7361, 00-993-7361, 5320009937361, 009937361
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-993-7361 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-00-993-7361
Demand History | NSN 5320-00-993-7361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1398D42 | 2024-03-67 | 4 | United States |
| CR216342 | 2020-09-247 | 200 | Canada |
| NAS1398D42 | 2015-11-328 | 500 | US |
| NAS1398D42 | 2012-12-348 | 510 | US |
| NAS1398D42 | 2012-12-341 | 100 | US |
| NAS1398D4-2 | 2011-11-315 | 400 | |
| NAS1398D42 | 2011-10-290 | 500 | US |
| NAS1398D42 | 2011-02-41 | 100 | United States |
Cross Reference | NSN 5320-00-993-7361
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR2163-4-2 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR2163-4-2 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR2163-4-2 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR2163-4-2 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| CR2163-4-2 | R1120 | SATAIR A/S |
| NAS1398D4-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-993-7361
Related Products | NSN 5320-00-993-7361
Technical Data | NSN 5320-00-993-7361
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 LOCKING RING ALUMINUM ALLOY 2017 SLEEVE ALUMINUM ALLOY 7075 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE LOCKING RING QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | ANODIZE AND CHROMATE SLEEVE CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE SLEEVE MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAT TREATMENT | H-38 STRAIN HARDENED LOCKING RING T-4 SOLUTION HEAT TREATED SLEEVE |

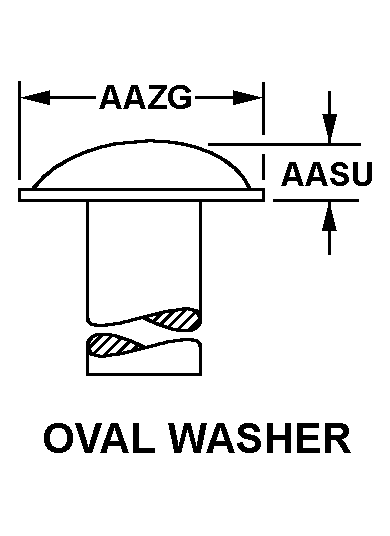

| HEAD STYLE | C29 OVAL WASHER |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |

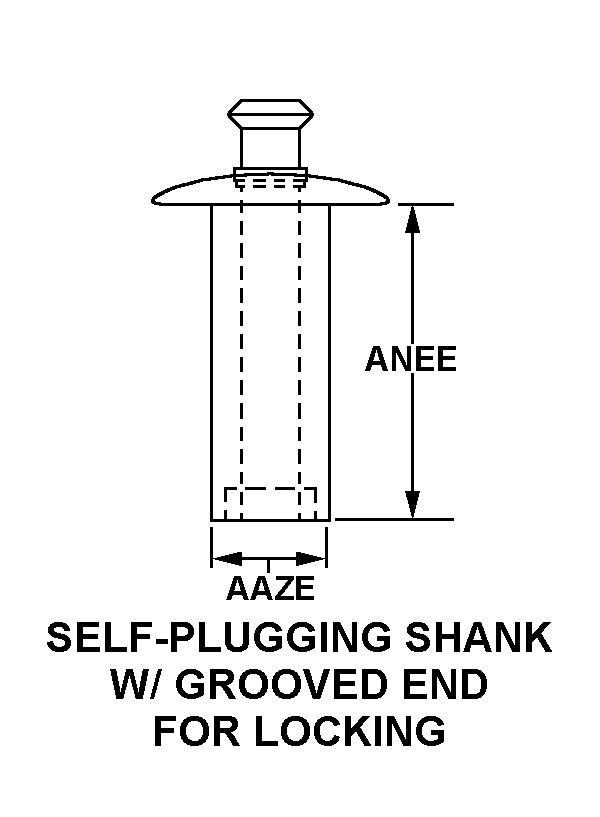

| SHANK STYLE | D22 SELF-PLUGGING SHANK W/GROOVED END FOR LOCKING |
| FASTENER LENGTH | 0.260 INCHES NOMINAL |
| SHANK DIAMETER | 0.125 INCHES NOMINAL |
| GRIP LENGTH | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| EXPANSION DEVICE | PLAIN STEM-TYPE T |
| IDENTIFICATION CODE COLOR | YELLOW |
Restrictions/Controls & Freight Information | NSN 5320-00-993-7361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-993-7361
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
