NSN 5320-00-989-3171 MS206155M4, MS20615-5M4, MS20615M54
Product Details | SOLID RIVET
5320-00-989-3171 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS206155M4, MS20615-5M4, MS20615M54, MS20615M5-4, NASM20615, AN470, GHN1000436, GHN10004-36 , 5320-00-989-3171, 00-989-3171, 5320009893171, 009893171
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-989-3171 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-00-989-3171
Demand History | NSN 5320-00-989-3171
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-989-3171 | 2023-05-130 | 27 | DIBBS |
| MS20615-5M4 | 2020-05-147 | 1000 | US |
| 5320-00-989-3171 | 2017-12-354 | 1 | DIBBS-RFPs |
| 5320-00-989-3171 | 2017-11-333 | 587 | DIBBS |
| AN470 | 2016-10-300 | 25 | United States |
| 5320-00-989-3171 | 2016-07-210 | 393 | DIBBS |
| MS206155M4 | 2012-05-135 | 375 | UA |
| 5320-00-989-3171 | 2012-05-135 | 375 | UA |
| MS206155M4 | 2011-11-318 | 10 | US |
| 5320-00-989-3171 | 2009-05-133 | 1312 | DIBBS |
| 5320-00-989-3171 | 2009-04-97 | 356 | DIBBS |
| 5320-00-989-3171 | 2008-11-333 | 389 | DIBBS |
| 5320-00-989-3171 | 2008-10-301 | 460 | DIBBS |
| 5320-00-989-3171 | 2008-09-269 | 530 | DIBBS |
| 5320-00-989-3171 | 2008-07-213 | 330 | DIBBS |
| 5320-00-989-3171 | 2008-05-135 | 130 | DIBBS |
| 5320-00-989-3171 | 2008-03-72 | 1682 | DIBBS |
Cross Reference | NSN 5320-00-989-3171
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN470 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20615-5M4 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| MS20615-5M4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20615-5M4 | 8J942 | RAPID RIVET AND FASTENER CORPORATION |
| MS20615-5M4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20615M5-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM20615 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-989-3171
Related Products | NSN 5320-00-989-3171
Technical Data | NSN 5320-00-989-3171
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SHEAR STRENGTH | 49000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |

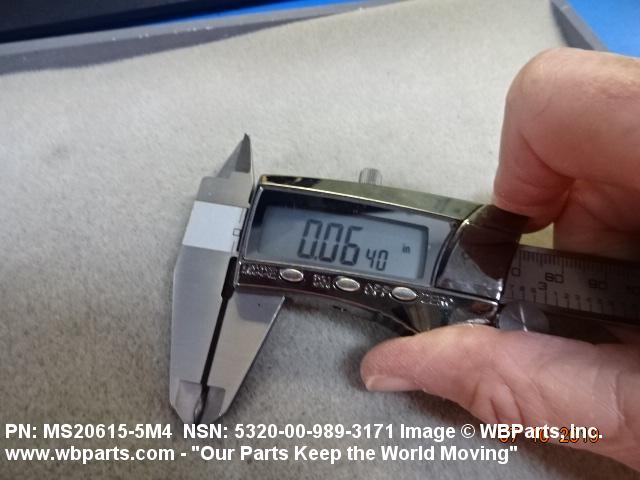

| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |

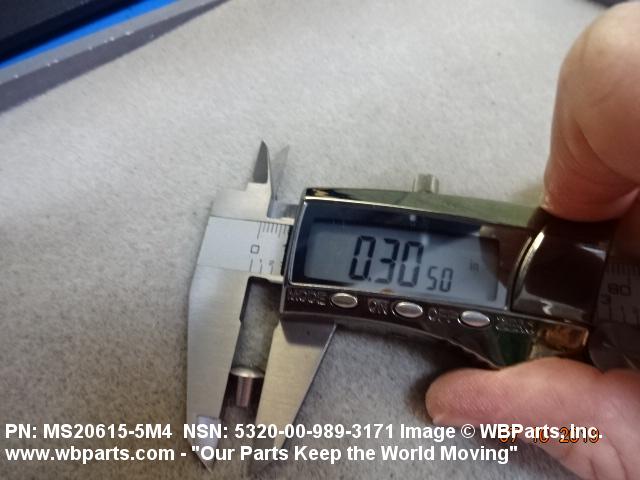

| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |

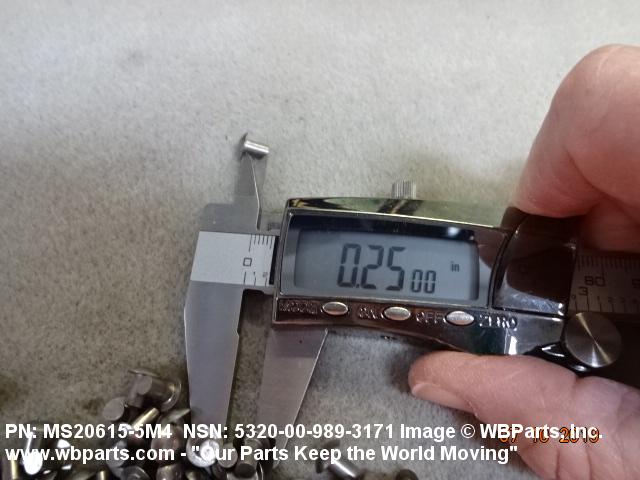

| FASTENER LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

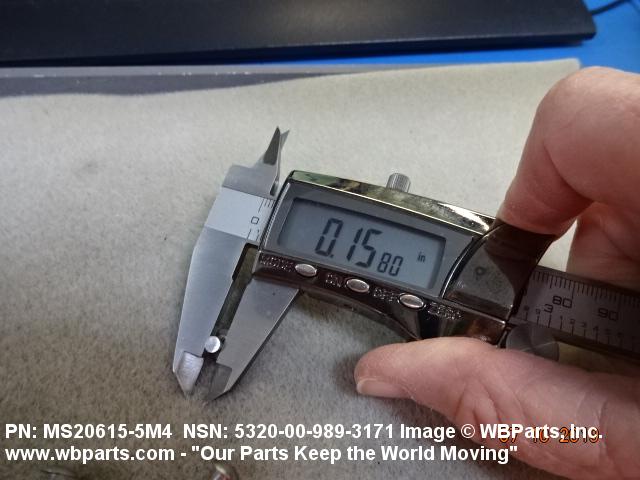

| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| GRIP LENGTH | 0.006 INCHES MINIMUM AND 0.026 INCHES MAXIMUM |
