NSN 5320-00-982-8807 NAS1097AD66, NAS1097AD6-6, GHN1000581
Product Details | SOLID RIVET
5320-00-982-8807 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: NAS1097AD66, NAS1097AD6-6, GHN1000581, GHN10005-81 , 10123910 , 5320-00-982-8807, 00-982-8807, 5320009828807, 009828807
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-982-8807 | 00861 ( RIVET, SOLID ) |

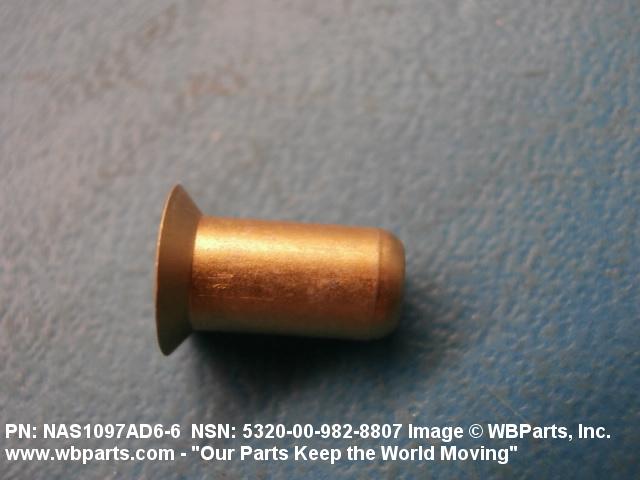

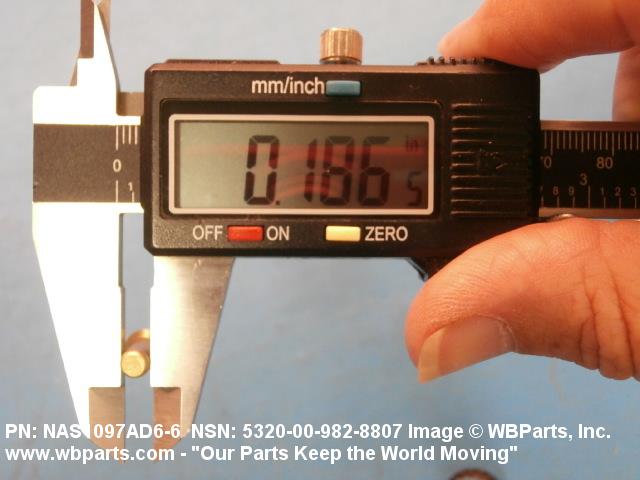

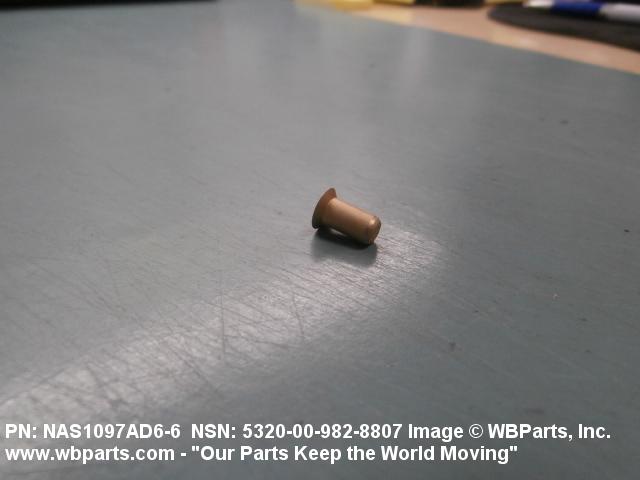

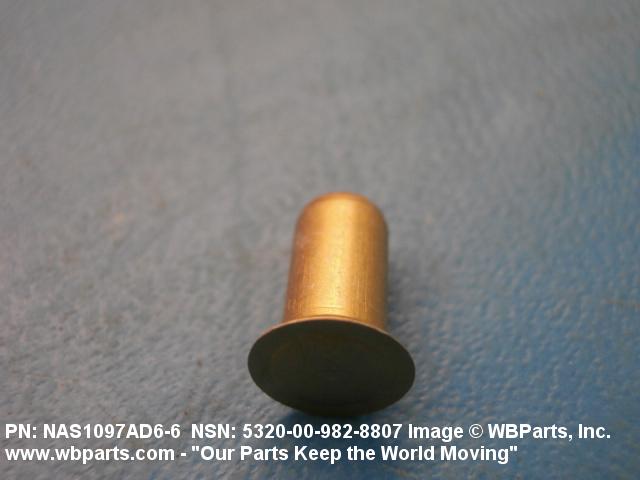

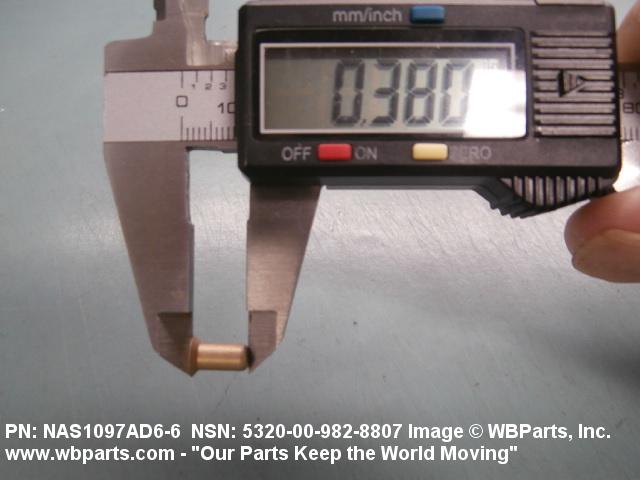

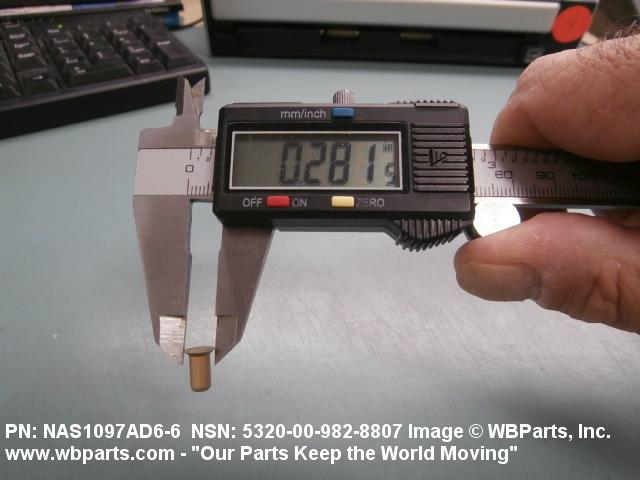

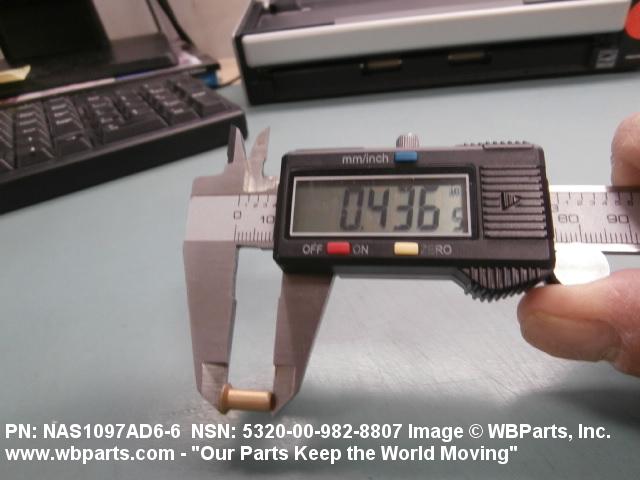

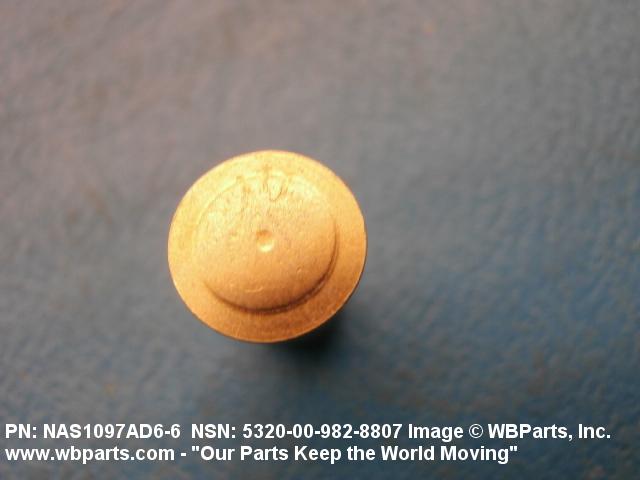

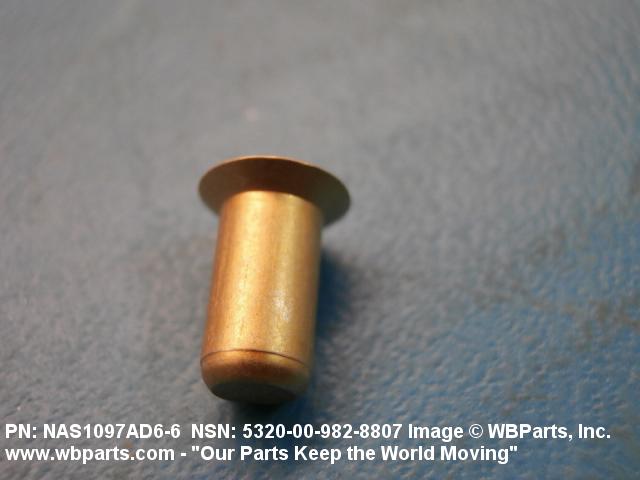

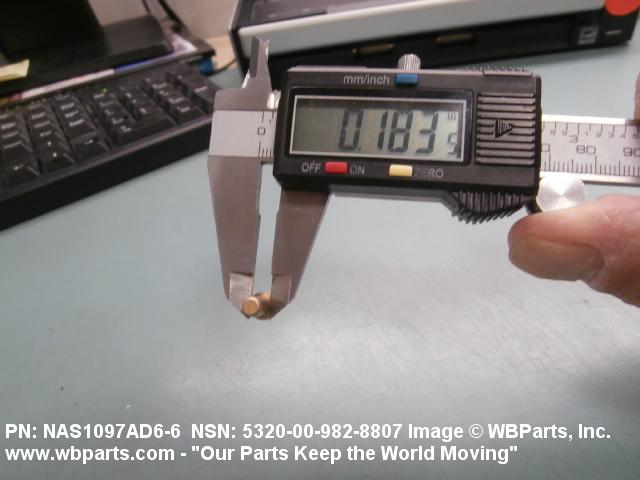

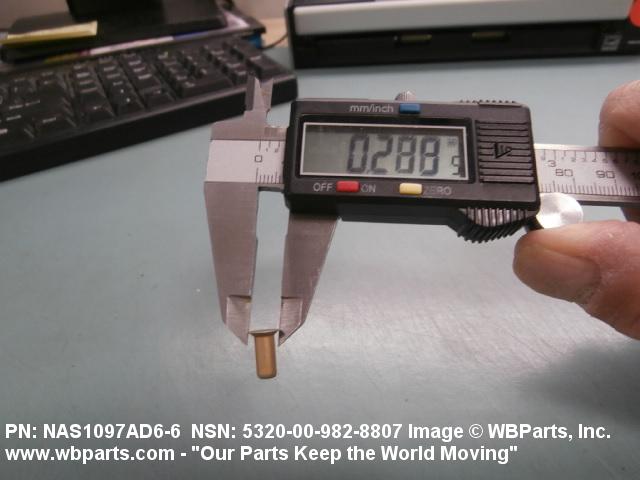

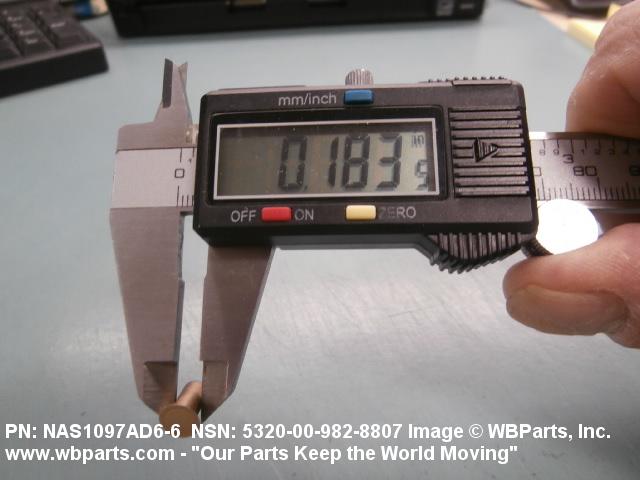

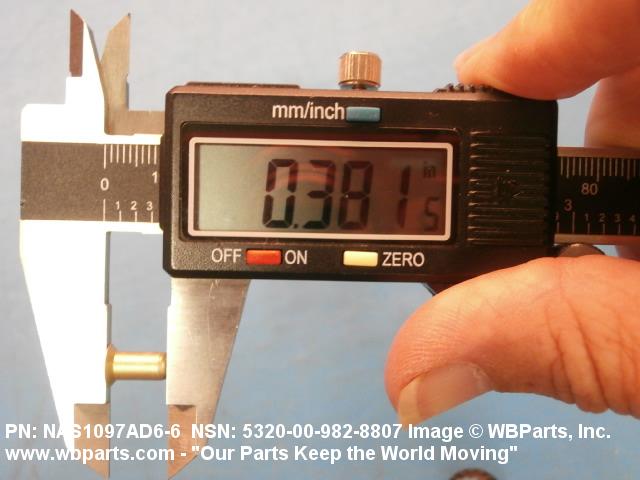

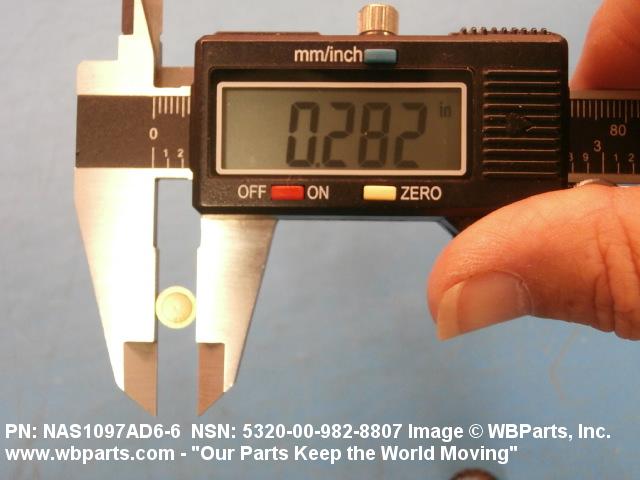

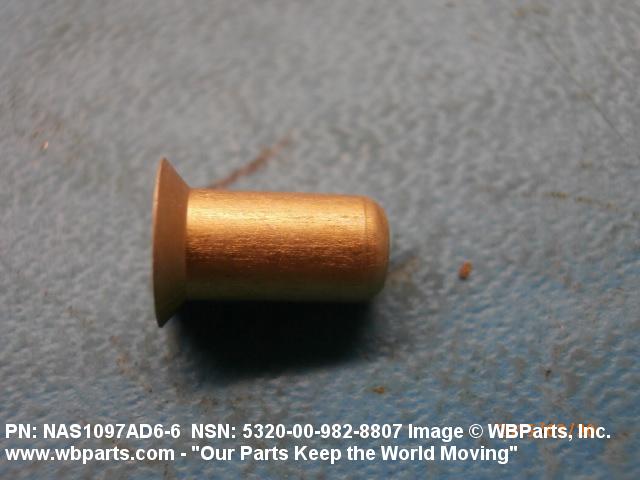

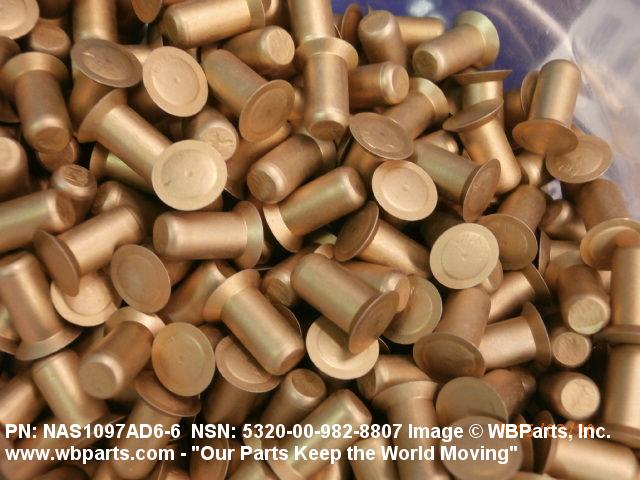

Drawings & Photos | NSN 5320-00-982-8807
Demand History | NSN 5320-00-982-8807
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1097AD66 | 2022-02-48 | 500 | United States |
| NAS1097AD66 | 2021-12-351 | 280 | United States |
| 5320-00-982-8807 | 2017-12-354 | 1 | DIBBS-RFPs |
| NAS1097AD66 | 2015-03-78 | 500 | United States |
| 5320-00-982-8807 | 2015-01-05 | 1000 | RU |
| NAS1097AD66 | 2014-06-170 | 1500 | United States |
| NAS1097AD66 | 2014-05-149 | 500 | United States |
| NAS1097AD66 | 2012-08-227 | 22000 | US |
| NAS1097AD66 | 2010-06-161 | 100 | US |
| NAS1097AD66 | 2008-02-56 | 30000 | US |
Cross Reference | NSN 5320-00-982-8807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1097AD6-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
