NSN 5320-00-980-5663 NAS175208L4, NAS1752-08L4, BCV5A4F
Product Details | BLIND RIVET
5320-00-980-5663 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS175208L4, NAS1752-08L4, BCV5A4F, F0164ALS4, FL0164ALS4, PLT12154, PLT121-5-4, 3M19654, 3M196-5-4, 5320-00-980-5663, 00-980-5663, 5320009805663, 009805663
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 OCT 1966 | 00-980-5663 | 00864 ( RIVET, BLIND ) |

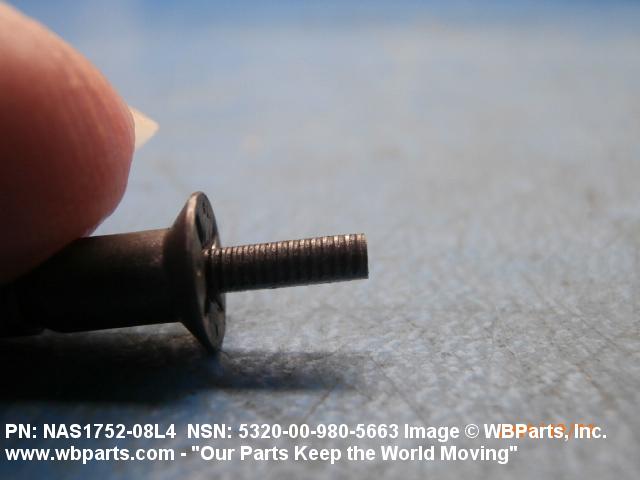

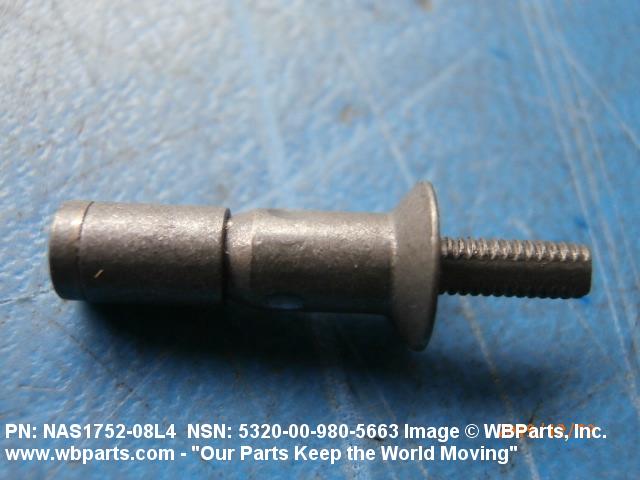

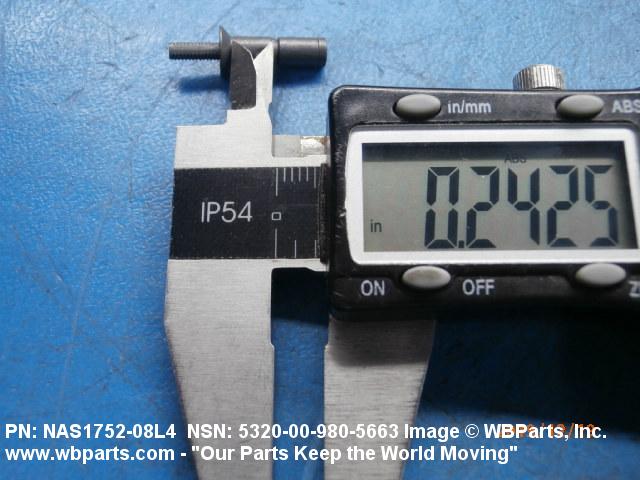

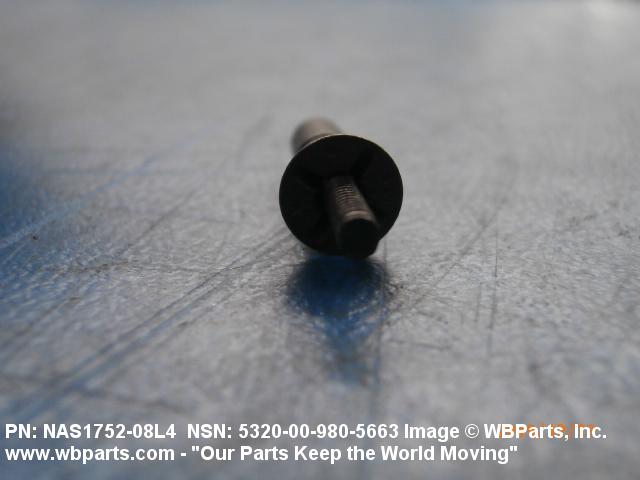

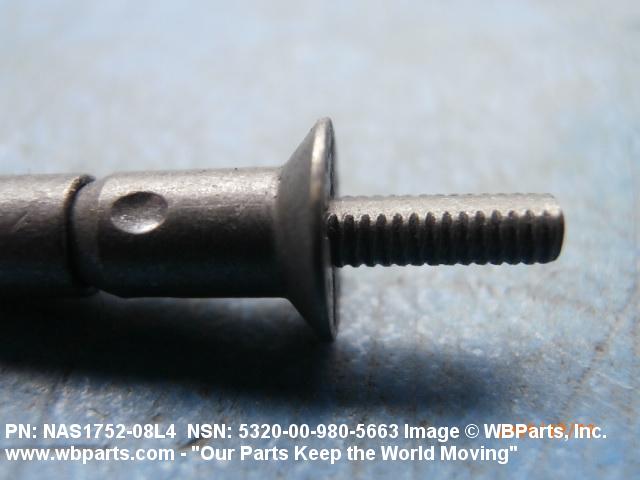

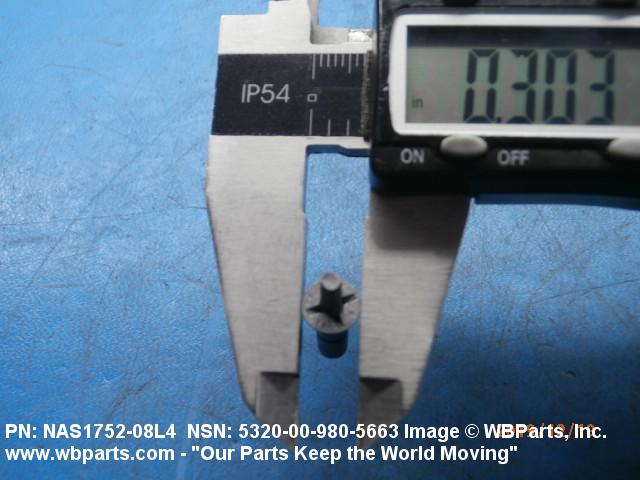

Drawings & Photos | NSN 5320-00-980-5663
Demand History | NSN 5320-00-980-5663
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS175208L4 | 2019-12-340 | 45 | Australia |
| NAS175208L4 | 2016-11-333 | 100 | Australia |
Cross Reference | NSN 5320-00-980-5663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M196-5-4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| BCV5A4F | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BCV5A4F | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| F0164ALS4 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| FL0164ALS4 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| FL0164ALS4 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| NAS1752-08L4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PLT121-5-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT121-5-4 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-980-5663
Related Products | NSN 5320-00-980-5663
Technical Data | NSN 5320-00-980-5663
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 BOLT IRON ALLOY 660 NUT IRON ALLOY 660 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE BOLT AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE NUT AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | PASSIVATE BOLT PASSIVATE NUT PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BOLT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM BOLT 30.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM NUT |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.332 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | ANY ACCEPTABLE |

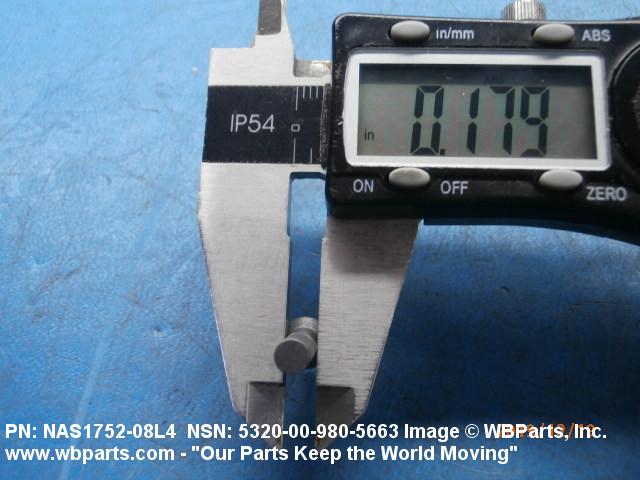

| SHANK DIAMETER | 0.178 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| GRIP LENGTH | 0.220 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1752 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-980-5663
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-980-5663
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
