NSN 5320-00-971-7755 AN123151, 00-971-7755, 009717755
Product Details | SOLID RIVET
5320-00-971-7755 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: AN123151, 5320-00-971-7755, 00-971-7755, 5320009717755, 009717755
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-971-7755 | 00861 ( RIVET, SOLID ) |

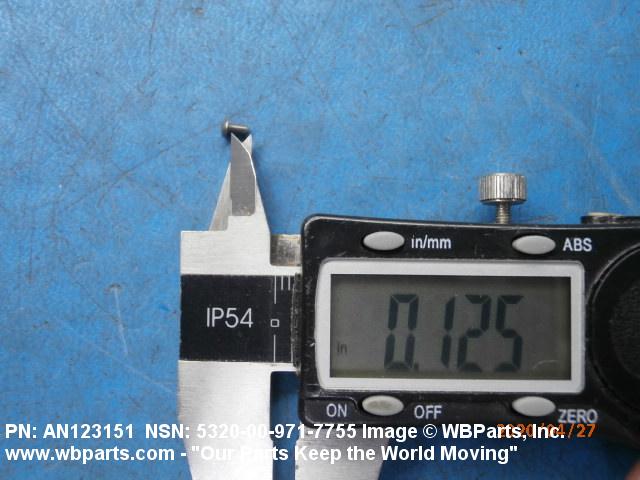

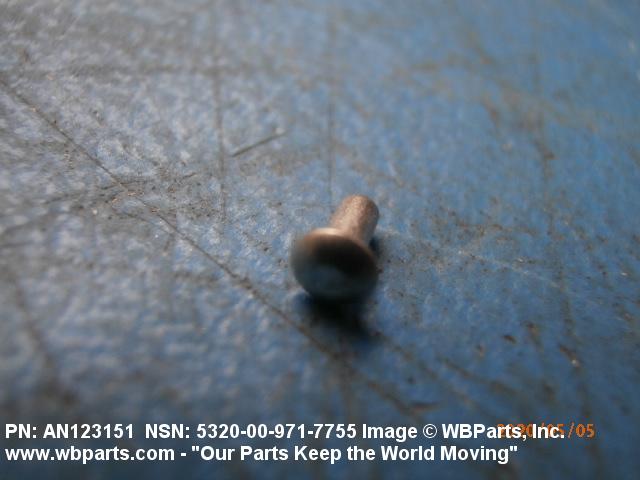

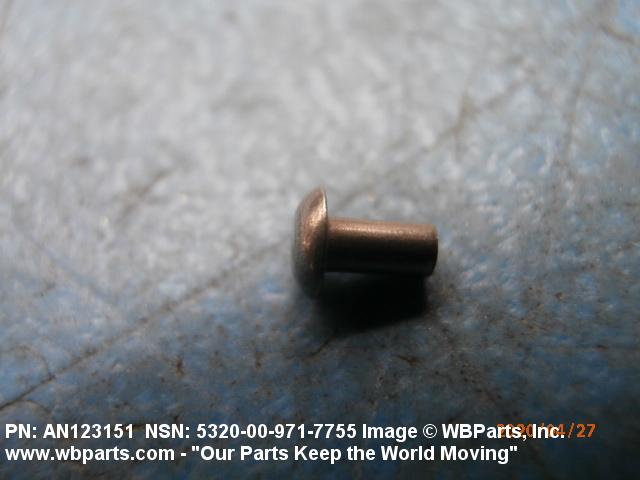

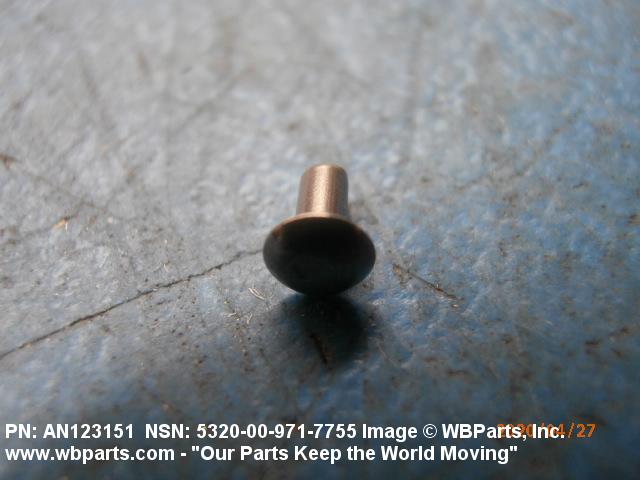

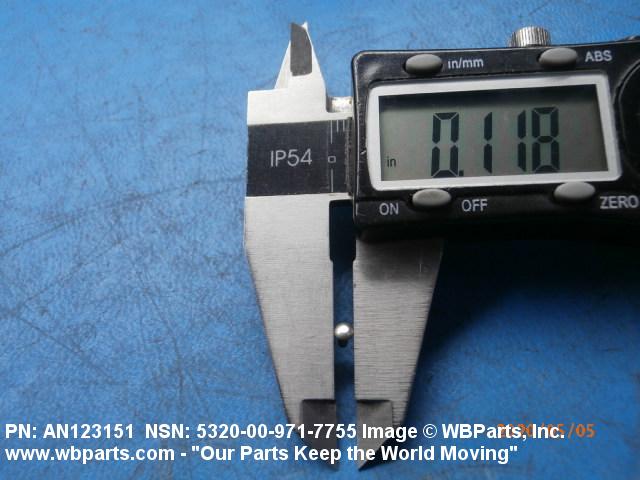

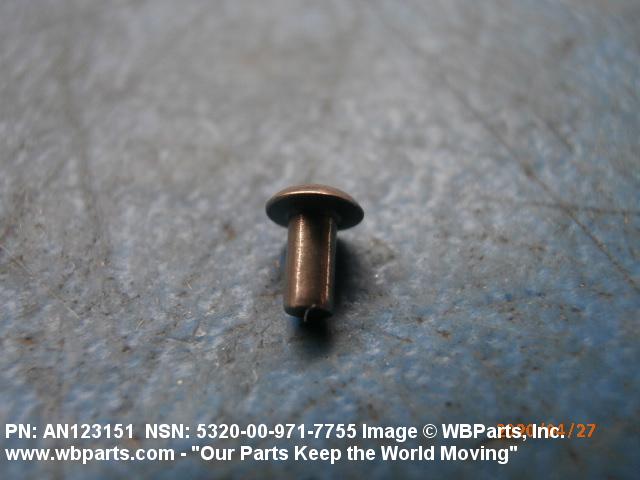

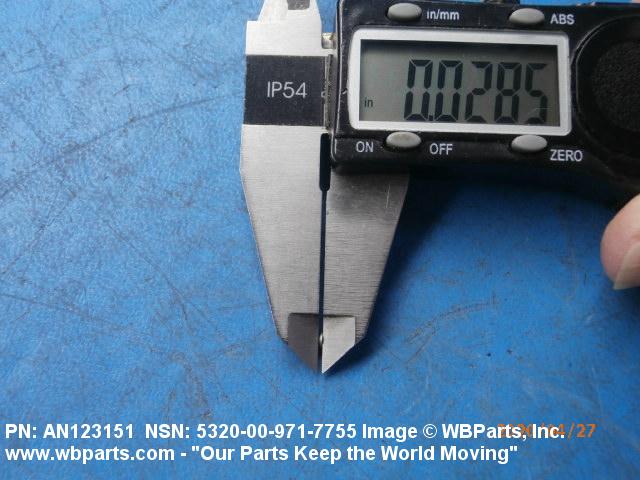

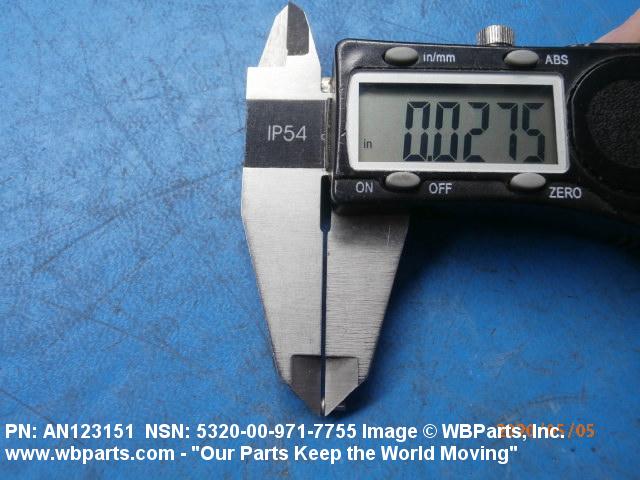

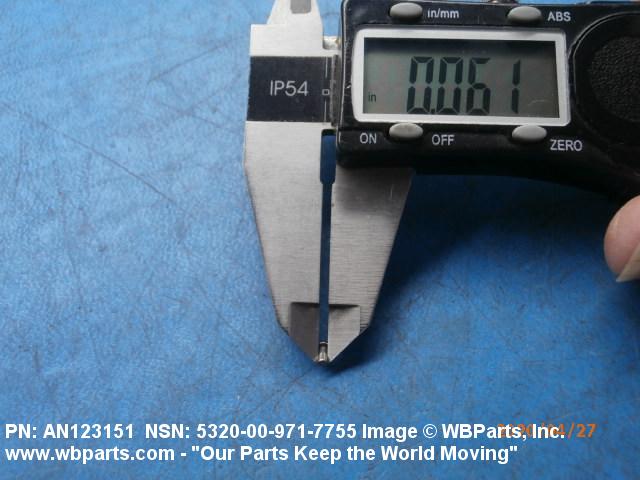

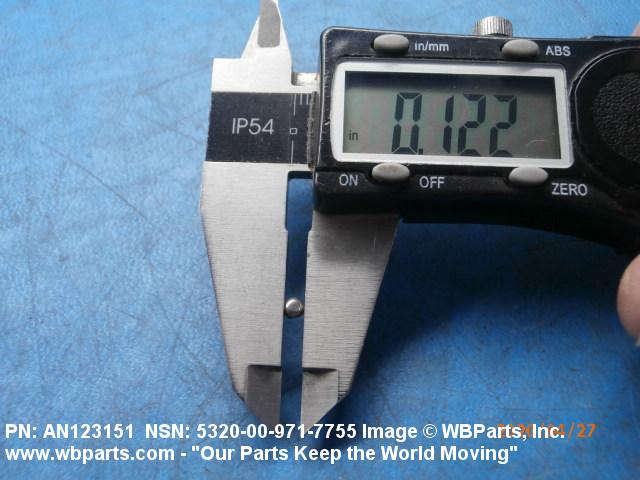

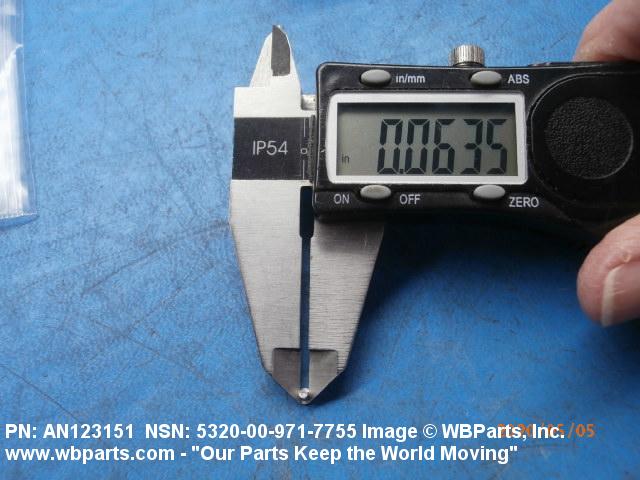

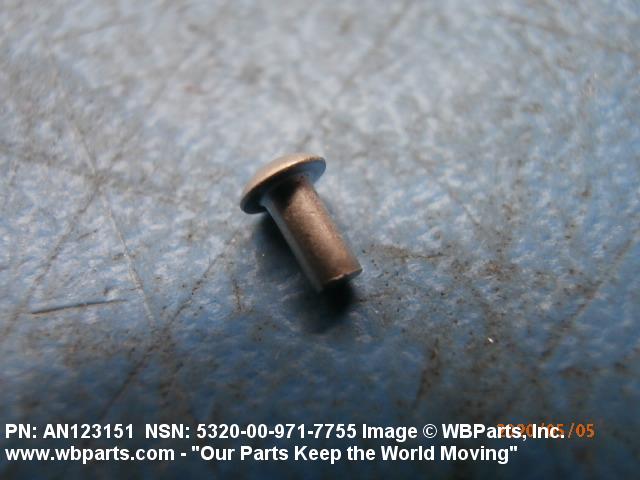

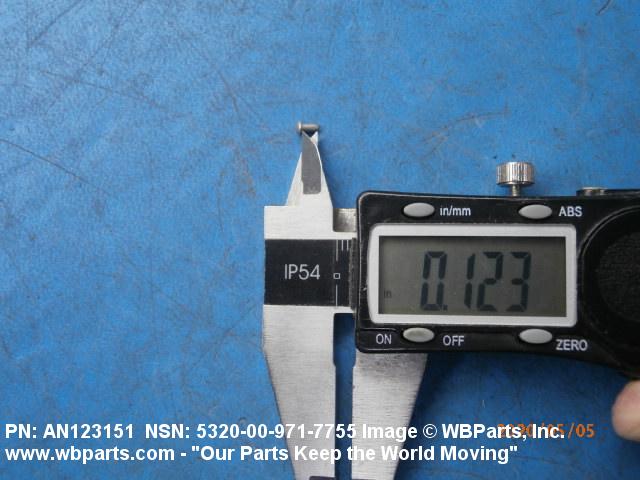

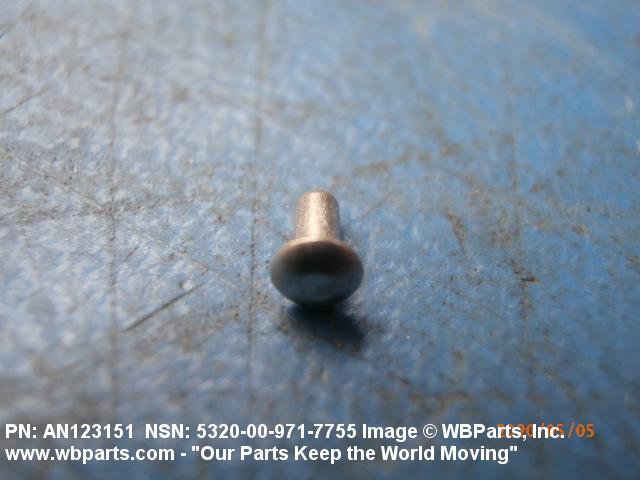

Drawings & Photos | NSN 5320-00-971-7755
Demand History | NSN 5320-00-971-7755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-971-7755 | 2023-03-75 | 20 | US |
| AN123151 | 2019-12-351 | 125 | United States |
| AN123151 | 2013-12-340 | 20 | United States |
Cross Reference | NSN 5320-00-971-7755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN123151 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-971-7755
Related Products | NSN 5320-00-971-7755
Technical Data | NSN 5320-00-971-7755
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.027 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.125 INCHES NOMINAL |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.125 INCHES NOMINAL |
| SHANK DIAMETER | 0.062 INCHES NOMINAL |
| GRIP LENGTH | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN123151 |
Restrictions/Controls & Freight Information | NSN 5320-00-971-7755
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-971-7755
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
