NSN 5320-00-959-7214 BACB30FM63, BACB30FM6-3, HL18PB63

Product Details | PIN-RIVET

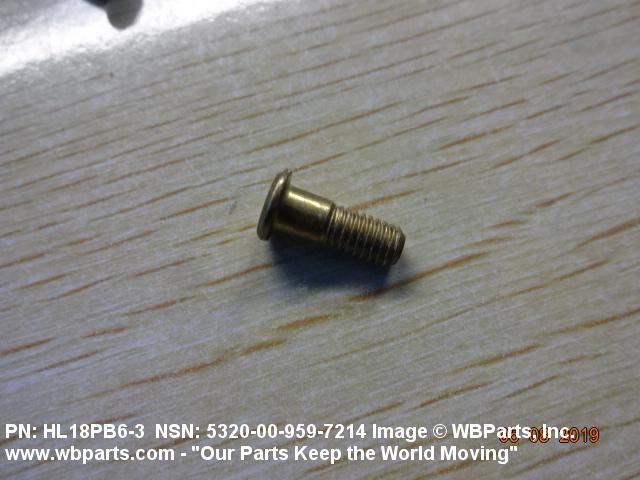

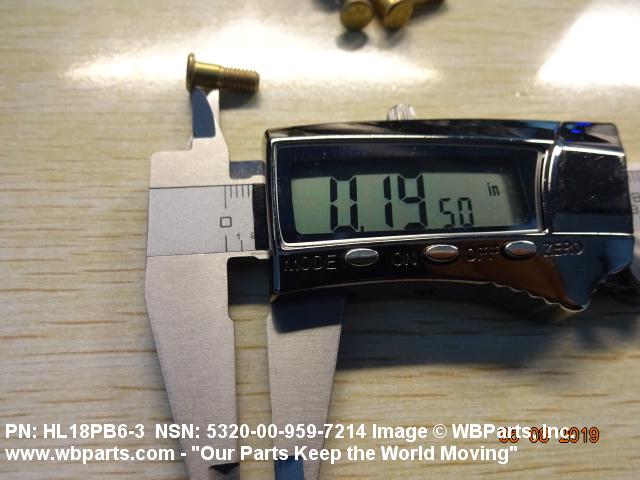

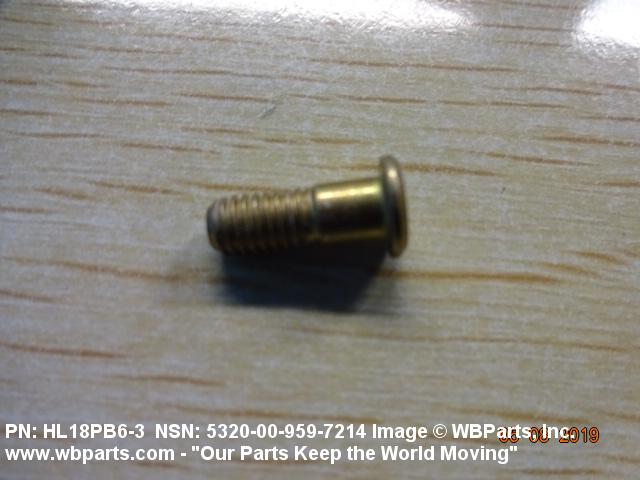

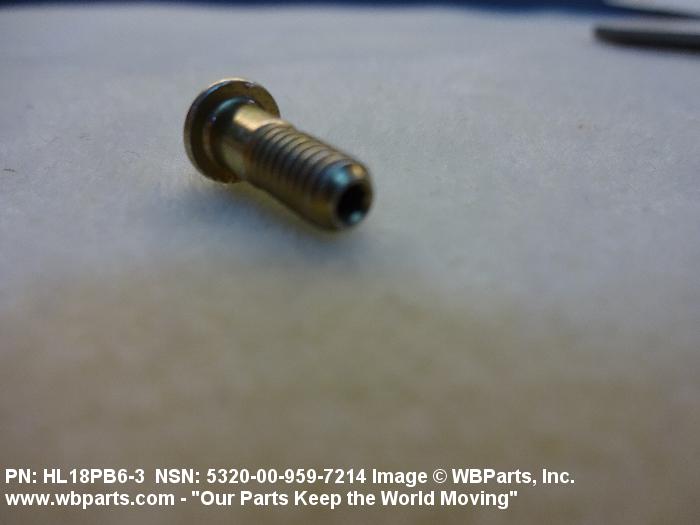

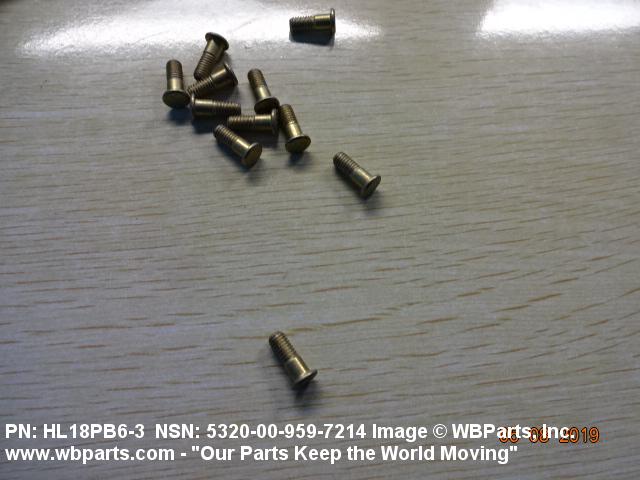

5320-00-959-7214 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: BACB30FM63, BACB30FM6-3, HL18PB63, HL18PB6-3, HL18PB633, HS560263, HS5602-6-3, WC2263, WC22-6-3, GB511D33, GB511D3-3, 1213AS62363, 1213AS623-6-3, 6255063, 62550-6-3, 5320-00-959-7214, 00-959-7214, 5320009597214, 009597214

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	20 MAY 1966	00-959-7214	67165 ( PIN-RIVET )

Drawings & Photos | NSN 5320-00-959-7214

Part Number	Request Date	QTY	Origin
HL18PB63	2024-09-17	100	US
HL18PB63	2024-02-12	75	US
HS560263	2023-01-03	33600	IN
5320-00-959-7214	2022-11-23	35000	India
HL18PB63	2022-10-07	100	Malaysia
HL18PB63	2022-09-20	3744	United States
HL18PB63	2022-09-01	104	Philippines
HL18PB63	2021-09-30	500	Malaysia
HL18PB63	2020-08-24	3	CO
HL18PB6-3	2018-04-18	200	United Arab Emirates
5320-00-959-7214	2017-07-19	50	Malaysia
HL18PB63	2017-05-26	8	United States
HL18PB63	2017-05-04	1	us
HL18PB63	2017-01-31	8	United States
5320-00-959-7214	2016-03-24	1	DIBBS-RFPs
5320-00-959-7214	2013-05-21	11512	DIBBS
HL18PB63	2012-09-05	50	United Kingdom
HL18PB633	2012-06-01	9	United States
HL18PB6-3	2012-01-10	50	AE
5320-00-959-7214	2010-05-01	48052	DIBBS
5320-00-959-7214	2010-03-26	9799	DIBBS
HL18PB63	2010-02-08	100	Italy
HL18PB63	2009-04-22	15	US
5320-00-959-7214	2009-04-03	48575	DIBBS
5320-00-959-7214	2008-11-25	5239	DIBBS
HL18PB63	2008-08-05	100	US
BACB30FM63	2008-06-27	25	DE
5320-00-959-7214	2008-06-05	3	South Korea
5320-00-959-7214	2008-02-20	26531	DIBBS

Cross Reference | NSN 5320-00-959-7214

Part Number	Cage Code	Manufacturer
1213AS623-6-3	30003	NAVAL AIR SYSTEMS COMMAND
62550-6-3	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
BACB30FM6-3	81205	THE BOEING COMPANY DBA BOEING
GB511D3-3	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
HL18PB6-3	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL18PB6-3	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL18PB6-3	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL18PB6-3	1RC86	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL18PB6-3	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL18PB6-3	60516	WEST COAST AEROSPACE INC
HL18PB6-3	73197	HI-SHEAR CORPORATION
HL18PB6-3	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
HL18PB6-3	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL18PB6-3	97928	HUCK INTL INC
HL18PB6-3	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
HL18PB6-3	L4528	LISI AEROSPACE CANADA CORP
HL18PB6-3	R1120	SATAIR A/S
HL18PB633	73197	HI-SHEAR CORPORATION
HS5602-6-3	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS5602-6-3	8V613	BOEING COMPANY, THE DBA BOEING
WC22-6-3	60516	WEST COAST AEROSPACE INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-959-7214

Compare

Related Products | NSN 5320-00-959-7214

5320-00-959-7229, 5320-00-959-7235, 5320-00-959-7237, 5320-00-959-7240, 5320-00-959-7242

Technical Data | NSN 5320-00-959-7214

Characteristic	Specifications
MATERIAL	STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
SHEAR STRENGTH	95000 SINGLE POUNDS PER SQUARE INCH

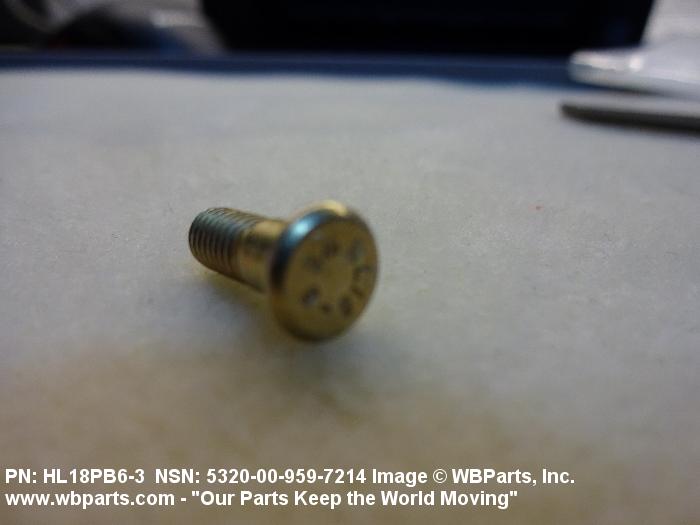

HEAD STYLE	A34 FLAT CHAMFER

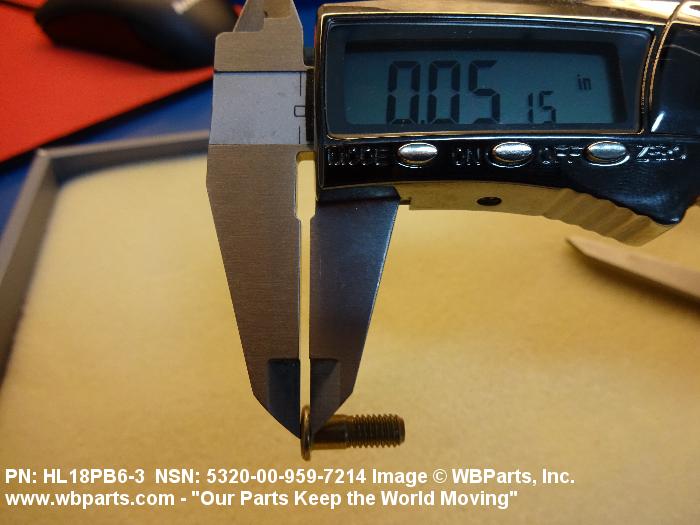

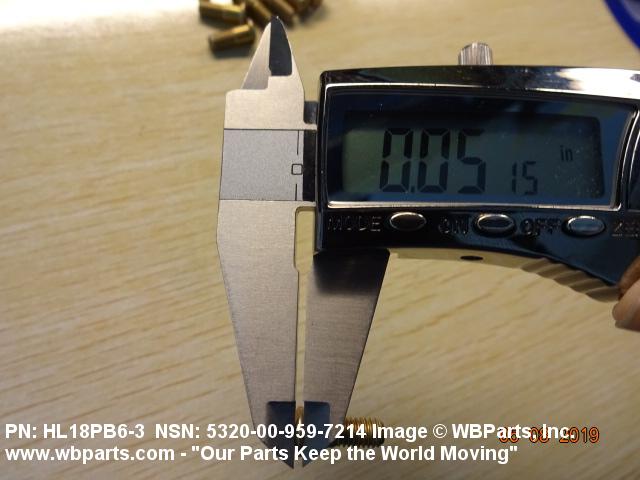

HEAD HEIGHT	0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM

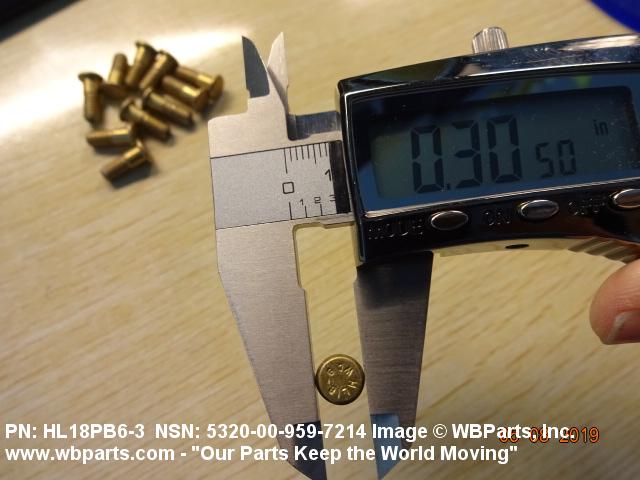

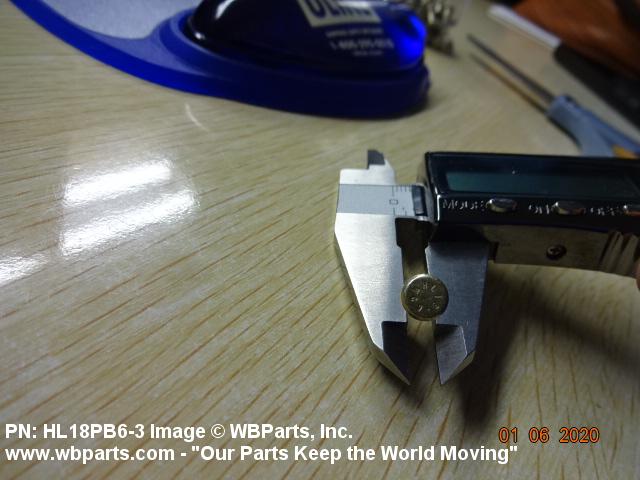

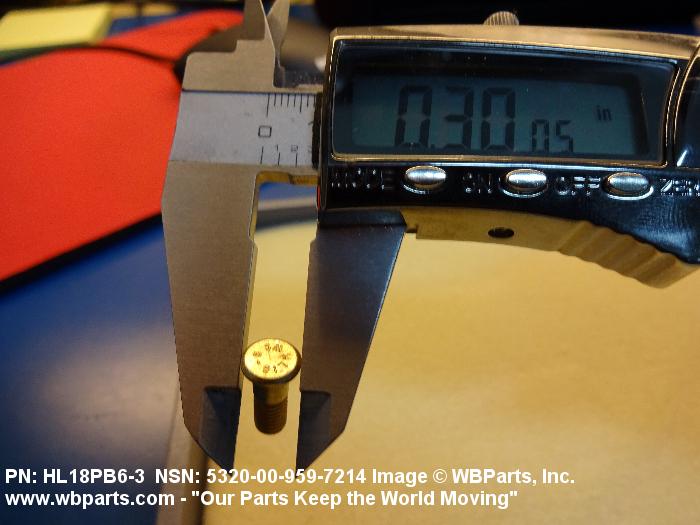

HEAD MAJOR DIAMETER	0.295 INCHES MINIMUM AND 0.315 INCHES MAXIMUM

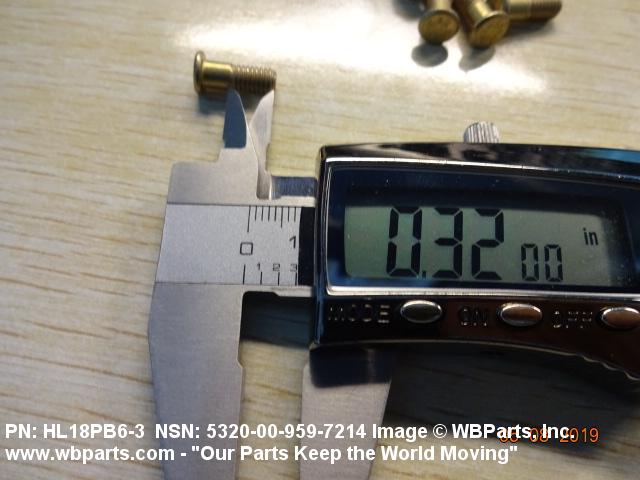

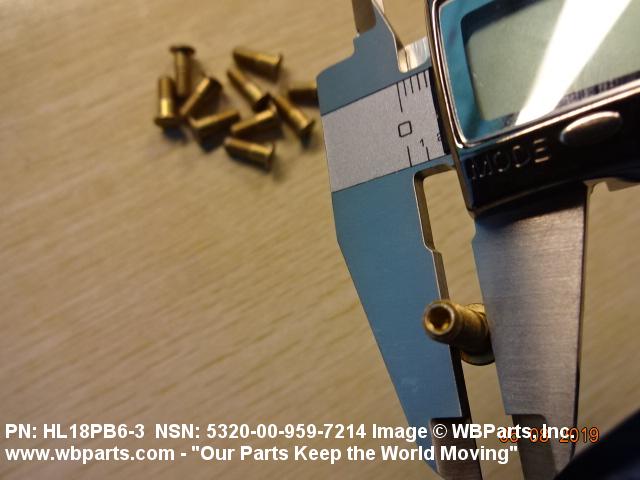

SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

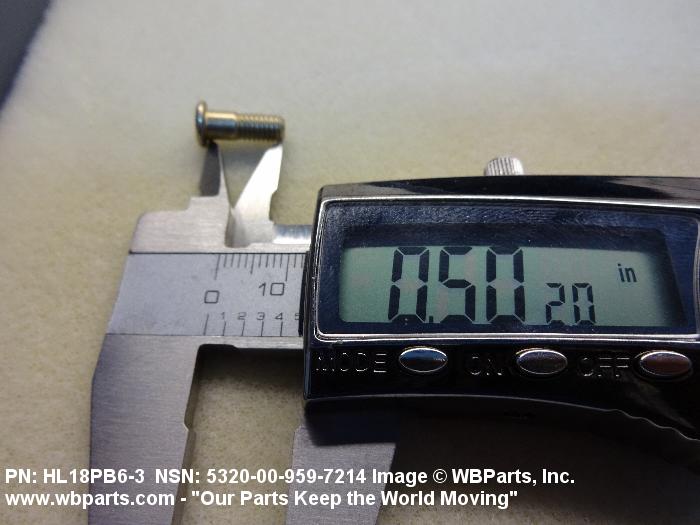

FASTENER LENGTH	0.503 INCHES MINIMUM AND 0.523 INCHES MAXIMUM

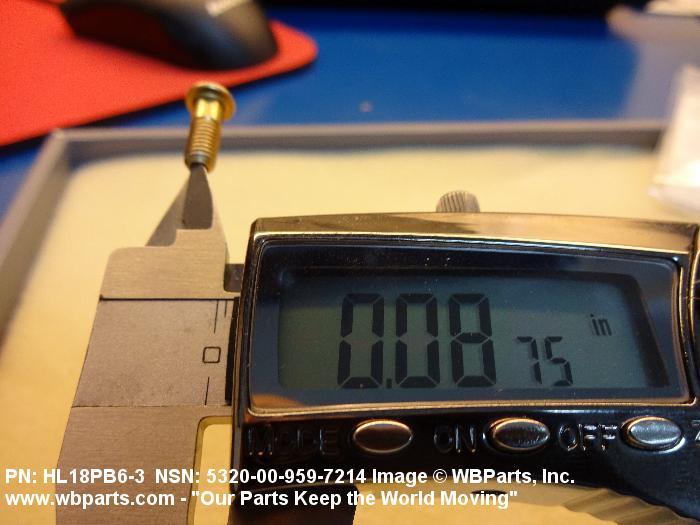

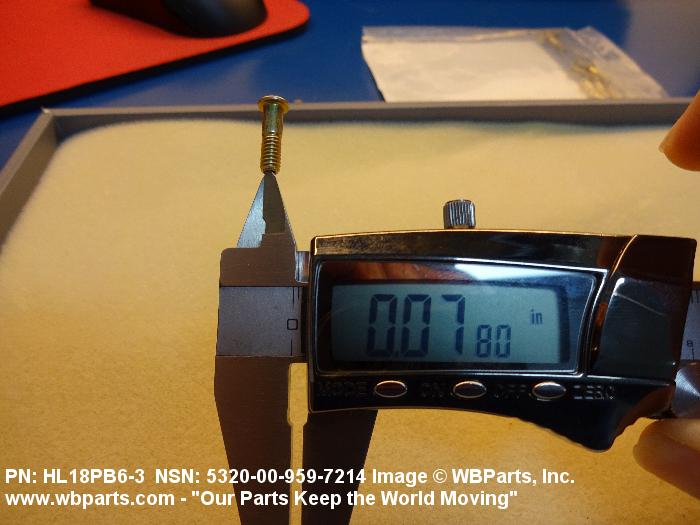

WIDTH BETWEEN FLATS	0.079 INCHES MINIMUM AND 0.080 INCHES MAXIMUM

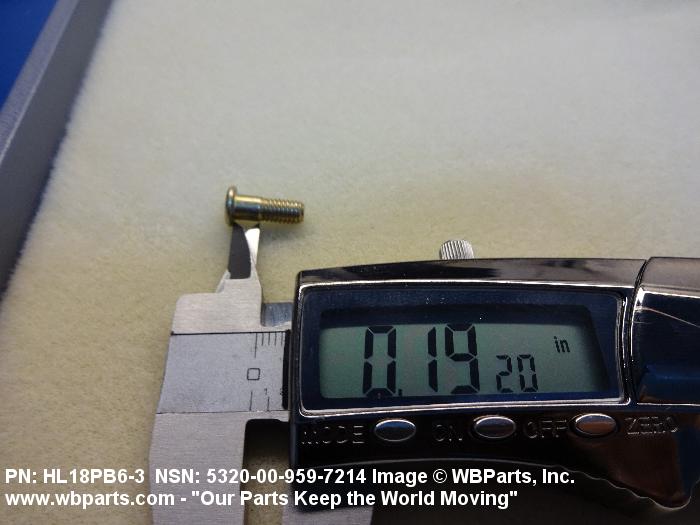

SHANK DIAMETER	0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
GRIP LENGTH	0.193 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
END ITEM IDENTIFICATION	ENGINE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P);ENGINE, AIRCRAFT, J-57 ALL MODELS (C-135, EC-135, B-52);AIRCRAFT, SOF ( AC-130H, MC-130H, EC-130E,HC-130);HELICOPTER, SEARCH AND RESCUE, HH-60H;ENGINE, AIRCRAFT TF33-P-3/5/9 (C/EC-135, B-52H);AIRCRAFT, C-2A (REPROCURED);HELICOPTER, MH-53E;ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B);HELICOPTER, CARRIER BASED ASW, SH-60F
MANUFACTURERS CODE	73197
DESIGN CONTROL REFERENCE	HL18PB6-3

Restrictions/Controls & Freight Information | NSN 5320-00-959-7214

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-959-7214

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
