NSN 5320-00-959-0334 BACB30FM53, BACB30FM5-3, HL18PB53
Product Details | PIN-RIVET
5320-00-959-0334 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: BACB30FM53, BACB30FM5-3, HL18PB53, HL18PB-5-3, GB511D083, GB511D08-3, 5320-00-959-0334, 00-959-0334, 5320009590334, 009590334
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAY 1966 | 00-959-0334 | 67165 ( PIN-RIVET ) |

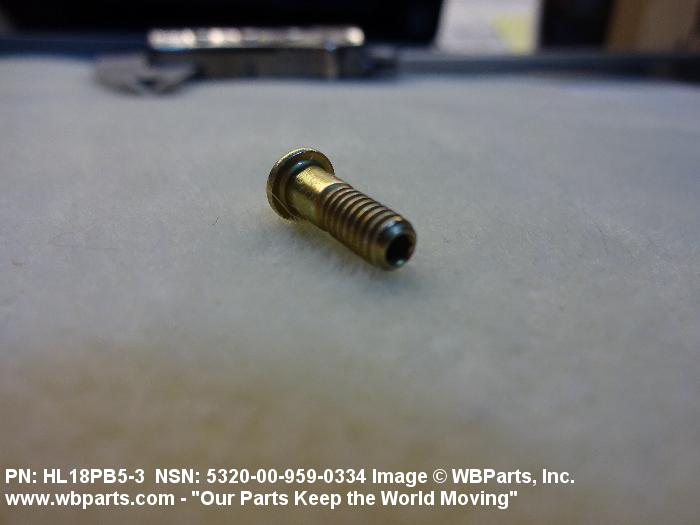

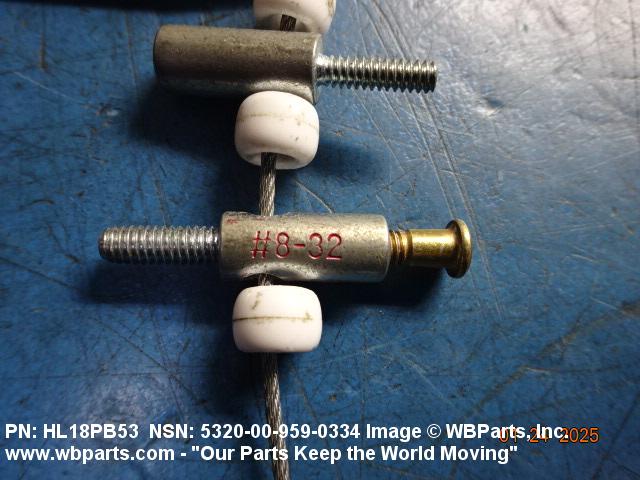

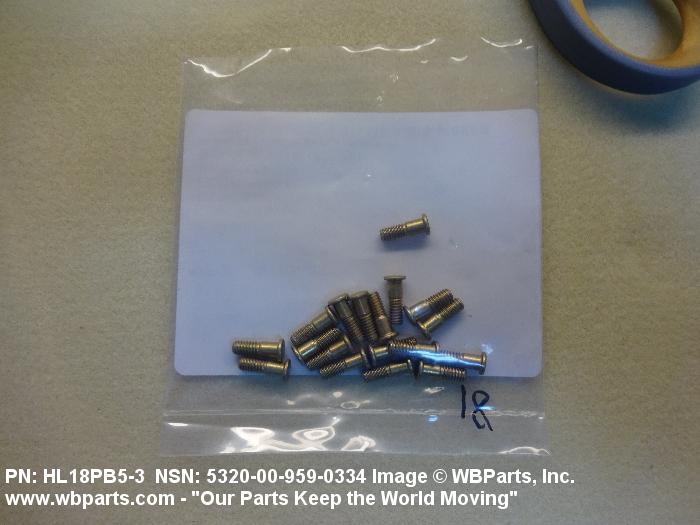

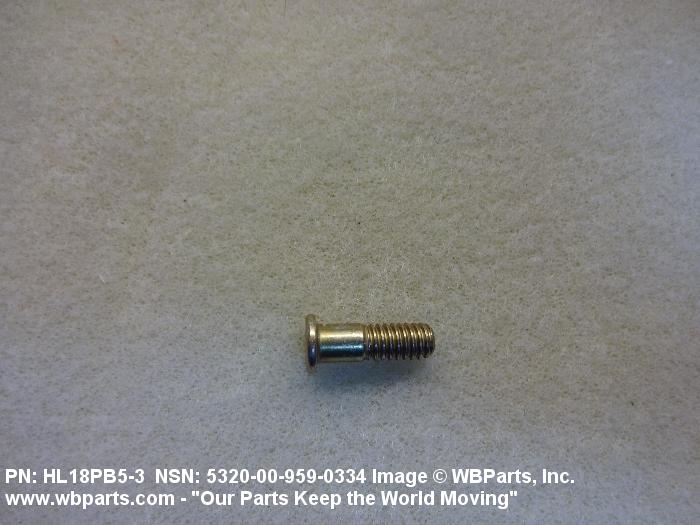

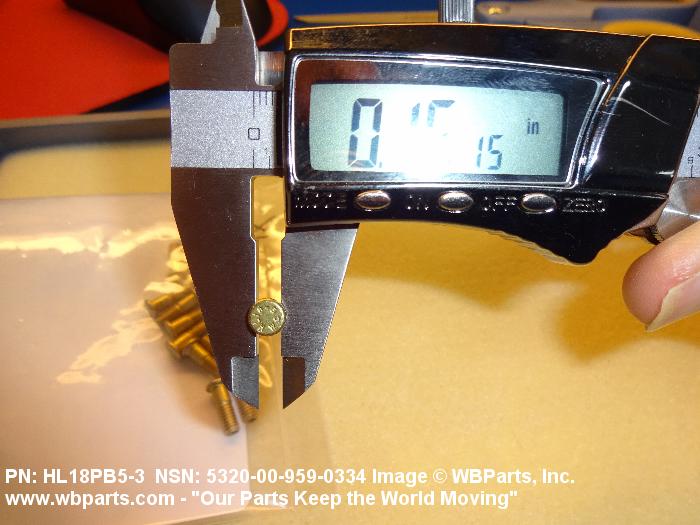

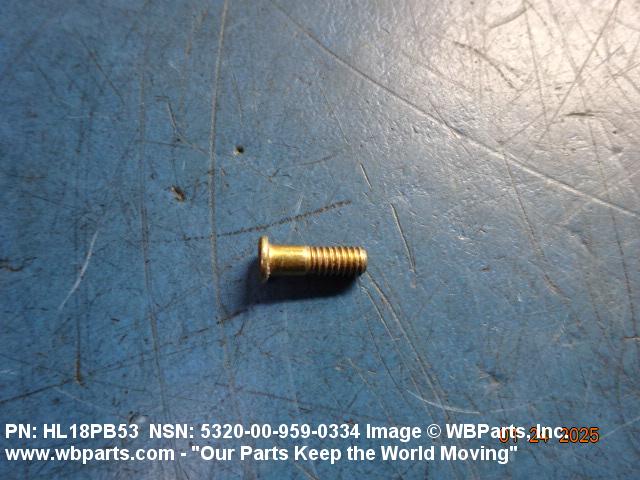

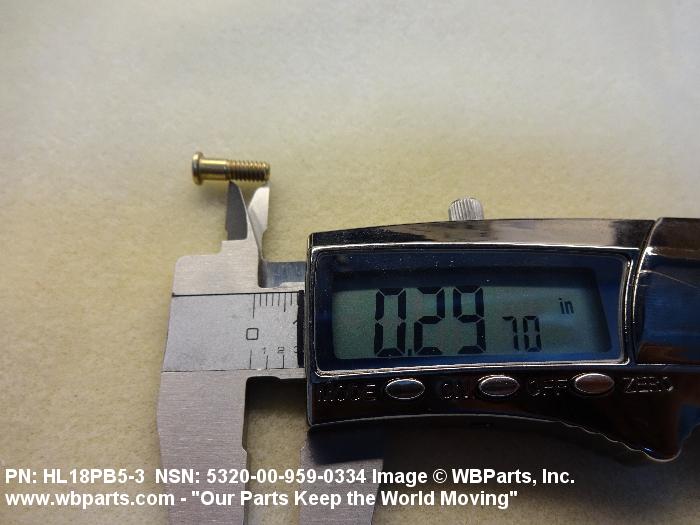

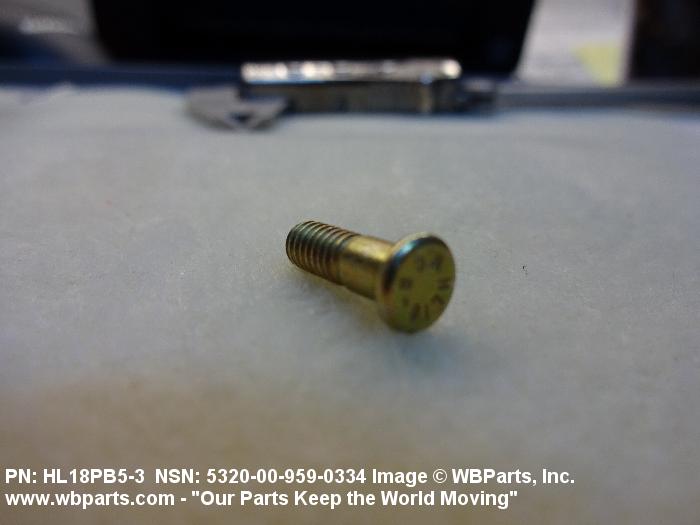

Drawings & Photos | NSN 5320-00-959-0334
Demand History | NSN 5320-00-959-0334
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL18PB53 | 2024-08-16 | 1 | US |
| HL18PB53 | 2023-08-07 | 1000 | Germany |
| HL18PB53 | 2022-09-20 | 280 | United States |
| HL18PB53 | 2022-09-01 | 282 | Philippines |
| BACB30FM5-3 | 2022-05-18 | 12552 | DIBBS |
| HL18PB-5-3 | 2022-05-18 | 12552 | DIBBS |
| HL18PB53 | 2021-08-26 | 500 | US |
| HL18PB-5-3 | 2019-08-04 | 20000 | DIBBS |
| HL18PB53 | 2019-01-16 | 8 | United States |
| HL18PB53 | 2019-01-16 | 120 | United States |
| HL18PB53 | 2019-01-16 | 240 | United States |
| HL18PB53 | 2018-08-30 | 10 | US |
| 5320-00-959-0334 | 2017-08-18 | 50 | Malaysia |
| HL18PB53 | 2017-05-04 | 18 | us |
| HL18PB53 | 2015-08-31 | 22 | United States |
| 5320-00-959-0334 | 2014-08-03 | 13660 | DIBBS |
| HL18PB53 | 2012-09-05 | 100 | United Kingdom |
| 5320-00-959-0334 | 2012-06-29 | 34492 | DIBBS |
| HL18PB53 | 2011-02-16 | 1000 | United States |
| HL18PB53 | 2010-07-30 | 300 | Italy |
| 5320-00-959-0334 | 2010-07-28 | 53727 | DIBBS |
| 5320-00-959-0334 | 2010-05-07 | 12084 | DIBBS |
| HL18PB53 | 2008-10-14 | 1 | India |
| 5320-00-959-0334 | 2008-06-27 | 25 | DE |
| 5320-00-959-0334 | 2006-09-27 | 300 | South Korea |
Cross Reference | NSN 5320-00-959-0334
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACB30FM5-3 | 2N935 | B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES |
| BACB30FM5-3 | 81205 | THE BOEING COMPANY DBA BOEING |
| GB511D08-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL18PB-5-3 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL18PB-5-3 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18PB-5-3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18PB-5-3 | 1RC86 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18PB-5-3 | 2G586 | PEERLESS AEROSPACE FASTENER CORPORATION |
| HL18PB-5-3 | 2N935 | B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES |
| HL18PB-5-3 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL18PB-5-3 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18PB-5-3 | 60516 | WEST COAST AEROSPACE INC |
| HL18PB-5-3 | 73197 | HI-SHEAR CORPORATION |
| HL18PB-5-3 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18PB-5-3 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL18PB-5-3 | L4528 | LISI AEROSPACE CANADA CORP |
| HL18PB-5-3 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-959-0334
Related Products | NSN 5320-00-959-0334
Technical Data | NSN 5320-00-959-0334
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A34 FLAT CHAMFER |

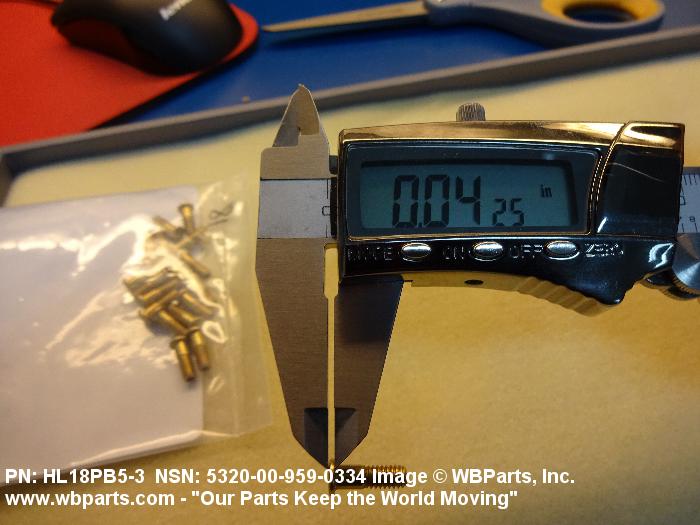

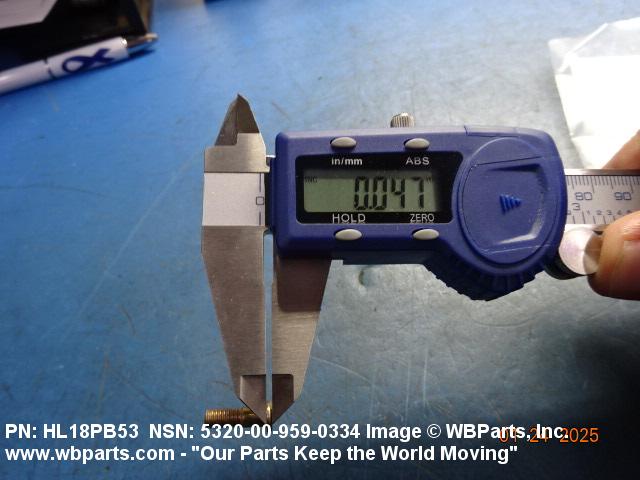

| HEAD HEIGHT | 0.037 INCHES MINIMUM AND 0.047 INCHES MAXIMUM |

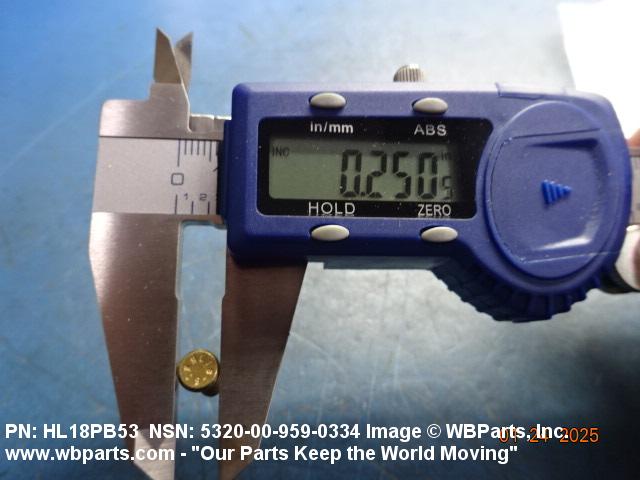

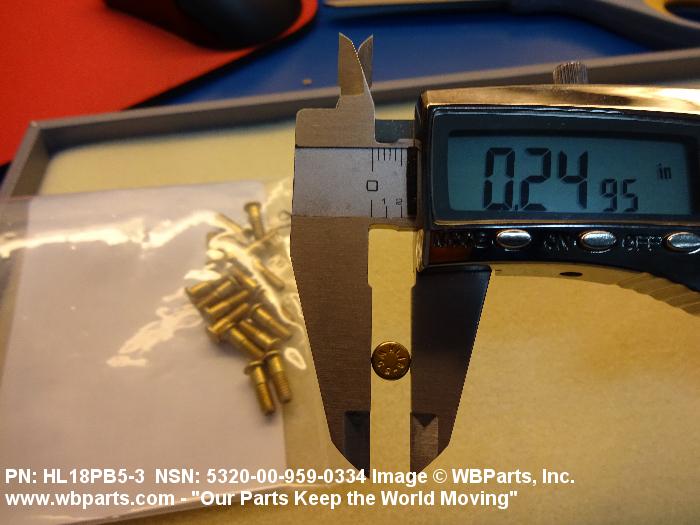

| HEAD MAJOR DIAMETER | 0.242 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

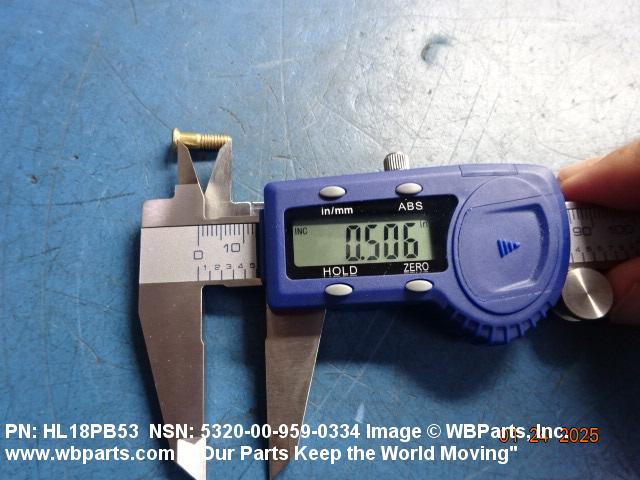

| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.0791 INCHES MINIMUM AND 0.0801 INCHES MAXIMUM |

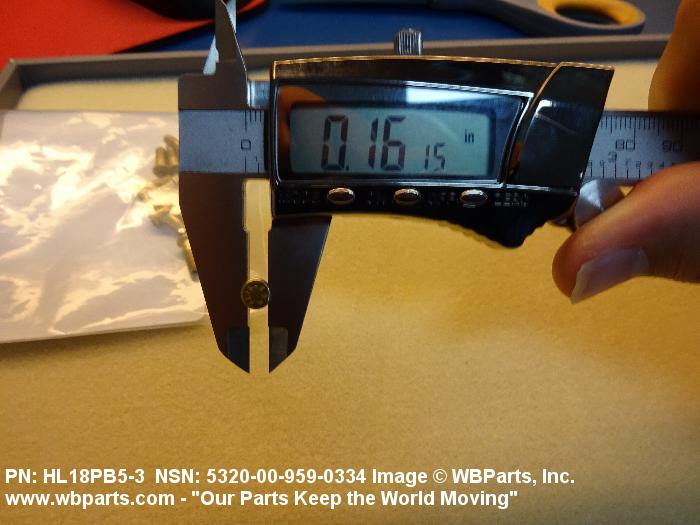

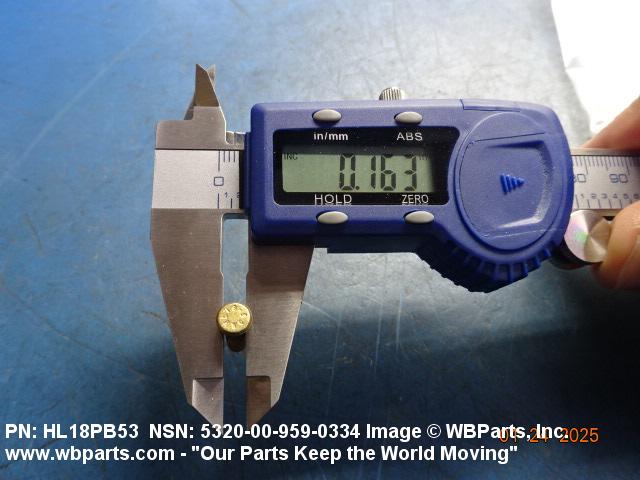

| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1635 INCHES MAXIMUM |

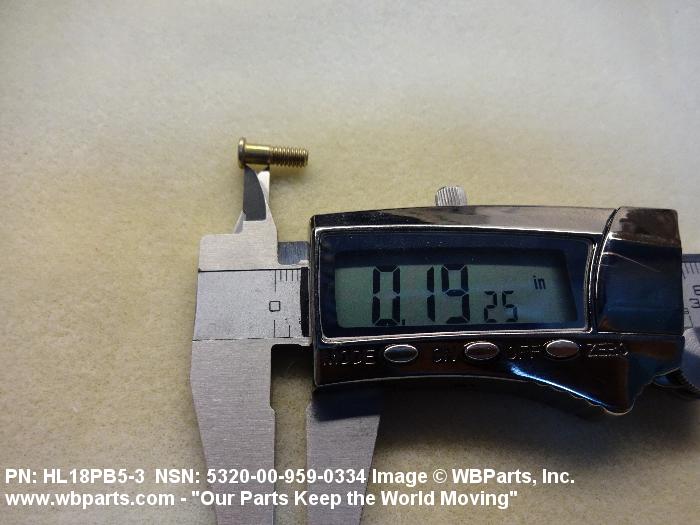

| GRIP LENGTH | 0.193 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | CETYL ALCOHOL, SPEC 305, HI-SHEAR CORP |
| IDENTIFICATION CODE COLOR | BRONZE |
| SPECIAL FEATURES | COLOR BRONZE |
| MANUFACTURERS CODE | 73197 |
| DESIGN CONTROL REFERENCE | HL18PB-5-3 |
Restrictions/Controls & Freight Information | NSN 5320-00-959-0334
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-959-0334
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
