Product Details | PIN-RIVET

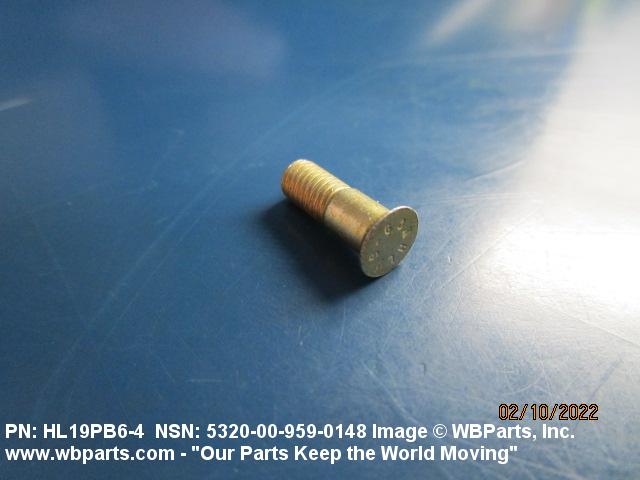

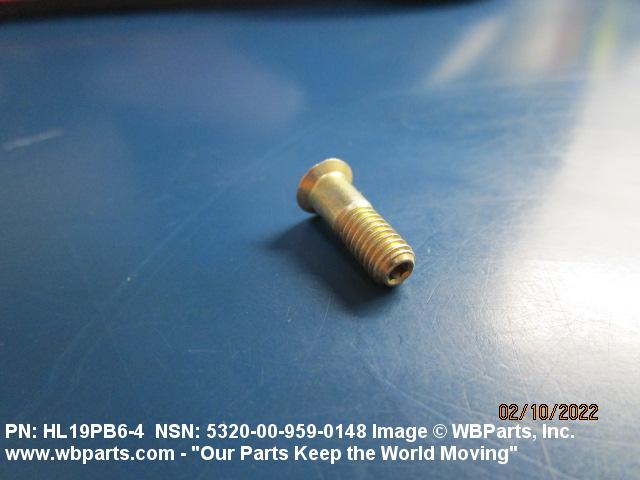

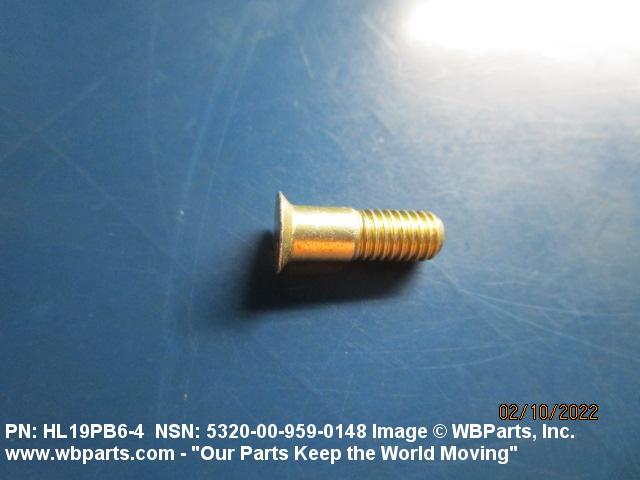

5320-00-959-0148 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: BACB30FN63, BACB30FN-6-3 , BACB30FN64, BACB30FN6-4 , HL19PB63, HL19PB-6-3 , HL19PB64, HL19PB-6-4, HL19PB6-4, HS560564, HS5605-6-4, GB510B33, GB510B3-3 , GB510B34, GB510B3-4, 10007664, 100-076-6-4, 1213AS62463, 1213AS624-6-3 , 1213AS62464, 1213AS624-6-4, 5320-00-959-0148, 00-959-0148, 5320009590148, 009590148
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAY 1966 | 00-959-0148 | 67165 ( PIN-RIVET ) |

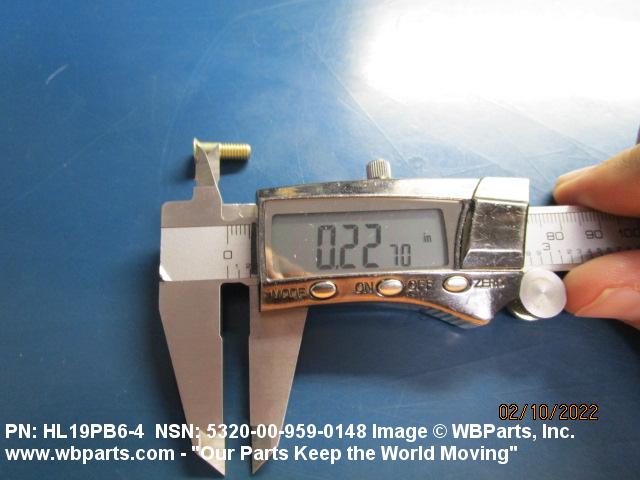

Drawings & Photos | NSN 5320-00-959-0148
Demand History | NSN 5320-00-959-0148
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL19PB63 | 2023-08-08 | 1000 | Germany |
| HL19PB64 | 2023-08-08 | 1000 | Germany |
| HL19PB64 | 2023-04-13 | 32 | South Africa |
| HL19PB64 | 2022-12-08 | 2 | United States |
| HL19PB64 | 2022-11-30 | 30 | South Africa |
| HL19PB64 | 2022-09-01 | 208 | Philippines |
| 5320-00-959-0148 | 2021-11-03 | 70 | MY |
| HL19PB64 | 2021-09-30 | 110 | Malaysia |
| HL19PB63 | 2021-08-30 | 70 | Malaysia |
| HL19PB64 | 2017-03-08 | 10 | Philippines |
| HL19PB64 | 2014-11-05 | 500 | Ukraine |
| 5320-00-959-0148 | 2014-11-02 | 2478 | DIBBS |
| 5320-00-959-0148 | 2014-10-08 | 3149 | DIBBS |
| 5320-00-959-0148 | 2014-10-02 | 3185 | DIBBS |
| 5320-00-959-0148 | 2014-03-02 | 9850 | DIBBS |
| BACB30FN63 | 2014-01-16 | 20 | United States |
| HL19PB64 | 2013-11-22 | 12 | Hong Kong |
| BACB30FN64 | 2012-10-05 | 30 | Puerto Rico |
| HL19PB63 | 2010-02-08 | 200 | Italy |
| HL19PB64 | 2010-02-08 | 1000 | Italy |
| 5320-00-959-0148 | 2009-05-07 | 50842 | DIBBS |
| 5320-00-959-0148 | 2009-03-09 | 9063 | DIBBS |
| 5320-00-959-0148 | 2008-12-08 | 2753 | DIBBS |
| 5320-00-959-0148 | 2008-10-20 | 73668 | DIBBS |
| 5320-00-959-0148 | 2008-08-12 | 100 | Israel |
| 5320-00-959-0148 | 2008-07-02 | 16505 | DIBBS |
| 5320-00-959-0148 | 2008-06-30 | 16505 | DIBBS |
| 5320-00-959-0148 | 2008-06-06 | 21933 | DIBBS |
| 5320-00-959-0148 | 2008-02-05 | 21933 | DIBBS |
| 5320-00-959-0148 | 2008-02-01 | 16193 | DIBBS |
| BACB30FN64 | 2007-10-19 | 250 | Singapore |
Cross Reference | NSN 5320-00-959-0148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-076-6-4 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 1213AS624-6-4 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| BACB30FN6-4 | 1RC86 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACB30FN6-4 | 81205 | THE BOEING COMPANY DBA BOEING |
| GB510B3-4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL19PB-6-4 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL19PB-6-4 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL19PB-6-4 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL19PB-6-4 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL19PB-6-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HL19PB-6-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL19PB-6-4 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL19PB6-4 | 06275 | ALLEN R C INSTRUMENTS INC |
| HL19PB6-4 | 08AF1 | KELLY MANUFACTURING COMPANY |
| HL19PB6-4 | 60516 | WEST COAST AEROSPACE INC |
| HL19PB6-4 | 73197 | HI-SHEAR CORPORATION |
| HL19PB6-4 | L4528 | LISI AEROSPACE CANADA CORP |
| HS5605-6-4 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS5605-6-4 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-00-959-0148
Related Products | NSN 5320-00-959-0148
5320-00-959-0150, 5320-00-959-0152, 5320-00-959-0158, 5320-00-959-0159, 5320-00-959-0162
Technical Data | NSN 5320-00-959-0148
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 95000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |

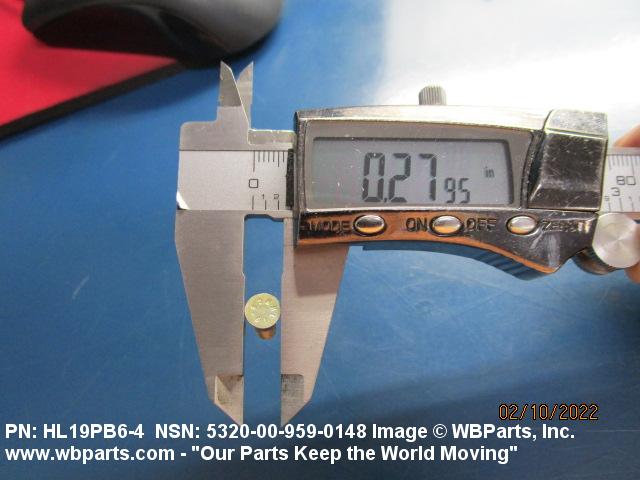

| HEAD MAJOR DIAMETER | 0.297 INCHES MINIMUM AND 0.302 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

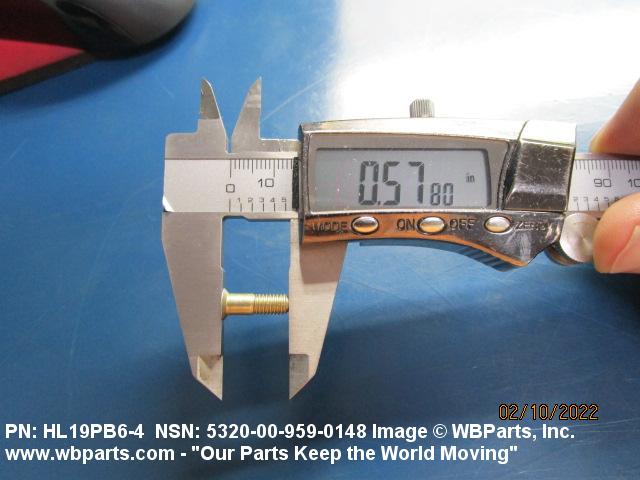

| FASTENER LENGTH | 0.565 INCHES MINIMUM AND 0.585 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.079 INCHES MINIMUM AND 0.081 INCHES MAXIMUM |

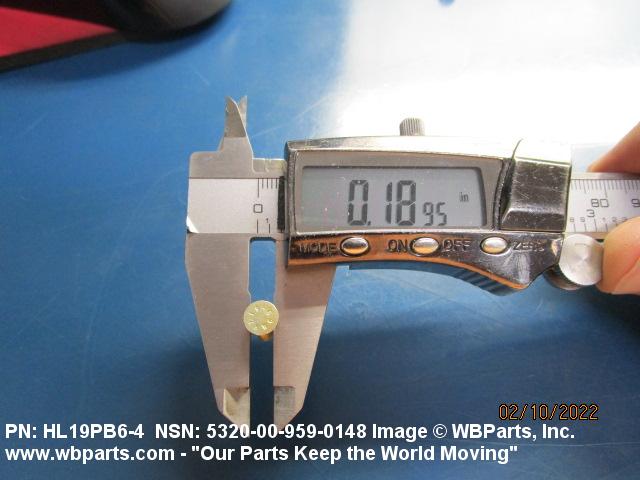

| SHANK DIAMETER | 0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
