Product Details | BLIND RIVET

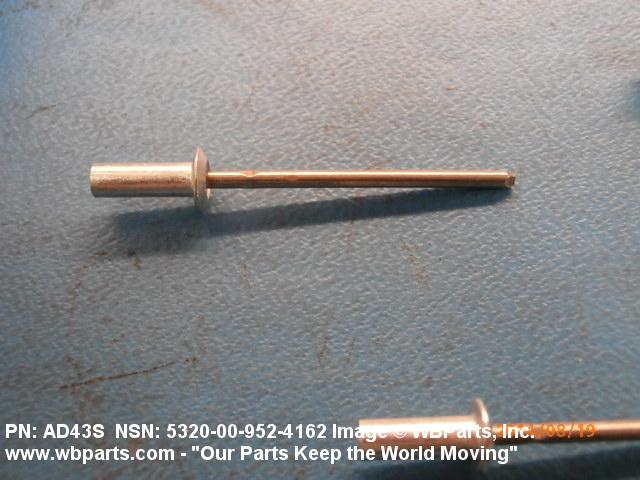

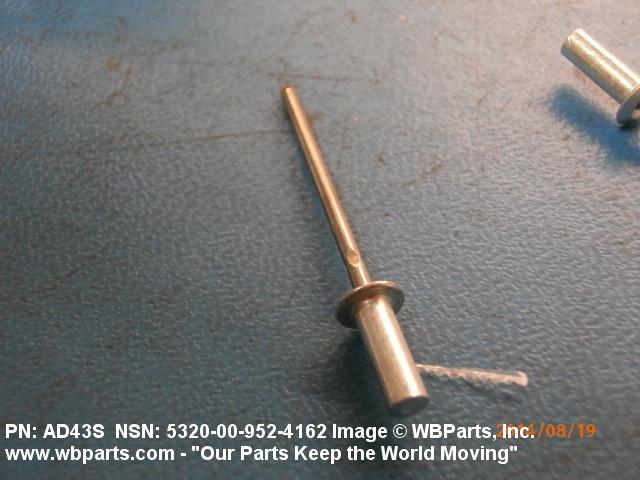

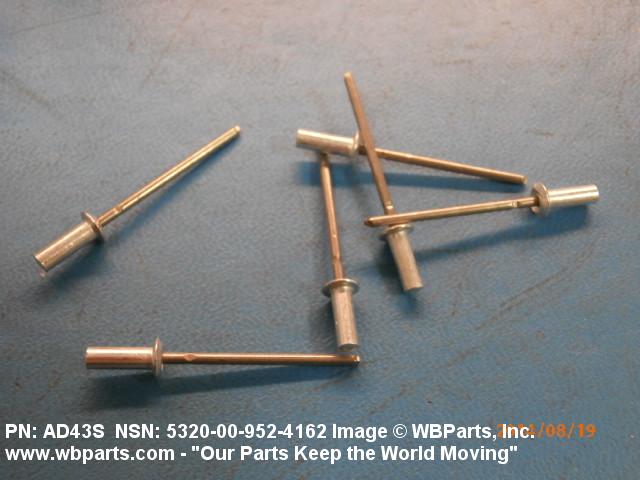

5320-00-952-4162 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/6-A403F, M242436A403F, AD43S, MIL-R-24243/6, MILR242436, 7702885-52, 5320-00-952-4162, 00-952-4162, 5320009524162, 770288552, 009524162
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-952-4162 | 00864 ( RIVET, BLIND ) |

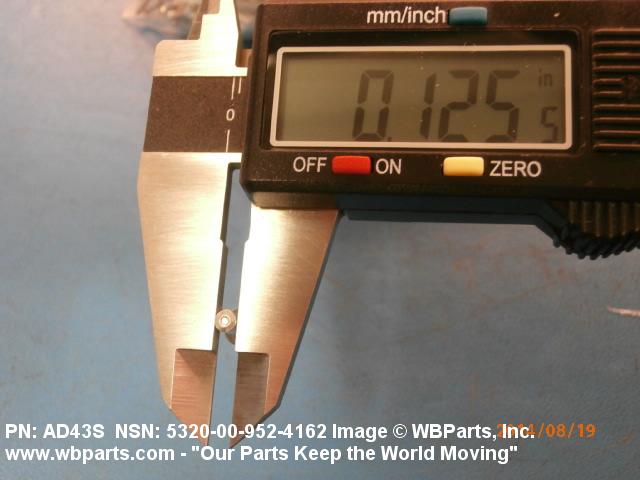

Drawings & Photos | NSN 5320-00-952-4162
Demand History | NSN 5320-00-952-4162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-952-4162 | 2022-08-237 | 500 | United States |
| 5320-00-952-4162 | 2021-11-333 | 72 | United States |
| 5320-00-952-4162 | 2020-11-307 | 10 | United States |
| 5320-00-952-4162 | 2018-04-94 | 100 | US |
| 5320-00-952-4162 | 2017-03-74 | 1500 | United States |
| 5320-00-952-4162 | 2014-07-191 | 500 | Germany |
| 5320-00-952-4162 | 2014-07-191 | 500 | Germany |
| M242436A403F | 2014-04-119 | 250 | US |
| M242436A403F | 2014-04-119 | 500 | US |
| M242436A403F | 2014-04-119 | 750 | US |
| 5320-00-952-4162 | 2013-02-39 | 450 | US |
| 5320-00-952-4162 | 2012-05-144 | 500 | United States |
| MILR242436 | 2009-12-337 | 96 | US |
| 5320-00-952-4162 | 2009-02-42 | 1400 | United States |
Cross Reference | NSN 5320-00-952-4162
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-952-4162
Related Products | NSN 5320-00-952-4162
Technical Data | NSN 5320-00-952-4162
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 BODY STEEL COMP 1012 OR STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1524 OR STEEL COMP 1025 OR STEEL COMP 1045 OR STEEL COMP 1046 OR STEEL COMP 1548 OR STEEL COMP 1049 OR STEEL COMP 1050 OR STEEL COMP 1551 OR STEEL COMP 1552 OR STEEL COMP 1053 OR STEEL COMP 1055 OR STEEL COMP 1059 OR STEEL COMP 1060 OR STEEL COMP 1561 OR STEEL COMP 1064 OR STEEL COMP 1065 OR STEEL COMP 1566 OR STEEL COMP 1069 OR STEEL COMP 1070 OR STEEL COMP 1572 OR STEEL COMP 1074 OR STEEL COMP 1075 MANDREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY ASTM A545 ASSN STD ALL MATERIAL RESPONSES MANDREL |
| SURFACE TREATMENT | CADMIUM OR CADMIUM AND CHROMATE OR CADMIUM AND PHOSPHATE OR ZINC AND CHROMATE OR PHOSPHATE AND ZINC MANDREL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416JBDQQ-P-416 FED SPEC 2ND TREATMENT RESPONSE OR MIL-P-16232,TY Z,CL 2 MIL SPEC 5TH TREATMENT RESPONSE OR QQ-Z-325,TY 2,CL 3 FED SPEC 4TH TREATMENT RESPONSE MANDREL |
| SHEAR STRENGTH | 320 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |

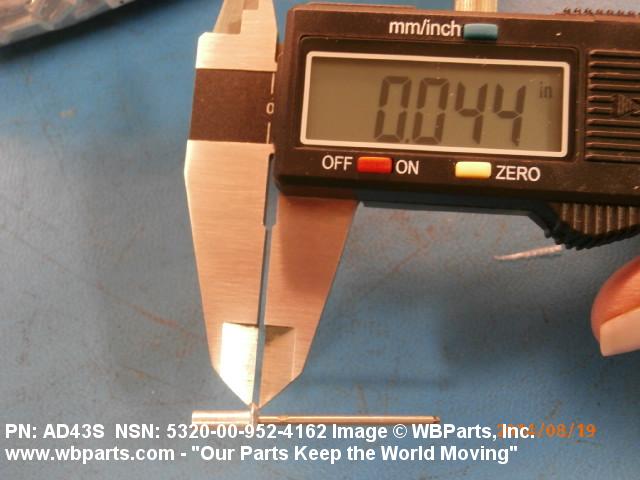

| HEAD HEIGHT | 0.026 INCHES MINIMUM AND 0.046 INCHES MAXIMUM |

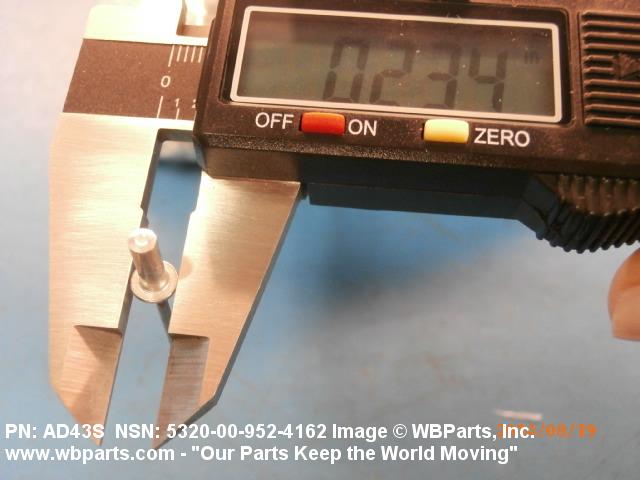

| HEAD MAJOR DIAMETER | 0.224 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| SHANK STYLE | D18 SELF-PLUGGING |

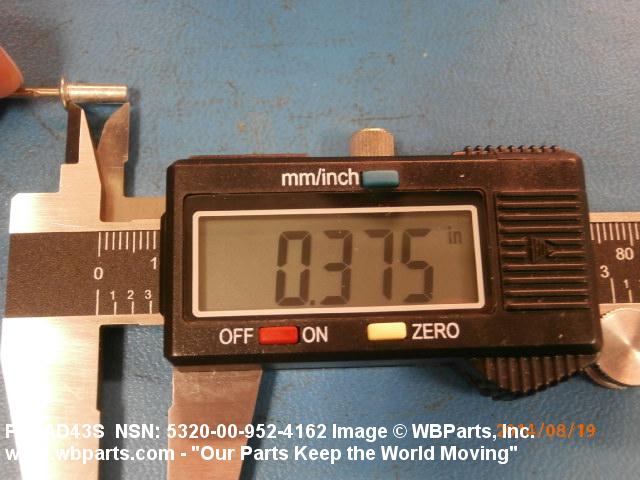

| FASTENER LENGTH | 0.347 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
