NSN 5320-00-866-4893 MS903540502, MS90354-0502, ASNA0027SB0502
Product Details | BLIND RIVET
5320-00-866-4893 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS903540502, MS90354-0502, ASNA0027SB0502, BPT0502, BP-T05-02, BPT52, BPT5-2, VB9035452, VB90354-5-2, 73755-05-02, 5320-00-866-4893, 00-866-4893, 5320008664893, 737550502, 008664893
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-866-4893 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-00-866-4893
Demand History | NSN 5320-00-866-4893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ASNA0027SB0502 | 2022-03-73 | 200 | United States |
| MS90354-0502 | 2014-06-157 | 50 | United States |
Cross Reference | NSN 5320-00-866-4893
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73755-05-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| ASNA0027SB0502 | F0210 | AIRBUS HELICOPTERS (ETS DEMARIGNANE) |
| BP-T05-02 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BP-T05-02 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BP-T05-02 | F6167 | HUCK |
| BPT5-2 | F0188 | BLANC AERO INDUSTRIES - GROUPE LISIAEROSPACE |
| BPT5-2 | F0236 | SAINT CHAMOND GRANAT SA |
| MS90354-0502 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| VB90354-5-2 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VB90354-5-2 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-866-4893
Related Products | NSN 5320-00-866-4893
Technical Data | NSN 5320-00-866-4893
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4027 OR STEEL COMP 4037 OR STEEL COMP 4130 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD 1ST MATERIAL RESPONSE OR ASTM A547 ASSN STD 2ND MATERIAL RESPONSE OR 66 FED STD 3RD MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE SLEEVE MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OR ASTM A547 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SLEEVE CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HARDNESS RATING | 48.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM STEM |
| MINIMUM TENSILE STRENGTH | 112000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 2340 SINGLE POUNDS PER SQUARE INCH |

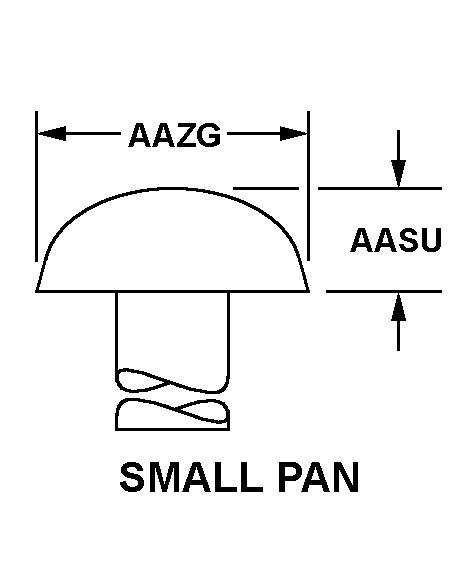

| HEAD STYLE | C20 SMALL PAN |
| HEAD HEIGHT | 0.062 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.250 INCHES MINIMUM AND 0.272 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.280 INCHES NOMINAL |
| SHANK DIAMETER | 0.162 INCHES MINIMUM AND 0.164 INCHES MAXIMUM |
| GRIP LENGTH | 0.094 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS90354-0502 |
Restrictions/Controls & Freight Information | NSN 5320-00-866-4893
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-866-4893
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
