NSN 5320-00-849-7461 NAS146626, NAS1466-26, R3001T0626
Product Details | PIN-RIVET

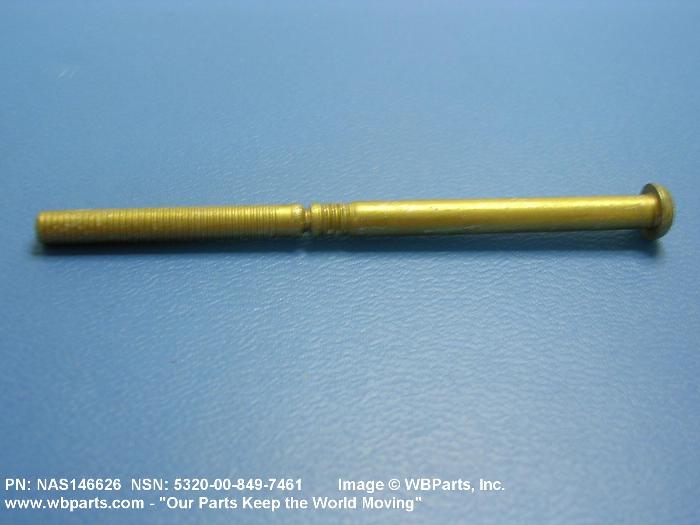

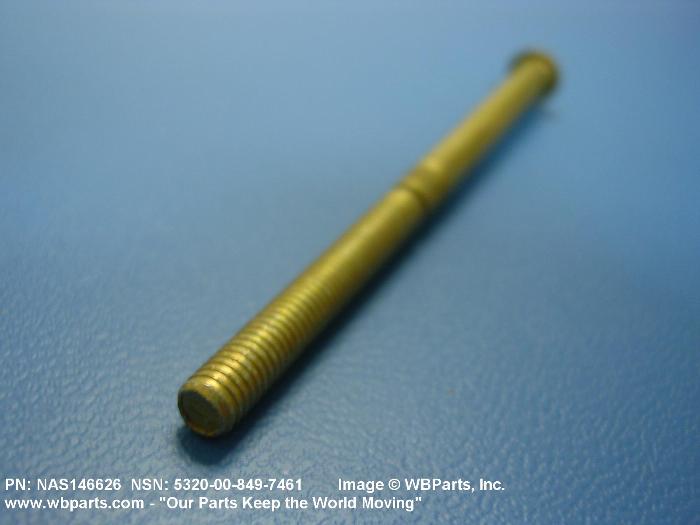

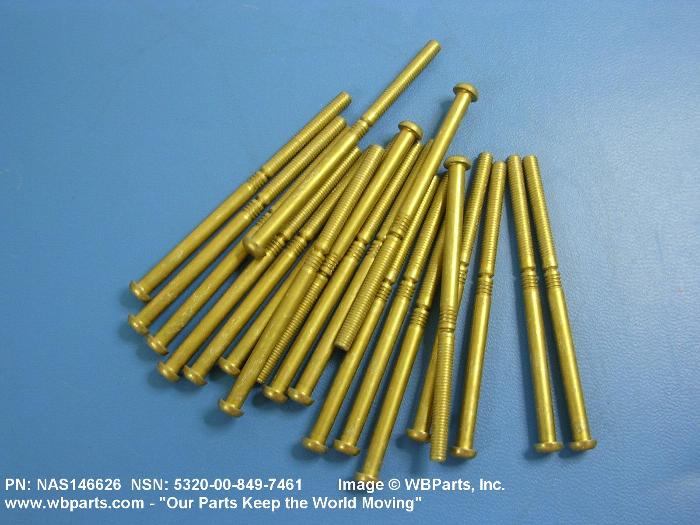

5320-00-849-7461 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS146626, NAS1466-26, R3001T0626, R3001-T06-26, 5320-00-849-7461, 00-849-7461, 5320008497461, 008497461
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1967 | 00-849-7461 | 67165 ( PIN-RIVET ) |

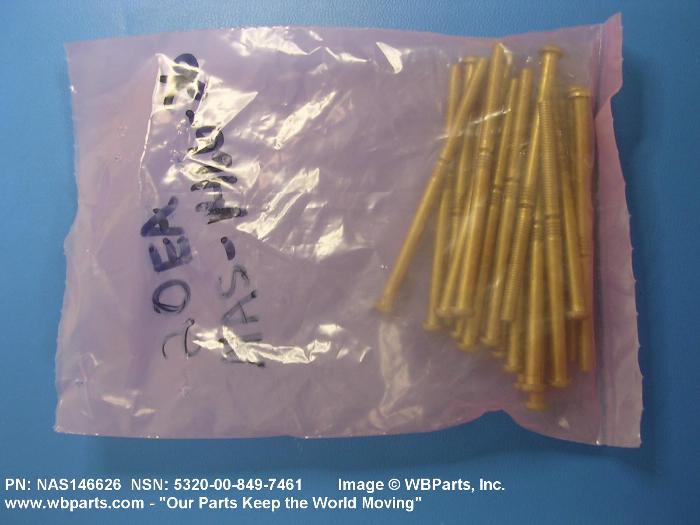

Drawings & Photos | NSN 5320-00-849-7461
Demand History | NSN 5320-00-849-7461
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS146626 | 2008-05-140 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-849-7461
Technical Data | NSN 5320-00-849-7461
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | A31 UNDER CUT PAN NO. 2 |
| HEAD HEIGHT | 0.099 INCHES MINIMUM AND 0.111 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.297 INCHES MINIMUM AND 0.327 INCHES MAXIMUM |
| SHANK STYLE | B27 PIN-RIVET, MULTIPLE GROOVED |
| FASTENER LENGTH | 3.190 INCHES MINIMUM AND 3.390 INCHES MAXIMUM |
| SHANK DIAMETER | 0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| GRIP LENGTH | 1.595 INCHES MINIMUM AND 1.656 INCHES MAXIMUM |
