NSN 5320-00-814-1184 BACB30MB57, BACB30MB5-7, HL20PB57

Product Details | PIN-RIVET

5320-00-814-1184 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.

Part Alternates: BACB30MB57, BACB30MB5-7, HL20PB57, HL20PB5-7, HS560357, HS5603-5-7, 10004857, 100-048-5-7, 5320-00-814-1184, 00-814-1184, 5320008141184, 008141184

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 MAR 1968	00-814-1184	67165 ( PIN-RIVET )

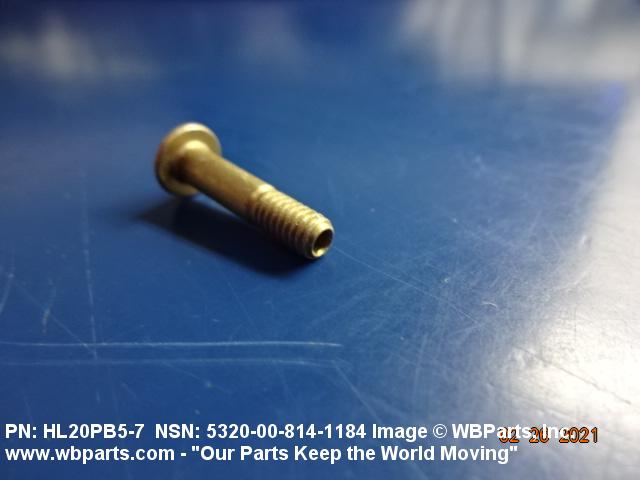

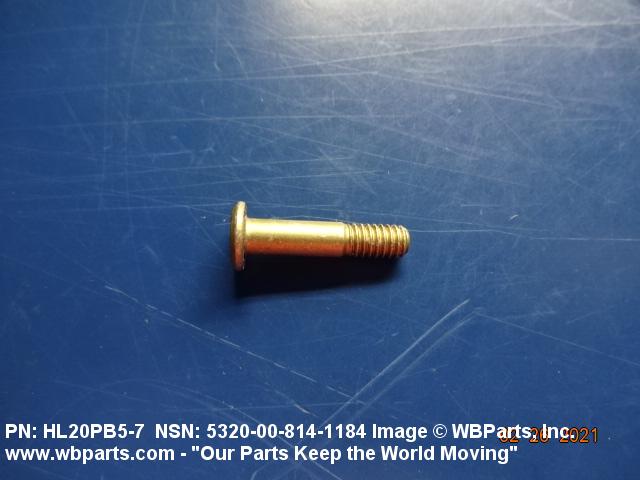

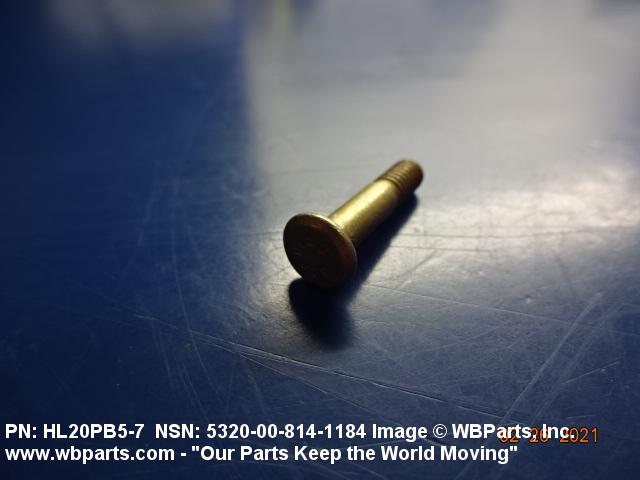

Drawings & Photos | NSN 5320-00-814-1184

Part Number	Request Date	QTY	Origin
HS560357	2023-01-03	2112	IN
5320-00-814-1184	2022-11-329	1200	IN
BACB30MB5-7	2022-03-81	7596	DIBBS
HL20PB5-7	2022-03-81	7596	DIBBS
BACB30MB5-7	2022-01-25	3251	DIBBS
HL20PB5-7	2022-01-25	3251	DIBBS
BACB30MB5-7	2019-07-188	10642	DIBBS
HL20PB5-7	2019-07-188	10642	DIBBS
10004857	2017-02-48	390	China
10004857	2016-01-20	495	China
HL20PB5-7	2014-06-157	50	United States
5320-00-814-1184	2009-04-118	27602	DIBBS
5320-00-814-1184	2009-03-76	6900	DIBBS
5320-00-814-1184	2009-02-36	7683	DIBBS
5320-00-814-1184	2008-12-345	4150	DIBBS
5320-00-814-1184	2008-06-155	12751	DIBBS

Cross Reference | NSN 5320-00-814-1184

Part Number	Cage Code	Manufacturer
100-048-5-7	97499	BELL HELICOPTER TEXTRON INC.
BACB30MB5-7	81205	THE BOEING COMPANY DBA BOEING
HL20PB5-7	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
HL20PB5-7	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB5-7	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB5-7	2N935	B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES
HL20PB5-7	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL20PB5-7	60516	WEST COAST AEROSPACE INC
HL20PB5-7	73197	HI-SHEAR CORPORATION
HL20PB5-7	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
HL20PB5-7	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
HL20PB5-7	R1120	SATAIR A/S
HS5603-5-7	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS5603-5-7	8V613	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-814-1184

Compare

Related Products | NSN 5320-00-814-1184

5320-00-814-1185, 5320-00-814-1218, 5320-00-814-1221, 5320-00-814-1225, 5320-00-814-1226

Technical Data | NSN 5320-00-814-1184

Characteristic	Specifications
MATERIAL	STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
HEAD STYLE	A34 FLAT CHAMFER

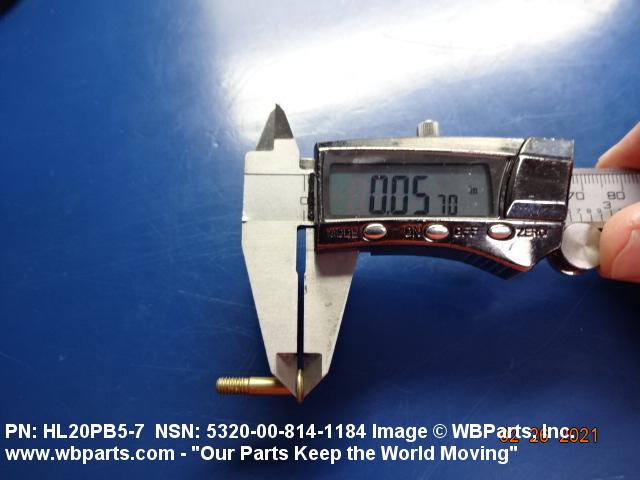

HEAD HEIGHT	0.055 INCHES MINIMUM AND 0.060 INCHES MAXIMUM

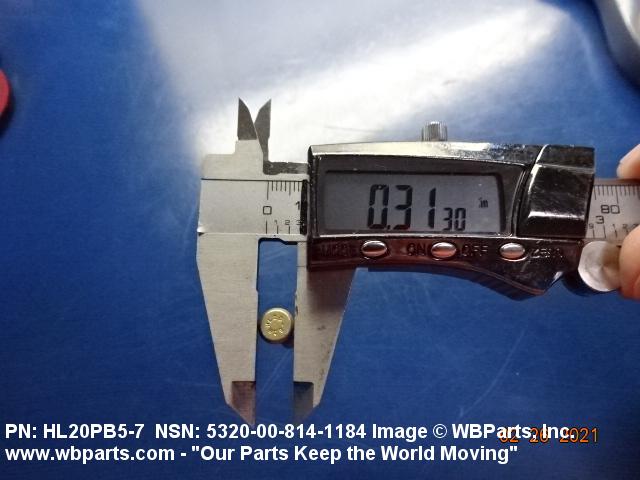

HEAD MAJOR DIAMETER	0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM
SHANK STYLE	B31 PIN-RIVET, STRAIGHT, THREADED

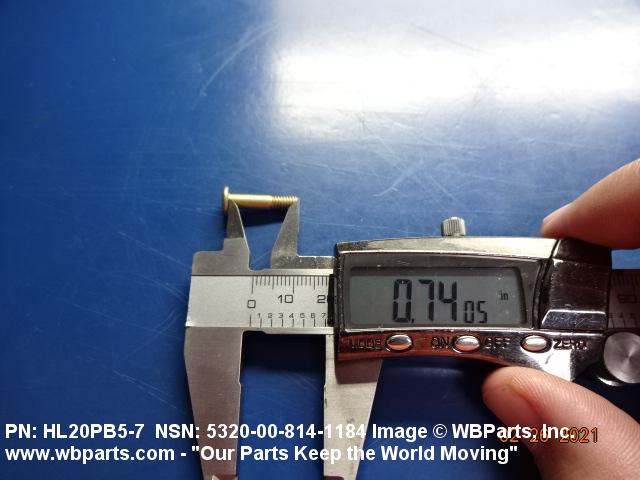

FASTENER LENGTH	0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.079 INCHES MINIMUM AND 0.080 INCHES MAXIMUM

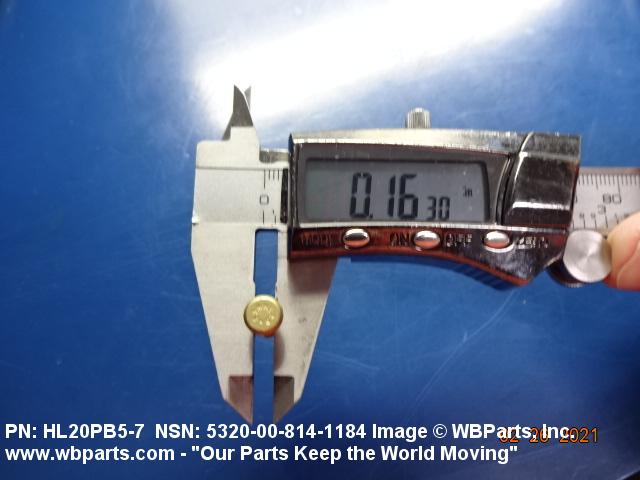

SHANK DIAMETER	0.163 INCHES MINIMUM AND 0.164 INCHES MAXIMUM

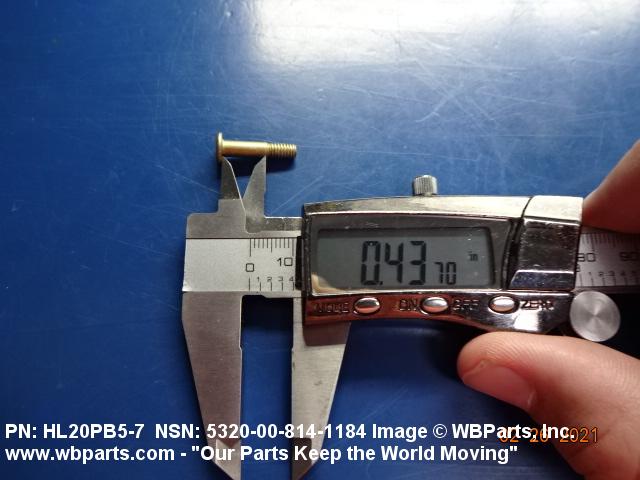

GRIP LENGTH	0.443 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD CLASS	3A
THREAD QUANTITY PER INCH	32
THREAD DIRECTION	RIGHT-HAND
MANUFACTURERS CODE	97499
DESIGN CONTROL REFERENCE	100-048-5-7

Restrictions/Controls & Freight Information | NSN 5320-00-814-1184

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-814-1184

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
