NSN 5320-00-811-8413 NAS1674084, NAS167408L4, NAS1674-08L4
Product Details | BLIND RIVET
5320-00-811-8413 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1674084, NAS167408L4, NAS1674-08L4, FFA1644, FFA164-4, 5320-00-811-8413, 00-811-8413, 5320008118413, 008118413
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-811-8413 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-00-811-8413
Demand History | NSN 5320-00-811-8413
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-811-8413 | 2024-10-305 | 5850 | United States |
| NAS167408L4 | 2024-02-58 | 6758 | US |
| NAS1674+08+4 | 2013-08-229 | 100 | Canada |
Cross Reference | NSN 5320-00-811-8413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFA164-4 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| FFA164-4 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| NAS1674+08+4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1674-08L4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-811-8413
Related Products | NSN 5320-00-811-8413
Technical Data | NSN 5320-00-811-8413
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 BOLT ALUMINUM ALLOY 7075 NUT STEEL COMP 303 OR STEEL COMP 304 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE BOLT QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE NUT ASTM A582 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5641 ASSN STD 1ST MATERIAL RESPONSE OR QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE OR AMS 5639 ASSN STD 2ND MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE BOLT ANODIZE NUT PASSIVATE OR CADMIUM SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE BOLT MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE AND QQ-P-416 TY 1 CL 3 FED SPEC 2ND TREATMENT RESPONSE SLEEVE |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM BOLT 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM NUT |

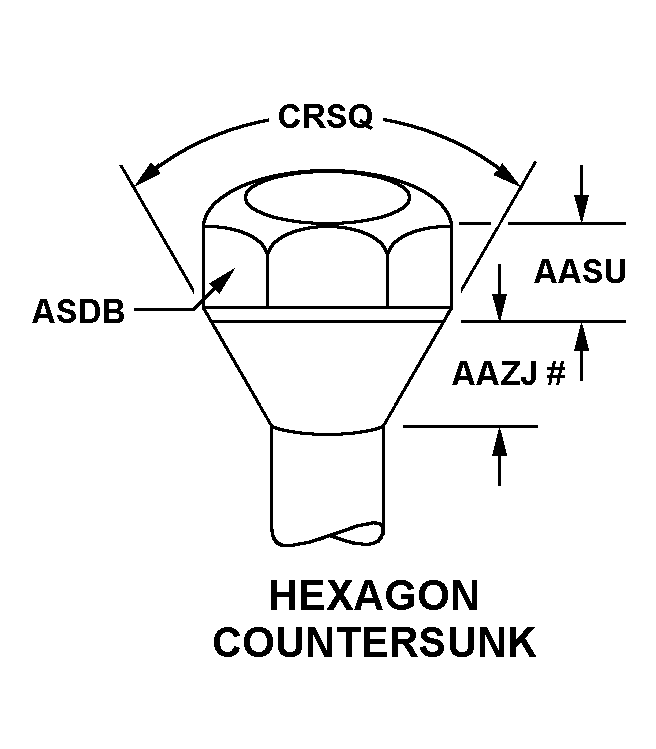

| HEAD STYLE | C11 HEXAGON COUNTERSUNK |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.277 INCHES MINIMUM AND 0.283 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | 0.360 INCHES NOMINAL |
| SHANK DIAMETER | 0.163 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |
| GRIP LENGTH | 0.250 INCHES NOMINAL |
| EXPANSION DEVICE | THREADED MANDREL |
| MANUFACTURERS CODE | 98524 |
| DESIGN CONTROL REFERENCE | FFA164-4 |
Restrictions/Controls & Freight Information | NSN 5320-00-811-8413
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
